Orion PREMIUM WIDE SERIES Manuale utente

Installation and User’s Guide

http://www.orionimages.com

All contents of this document may change without prior notice, and actual product appearance may differ

from that depicted herein

Installation and User’s Guide

32” TFT-LCD MONITOR

(SECURITY)

PREMIUM WIDE SERIES LCD MONITOR

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg2

* Follow this safety instruction to use the monitor properly and prevent the damages.

* Keep this user’s guide book for later use.

Warning Statements

* This safety instruction has “ Warning” and “ Caution” as below.

WARNING: If the user does not follow this instruction,

it may cause the serious damage to the user.

CAUTION: If the user does not follow this instruction, it may cause the slight

damage to the user or cause some damages to the monitor.

Never remove the back over and touch

the inside of the monitor. If you need a

service, please contact the service center.

Keep away the monitor from the

direct sunlight and a heating appliance.

Never push objects of any kind into this

product as they may result in a risk of fire

or electric shock.

Connect the power code to the wall

outlet tightly. If the power code or plug are

defective and the wall outlet is not tight,

lease do not use them.

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg3

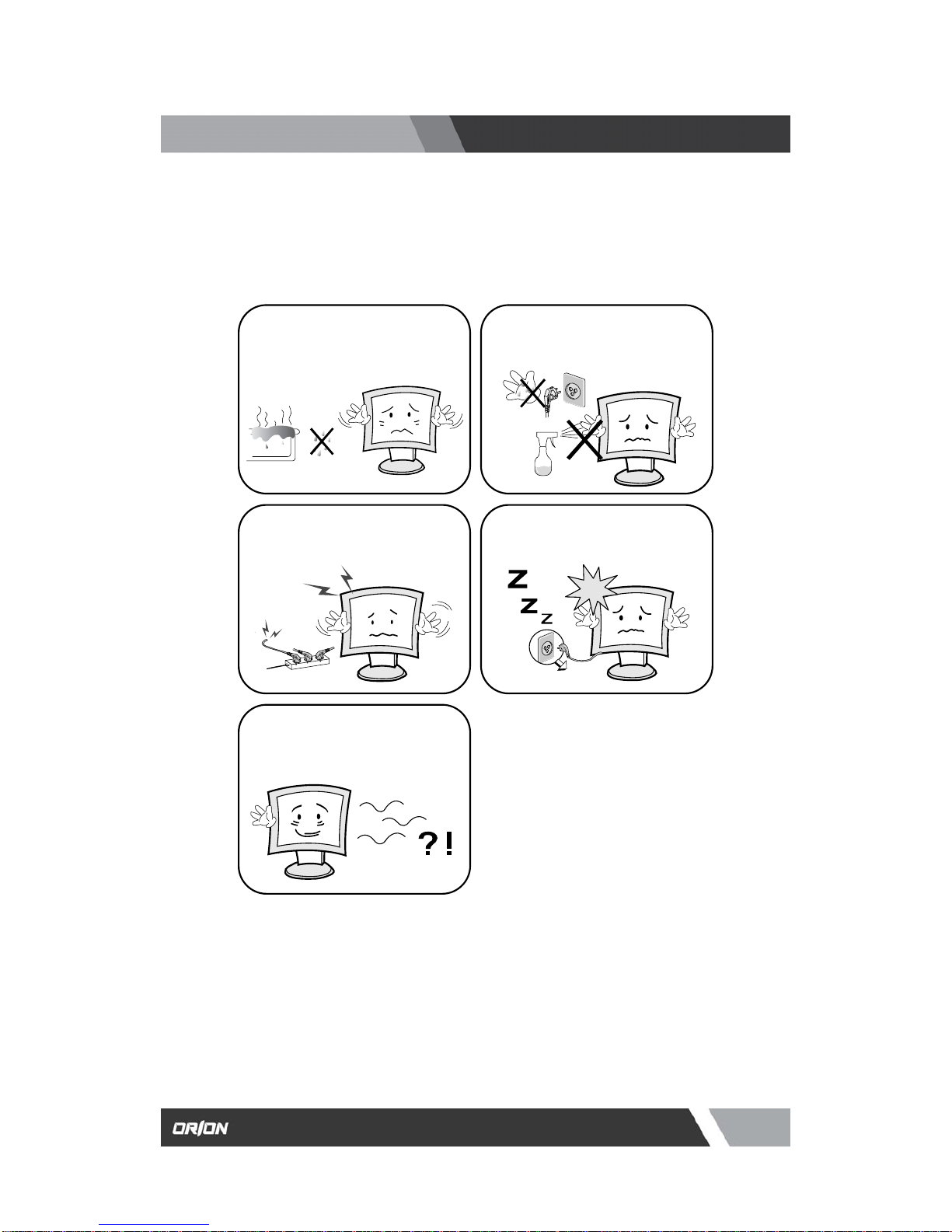

Warning Statements

Do not install this monitor on the outside

and near water. If may cause damage to

the product, electric shock and fire.

For cleaning do not use liquid cleaners.

Never touch the power plug with wet-

hands.

When lightning and thundering, unplug

the monitor from the wall outlet and never

touch it.

Unplug this product from the wall outlet,

when It does not operate for a long time.

When smoking and noising from the

monitor, unplug the product from the wall

outlet and contact a service center.

How to fix

1. Do not open this product as it contains high voltage inside.

2. It may create an electric shock.

3. It the user disassembles and remove the back cover, it does not make sure

4. To make up for the damages and do a service and exchange the monitor..

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg4

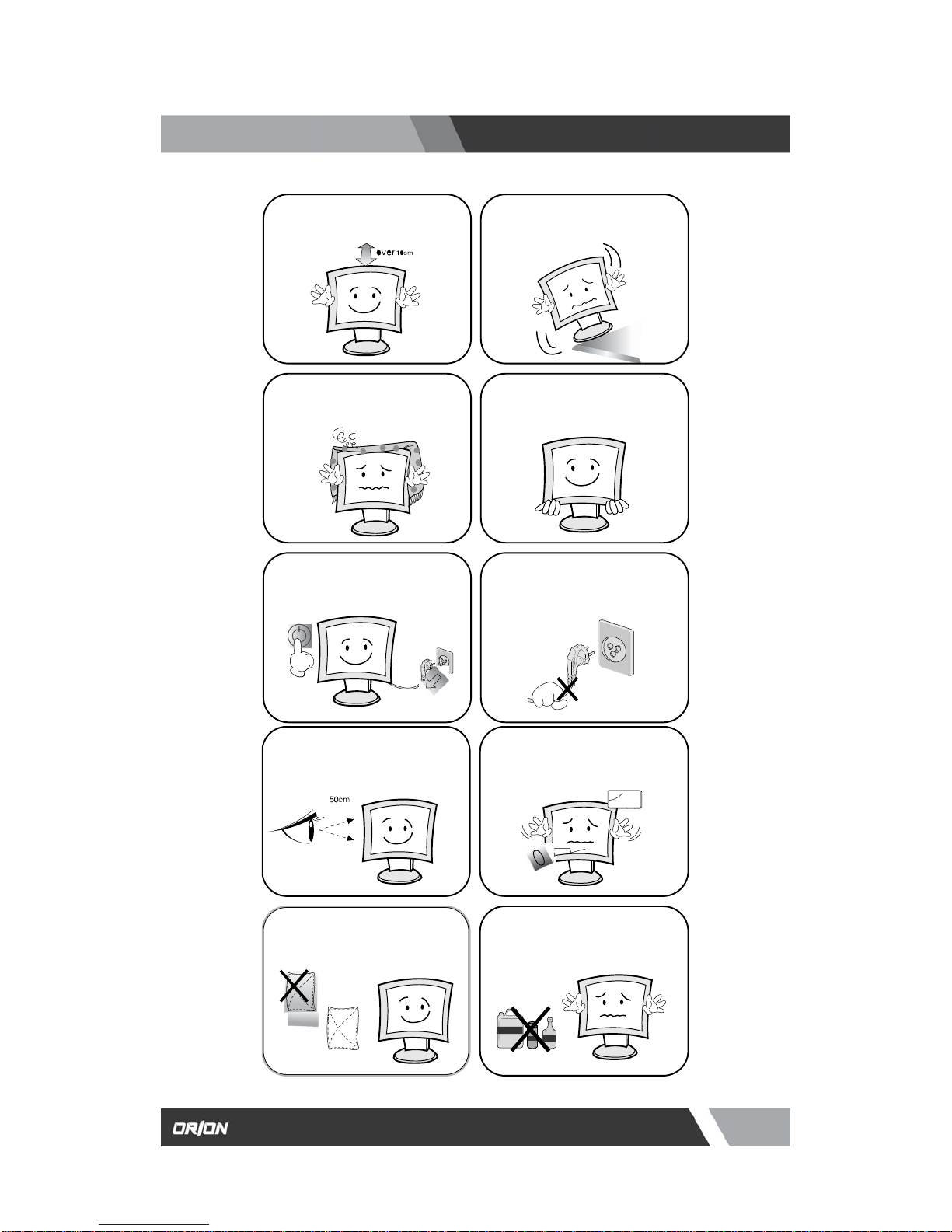

Cautions

Install this monitor some distance

From the wall and do not install unless

Proper ventilation is provided.

Place this product on a stable place.

If not, it may fall, causing serious

Damages to the monitor and people.

The openings must not be blocked by

curtain, rug or other similar surface. When carrying this monitor, be careful

not to damage the panel and drop it

It may cause some trouble.

Before carrying the monitor, tum it off

and Unplug the signal cables and the

power code From the wall outlet.

Take the power plug out from the wall

outlet. Do not pull the cable. It may

snap the inner wires and cause

overheating and fire.

Install this monitor about 50cm far from

the eyes and an angle of 0~15 degrees

below eyes. Too close installation may

cause having weak sight.

Do not press the LCD panel with hands

or the sharpened material hardly.

For cleaning, unplug the monitor from

the Wall outlet. Do net use the liquid

cloth. Use the soft cloth.

Do not use the chemical liquid for

cleaning. It may cause fading and

breakage.

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg5

TABLE OF CONTENTS

1. INSTALLATION .................................................................................................................

1.1 Parts ……....................................................................................................................

2. FEATURES …..................................................................................................................

2.1 Specifications …….……..............................................................................................

3. OSD SETTING ..........................................................................................................

6. TROUBLESHOOTING

....

.....

..................................................

.................

....................

7. LIMITED LIFETIME WARRANTY

....

.......................................................

.................

...

4. CONTROL BUTTON

....

.......................................................

................

.........................

1.2 Connection …..…..........................................................................................................

5. INFORMATION TO THE USER

....

.......................................................

................

.........

1.3 Remote Controller ..…….............................................................................................

10-14

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg6

INSTALLATION

1.1 P

Remove the package cover and place the product on a flat and secure surface or in the

installation location. Check whether all the following device and accessories are included with

the main system.

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg7

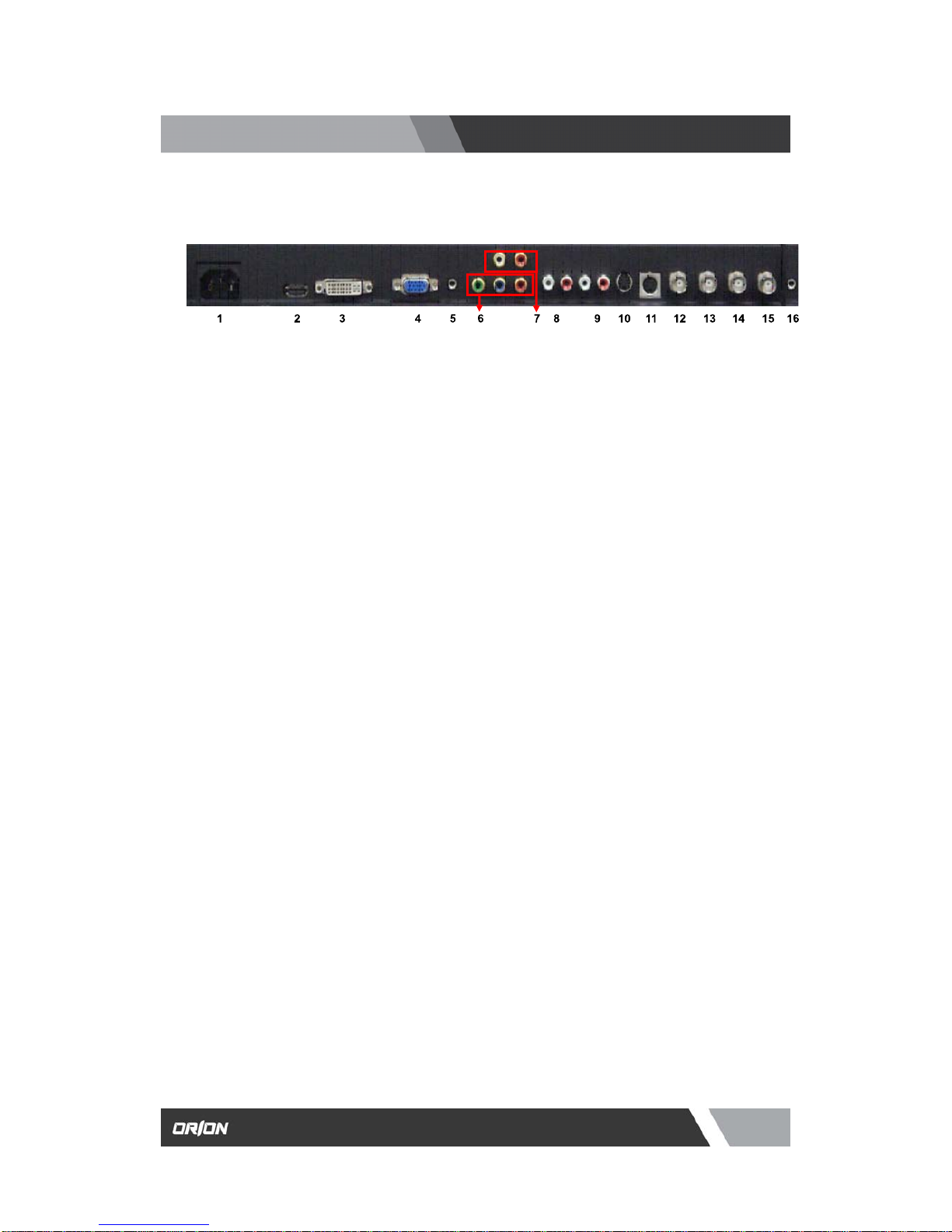

INSTALLATION

1. AC INPUT

2. HDMI IN

3. DVI IN

4. RGB IN

5. PC STEREO INPUT

6. COMPONENT IN

7. STEREO AUDIO IN

8. AUDIO2 IN

9. AUDIO1 IN

10. S-VIDEO (Y/C) OUT

11. S-VIDEO (Y/C) IN

12. VIDEO2 OUT

13. VIDEO2 IN

14. VIDEO1 OUT

15. VIDEO1 IN

16. TRIGGER IN

HDMI signal input.

DVI-D signal input.

RGB signal input.

YPbPr signal input.

Component stereo audio signal input.

Stereo audio signal input. This input for VIDEO2.

Stereo audio signal input. This input for VIDEO1 and S-VIDEO.

Y/C separated signal looping output.

Y/C separated signal input.

Video looping output for VIDEO2.

Composite signal input for VIDEO2.

Video looping output for VIDEO1.

Composite signal input for VIDEO1.

Trigger signal input. (NO / NC)

1.2 Connection

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg8

INSTALLATION

A. SOURCE SELECT

B. PVM INPUT (Not Available on this Model)

C. PIP MENU

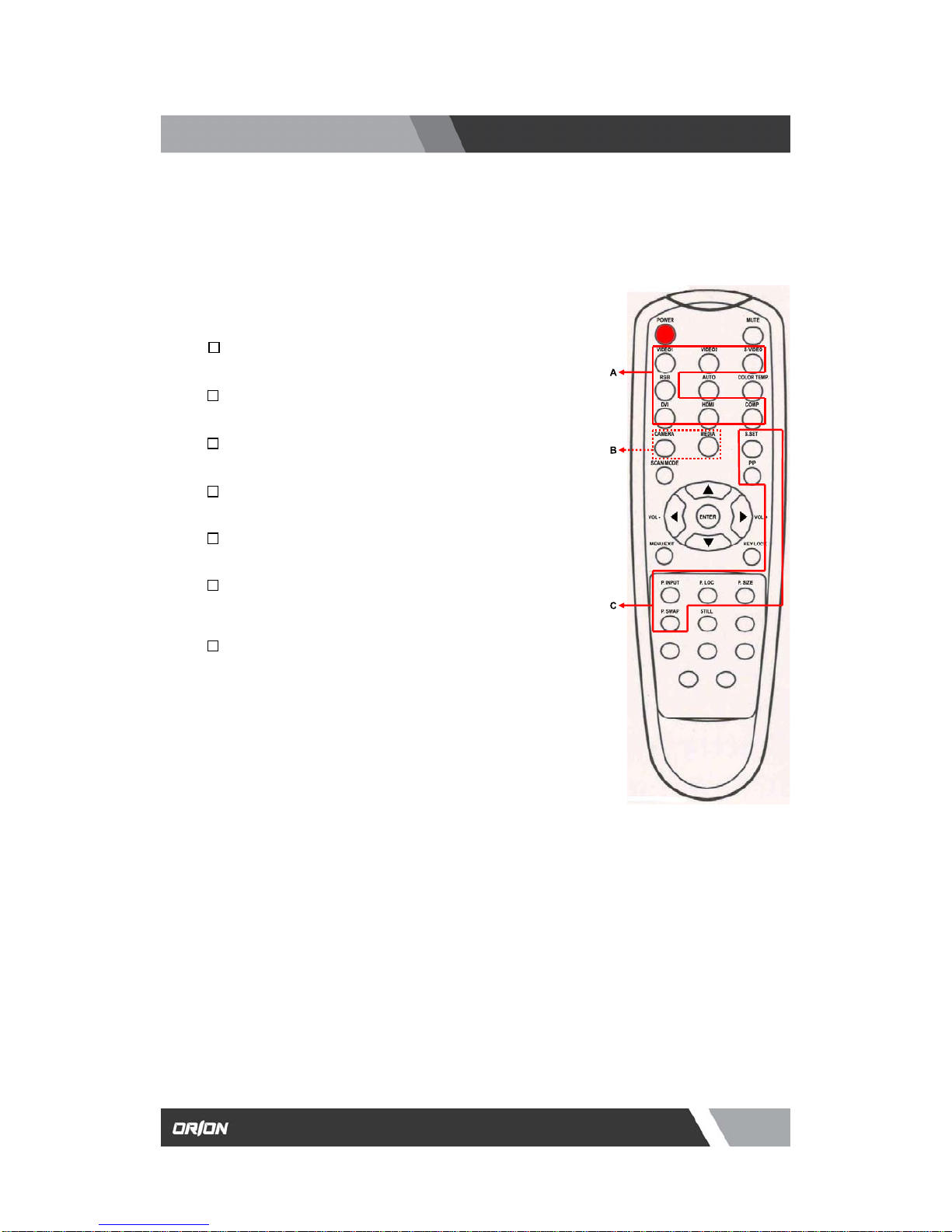

1.3 Remote Controller

Press the button to select the desired input source

POWER

Turn the monitor ON or OFF

MUTE

Temporarily silences the sound

COLOR TEMP

Adjust the color temperature of the screen.

SCANMODE

Change the scan mode of the screen. (FULL / UNDER / OVER)

MENU/EXIT

Activates and exits the OSD menu

KEYLOCK

Prevent unauthorized operation of the equipment by locking the

buttons

STILL

P. INPUT: Selects an input source for the sub picture

PIP: Activates/deactivates PIP/PBP mode

P. LOC: Selects a location for the sub picture

P. SIZE: Selects the size of the sub picture

P. SWAP: Swaps the main and sub picture

P. SET: Alternates between main and sub audio input

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg9

FEATURES

VIDEO

Screen Size 32”

Pixel Type Active Matrix TFT

Max. Resolution 1366 x 768 @ 60Hz (WSXGA)

Pixel Pitch 0.51 x 0.51mm

Brightness 500 cd/㎡

Contrast Ratio 1500 : 1

Aspect Ratio 16:9

Viewing Angle (H/V) 178 / 178

Display Color 16.7 Million

Response Time < 10ms

Video System NTSC / PAL

Frequency (H) 30 ~ 64KHz

Frequency (V) 56 ~ 75Hz

Panel Lamp Life 50,000hours

MECHANICAL

Packing Dimension

W x H x D 36.6 x 26 x 10.8

Weight 43lbs

Power Consumption 150W

Power Source AC 110~230, 50/60Hz (Auto Switching)

2.1 Specifications (32 Inch)

NOTE : Technical specifications are subject to change without notice..

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg10

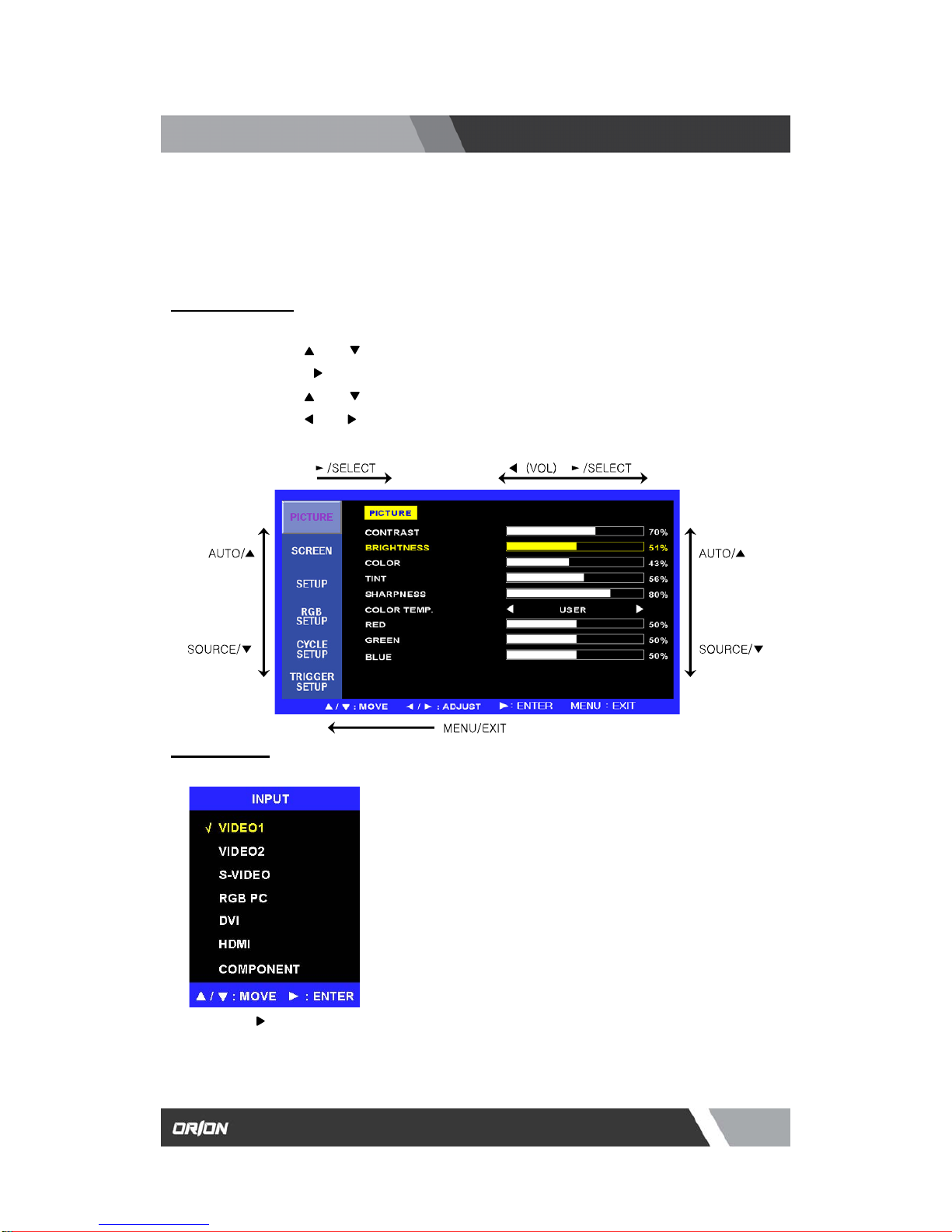

OSD (On Screen Display) SETTING

B. Input Select

3.1 OSD MENU Description

A. Menu Selection

1. Press the MENU key to access the Main menu.

2. Use the and arrow key to highlight a selection

3. Press the /SELECT key to select an item.

4. Use the and arrow key to highlight a selection.

5. Use the and arrow key to adjust the setting on a selected item.

NOTE : If you don’t connect RGB port, RGB SETUP menu is not select.

Inputs can be set to VIDEO1, VIDEO2, S-VIDEO, RGB PC, DVI, HDM, COMPONENT mode.

Press the /SELECT key then you can change the input source.
