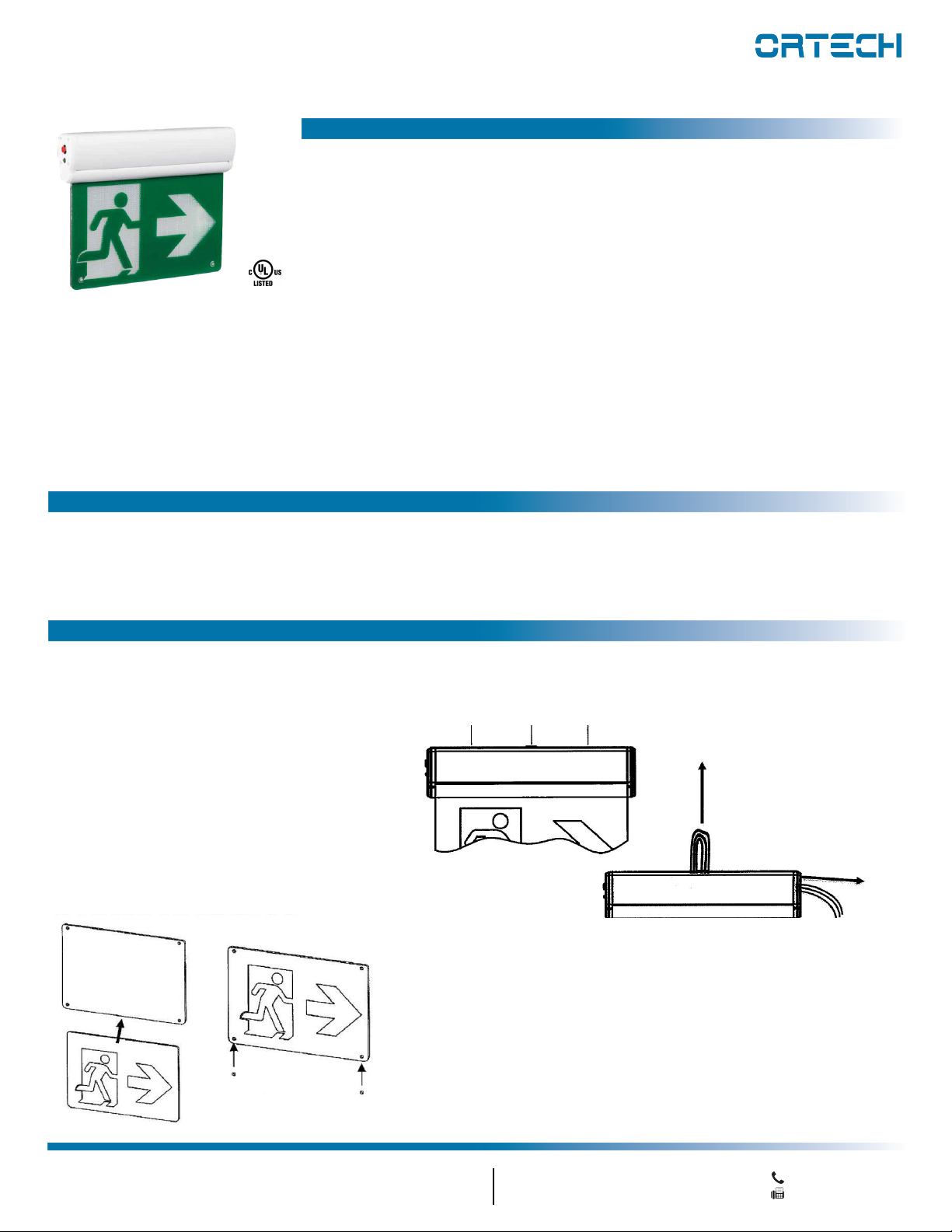

Ortech OE-G026 Manuale utente
WARNING
LED Exit Signs
MODEL OE-G026
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Electrical products can cause death or injury, or damage to property.
If in any doubt about the installation or use of this product, consult a competent electrician.
INSTALLATION GUIDE
WARNING — THE INSTALLATION MUST BE CARRIED OUT BY
A QUALIFIED ELECTRICIAN.
1. LED Exit Signs are suitable for indoor use only. DO NOT use outdoors
2. Please keep the LED Exit Signs away from any corrosive substance
3. LED Exit Signs can only be installed by a qualified electrician
4. Before installation or maintenance, please disconnect the power at fuse or circuit breaker to
prevent electric shock
Instruction Manual
1-888-543-6473
1-888-541-6474
13376 Comber Way
Surrey BC V3W 5V9
www.ortechindustries.com
375 Admiral Blvd
Mississauga, ON L5T 2N1
CAUTION
Electrical Connections
Application Notice
1. All electrical connections must be in accordance with local codes, ordinances and the National Electric code
2. DO NOT mount in hazardous locations, or near gas or electric heaters
3. DO NOT let power cords touch hot surface
4. Equipment should be mounted in locations and at heights where it will not be subjected to tampering by unauthorized personnel
5. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition
6. DO NOT use LED Exit Signs for other than intended use
7. Allow battery to charge for 24 hours before first use
•Make the proper AC wire connections
•If using 120V AC, connect the BLACK and
WHITE wires to the building utility
•If using 347V AC, connect the RED and
WHITE wires to the building utility
•Cap off unused wires in all cases, use
standard wires nuts to connect to wires
* NOTE: First turn off electricity !
Ceiling and Wall Mounting
1. Place correct PVC onto the panel (see fig.1)
Fix it on the panel with buttons supplied (see fig.2)
BLACK
120V AC
Input
WHITE
Neutral
RED
347V AC
Input
Pull out for wall and
ceiling mounting
Pull out for surface
end mounting
fig.1
fig.2
INSTALLATION GUIDE
LED Exit Signs
MODEL OE-G026
Ceiling and Wall Mounting
2. Pull out all AC wires from top of fixture for wall and ceiling mounting (see fig.3)
3. Put the hole plug (in the packing bag) to the side of fixture (see fig.4)
4. Insert EXIT panel into main body assembly gently (see fig.5)
5. Feed AC supply wires through canopy center hole
6. Assemble canopy onto main body assembly with (2) Tappinc Screws (supplied)
and make proper wire connections (see ELECTRICAL CONNECTIONS on the
first page of the instruction manual)
7. Use (2) PM4-40 screws tighten canopy to crossbar (see fig.6)
8. The unit can be installed on any surface, you may rotate the EXIT panel in any
angle from 0° to 180°, ceiling mounting rotate 90° become wall mounting (see fig.7)
Instruction Manual
1-888-543-6473
1-888-541-6474
13376 Comber Way
Surrey BC V3W 5V9
www.ortechindustries.com
375 Admiral Blvd
Mississauga, ON L5T 2N1
Pull out
Fig.3
Fig.4
Fig.5 Fig.6
PM4*40 screw
Canopy
Junction Box
(Not included)
Crossbar
Tapping screw
Fig.7
Rotate any angle
from 0° to 180°
Surface End Mounting
1. Pull out all AC wires from side of the fixture for surface end mounting (see fig.8)
2. Reference Step 1 (also see fig.3), and Step 4 to 7 (also see fig.5 and fig.6) in surface CEILING & WALL MOUNTING above for
surface end mounting (also see fig.9)
Fig.8
Pull out
Fig.9
(Not included)
