Osburn OA10630 Manuale utente
45860A
Printed in Canada 20-07-2016
HORIZON STEEL
FACEPLATE
OA10630
PRAIRIE STYLE FACEPLATE
This faceplate assembly contains the following part:
-Steel faceplate already assembled (1X )
2

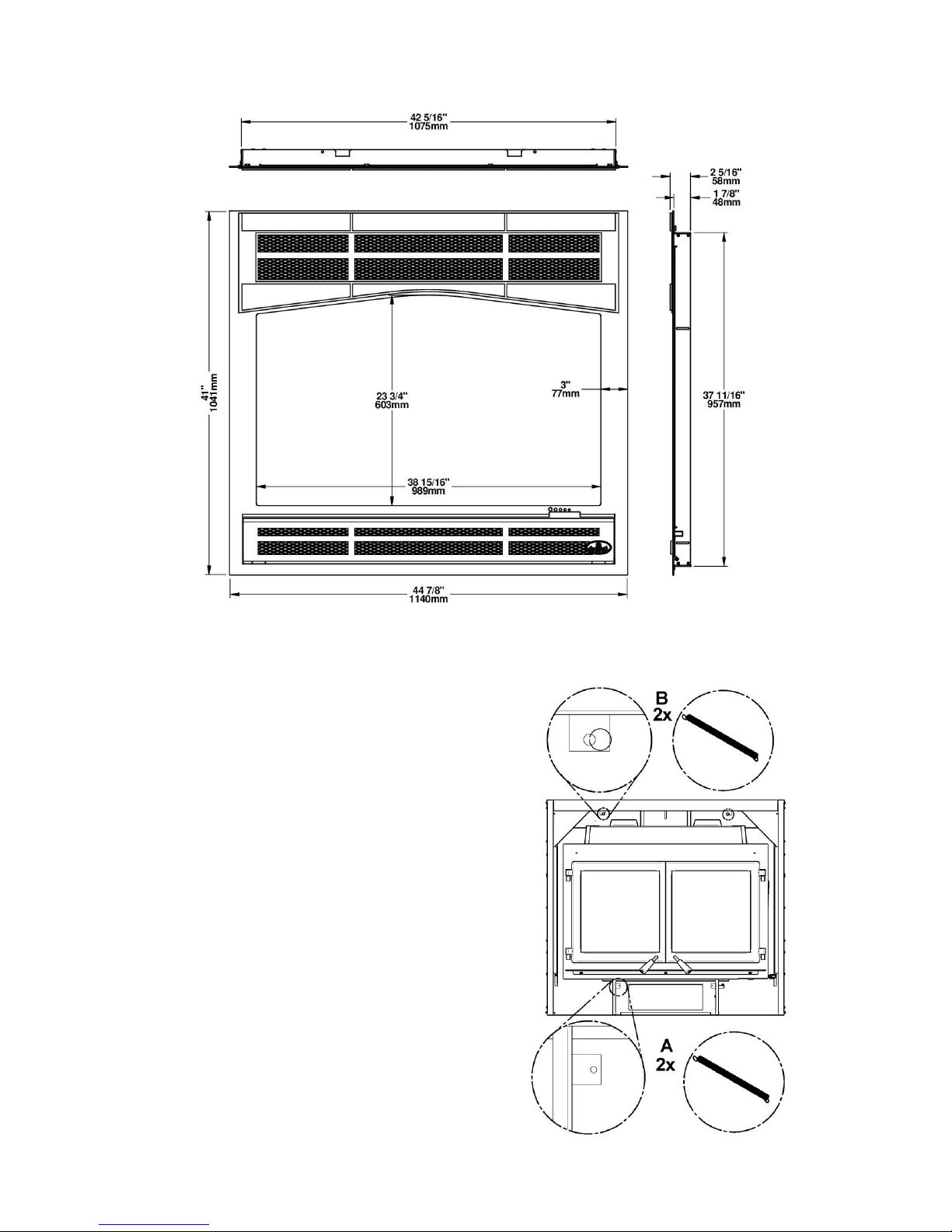

DIMENSIONS
Installation Instructions
1. Locate the bottom springs (A).
2. Fix the top springs (B) provided in
the fireplace owner’s manual.
3

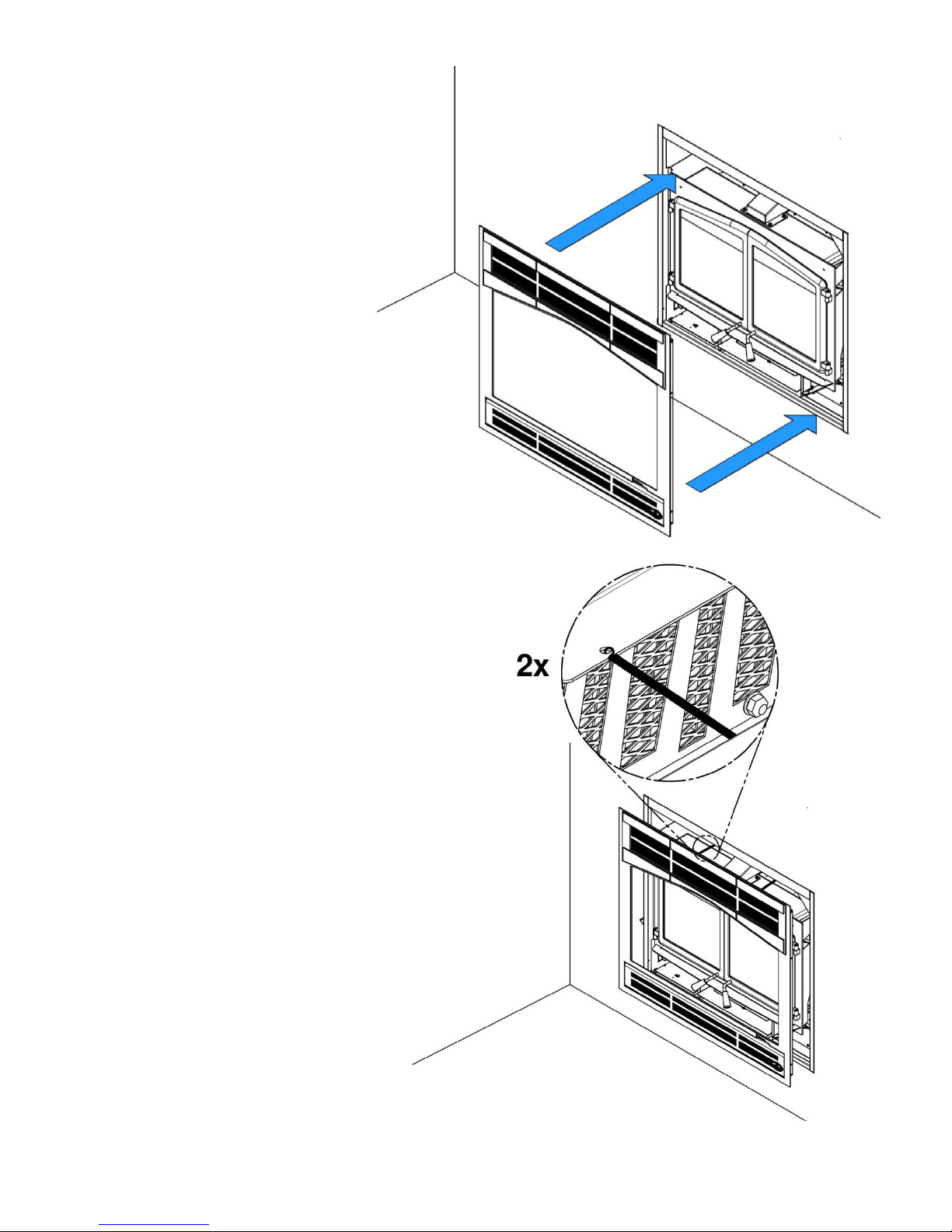

3. Bring the faceplate close to
the fireplace.
4. Attach the upper springs on
the faceplate to hold it in
place.
4
5. Firmly push the faceplate
against the fireplace. Using a
power driver, secure the
bottom with 2 self-tapping
screws (one on each side)
provided with the fireplace
owner’s manual.
6. Attach the bottom springs to
the lower louver.
