BY-P09 LED Soft Panel Light
300W Full Color LED Soft Panel Light
User manual
P
le
ase
rea
d
t
he
ins
t
r
u
ction
s
ca
refu
ll
y before use
2
TABLE OF CONTENTS
1. Technical Specifications ...........................................................3-4
2. Description .................................................................................4
3. Unpacking ................................................................................5-6
4. Main Menu..................................................................................7
5. Vice Menu................. ..............................................................7-10
6. DMX Channels................. .....................................................10-15
7. Photographic Charts..................................................................16
8. Size................. ..........................................................................17
9. Fixture Cleaning ........................................................................18
10.Warning .....................................................................................18
Statement
This 300W LED high power soft panel light,it is actually full rgb+y+w
led.You can get full control over color temperature from 2700K-8000K which a
wider range than you normally find, plus a green or magenta shift which is
nice. Dimming is impressive from 0% to 100%. With
full DMX control with RDM compatibility. Standard, incandescent,quick and
3
linear total 4 kinds of dimmer curve optional, frequency is adjustable from
500hz-25000hz.
1. Technical Specifications
Light Source:
LED POWER: 300W
LED Color: RGBYW(RGB* 858pcs 3in1 (R*0.12w/G*0.17w/B*0.17w) +
Y (880pcs*0.35w) + W (880pcs*0.35w))
Adjustable color temperature from 2,700 to 8,000K
Color Rendering Index(CRI): Ra≥95
LED Life Time: over 50,000 hours
Power supply:
Voltage: AC100-240V
Max.power: 300W
Brand of power supply: Meanwell(Taiwan brand)
Optics:
Fixed Lens: 180°
Barndoor including
Features:
Dimmer: 0~100% linearly adjustable
Dimming Curve: 4 kinds
Dimming Frequency: 500HZ - 25000HZ optional
Light body feature:
Light body: Die casting Aluminum
Body color: Black
Touch screen: LCD with touch screen
4
Control:
Control Protocol: RDM / DMX
Control System: DMX, Auto run and Master/Slave
DMX Channels: 10CH
Working Environment :
Working Temperature: -30~40℃
Cooling system: Fan-less no noise
IP Grade: IP20
Package :
Dimensions: 760(D)*106(W)*415.6(H)mm
Net Weight: 12kgs
Gross Weight: 15kgs
Packing size: 84*49.5*19cm(1pc/carton)
2. Descriptions
·Full color RGBYW SMC LED soft light for theatre, film and production
·With whole range of different options like police car,storm,fire or candle light,
television and loads more
·Special effect such as CCT Mode,HSI,RGBW and Others lighting effect
·Ultra smooth 16-bit dimming of master dimmer and individual colors
·Soft and even field of light
·Color Temperature Presets from 2700 K to 8000 K with high CRI &CQS
·RDM (Remote Device Management) for added flexibility
·Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
·Selectable dimming curve: Standard mode, Incandescent mode, quick mode
and linear mode
5
·Fanless(no any noise) operation for use in studio and theatre applications
3. Unpacking
Thank you for choosing Panel 300W Full Color Led Soft Panel Light. For your
own safety, please read this manual before installing the device. This manual
covers the important information on installation and applications. Please install
and operate the fixture with following instructions. Meanwhile, please keep this
manual well for future needs.
Panel 300W Full Color Led Soft Panel Light is made of a new type of high
temperature strength of cast aluminum casing with nice outlook. The fixture is
designed and manufactured strictly following CE&RoHS standards, complying
with international standard DMX512 protocol. It's available independently
controlled and linkable with each other for operation. And it is applicable for
large-scale live performances, theater, studio, nightclubs and discos.
300W Full Color Led Soft Panel Light adopts 858pcs* RGB
3in1(R*0.12w/G*0.17w/B*0.17w) +Y (880pcs*0.35w) + W (880pcs*0.35w)LED
which features high brightness and stability. Please carefully unpack it when you
receive the fixture and check whether it is damaged during the transportation. And
please check whether the following items are included inside the box:
6
7

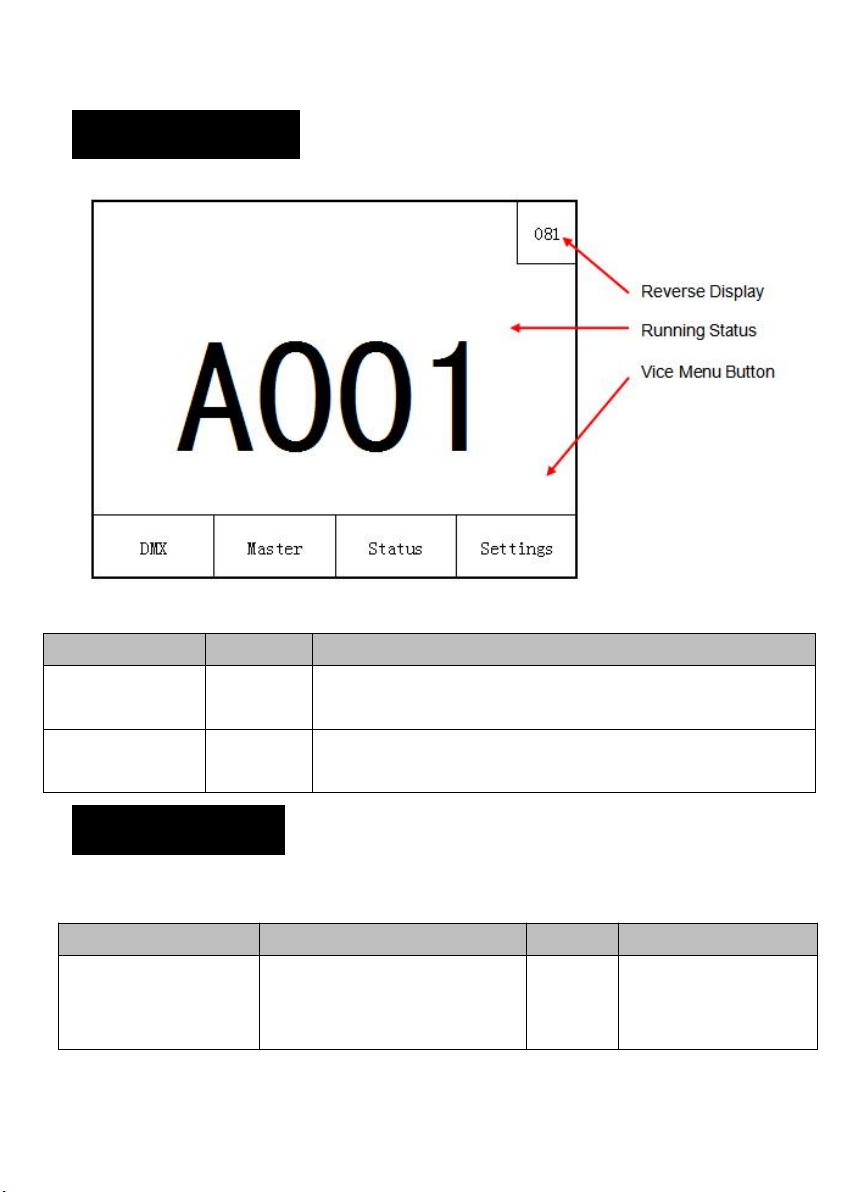

4. Main Menu
Operation Status
Mode
Display
Description
DMX Mode
Axxx
“A”stand for standard channel mode, “xxx”stand for ID
address, Auto identify controller signals or host signals
Manual
M-MC
“M”stand for Host Mode, “MC”stand for“Manual
Control”
5.Vice Menu
DMX Settings
Menu
Operation
Option
Description
DMX Start Address
Press key of “OK” enter to
edit mode, press “UP”
and ”down” to edit the DMX
1~512
8
address
DMX Profile
Press key of “OK” change
the DMX channel mode
10CH
Standard Channel
Mode
5 CH
Basic Channel
Mode
Master Mode Choice
Menu
Operation
Vice Menu description
Lighting Mode
Press Key of “OK” to choose
mode
Lighting Mode(8 kinds)
Filters
Same as above
Filters effect(10 kinds)
Special Effect
Same as above
Special effect(7 kinds)
LM/F Flashing
Same as above
Flashing effect of lighting mode
and filters
HSI Cycle
Same as above
HSI circle effect
Status
Menu
Description
Software
Name of software
Version
Version
Temperatu
re
Show the temperature of lighting fixture
DMX
Status
With“OK”（Slave mode，with signal）,“NONE”（Slave mode，no signal）、
“Master” and others
Settings
9
Menu
Operation
Option
Description
Touch Screen
Calibration
Touch screen
adjust
White Point Edit
Color
temperature
correction
Dimmer Frequency
Change the
dimmer
frequency
500Hz
......
25000Hz
Dimmer Curve
Change dimmer
curve
Standard
Incandescent
Linear
Quick
Over Temperature
Temperature
setting
80-100
Each 5 for increase or
decrease
Backlight
Adjust the display
brightness
10%~100%
Each 5% for increase or
decrease
Backlight Timeout
Screen protect
setting
No screen
protect or
black screen
from 5~ 60
second
Each 5 for increase or
decrease
Load Factory
Settings
Reset
Screw operation
For example of “changing the brightness under the master mode”
1. In main menu, turn the knob 1 and choose “Master”, press knob 1 for enter.
2. In the menu of “white point”, turn the knob 1, choose the “Intensity”
3. Press knob 1 enter editing status.
10
4. Turn knob 1 for choosing the brightness (Long press for increase or decrease
continuously)
5. Press knob 1 exit edit status.
6.DMX Channels
Standard channel mode(10CH)
Channel
Function
Date
Remarks
1
Dimmer
000-255
2
Lighting Mode
000-028
OFF
029-056
CCT
057-084
HSI
085-112
RGBW
113-140
Tungsten
141-168
Sodium
Vepour
169-196
Metal Halide
197-224
Fluorescent
225-255
Street
3
Special Effect
000-031
OFF
032-062
Storm
063-093
Cop Car
094-124
Candle Light
125-155
Soft Disco
156-186
Hard Disco
187-217
Monitor
218-255
Multi Flash
4
Filters
000-023
OFF
024-046
L3202
Indice
