OSS OSS-KIT-EXP-61611-xM Manuale utente

PCIe x16 Gen4 Host to Target Kit (61611)

Model: OSS-KIT-EXP-61611-xM

www.onestopsystems.com

PCIe x16 Gen4 Host to Target Kit- Installation Manual

SKU: OSS-KIT-EXP-61611-XM

One Stop Systems

OSS-KIT-EXP-61611-XM | 2

Table of Contents

Preface 4

Advisories 4

Safety Instructions 5

1 Introduction 7

1.1 Specifications 7

1.2 Parts of HIB616-x16 8

1.2.1 x4 cable Ports 8

1.2.2 HIB card seated flat (horizontal position) 9

1.2.3 HIB card seated in a vertical position 9

1.2.4 HIB Block Diagrams 10

1.2.5 Pin out assignments of the SFF-8644 PCB Connectors 11

1.2.6 Signal Descriptions 12

1.3 Features 12

1.3.1 Host Interface Board 12

1.4 SFF-8644 PCIe cable 13

2 Hardware Requirements 14

2.1 OSS-PCIe-HIB616-x16 card 14

2.2 SFF-8644 Gen4 x4 Cable 14

2.3 Expansion Chassis / Gen4 Backplane 14

2.4 Host Card Mode Configuration 15

2.5 Target Card Mode Configuration 16

2.5.1 Target mode switch settings - OSS-Backplane 16

2.5.2 Target mode switch settings - Magma-Backplane 16

2.6 Supported Setup 17

2.7 Use Cases / Configurations 17

2.7.1 Host-to-Host 17

2.7.2 Using 3rd Party Target Backplane 18

2.7.3 Connecting to 3rd Party backplane via on-board SFF-8644 connector 18

3 Installation Procedures 19

3.1 Tools Required for Installation 19

3.2 Configure Card to Host and Target modes 19

3.3 Install the Target card 19

3.4 Install the Host card 21

3.5 Connecting the Link Cables 22

3.5.1 x16 configuration: FOUR cables 22

3.5.2 x8 configuration: TWO cables 22

3.5.3 x4 Configuration: ONE cable 23

3.5.4 Disconnecting the cable 25

One Stop Systems

OSS-KIT-EXP-61611-XM | 3

3.6 Turn ON the Expansion system / unit 25

3.7 Turn ON the Host computer 26

3.8 Verify LINK 26

3.9 LED Indicators per Configuration 26

3.9.1 x16 Configuration LEDs 26

3.9.2 x8 Configuration LEDs (Two Cables) 27

3.9.3 x4 Configuration LEDs (One Cable) 29

4 Hardware & Technical Info 31

4.1 LED Definitions 31

4.2 Dipswitch Settings 31

4.3 Standard & Bifurcated Configurations 32

4.3.1 Standard Configurations 32

4.3.2 Bifurcated configurations 33

5 Identify HIB Device 36

5.1 Linux OS 36

5.2 Windows 10 / Server 39

6 Software Installation 41

7 Troubleshooting 42

7.1 Device is not detected or recognized 42

7.2 Broken OSS-518 Board 42

7.3 Intermittent start up issue and PCIe cards are not getting recognized 42

7.4 Third Party Hardware and Software Support 43

7.5 There is no LINK between Host and Target 43

7.6 Does the OSS-518 board (Gen4 PCIe x16 Adapter card) support CMI Operation (Remote Power Power ON)? 43

8 How to Get More Help 44

8.1 Contacting Technical Support 44

8.2 Returning Merchandise 44

8.3 Third Party Hardware & Software Support Policy 44

8.4 Online Support Resources 45

One Stop Systems

OSS-KIT-EXP-61611-XM | 4

Preface

Advisories

Five types of advisories are used throughout this manual to provide helpful information, or to alert you to the potential for hardware damage

or personal injury.

NOTE

Used to amplify or explain a comment related to procedural steps or text.

IMPORTANT

Used to indicate an important piece of information or special “tip” to help you

CAUTION

Used to indicate and prevent the following procedure or step from causing damage to the equipment.

WARNING

Used to indicate and prevent the following step from causing injury.

DANGER or STOP

Used to indicate and prevent the following step from causing serious injury or significant data loss

Disclaimer: We have attempted to identify most situations that may pose a danger, warning, or caution condition in this manual. However, the

company does not claim to have covered all situations that might require the use of a Caution, Warning, or Danger indicator.

One Stop Systems

OSS-KIT-EXP-61611-XM | 5

Safety Instructions

Always use caution when servicing any electrical component. Before handling the expansion chassis, read the following instructions and safety

guidelines to prevent damage to the product and to ensure your own personal safety. Refer to the “Advisories” section for advisory

conventions used in this manual, including the distinction between Danger, Warning, Caution, Important, and Note.

Always use caution when handling/operating the computer. Only qualified, experienced, authorized electronics personnel should

access the interior of the computer and expansion chassis per UL and IEC 60950-1

The power supplies produce high voltages and energy hazards, which can cause bodily harm.

Use extreme caution when installing or removing components. Refer to the installation instructions in this manual for precautions

and procedures. If you have any questions, please contact Technical Support.

WARNING

Never modify or remove the radio frequency interference shielding from your workstation or expansion unit. To do so may

cause your installation to produce emissions that could interfere with other electronic equipment in the area of your

system.

When Working Inside a Computer

1. Before taking covers off a computer, perform the following steps:

2. Turn off the computer and any peripheral devices.

3. Disconnect the computer and peripheral power cords from their AC outlets or inlets in order to prevent electric shock or system

board damage.

In addition, take note of these safety guidelines when appropriate:

To help avoid possible damage to systems boards, wait five seconds after turning off the computer before removing a component,

removing a system board, or disconnecting a peripheral device from the computer.

When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. Some cables have a connector

with locking tabs. If you are disconnecting this type of cable, press in on the locking tabs before disconnecting the cable. As you pull

connectors apart, keep them evenly aligned to avoid bending any connector pins. Also, before connecting a cable, make sure both

connectors are correctly oriented and aligned.

CAUTION

Do not attempt to service the system yourself except as explained in this manual. Follow installation

instructions closely.

One Stop Systems

OSS-KIT-EXP-61611-XM | 6

Protecting Against Electrostatic Discharge

Electrostatic Discharge (ESD) Warning

Electrostatic Discharge (ESD) is the enemy of semiconductor devices. You should always take precautions to eliminate any

electrostatic charge from your body and clothing before touching any semiconductor device or card by using an

electrostatic wrist strap and/or rubber mat.

Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedures to reduce the risk of

damage to components. We strongly encourage you to follow proper ESD procedures, which can include wrist straps and smocks, when

servicing equipment.

You can also take the following steps to prevent damage from electrostatic discharge (ESD):

When unpacking a static-sensitive component from its shipping carton, do not remove the component’s anti-static packaging

material until you are ready to install the component in a computer. Just before unwrapping the anti-static packaging, be sure you

are at an ESD workstation or are grounded.

When transporting a sensitive component, first place it in an anti-static container or packaging.

Handle all sensitive components at an ESD workstation. If possible, use anti-static floor pads and workbench pads.

Handle components and boards with care. Do not touch the components or contacts on a board. Hold a board by its edges or by its

metal mounting bracket.

One Stop Systems

OSS-KIT-EXP-61611-XM | 7

1 Introduction

The PCIe x16 Gen 4 expansion kit connects a server to an OSS Expansion Backplane.

It is composed of a “Gen4 Mini-HD SFF-8644 PCIe cable (SKU# OSS-mSAS-CBL-x4-C-XM)” and two “PCIe x16 Gen 4 Cable Adapter (SKU: OSS-

PCIe-HIB616-x16)”.

The PCIe x16 Gen 4 host cable adapter plugs into a server and cables to a PCIe x16 Gen 4 switch-based target cable adapter. The expansion kit

connects with up to (4) x4, 1 meter SFF-8644 PCIe Gen 4 compliant cables.

1.1 Specifications

Item

Description

Form Factor

PCIe 4.0 x16 half-height, half-length

Adapter Card Dimensions

6.6 x 2.65" (16.76 x 6.73 cm) at 0.063" (1.6mm) thickness

Bandwidth

256Gb/s

Connectors

• PCIe x16 card edge connector

• Quad SFF-8644 connectors on the bracket

• Compliant to PCI-SIG PCI Express External Cable Specification 3.0

Bracket

Standard and low profile brackets available

PCIe Switch

Broadcom PEX88032

16 GT/s /32-Lane PCI Express Gen 4 Switch

DMA Controller

SSC Isolation

Switch Latency

150ns

Cable Types

Supports the following cable types:

SFF-8644 PCIe CMI copper cables

Mini-SAS-HD copper cables

Cable Connection Modes

One x16 host connection via edge card to:

One x16 cable connection

Up to two x8 cable connections

Up to four x4 cable connections

Power

60W max

1.5A @3.3V

3A @12V

250mA @ 3.3V aux

Operating Temperature

0˚C to +50˚C

Storage Temperature

-40˚C to 85˚C

Operating Humidity

10% to 90% relative humidity non-condensing

Storage Humidity

5% to 95% relative humidity non-condensing

Agency Compliance

Designed to meet the following agency standards:

FCC - Part 15 Class A, 47CFR; Canada ICES-003, issue 4, Class A; Japan: VCCI, Class A; CE

Emissions 2004-108EC

UL/IEC 60950-1; Canada: CSA C22.2 No. 60950-1; Argentina: IEC60950-z; IEC 60950-1 (CB

Certificate and CB Test Report)

CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, EN61000-3-3)

CISPR 22, CISPR 24, Class A: Australia/New Zealand AS/NZS CISPR 22, ClassA

RoHS 6 of 6 compliance (Directive 2011/95/EC)

Operating System

Supports the following OS

Windows 7, 10, Windows Server 2012 R2

Linux Based OS

One Stop Systems

OSS-KIT-EXP-61611-XM | 8

When ordering the Gen4 x16 PCIe HIB card and Gen4 SFF-8644 PCIe cable, use the following part numbers:

Part Numbers

Description

OSS-PCIe-HIB616-x16 ( main part#)

HIB616-x16 Host Configuration with Full-height bracket

OSS-PCIe-HIB616-x16-Half

HIB616-x16 Host Configuration with Half-height bracket

OSS-PCIe-HIB616-x16-T

HIB616-x16 Target configuration with Full-height bracket

OSS-PCIe-HIB616-x16-T-Half

HIB616-x16 Target configuration with Half-height bracket

OSS-mSAS4-CBL-x4-C-XM

Mini HD SaS Cable

OSS-mSAS4-CBL-x4-C-1M

1 meter Gen4 Cable

OSS-mSAS4-CBL-x4-C-2M

2 meter Gen4 Cable

OSS-mSAS4-CBL-x4-C-3M

3 meter Gen4 Cable

1.2 Parts of HIB616-x16

1.2.1 x4 cable Ports

There are four x4 cable ports available on the HIB card. It is very important to know where port#0 is when connecting a single x4 PCIe SFF-8644

cable. Port #0 is the connector nearest the Link LEDs. A single x4 SFF-8644 cable must be inserted into port#0 of the Target card all the time.

For the Host card, you can plug in a single x4 cable to any port as long as the Host card switch is set to operate in a x4 mode.

When using two x4 SFF-8644 cables, it must be connected to port#0 and port#1 of the Target card only. For the Host card, you can plug-in the

two cables to port#0 and portt#1 OR port#2 and port#3.

Below are photos of the HIB cards in a different position when plugged into a PCIe slot. This will serve as a guide in determining where port#0

is located.

One Stop Systems

OSS-KIT-EXP-61611-XM | 9

1.2.2 HIB card seated flat (horizontal position)

1.2.3 HIB card seated in a vertical position

One Stop Systems

OSS-KIT-EXP-61611-XM | 10

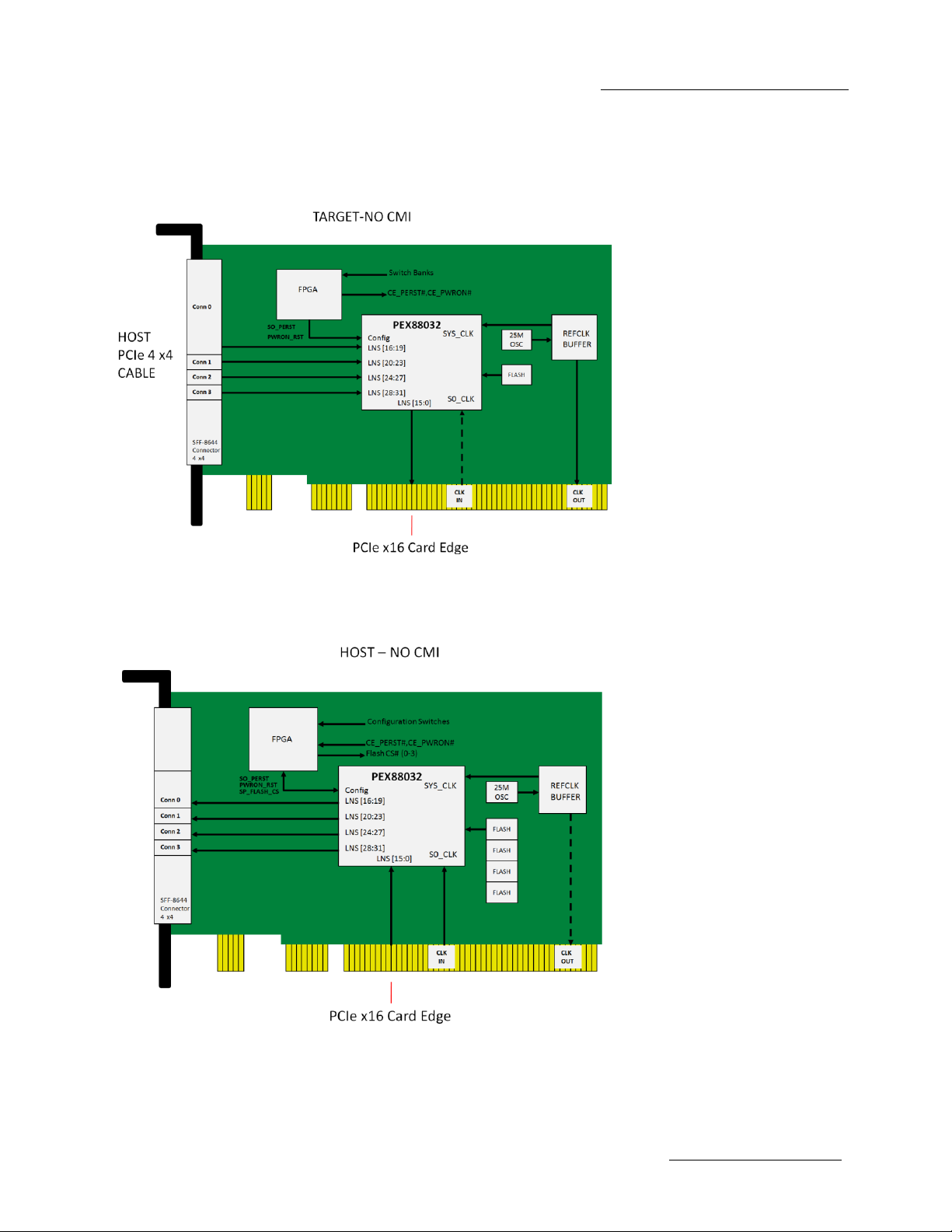

1.2.4 HIB Block Diagrams

Target Card

Host card
