OSS EB4400 5-SLOT Gen4 Manuale utente

INSTALLATION GUIDE

EB4400 5-SLOT GEN4

EB4400 5-SLOT Gen4

www.onestopsystems.com

One Stop Systems

EB4400 (5-SLOT BP) 2

Table of Contents

1Introduction................................................................................................................................................................... 5

1.1 General Specifications...............................................................................................................................................................................5

1.2 Features ....................................................................................................................................................................................................6

1.3 EB4400 Architecture (5 Slot) ..................................................................................................................................................................... 6

1.4 PCIe Slots .................................................................................................................................................................................................. 6

1.5 Backplane Block Diagram..........................................................................................................................................................................7

1.6 Dimensions................................................................................................................................................................................................8

1.7 Parts Overview.......................................................................................................................................................................................... 9

1.8 HIB x16 Gen 4 Card ................................................................................................................................................................................. 11

1.9 Backplane................................................................................................................................................................................................12

1.10 Slot Configurations ............................................................................................................................................................................13

1.11 Use Case Diagrams ............................................................................................................................................................................14

1.12 Main Components ............................................................................................................................................................................. 15

1.13 Pre-Installation Information ..............................................................................................................................................................15

1.14 Tools Required for Installation........................................................................................................................................................... 15

1.15 Items List ...........................................................................................................................................................................................15

2Getting Started .............................................................................................................................................................16

3Installation Overview ....................................................................................................................................................16

4Hardware Set-up / Installation ......................................................................................................................................17

4.1 Remove Top Cover..................................................................................................................................................................................17

4.2 Install Target Card ...................................................................................................................................................................................17

4.2.1 Target Card Configuration ................................................................................................................................................................. 17

4.3Install Host Card......................................................................................................................................................................................18

4.3.1 Host Card Configuration...............................................................................................................................................................18

4.4 Dip switch Settings.................................................................................................................................................................................. 20

5GPU / PCIe Cards Installation ........................................................................................................................................21

5.1Before you begin ...............................................................................................................................................................................22

5.2 Install GPU or PCIe card ..........................................................................................................................................................................22

5.3 Connect Auxiliary Power Cables............................................................................................................................................................. 23

6Connect Link Cables ......................................................................................................................................................25

6.1 Mini-SAS HD SFF-8644 Cable Installation ................................................................................................................................................25

6.1.1 x16 Configuration: FOUR cables ................................................................................................................................................... 25

6.1.2 x8 Configuration: TWO cables ......................................................................................................................................................26

6.1.3 x4 Configuration: ONE cable......................................................................................................................................................... 27

6.2 Disconnecting Mini-SAS HD SFF-8644 Cable............................................................................................................................................28

One Stop Systems

EB4400 (5-SLOT BP) 3

7Applying Power Correctly..............................................................................................................................................29

7.1 Connecting to electrical outlet................................................................................................................................................................29

7.2 Connect Power Cord(s) ...........................................................................................................................................................................29

8Powering UP the Computer...........................................................................................................................................31

9Hardware Check............................................................................................................................................................32

9.1 Verify Board LEDs.................................................................................................................................................................................... 32

9.2 Fault LEDs (RED)......................................................................................................................................................................................33

9.3 Verify Adapter Card LEDs ........................................................................................................................................................................34

9.4 Adapter Card LED Definitions..................................................................................................................................................................35

9.5 Slot LEDs.................................................................................................................................................................................................. 35

9.6 Power Distribution Board LED.................................................................................................................................................................36

9.7 Front LED................................................................................................................................................................................................. 36

9.8 Power Supply LED Indicator ....................................................................................................................................................................37

10 Software Installation.....................................................................................................................................................38

10.1 Software Driver Installation...............................................................................................................................................................38

11 Verify HIB Device ..........................................................................................................................................................39

11.1 Linux OS............................................................................................................................................................................................. 39

11.2 Windows 10 / Server .........................................................................................................................................................................41

11.2.1 HIB Cards and Backplane..............................................................................................................................................................41

12 Verify PCIe cards ...........................................................................................................................................................43

12.1 Linux ..................................................................................................................................................................................................43

12.2 Windows............................................................................................................................................................................................44

13 IPMI ..............................................................................................................................................................................46

13.1 Connect Ethernet Cables ...................................................................................................................................................................46

13.2 Locate Mac Address & IP Address...................................................................................................................................................... 47

13.3 Start Internet browser .......................................................................................................................................................................48

14 Other Technical Information .........................................................................................................................................49

14.1 Upstream and Downstream Slots ......................................................................................................................................................49

14.2 Slot LEDs ............................................................................................................................................................................................ 49

14.3 Board LEDs.........................................................................................................................................................................................50

14.4 Slot Type............................................................................................................................................................................................ 50

14.5 PS_ON................................................................................................................................................................................................50

14.6 ARF6 Connector.................................................................................................................................................................................51

14.6 Slot Number and Port Mapping......................................................................................................................................................... 51

14.7 Power Cords ......................................................................................................................................................................................52

14.7.1 Specifications ............................................................................................................................................................................... 52

14.7.2 Power cord socket and voltage tables world standards ...............................................................................................................52

One Stop Systems

EB4400 (5-SLOT BP) 4

14.8 Power Supply.....................................................................................................................................................................................53

14.9 Removing AC Power Supply...............................................................................................................................................................54

14.9.1 Specifications ............................................................................................................................................................................... 55

14.9.2 LED Indicator ................................................................................................................................................................................56

14.10 Fan.....................................................................................................................................................................................................57

14.10.1 Fan Specifications ........................................................................................................................................................................... 57

14.10.2 How to remove Fan........................................................................................................................................................................58

14.11 Fan Foam Air Filter...........................................................................................................................................................................58

14.12 Auxiliary power cables.......................................................................................................................................................................59

14.12.1 Aux power cable installation................................................................................................................................................... 60

14.12.2 Pin Outs...................................................................................................................................................................................61

14.12.3 Using the Auxiliary Power Cable ............................................................................................................................................ 63

14.13 Expansion Unit Power Consumption ................................................................................................................................................. 65

14.14 Power consumption breakdown per hardware .................................................................................................................................65

15 Troubleshooting............................................................................................................................................................66

15.1 Device is not detected or recognized.................................................................................................................................................66

15.2 My PCIe devices are showing UP with a Yellow Exclamation mark....................................................................................................66

15.3 No link between host and target cards..............................................................................................................................................66

15.4 Broken OSS-Backplane.......................................................................................................................................................................66

15.5 My PCIe cards are not detected.........................................................................................................................................................66

15.6 Windows Error Codes ........................................................................................................................................................................67

15.7 System board fails to power UP.........................................................................................................................................................67

15.8 PCIe Upstream and Downstream Ports are not detected..................................................................................................................68

15.9 Support for 3rd Party PCIe Cards ........................................................................................................................................................ 68

16 How to Get More Help ..................................................................................................................................................69

16.1 Contacting Technical Support ............................................................................................................................................................69

16.2 Returning Merchandise ..................................................................................................................................................................... 69

16.3 Third Party Hardware & Software Support Policy..............................................................................................................................69

16.4 Online Support Resources ................................................................................................................................................................. 69

One Stop Systems

EB4400 (5-SLOT BP) 5

1 Introduction

This 5-slot expansion platform provides PCIE expansion in a dense, rugged form factor. The EB4400 supports ONE or TWO PCIe 4.0 x16 host

connections to PCIe 4.0 slots from 1m to 2m away from the host server. The system supports 4 dual-width or 7 single-width full-length PCIe

add-in cards (AICs) such as GPU card, NVME flash and industrial I/O. Two PWM Fans providing high-power add-in card cooling up to 350W per

AIC. Two 1600W or 2600W power supplies provide redundant hot-swap system power with either AC or DC input.

1.1 General Specifications

Item

Description

System

4U Custom Form Factor (10.7” x 7.0” x 18.5”) Net weight 25 lbs.

Host Options

1x PCIe4 x16 Host-to-Target uplink

(32 GB/s)

2x PCIe4 x16 Host-to-Target uplinks

(64 GB/s)

SmartNIC Host

Backplane Options

OSS-538:

1x single-width PCIe 4.0 x16 FHFL upstream slot

4x dual-width PCIe 4.0 x16 FHFL downstream slots

OSS-521:

1x single-width PCIe 4.0 x16 FHFL upstream slot

6x single-width PCIe 4.0 x16 FHFL downstream slots

1x dual-width PCIe 4.0 x16 FHFL downstream slot

Slot Configuration Options

Flex

Modifies one dual-width PCIe 4.0 x16 FHFL

downstream slot to two single-width PCIe

4.0 x16 FHFL downstream slots per

backplane

Riser

Adds an additional single-width PCIe 4.0

FHFL downstream slot per backplane

Environmental Specifications

Temperature:

Operating temp 0 ° to 35 °C ambient.

Short-term (30 mins) operating temp –5°C to 40°C ambient.

Storage temp –40°C to 70°C.

Operational Humidity:

Operating humidity 5-95% (non-condensing)

Storage humidity 0-95% (non-condensing)

Operational altitude:

Operating altitude 6000 ft. at operating temp, 15,000ft. at derated temp. Storage altitude 40,000 ft.

Fans:

3x 180CFM 92mm fans

Default PWM controlled based on built-in temperature sensors

Optional IPMI system monitoring and control

Power Options

Single/Dual AC 1600W

Single/Dual DC 1600W

System Monitoring

Default –automatic dynamic temperature-based fan

speed control

Optional–IPMI system monitoring with power,

temperature, and fan speed control and monitoring

Fan Filters

Optional Quadra foam 45 PPI Replaceable Fan Filters

PCIe 4.0 Cable Lengths

Power Cords

6’ US 110V

6’ US 240V

6’ UK

2’ IEC

6’ IEC

Agency Compliance

Agency Certifications (testing pending):

FCC Class A

CE Safety & Emissions

UL, Cul

RoHS3

Warranty

1 Year Return to Factory. Extended Warranty is available and sold separately.

Upon purchased of a new unit you can buy an extended warranty.

One Stop Systems

EB4400 (5-SLOT BP) 6

1.2 Features

PCIe Gen4 architecture

Small, rugged frame design

Dynamic fan speed control

Configurable slot and host uplinks to optimize throughput

Integrated IPMI based systems monitoring

AC and DC power inlet options

1.3 EB4400 Architecture (5 Slot)

1.4 PCIe Slots

Slot Type: Closed-ended PCIe slot / connector, all the slots are x16 mechanical.

Six x8 electrical slots (slots 1, 2, 3, 4, 5 and 6)

Three x16 electrical slots(slots 0, 7 and 8)

One Stop Systems

EB4400 (5-SLOT BP) 7

1.5 Backplane Block Diagram

One Stop Systems

EB4400 (5-SLOT BP) 8

1.6 Dimensions

One Stop Systems

EB4400 (5-SLOT BP) 9

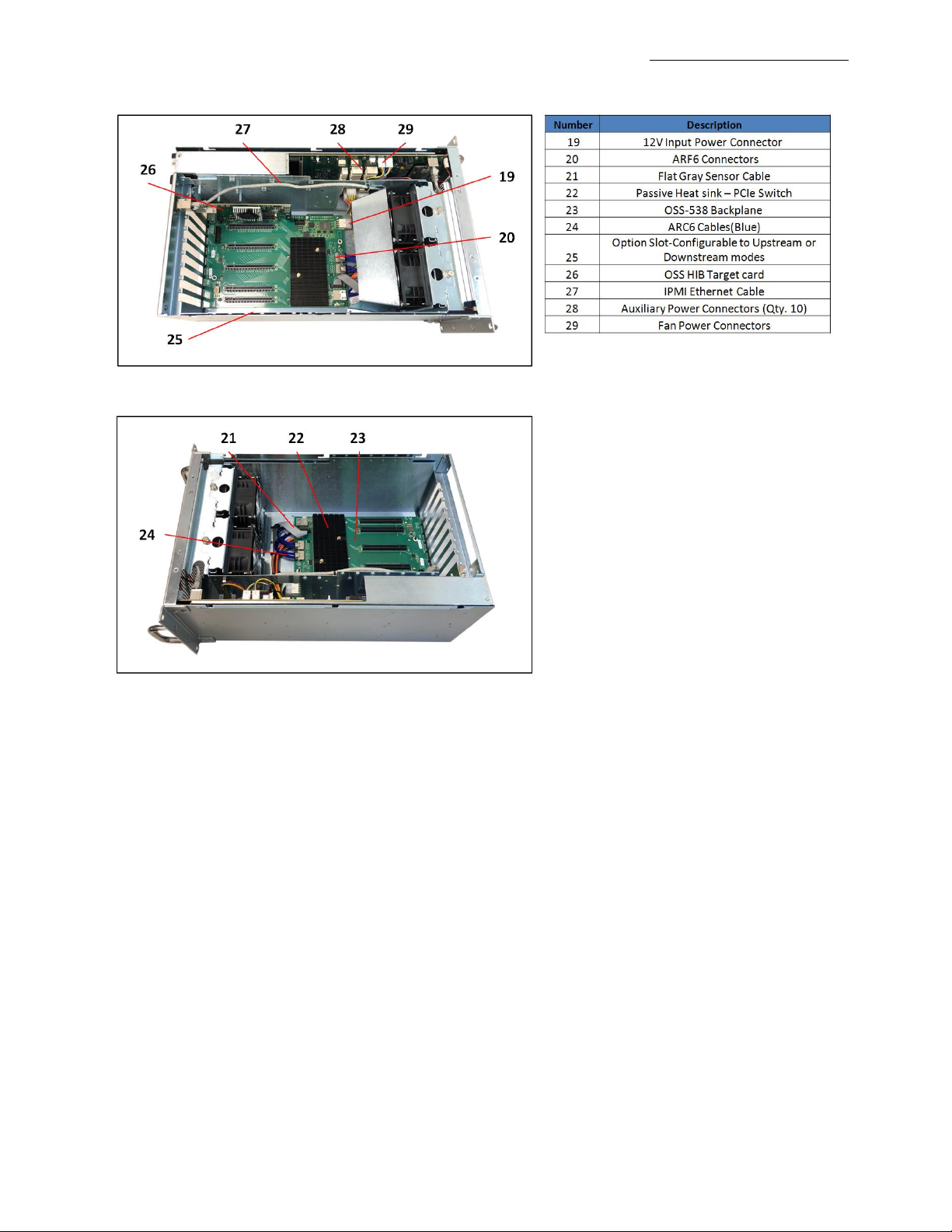

1.7 Parts Overview

One Stop Systems

EB4400 (5-SLOT BP) 10

Indice

Altri manuali OSS Hardware di rete

OSS

OSS EB4400 8-SLOT GEN4 Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
