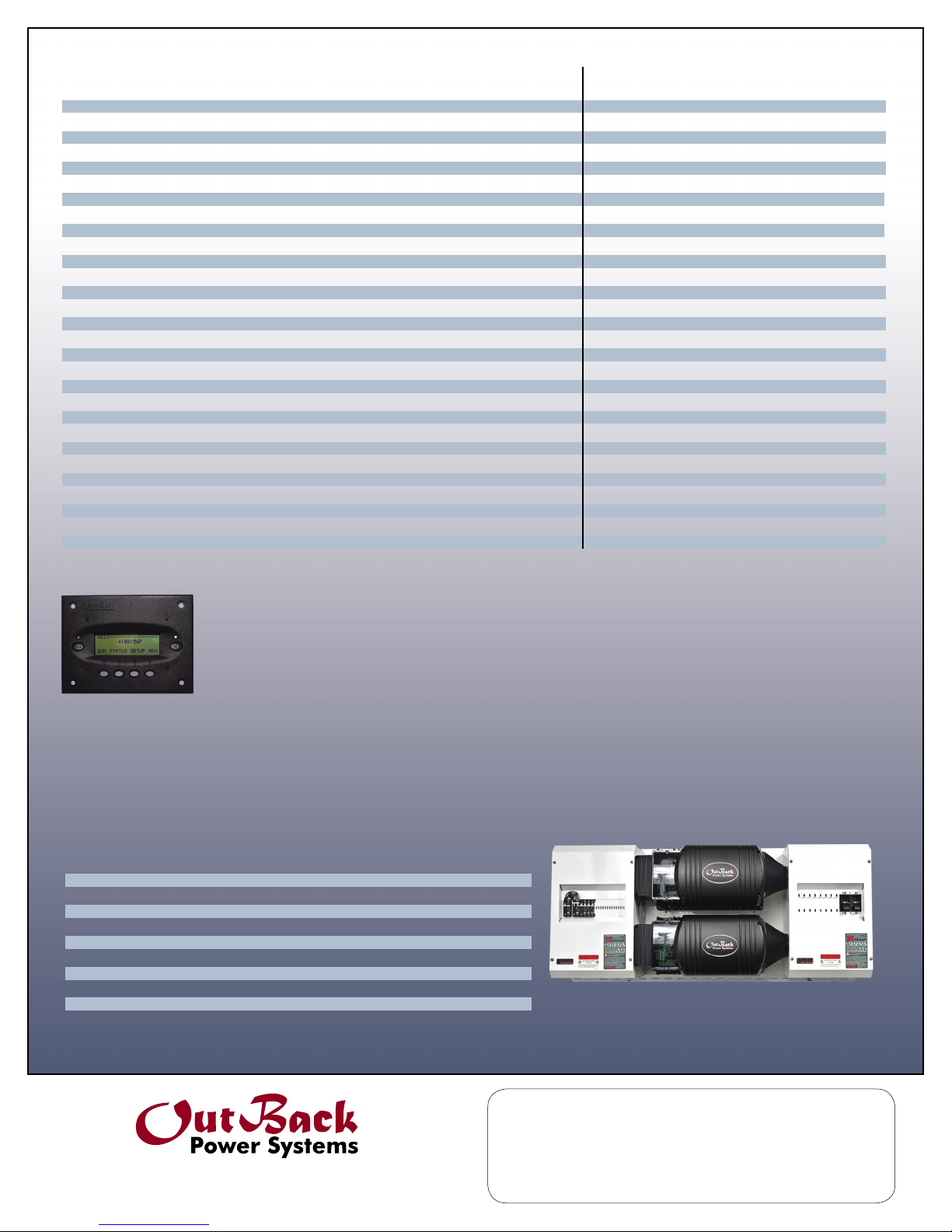

e MATE2M is a complete management tool for your OutBack marine power conversion system. e onboard
CPU coordinates the operation of all your OutBack system components for maximum performance and smooth
system integration.
A backlit LCD provides a display for system monitoring while four so keys allow navigation of the menu system and
adjustment of settings. Information for up to 10 inverter/chargers and other OutBack power conversion equipment
is available at your fingertips through the communications HUB. Your programmed settings are stored in permanent
memory to eliminate the need
to reprogram the system in the event of a system shutdown or battery replacement.
e OutBack MATE2M includes a built in clock and calendar which allows timer based programming of power system operation. is enables
the user to specify a generator’s run time to a specific time period of the day or week.
“Corrosion resistant aluminum marine PS2 system
components are available for larger applications.”
MATE2M Specifications
Operation 4 soft keys, dedicated inverter and AC input keys
Input OutBack Cat5e RJ45 network cable
Output (RS232 model only) RS232 serial to PC communication for data logging (optional software required)
Display Back lit 4 line LCD
System Monitoring AC/DC Voltage and Current Meters, Errors and Warnings
Adjustable Parameters Shore Cord Amperage, Generator Start/Stop
Settings Memory 32k nonvolatile flash RAM
Dimensions HxWxD 4.5 x 6.15 x 1.7” (11 x 16 x 4 cm)
Weight 1 lbs (454 g)
Warranty 2 Year Standard / 5 Year Optional
M-Series Specifications Sealed Models Vented Models
FX2012MT FX2524MT FX2532MT VFX2812M VFX3524M VFX3232M
Nominal DC Input Voltage 12 VDC 24 VDC 32 VDC 12 VDC 24 VDC 32 VDC
Continuous Power Rating at 25° C 2000 VA 2500 VA 2500 VA 2800 VA 3500 VA 3200 VA
AC Voltage/Frequency 120 VAC 60 Hz 120 VAC 60 Hz 120 VAC 60 Hz 120 VAC 60 Hz 120 VAC 60 Hz 120 VAC 60 Hz
Continuous AC RMS Output at 25° C 17.0 amps AC 20.8 amps AC 20.8 amps AC 23.3 amps AC 29.2 amps AC 26.6 amps AC
Idle Power Full ≈ 20 Watts ≈ 20 Watts ≈ 21 Watts ≈ 20 Watts ≈ 20 Watts ≈ 21 Watts
Search 2.6 Watts 2.6 Watts 2.6 Watts 2.6 Watts 2.6 Watts 2.6 Watts
Typical Efficiency 90% 92% 92% 90% 92% 92%
Total Harmonic Distortion Typical 2% 2% 2% 2% 2% 2%
Maximum 5% 5% 5% 5% 5% 5%
Output Voltage Regulation ± 2% ± 2% ± 2% ± 2% ± 2% ± 2%
Maximum Output Current Peak 56 amps AC 70 amps AC 56 amps AC 56 amps AC 70 amps AC 56 amps AC
RMS 40 amps AC 50 amps AC 40 amps AC 40 amps AC 50 amps AC 40 amps AC
AC Overload Capability Surge 4800 VA 6000 VA 4800 VA 4800 VA 6000 VA 4800 VA
5 Second 4000 VA 4800 VA 4000 VA 4000 VA 5000 VA 4000 VA
30 Minutes 2500 VA 3200 VA 2500 VA 3200 VA 4000 VA 4000 VA
AC Input Current Maximum 30 amps AC 30 amps AC 30 amps AC 30 amps AC 30 amps AC 30 amps AC
AC Input Voltage Range (MATE Adjustable) 80 to 150 VAC 80 to 150 VAC 80 to 150 VAC 80 to 150 VAC 80 to 150 VAC 80 to 150 VAC
AC Input Frequency Range 54.0 to 66.0 Hz 54.0 to 66.0 Hz 54.0 to 66.0 Hz 54.0 to 66.0 Hz 54.0 to 66.0 Hz 54.0 to 66.0 Hz
DC Input Range 10.5 to 17.0 VDC 21.0 to 34.0 VDC 28.0 to 45.3 VDC 10.5 to 17.0 VDC 21.0 to 34.0 VDC 28.0 to 45.3 VDC
Continuous Battery Charge Output 80 amps DC 55 amps DC 35 amps DC 125 amps DC 85 amps DC 45 amps DC
Minimum Recommended DC Breaker OBDC-250 OBDC-175 OBDC-125 OBDC-250 OBDC-250 OBDC-175
Recommended Battery Cable #4/0 AWG #2/0 AWG #2/0 AWG #4/0 AWG #4/0 AWG #2/0 AWG
Recommended Battery Types Flooded lead acid, AGM, gel Flooded lead acid, AGM, gel
Warranty Standard 2 year / Optional 5 year Standard 2 year / Optional 5 year
Certifications ETL listed to UL458 ETL listed to UL458
Weight Unit 56 lbs (25 kg) 54 lbs (25 kg)
Shipping 67 lbs (30 kg) 62.2 lbs (28 kg)
Dimensions (H x W x L) Unit 13 x 8.25 x 16.25” (33 x 21 x 41 cm) 12 x 8.25 x 16.25” (30 x 21 x 41 cm)
Shipping 21.75 x 13 x 22” (55 x 33 x 56 cm) 21.75 x 13 x 22" (55 x 33 x 56 cm)
