Outsunny 84C-249 Manuale utente

ASSEMBLY & INSTRUCTION MANUAL

READ AND SAVE THIS INSTRUCTIONS FOR FUTURE USE

INbra001_US

84C-249

Warning: .

1. A 3 person assembly is required for this tent.

2. Please take appropriate actions as heavy rain, wind and snow

can damage the tent. If necessary please dis-assemble and store

for later use.

3. In snowy conditions please do not alow the thickness of the

snow to be more than 5cm on the roof, this should be cleared as

soon as possible for your safety.

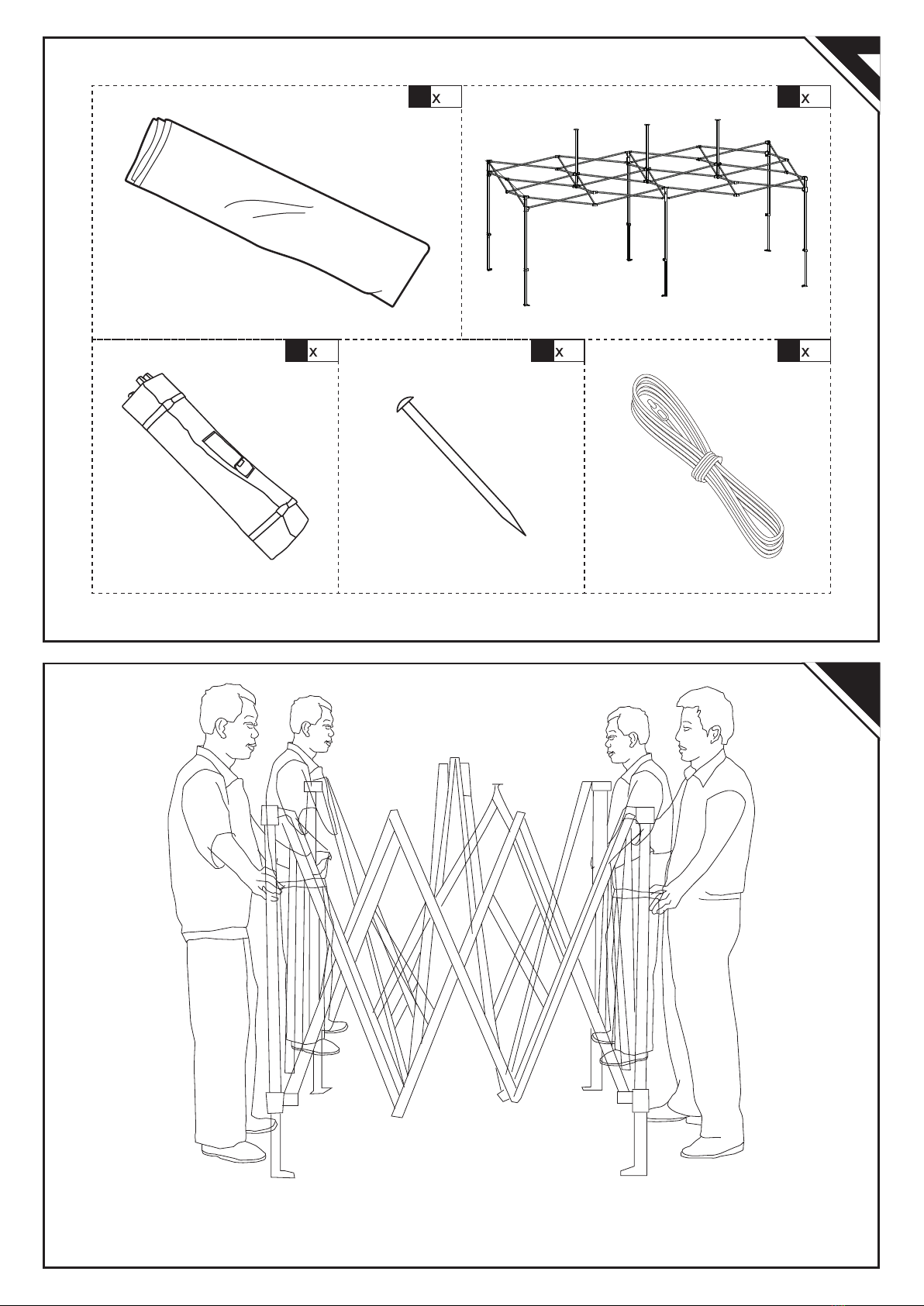

PART

LIST

1. Need 4 persons to assemble the canopy. Stand frame upright. Starting at the corners,

with a partner standing on the opposite side, grasp the two out legs, slightly lift the frame off

the ground and step backward, stopping at full arms' length.

① 1 ② 1

③ 1 ④16 ⑤ 4

01

3. Each person should then grasp the bottom of the middle frame section(cross beams)

where it forms a diamond. Lift slightly and slowly walk backward until the frame is fully

extended. Be careful not topinch your ﬁnger or pull backward too hard as this may result in

the bending of cross beams.

2. Place the Main Canopy over the top frame. Use the Velcro pads to secure each corner of

the canopy to the frame under the plastic leg caps.

03

02

5. Lift two adjacent outer legs and pull out inner legs gently until spring loaded snap button

pops in position. Repeat on the other two legs. The gazebo offers twoheight levels. To

adjust, lift the leg up,carefully depress the push button at knuckle and slowly pull out the

inner leg until the snap button pops in next position. Repeat on the other legs. Be careful do

not overpull the leg and exceed maximum height.

4. Engage the slider at each corner by pushing up the slider with one hand while holding

down the top of the leg with the other hand. Repeat this at the rest of corners.

05

04

7. Secure the gazebo by driving a stake down through one of the holes in each foot base.

6. Attach the Velcro straps around the frame to secure canopy top.

07

06

1. Put up all stakes from ground.

8. Measure out from the leg to a proper distance and secure the four big stakesto ground at a

45 degree angle. Tie up one end of each guide rope to the triangular shaped rope holder

located on the outside fabric cormers. Tie the other end of each rope to the stake on the

ground. Make sure the guide ropes have the proper tension.

08

After Each Use

Done

01

Disassembling the Gazebo

Store all parts (like the stakes) in the corresponding bag to prevent possible tearing or

damage to the fabric.

3. Release each push pin on MIDDLE leg and shorten the frame to its original height prior to

extending the legs during set-up.

2. Detach Velcro Straps from each side of the canopy frame.

03

02

5. With partner on the opposite side, grasp the middle section of the frame and lift up slightly.

4. Release each konb button on each Corner leg and shorten the frame to its original height

prior to extending the legs during set-up.

05

04

7. Completely close the frame with or without the canopy attached.

6. Walk forward slowly allowing for the frame to fold inward and close. Be careful not to pinch

ﬁngers or hands as you close the frame.

07

06
