SnapServer®XSD 40

Add-on/Spare PCIe Card Instructions

This document describes how to add a new PCIe card or remove

and replace an existing PCIe card in a SnapServer XSD 40

from Overland Storage.

WARNING: To reduce the risk of electric shock or damage to

equipment, always remove any power cords while working

with the unit.

WARNUNG: Um das Risiko eines elektrischen Schlags oder

Schäden am Gerät zu vermeiden, ziehen Sie stets den

Netzstecker, bevor Sie an der Einheit arbeiten.

AVERTISSEMENT: Pour réduire le risque de choc électrique

ou endommagement de l'équipement, retirez toujours les

cordons électriques en travaillant avec l'appareil.

CAUTION: While working with the unit, observe standard

Electrostatic Discharge (ESD) precautions to prevent damage

to micro-circuitry or static-sensitive devices.

When adding a PCIe card to your unit, you must first register

it to activate the warranty. Technical and warranty support

are not available until this is done:

1. Go to the Overland Storage website

http://www.overlandstorage.com/

2. Select

Service & Support > My Products

3. At the Site Login, enter your e-mail address and

password, and click GO.

4. Click the Manage Products button.

5. From the Product Selector drop-down list, select the XSD

40 in which you are installing the PCIe card.

6. Click Add a Component.

7. Enter the PCIe card information.

8. Click Save & Exit.

IMPORTANT: Your warranty certificate will be emailed to you.

Follow the instructions included in the email to complete the

registration process.

Enter

5325301507-XSD 40 s/n: 0247

Add-on/Spare PCIe Card Instructions

Prepare the Unit

Power Off and Disconnect Cables

1. Briefly press the Power button on the front.

2. When all the front LEDs are off, disconnect the power

cord.

3. Disconnect all the cables from the unit.

Remove the Left-side Panel

The PCIe card is accessed via the left-side panel when viewed

from the front.

1. On the back of the unit, remove and retain the thumb

screw securing the side panel.

2. Slide the side panel towards the back of the unit until the

anchors release and the panel is free to move sideways.

3. Set the panel on a secure surface.

Install/Swap PCIe Card

Remove the old PCIe Card

This process applies only to replacing an existing PCIe card so

a new PCIe card can be installed. To install a new PCIe card,

proceed to “Remove the Slot Cover.”

1. Remove and retain the screw securing the PCIe card to

the locking bracket.

2. Loosen and retain the screw securing the locking

bracket to remove the locking bracket from the chassis.

3. Remove the PCIe card by pulling it straight up from the

board and out of the left-side of the unit.

Power Button

Left-side Thumb Screw

Screw

PCIe Card

Locking Bracket Screw

Add-on/Spare PCIe Card Instructions

Remove the Slot Cover

This process applies only to units with no PCIe card installed.

To install a PCIe card, proceed to “Install the PCIe Card.”

1. In the new chassis, remove the slot cover where the card

is supposed to go.

2. Remove the screw securing the slot cover to the locking

bracket.

3. Remove the locking bracket by loosening the screw

securing the bracket to the chassis.

4. Retain both screws, the locking bracket, and cover.

Install the PCIe Card

In the new chassis, install the PCIe card:

1. Seat the PCIe card in the same slot on the board and feed

the connectors through the back panel of the chassis.

2. Reinstall the locking bracket by tightening the screw to

secure the PCIe card.

3. Thread the screw through the card to secure the card to

the locking bracket.

Reassemble the Unit

Reinstall the Side Panel

1. Position the side panel with no more than one-half inch

(1.25 cm) extending out over the rear of the unit.

2. Align the tabs on the panel with the slots on the side of the

unit.

3. Push the panel sideways to be flush with the side of the

unit, then slide the panel towards the front of the unit.

Ensure that the tabs are seated securely in the slots.

4. Reinstall the thumb screw on the back of the unit to

secure the panel.

IMPORTANT: If this is a new appliance install, continue with

the SnapServer XSD 40 Quick Start Guide instructions.

Screw

Slot Cover

Locking Bracket Screw

PCIe Slot

http://support.overlandstorage.com

You can get additional technical support on the Internet at the Overland Storage Support web page, or by contacting Overland Storage using

the information found on the Contact Us page on our web site.

Add-on/Spare PCIe Card Instructions

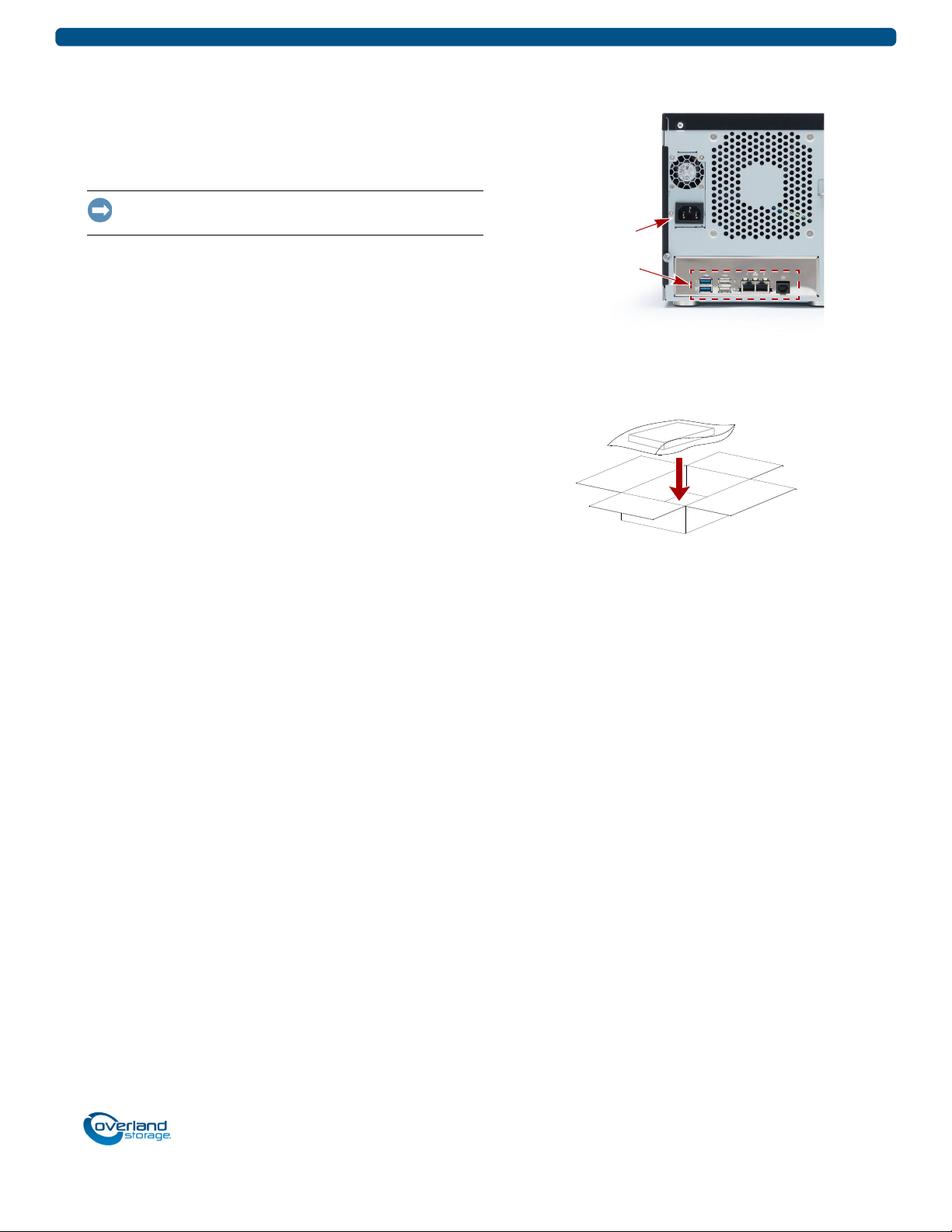

Reattach Cables and Power Cord

1. Reattach all the cables (except the power cord) to the

same connections previously used.

2. Attach the power cord.

3. At the front, press the power button to power it ON.

IMPORTANT: If this is a new appliance install, continue with

the SnapServer XSD 40 Quick Start Guide instructions.

Return Old Parts to Overland

1. Place the old part in the anti-static bag and put it in the

replacement part’s box.

2. Use an RMA to return the part to Overland Storage.

For return shipping details and RMA number, go to:

http://docs.overlandstorage.com/return-instructions

AC Power

Cable Ports
