CHARGER BOX
User Guide
DE-BC Charger Box
Version 12/12/2017
English
CONTENTS
1 - DESCRIPTION OF THE SYSTEM 3
2 - OVERVIEW 4
3 - CHARGER BOX DESCRIPTION 5
4 - LIST OF SUPPLIED ACCESSORIES 6
5 - TECHNICAL FEATURES 7
6 - WARRANTY 8
7 - TECHNICAL TROUBLESHOOTING 9
Page 3 of 10
User Guide Charger Box

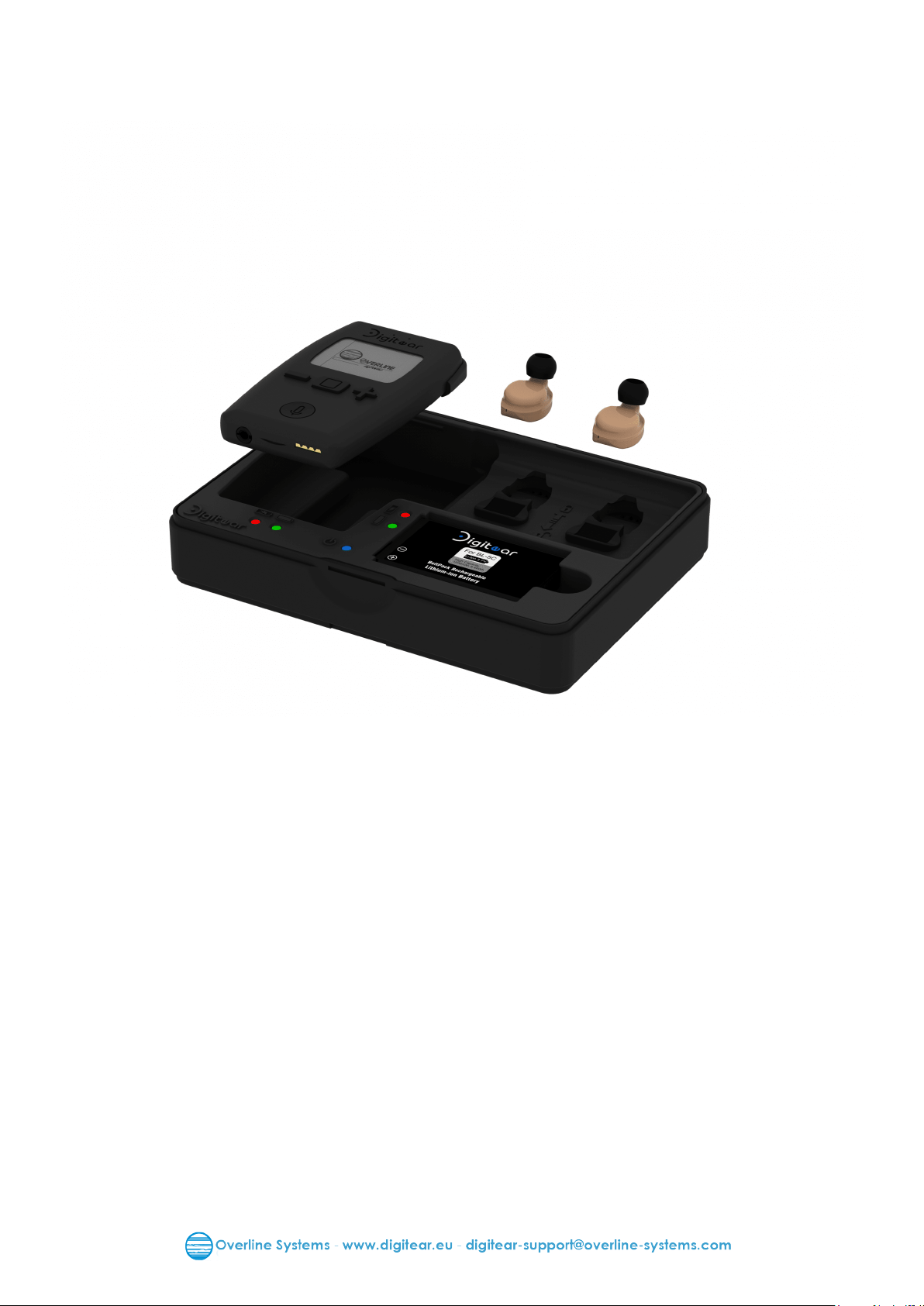

1 - DESCRIPTION OF THE SYSTEM
The Charger Box enables to recharge a complete Digitear kit which includes, a BELTPACK,
two INEAR and a BELTPACK spare battery.
The recharging is done with the supplied wall adapter.
The Charger Box has a "Nomad" mode to ensure the INEAR recharge, using the spare
battery and without needing to use the wall adapter.
The closed Charger Box can be used for storage and transportation.
Page 4 of 10
User Guide Charger Box
2 - OVERVIEW
Storage and charging box
User Guide available www.digitear.eu
Page 5 of 10
User Guide Charger Box
3 - Charger Box DESCRIPTION
2 3
5
7
9
1
6
8
1
2
4
6
5
7
8
9
BELTPACK location
BELTPACK charge location
LED Charge BELTPACK
LED has a red color: BELTPACK charging.
LED has a green color: BELTPACK full
charge.
Earbuds Storage
Storage for spare earbuds.
LED Power
LED Blue for powering up the Charger
Box through an external power supply.
Battery Location
Charging location for the BELTPACK spare
battery.
This battery enables the INEAR recharge
in nomad mode.
The Charge LED of the Replacement
BELTPACK battery
Red xed LED light indicates: BELTPACK
is charging.
Green xed LED light indicates:
BELTPACK full charge.
Locking
Mechanical locking of the INEAR for
charging
INEAR Location
INEAR Charge Location
Mini USB
Connector for the external power supply.
Compatible mini-USB.
3
4
Page 6 of 10
User Guide Charger Box
4 - LIST OF SUPPLIED ACCESSORIES
Mini USB Charger 5 V - 1 A
Ref.: VER05US050-MB
BELTPACK Spare Battery
3.7 V - 1200 mAh
Ref.: BL - 5C
Page 7 of 10
User Guide Charger Box
5 - TECHNICAL FEATURES
INEAR Recharge
Charge voltage (DC)
Charge current
Full charging time of a battery
4,2V
< 50 mA
~2 h
BELTPACK spare battery recharge
4,2 V
< 0,5 A
~3 h
BELTPACK recharge
4,2 V
< 0,5 A
~3 h
Charge voltage (DC)
Charge current
Full charging time of a battery
Number of recharge cycles of the INEAR in nomad mode ~10 times
Charge voltage (DC)
Charge current
Full charging time of a battery
Operating conditions (Over heat security) +5 °C to +45 °C
Charger Box
5 V
1 A
Voltage(DC)
Current
Powered by Mini USB Charger XP Power Ref : VER05US050-MB
Input 100 - 240V ~ 50/60 Hz 0,18A, Output 5V = 1A max
Page 8 of 10
User Guide Charger Box
6 - WARRANTY
Indoor use only.
Elements NOT covered by the guarantee.
This warranty covers only defects in parts and manufacturing of the product. This warranty
does not cover:
- Periodic maintenance and repair or replacement of parts as a result of normal wear and
tear.
- Transportation costs and the risks associated with the sending and retrieval of the
product by the nal customer
- Any adaptation of the product which would be necessary for the purpose of complying
with the technical or safety standards applicable in a country other than that for which
the product was originally designed and manufactured;
- Consumable elements (elements which are intended to be replaced periodically during
the life of the product, for example ear tips, batteries-beyond 12 months to date of
purchase-, connecting cables, etc.);
- Damage or defects in the product resulting from:
- Improper use or installation of the product (use or installation not in accordance with
the use to which the product is intended, installation or use not in accordance with the
Digitear instructions or the technical or safety standards in force in the country where it is
used, etc.)
- Maintenance of the product not in accordance with the Digitear instructions or
negligence in the maintenance of the product.
- Improper handling or mistreatment of the product (false maneuvers, fall, shock,
immersion, etc.) or an improper environment (poor ventilation, vibration, exposure to
moisture, excessive heat, contact with sand or any Other substance, improper power
supply, etc.)
- The use of the product with a product (hardware or software), consumable, accessory
or peripheral not compatible or defective, an adaptation of the product for the purpose
of complying with the technical or safety standards applicable in a country other than
that for which the product was originally designed and manufactured;
- A modication or repair of the product not carried out by a service provider approved
by Overline Systems
- Cases of force majeure, sinister (re, ood, etc.), lightning, etc.
- Produit: DIGITEAR (TX-BOX, Charger Box, BELTPACK, INEAR)
Warranty Period:
24 months parts and labor in workshop
Battery: 12 months (starting from the date of purchase)
ACCESS POINT: Covered by the original manufacturer’s warranty.
No sole accessory will be accepted or repaired by our repair centers.
Page 9 of 10
User Guide Charger Box
7 - TECHNICAL TROUBLESHOOTING
- CHARGE LED is not lighting up
* Check the contacts.
* Clean the housing contacts and the elements to be charged
* Contact the technical support
- No LED Power:
* Check the adapter connection.
* Replace the adapter.
* Contact the technical support
