Ozito SCMS-10STANDU Manuale utente

ASSEMBLY OF STAND

SLIDING

COMPOUND MITRE

SAW & STAND

254mm (10”)

STAND ASSEMBLY

STAND

FASTENERS

The stand is constructed by assembling each half of the structure and

then joining them together.

6 Bolt Small - 24 pc

7 Spring Washer Small - 24 pc

8 Washer Small - 24 pc

9 Nut Small - 24 pc

10 Rubber Foot - 4 pc

11 Saw Mounting Bolts - 4 pc

1 Short Upper Support - 2 pc

2 Long Upper Support - 2 pc

3 Short Lower Support - 2 pc

4 Long Lower Support - 2 pc

5 Leg - 4 pc

1086 9

ONLINE MANUAL

Scan this QR Code with your

mobile device to take you to

the online manual.

12 3 4 5

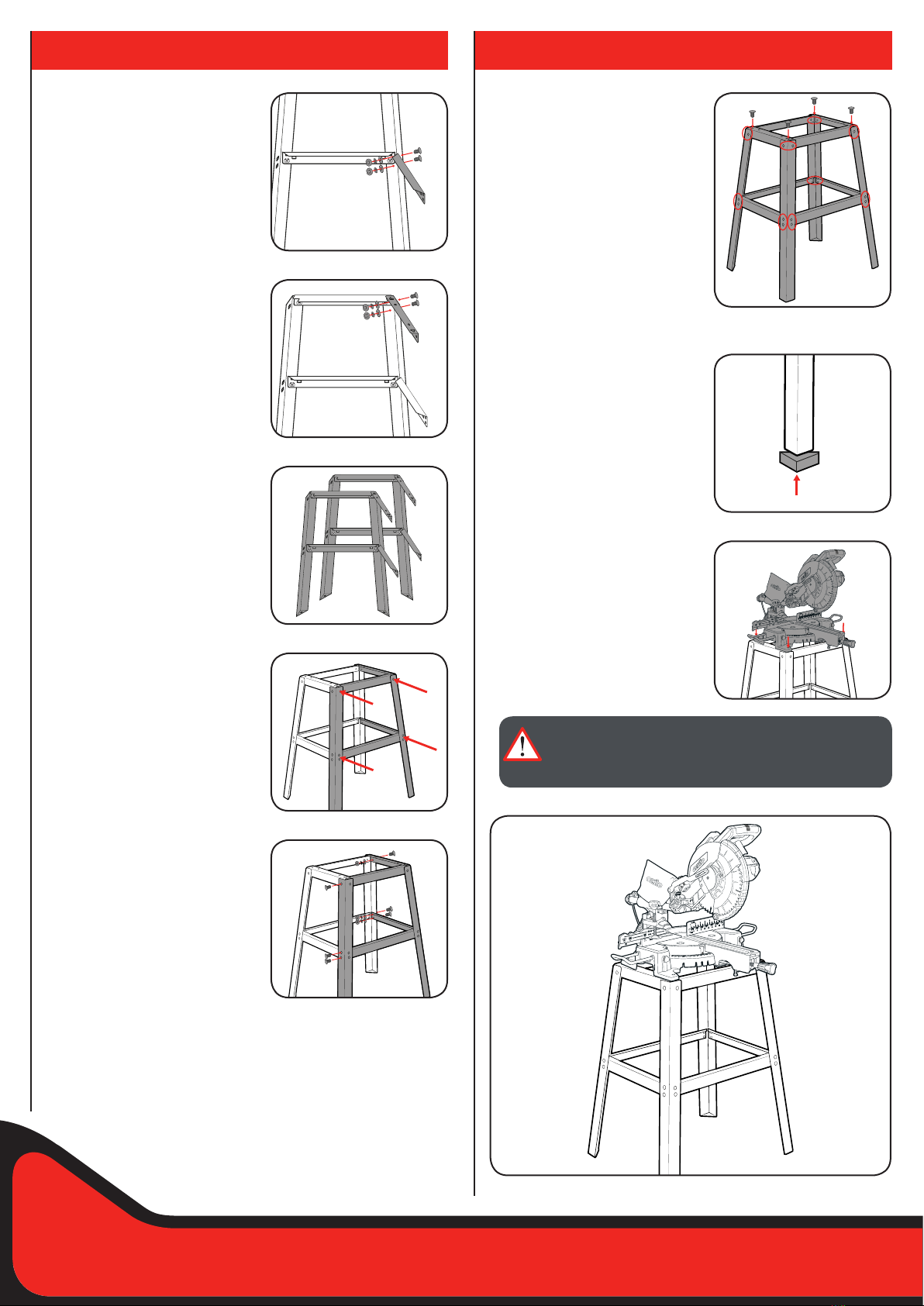

1 Remove the stand components

from the box and group matching

pieces together. Check that you

have all the contents listed in this

manual.

2 Lay two legs on the ground and

one long lower support in between

the legs aligning the bolt holes.

The side support should have its

lip on the high side (facing up)

and should sit inside the legs.

3 Once aligned, insert small bolts

into the 2 aligned holes at both

sides of the lower support. Insert

the bolt from the outside and t a

small washer, spring washer and

nut onto each bolt to secure (only

hand tight at this initial stage).

4 Place one long upper support on

the inside of the legs at the top

Insert a bolt from the outside into

the aligned holes at either side

of the upper support and hand

tighten a small washer, spring

washer and nut onto each.

5 At this stage your frame should

look like this.

117

SCMS-10STANDU

Art.-No.: 30.004.09 I.-No.: 11018

WARNING! ONLY USE THIS STAND WITH THE PROVIDED

MITRE SAW OZITO SCMS-10STAND. THE STAND MUST

NOT BE USED WITH OTHER PRODUCTS OR FOR OTHER

APPLICATIONS.

SCMS-10STANDU

11 Once all of the members are

joined together and all fasteners

are assembled, place the 4

mounting bolts into the holes

at the top of the stand. This

will ensure the mounting holes

align correctly while the stand is

tightened.

Tighten all nuts and bolts rmly.

Note: We recommend that the stand

is mounted to a stable surface

for additional stability.

12 The Rubber Feet can now be

tted.

13 Remove the mounting bolts that

you inserted prior to tightening

the stand, then place the saw on

the stand. The supplied mounting

bolts, spring washers, washers

and nuts should be used to

secure the saw to the top of the

stand.

6 Align one short lower support

inside the legs at the same height

as the long lower support. Ensure

that the lip of the side support is

facing up.

Insert 2 small bolts in the aligned

holes from the outside and

attaching a small washer, spring

washer and nut (only hand tight at

this initial stage).

7 On the same side as Step 6,

assemble one short upper support

to the top of the upper leg using

small bolts, washers, spring

washers and nuts.

One half of the frame is now

complete.

8 Repeat the same process for the

other side, which should leave

you with 2 identical halves.

10 Align the holes of each opposing

member. Bolts, washers, spring

washers and nuts can be inserted

& tightened with hand force only.

9 These halves can now be aligned

together to complete the frame.

Note: Nuts & bolts should only be

nger tight at this stage.
