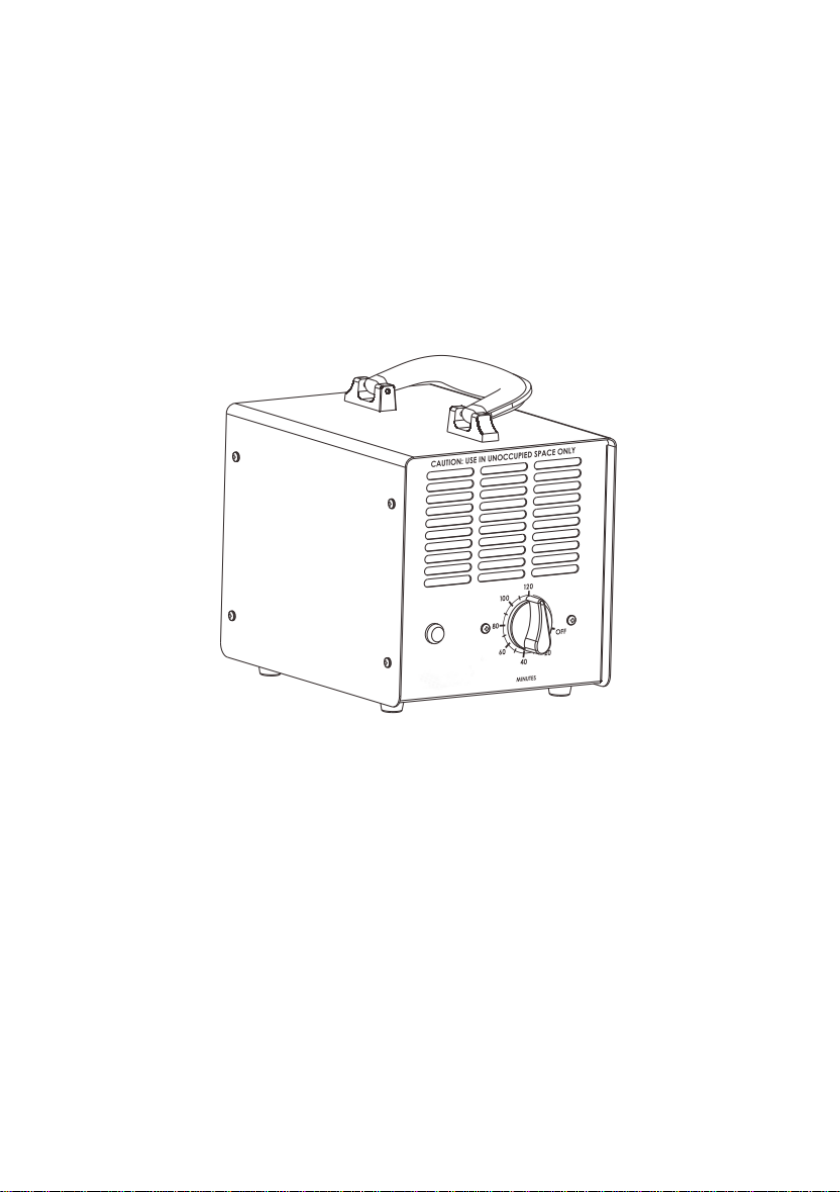

ozonegenerator HE-160A Manuale utente
HE-160A
Commercial Air Purifier
OWNER’S MANUAL
Please read all of the information provided in this owner’s manual
before operating your new Commercial Air purifier.
1
CAUTION
RISK OF ELECTRICAL
SHOCK DO NOT
OPEN
ATTENTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO
NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVCE PERSONNEL.
This “bolt of lightning” indicates that uninsulated material
within your unit may cause an electrical shock. For the safety
of everyone, do not remove product covering.
2
INTRODUCTION
This commercial air purifier is an advanced and convenient contaminant
remediation product. High-powered oxidation in a compact, light weight,
rugged and simple design. Utilizing controlled corona discharge ozone
technology developed specifically to reduce odors and smoke in
unoccupied spaces, ideal for treatment for homes, office, automobiles &
boats and More!
Model: HE-160A
Rated Voltage: Europe AC 220-240V/50-60Hz
USA/Japan AC 100-120V/50-60Hz
Power Consumption: 120 W
Ceramic Plate Size
(3 pieces): 104 X50mm
Air Volume: Max 106 CFM(3 M3/min)
Active Oxygen：15000 mg/h
Sound Level: 45 dB
Product size: L200Xw160xH180mm
Net Weight: 2.69 Kgs(5.92Lbs)
3
Operating the Ozone Generator Air Purifier

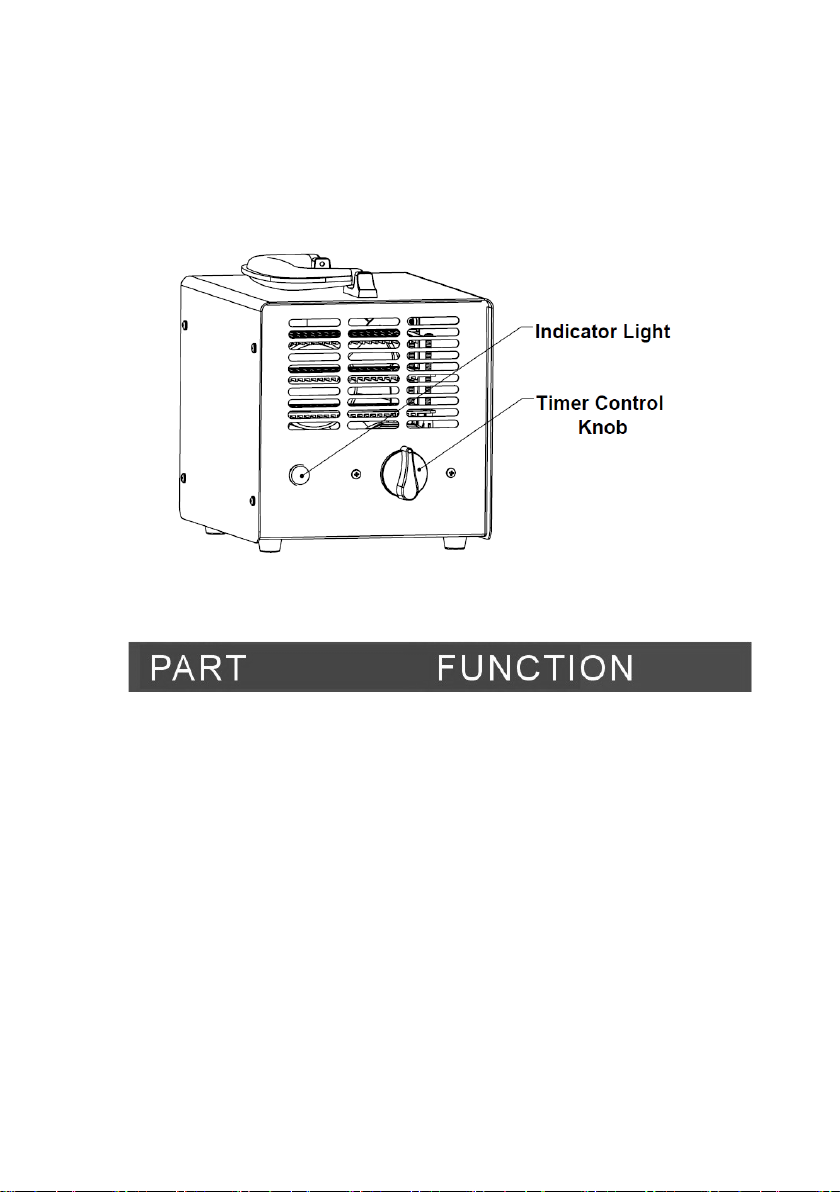

(Front View)
Timer Control Knob Turn clockwise to set the timer for timed
operation up to THREE hours
Indicator Light Illuminates when unit is in operation.
4

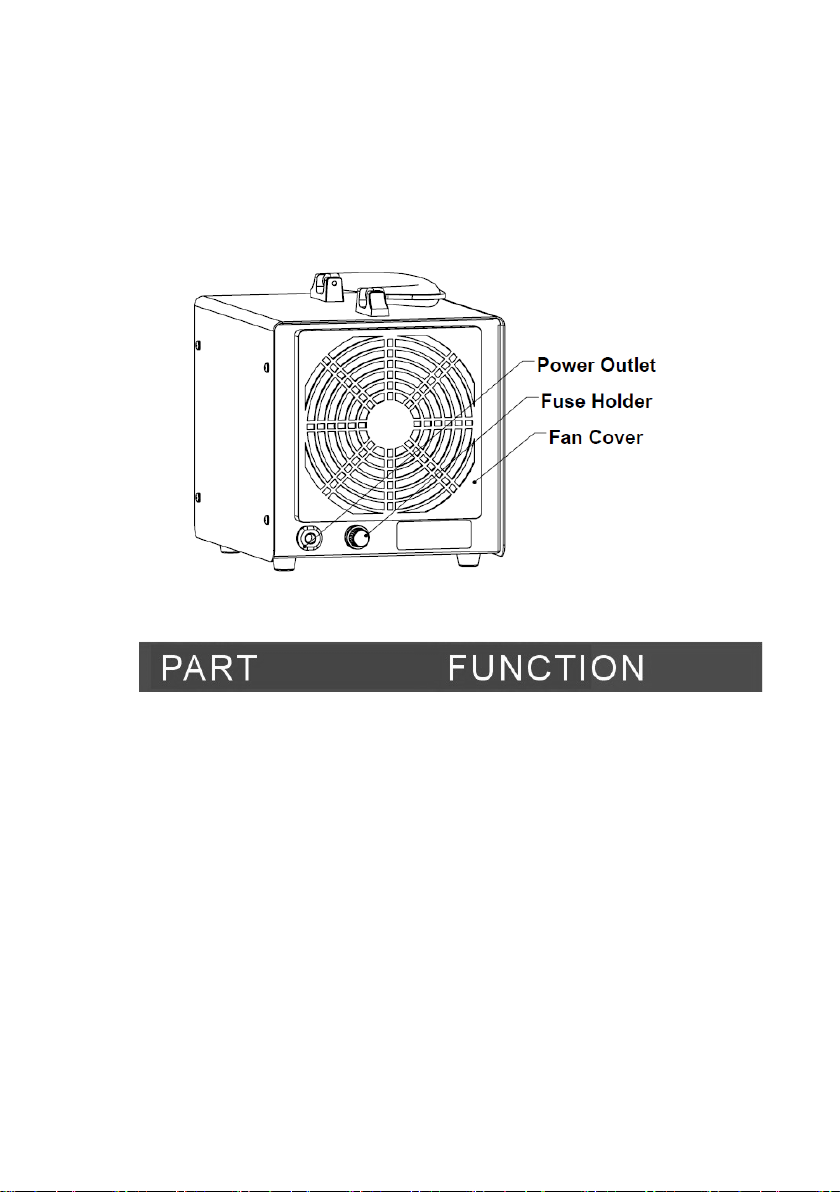

(Back View)
Fuse Holder Houses removable fuse.
(Spare fuse included, 1 amp, 0.79
inch in length)
Power Outlet 220~240 Volt grounded cord for
Europe, 100-120 Volt for USA.
5
The ozone generator is designed to remove odors in
unoccupied spaces. The unit has a timer that will enable it to
run for a maximum duration of 180 minutes. The timer will then
shut the commercial air purifier off. You should allow 40 minutes
before returning to the treated area.
To operate the Ozone Generator Air Purifier:
Close off the desired area to be treated.
Remove all occupants and pets.
Position the unit as close as possible to the odor source.
In such environments as motels that have individual
heating and cooling systems, turn the fan on and set on
re-circulate.
Set timer to desired time and leave the room.
Allow 40 minutes before re-entering the treated space.
Return to space & ventilation area.
6
If you suspect a problem with your unit check the following:
•Unit is plugged in properly.
•Ceramic plates are clean and dry.
•There are no cracks in plates and each plate is flush with back of
unit.
•It’s important that the ozone generator be properly grounded to
avoid potential shock.
•Fuse is installed properly and in good condition. To replace fuse,
pull out the plastic fuse holder, remove old fuse and insert new
fuse. Replacement fuse must be 1 amp (0.79 inch). Refer to
picture at follows:
Caution: No attempt should be made to remove a panel of the
cabinet, as there are no user serviceable parts. Opening the unit
will void all warranties.
7
On the entire device 1 years from date of purchase except
wearing parts such as ceramic plates.
Ozone plate are the consumables, no warranty, with normal
damage.
To activate warranty you must return this card within 30 day.
------------------------------------------------------------------------------------------------
FOR YOUR RECORDS
Please record the model and serial number below, for easy reference, in
case of loss or theft. These numbers are located on the back panel of your
air purification unit. Space is also provided for other relevant information.
Name: Phone:
Address:
Model Number:
Serial Number:
Date of Purchase:
Distributor Name:
