IF Mode
Owner manual
IFModeownermanual
2

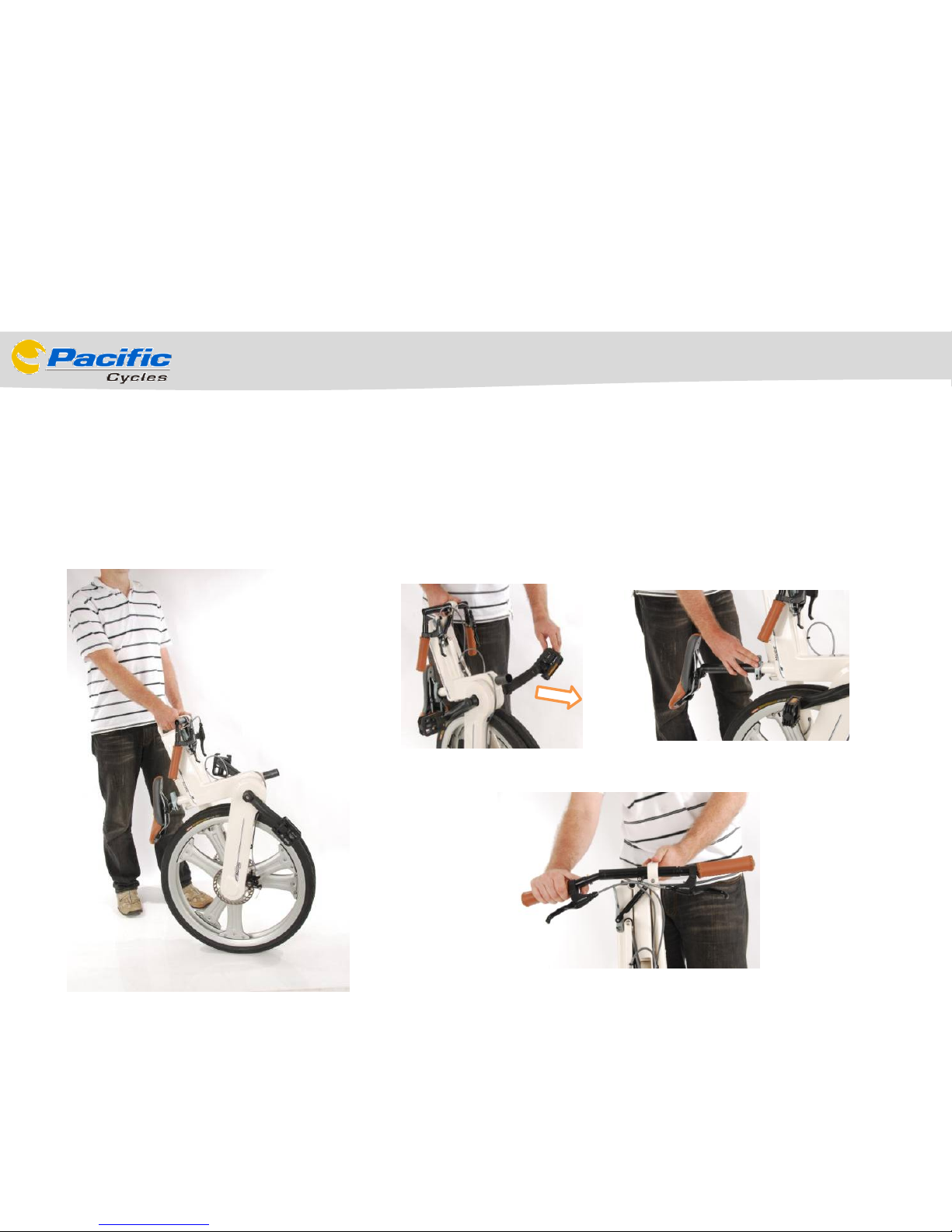

How to unfold
Opening the box – a
100% assembled IF
Mode is ready.
To unfold the IF Mode: unfold the pedals
and set left side crank down first, raise
the seat and clamp, assemble the left
and right handle grip in position.
IFModeownermanual
Place your left hand on handle bar
left grip (NOT the handle on top of
the ‘mono’ front fork) with right
hand holding the front of the seat.
Move your right hand away from
you and then back in a clockwise
motion and your left hand slightly
pushing the frame forward.
How to unfold (continued):
3
The front and rear part of the main
frame will couple each other in a
hinge closed position with an ‘over-
center’ action. Secure the frame
together by locking the lever below
the rear part of the main frame.
Now your bike is ready to ride.
Check http://tw.youtube.com/watch?v=BD2lFgMfh2k
for online video tutorial
IFModeownermanual
How to fold Press pedals outer body inward
toward frame and rotate body upward
to fold compact.
Standing on the left side of the
bike; open the quick release lever.
Begin with your left hand on the left handle
bar grip and your right hand on the saddle.
The frame will hinge open by pulling your
left hand toward you and either pushing
away with your right hand or holding the
rear in place.
IFModeownermanual
5
How to fold (continued)
Rock the frame upward
with your right hand
and pull the front
backward and together
in one motion so the
wheels meet and the
magnet catches.
To make the bike more
compact, 1) open the seat
post quick release and
push the seat post into
the frame, 2) fold the
handle bar grips and
pedals.
Check here for online video tutorial
IFModeownermanual
6
Roll when folded
The handle on top of
the front fork can be
used as a hand hold
to roll the bike along
during transport.
CAUTION!
Never place your hands
and fingers inside the
following folding part /
mechanism.
