WET/DRY VACUUM WDV-18
OPERATING MANUAL
Read this manual carefully and keep it near the machine, protected from liquids and other damaging substances.
Failure to follow the instructions may result in injury or damage to equipment and property.
Carefully inspect all components for freight damage. If such damage is discovered, file a “CONCEALED
DAMAGE REPORT” immediately with the delivering carrier.
The contents of this manual are based on the latest product information available at the time of publication. Pacific
Floorcare reserves the right to make changes or improvements without being obliged to apply changes to the
machines previously sold. Thank you for purchasing a Pacific Floorcare product.
New manuals can be downloaded from: www.pacificfloorcare.com/manuals
2
12/1/2017
SPECIFICATIONS
1. Overall Machine Units
Weight 69 lbs
Dimensions Width at body 18 inches
Width at squeegee 24 inches
Length 28 inches
Height 38 inches
Noise 79 dBA
2. Wheels
Type and Dimensions Rear wheels 10 inches
Front caster 3.5 inches
3. Recovery Tank
Capacity 18 gal
Draining Drain hose 1.5" inches
4. Vacuum
Vacuum Air flow 94 cfm
Vacuum lift 90 inches H2O
Horse Power 1.24 HP
5. Squeegee
Edges (2) usable edges per blade
Blade change with no tools
Break-away Break-away with impact
6. Operator Controls
Handle Height off the floor 38 inches
Diameter 1.5 inches
QR codes Machine manual
7. Power
Voltage 120 VAC
Cord Yellow 16/3 cord 50 feet
Molded in cord retainer
8. Accessory Kit
Includes Dry filter, 10' hose, 2 cuffs, 2-piece aluminum S-
wand, crevice tool, dusting brush, upholstery tool,
squeegee tool, floor brush and hard floor tool.
3
12/1/2017
TABLE OF CONTENTS
SECTION PAGE #
1. SAFETY INSTRUCTIONS 4
o GROUNDING 5
o EXTENSION CORDS 6
o LIFTING AND TRANSPORTATION 7
o PREPARATION 7
2. SQUEEGEE 8
3. DRAINING THE MACHINE 10
4. COVER ASSEMBLY 11
5. OPTIONAL DRY FILTER 12
6. WIRING DIAGRAM 12
7. MAINTENANCE 13
8. TROUBLESHOOTING 13
9. PARTS DIAGRAMS
o COVER ASSEMBLY 14
o TANK ASSEMBLY 15
o SQUEEGEE ASSEMBLY 16
o SQUEEGEE LINK ASSEMBLY 17
o OPTIONAL ACCESSORIES KIT 18
10. WARRANTY POLICY 19
4
12/1/2017
1. IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING VACUUM CLEANER
WARNING: To reduce the risk of fire, electric shock, or injury:
Do not leave appliance when plugged in. Unplug from outlet when not in use and before
servicing.
Do not use outdoors.
Do not allow to be used as a toy. Close attention is necessary when used by or near children.
Use only as described in this manual. Use only manufacturer’s recommended attachments.
Do not use with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service center.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around
sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Do not handle plug or appliance with wet hands.
Do not put any object into openings. Do not use with any opening blocked; keep free of dust,
lint, hair, and anything that may reduce airflow.
Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
Turn off all controls before unplugging.
Use extra care when cleaning stairs.
Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas
where they may be present.
Do not use without dust bag and/or filters in place.
Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
Connect to a properly grounded outlet only. See Grounding Instructions.
SAVE THESE INSTRUCTIONS
For Commercial Use
5
12/1/2017
GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunction or break down,
grounding provides a path of least resistance for electric current to reduce
the risk of electric shock. This appliance is equipped with a cord having an
equipment-grounding conductor and grounding plug. The plug must be
inserted into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING: Improper connection of the
equipment-grounding conductor
can result in a risk of electric
shock. Check with a qualified
electrician or service person if
you are in doubt as to whether the
outlet is properly grounded. Do
not modify the plug provided
with the appliance. If it will not
fit into the outlet, have a proper
outlet installed by a qualified
electrician.
This appliance is for use on a nominal 120-volt circuit and has a grounding
attachment plug that looks like the plug illustrated. Make sure that the appliance
is connected to an outlet having the same configuration as the plug. No adapter
should be used with this appliance.
6
12/1/2017
USING EXTENSION CORDS
The machine comes standard with a 50 foot, 16 gauge, 3 conductor cord (50’
16/3 AWG). Do not use an extension cord in conjunction with the cord
provided with the machine. Replacement cords must meet or exceed the
specification of the original cord.
WARNING: Do not use an extension cord that provides a loose connection.
A loose connection may result in overheating, fire, and
increases the risk of a burning.
Maintain Appliance With Care – Inspect extension cords periodically and
replace if damaged. Wrap the cord carefully around the handle as shown
below when not in use.
7
12/1/2017
LIFTING AND TRANSPORTATION
CAUTION: Two person lift. Never attempt to lift the machine alone.
Unplug the cord and wrap it securely around the handle
Secure the machine with straps during transport in a vehicle or trailer to
prevent damage
PREPARATION
Verify the facility and the machine have compatible voltage prior to use (see
Safety Instructions)
Inspect the machine for loose or damaged components
8
12/1/2017
2. SQUEEGEE
Remove and install the Squeegee Head:
Use the two black center knobs to remove
and install the squeegee assembly from the
machine.
Remove and Install the Squeegee Blades:
NOTE: The Squeegee Blades can be used twice by flipping them over to the other
edge. Installation is the reverse of removal.
Loosen all four knobs until they stop
Slide the outer Squeegee Assembly housing up the posts
Remove the Squeegee Blades
9
12/1/2017
Raise and lower the Squeegee Assembly:
Move the foot lever forward and allow the Squeegee Assembly to lower
to the working position
Press the foot lever down and back to lock the Squeegee Assembly to the
up position
RAISE
LOWER
10
12/1/2017

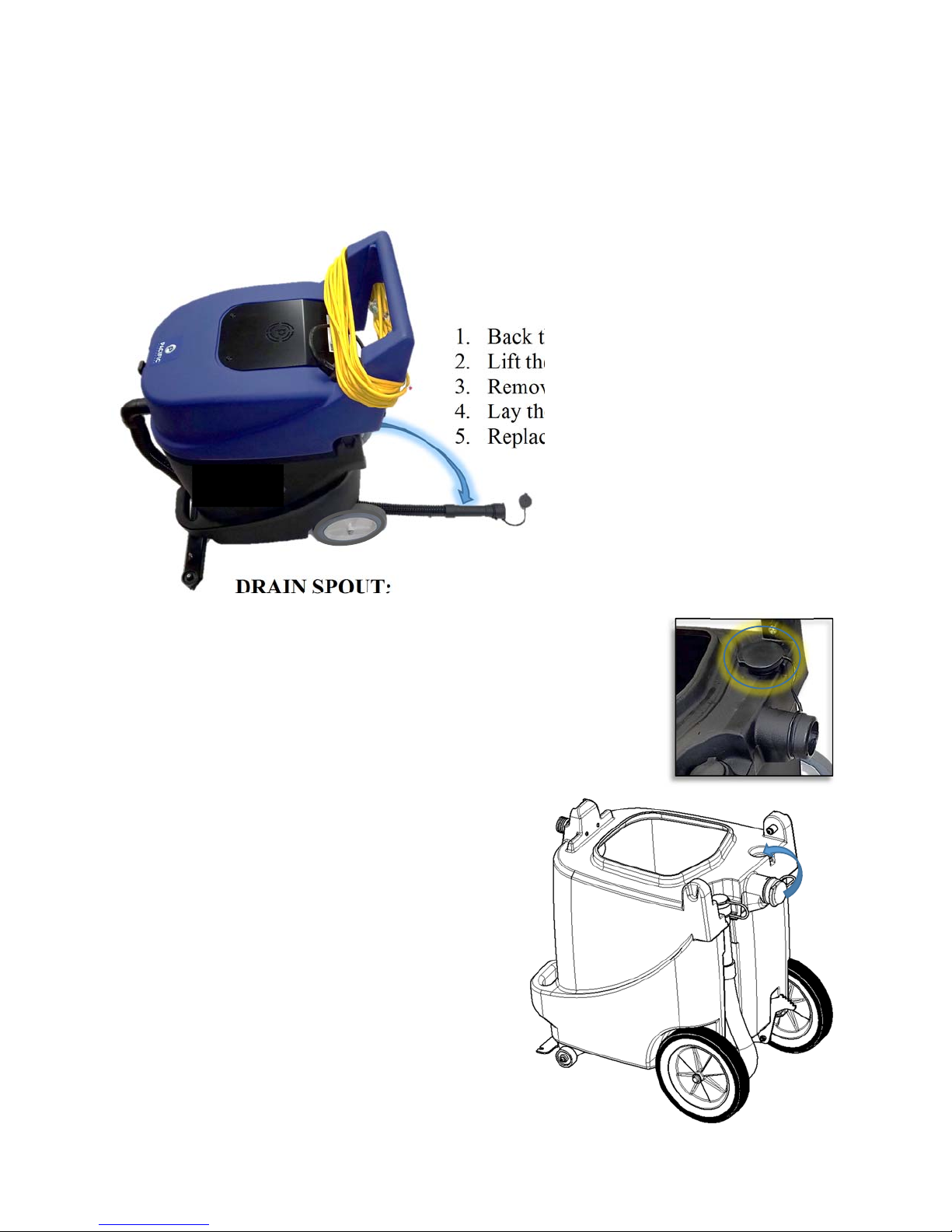

3. DRAINING THE MACHINE
NOTE: The vacuum must be turned off prior to draining the machine.
DRAIN HOSE:
1. Back the machine up to the drain
2. Lift the drain hose from the holster
3. Remove the drain cap
4. Lay the hose into the drain
5. Replace the cap when finished
DRAIN SPOUT:
1. Remove the cover assembly
2. Back the tank up to the drain location
3. Remove the Drain Spout Cap and
secure it in the recessed area to the
right of the spout to prevent it from
interfering with the drain area
4. Using the two-person lift method,
grab the handle at the base of the tank
and tilt backward to begin draining
the tank
5. Follow all of your company policies
and standards when lifting and moving
the machine
