iDesign Disassembly Manual

Required Tools

All disassembly procedures can be performed using the following tools:

 Philips screwdriver

Disassembly Instructions

This document contains step-by-step disassembly instructions for the iDesign

(Epura) chassis. The instructions are clarified by images of the part that is being

removed or disassembled. Furthermore, the screws that are removed are shown

next to the image of the parts themselves.

When disassembling the system unit, follow these general rules:

 Do not disassemble the system into parts that are smaller than those specified

in the instructions.

 Label all removed connectors. Note where the connector goes and in what

position it was installed.

 Turn off the power and disconnect all power and all options.

Electrostatic discharge can damage computer components.

Discharge static electricity by touching a metal object before

removing the system unit cover.

Reassembly Instructions

Reassembly is the reverse of the disassembly process. Use care to ensure that all

cables and screws are returned to their proper positions.

iDesign Disassembly Manual - 2

Opening the Chassis

Perform the following steps to open the chassis:

1. Disconnect all external data and power cables connected

to the computer.

2. Gently pull the rear bezel diagonally from the chassis.

Fig. 1: Removing the rear bezel

3. Remove the screws that hold the side panel.

Fig. 2: Removing the side panel screws

4. Slide the side panel towards the back and pull it away from

the chassis.

iDesign Disassembly Manual - 3

Fig. 3: Removing the side panel

5. If required, do the same with the other side panel.

6. If required, lay down the chassis on one side, carefully

slide the top bezel slightly backwards to unhook the

latches holding it in place, and lift the top bezel away from

the chassis.

Fig. 4: Removing the top bezel

7. If required, lay down the chassis on one side, carefully

slide the bottom bezel slightly backwards to unhook the

latches holding it in place, and remove the bottom bezel.

Fig. 5: Removing bottom bezel

Removing the Front Bezel

To remove the front bezel, open the chassis (see the section

Opening the Chassis) and continue as follows:

1. Gently unlock the three lateral latches that hold the front

bezel and pull it away to the opposite side.

iDesign Disassembly Manual - 4

Fig. 6: Removing the front bezel

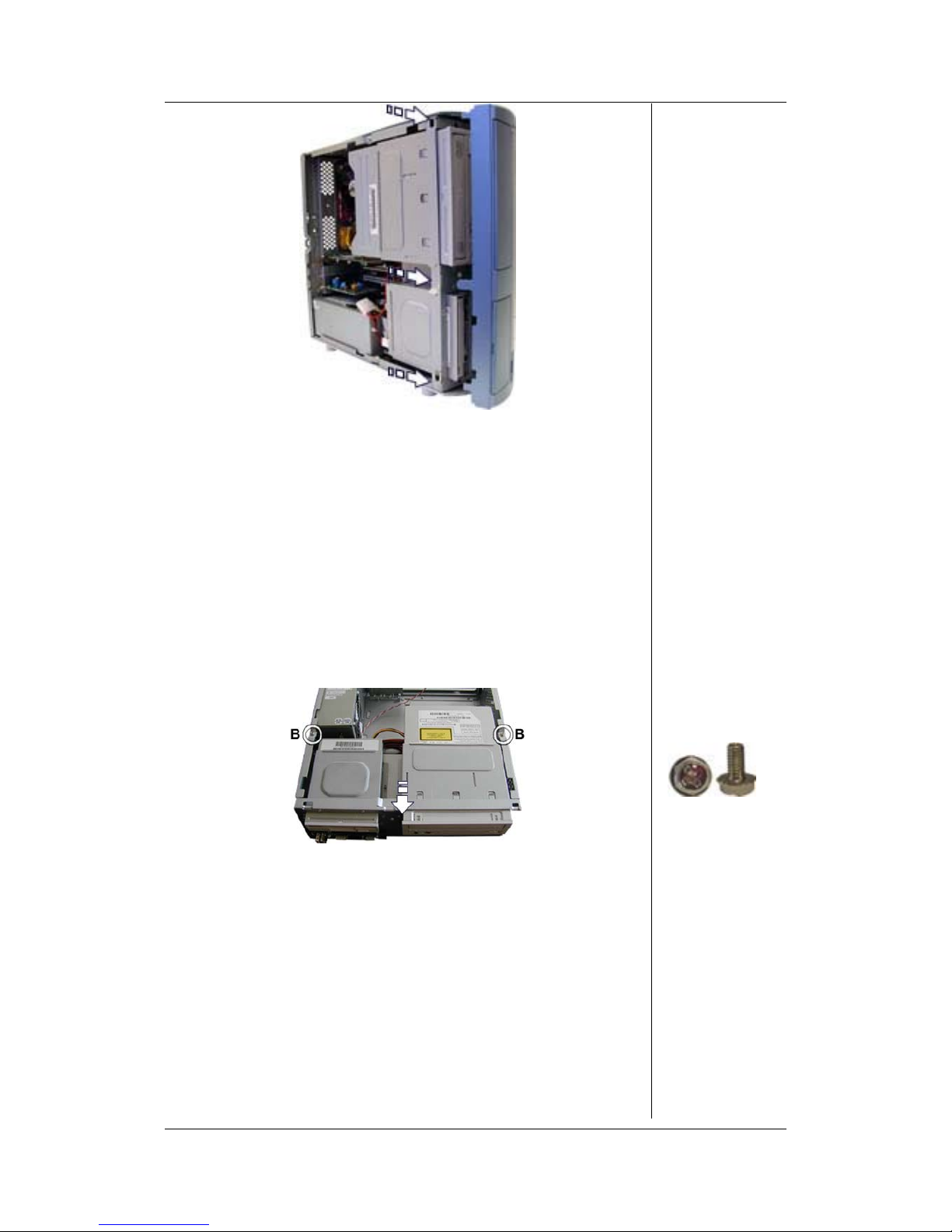

Removing the Drive Bracket

To remove the drive bracket containing the DVD/CD-ROM,

and the floppy disk drive, first open the chassis (see section

Opening the Chassis), remove the front bezel (see section

Removing the Front Bezel), and follow these steps:

1. Lay down the chassis on its side.

2. Disconnect all power and data cables from the drives

installed.

3. Remove the screws that hold the drive bracket to the

chassis.

Fig. 7: Removing the drive bracket

4. Slide the drive bracket out of the chassis.

Removing the DVD/CD-ROM Drive

To remove the DVD/CD-ROM drive, first open the chassis (see

section Opening the Chassis), remove the front bezel (see

section Removing the Front Bezel), remove the drive bracket

containing the DVD/CD-ROM and floppy disk drive (see the

section Removing the Drive Bracket), and follow these steps:

1. Remove the screws holding the DVD/CD-ROM drive.

2. Slide the DVD/CD-ROM drive out of the drive bracket.

iDesign Disassembly Manual - 5

Fig. 8: Removing DVD/CD-ROM drive

Removing the Floppy Disk Drive

To remove the floppy disk drive, first open the chassis (see

section Opening the Chassis), remove the front bezel (see

section Removing the Front Bezel), remove the drive bracket

containing the DVD/CD-ROM and floppy disk drive (see the

section Removing the Drive Bracket), and follow these steps:

1. Remove the screws holding the floppy disk drive in the

drive bracket.

Fig. 9: Removing Floppy Disk Drive

2. Slide the floppy disk drive out of the drive bracket.

Removing the Hard Disk Drive

To remove the hard disk drive, first open the chassis (see

section Opening the Chassis), remove the front bezel (see

section Removing the Front Bezel), remove the drive bracket

(see section Removing the Drive Bracket), and follow these

steps:

1. Disconnect the power and data cable from the hard disk

drive.

2. Remove the screws in the front of the chassis holding the

hard disk drive bracket.

iDesign Disassembly Manual - 6

Fig. 10: Removing the screws of the hard disk drive bracket

3. Slide the hard disk drive bracket out of the chassis.

4. Remove the screws that hold the hard disk drive in the

bracket and slide the hard disk drive out.

Fig. 11: Removing the hard disk drive screws

Removing Add-On Cards

To remove installed add-on cards, open the chassis (see

section Opening the Chassis), and follow these steps:

1. Disconnect all cables from the card to be removed.

2. Remove the screw holding the card in place.

Fig. 12: Removing the add-on cards

3. Carefully take out the card from the slot.

iDesign Disassembly Manual - 7

Note Depending on the motherboard (revision), you might

encounter an AGP slot with a special retention lock. Unlock the card

before taking it out from the AGP slot.

Fig. 13: AGP retention lock

Removing the SPDIF Assembly (If Present)

To remove the SPDIF card, open the chassis (see section Opening the

Chassis), then:

1. Disconnect the SPDIF assembly cable from the

motherboard.

Fig. 14: Disconnecting SPDIF assembly cable

2. Remove both screws holding the SPDIF assembly to the

back panel of the chassis and take out the SPDIF

assembly.

Fig. 15: Removing SPDIF assembly from chassis

Removing the Switch/USB Assembly

To remove the switch/USB assembly, open the chassis (see

section Opening the Chassis), remove the front bezel (see

section Removing the Front Bezel), remove the drive bracket

containing the DVD/CD-ROM and floppy disk drive (see the

section

Removing the Drive Bracket

) then:

iDesign Disassembly Manual - 8

section Removing the Drive Bracket), then:

1. Disconnect the switch/USB assembly power cables from

the motherboard.

2. Remove both screws holding the switch/USB assembly to

the chassis.

Fig. 16: Removing the switch/USB assembly

3. Gently pull the cables through the orifice in the chassis.

Removing the Power Supply Unit

To remove the power supply unit, first open the chassis (see

section Opening the Chassis), then follow the steps below:

1. Lay the chassis down on one side.

2. Disconnect the power supply cables from all peripherals

and the motherboard.

3. Remove the screws at the back of the chassis.

Fig. 17: Removing the screws of the power supply unit

4. Carefully lift the power supply out of the chassis.

Removing the Motherboard

To remove the motherboard, open the chassis (see section

Opening the Chassis), remove the front bezel (see section

Removing the Front Bezel), remove the drive bracket

containing the DVD/CD-ROM and floppy disk drive (see the

section Removing the Drive Bracket), remove all add-on cards

fthilt(

RiAdd

OCd

)

iDesign Disassembly Manual - 9

from their slots (see section Removing Add-On Cards),

remove the power supply unit (see Removing the Power

Supply Unit), then follow the steps below:

1. Disconnect all power and data cables connected to the

motherboard.

2. Remove any memory module installed (refer to the

motherboard documentation for instructions on how to

remove this component).

3. Remove the screws that hold the motherboard in place

and carefully take out the motherboard from the chassis.

Fig. 18: Removing the screws of the motherboard

Removing the System Fan (If Present)

To remove the system fan (if the system is equipped with one), open the

chassis (see section Opening the Chassis), remove the front

bezel (see section Removing the Front Bezel), remove the

drive bracket containing the DVD/CD-ROM and floppy disk

drive (see the section Removing the Drive Bracket), then

follow the steps below:

1. Disconnect the white system fan power connector on the

motherboard (the red/brown connector belongs to the CPU

fan).

Fig. 19: System fan connector

2. Pull the fan in the direction of the arrow on the image.

iDesign Disassembly Manual - 10
