Pallmann KING COBRA Manuale utente
Operating instructions
Floor sander KING COBRA 3,68 KW (5,0Hp) / 60Hz
#047939
#064326
UFLOOR Systems Inc. | 14705 E. 33rd Place Unit-D | Aurora CO 80011 | Tel: +1-720-374-4810 | Fax: +1-720-374-2113 | www.ufloor-systems.com
2 05/2011
As of: May 2011
UF OOR Systems Inc.
Service Center Manager
14705 E. 33rd Place Unit-D
Aurora Co, 80011
Telephone: +1 720-374-4810
Fax: +1 720-374-2113
This brochure uses the symbol to mark important instructions for safety and preventing
damage.
Please give special attention to the marked instructions.
They refer to a potentially dangerous situation. Failure to comply can result in fatal or severe injuries and
damage to property.
3 05/2011
4 05/2011
Contents
1 Introduction.................................................................................................................................... 6
2 Scope of delivery........................................................................................................................... 7
3 achine specifications KING COBRA ........................................................................................ 8
3.1 Important components..................................................................................................................... 8
3.2 Technical data ................................................................................................................................. 9
3.3 Safety and machine protection facilities .......................................................................................... 9
4 Proper use...................................................................................................................................... 9
5 Installing the guide tube .............................................................................................................. 10
6 Disassembling for transport ........................................................................................................ 11
6.1 Removing the guide tube ............................................................................................................... 11
6.2 Removing the motor ........................................................................................................................ 12
7 Operating the KING COBRA ....................................................................................................... 14
7.1 Protective clothing and equipment ................................................................................................ 14
7.2 Fitting the dust bag ....................................................................................................................... 15
7.3 Safety instructions regarding dust .................................................................................................. 16
7.4 Disposing of sanding dust ............................................................................................................. 17
7.5 Replacing the sanding belt ............................................................................................................ 18
7.6 Adjusting the sanding pressure ..................................................................................................... 19
7.7 Safety instructions for electric cable and connectors .................................................................... 20
7.8 Connecting the KING COBRA to the mains power ........................................................................ 20
7.9 Remarks about sanding parquet and plank floors ......................................................................... 22
7.10 Sanding with the KING COBRA ..................................................................................................... 25
8 aintenance .................................................................................................................................. 30
8.1 Changing the sanding drum .......................................................................................................... 30
8.2 Adjusting the running wheels ......................................................................................................... 32
8.3 Adjusting the castor wheels ........................................................................................................... 34
8.4 Adjusting the tension roller ............................................................................................................. 35
8.5 Tightening the V-belts...................................................................................................................... 36
8.6 Guarantee........................................................................................................................................ 37
5 05/2011
1 Introduction
Dear customer,
you have decided in favour of the PA MANN parquet floor sander KING COBRA, the correct
choice with respect to quality and performance.
The KING COBRA is the result of a consistent implementation of many years of experience.
This machine combines an extraordinary high sanding performance and an excellent sanding
quality, together with an easy to operate, proven and reliable technology.
This operating instructions contain important informations for the use and safe operation of the
KING COBRA.
Caution!
Read these operating instructions carefully before assembling or operating the
KING COBRA. Ensure that all operators read these operating instructions prior to
operate the machine.
Adherence to the safety notes helps to protect against potential dangers for health and
personal safety and to prevent an improper utilisation of the machine.
Before starting to work, make yourself familiar with the operation of the machine. It's too
late if you do it while working!
Never allow anybody without sufficient skills and knowledge to operate the machine.
6 05/2011
2 Scope of delivery
1 machine
2 dust bag
3 cable with plug and coupling
4 respirator
5 multiclip
7 hexagon socket bolt key 5 mm
8 hexagon socket bolt key 6 mm
9 hexagon socket bolt key 10 mm
10 running wheel adjusting tool
11 tool pouch
12 fork wrench 10 mm
13 fork wrench 13 mm
14 fork wrench 24 mm
15 double fork wrench 30/36 mm
16 hearing protectors
7 05/2011
3 achine specifications KING COBRA
3.1 Important components
1 pressure regulating bolt 11 bumper wheel
2 castor wheels 12 belt guard
3 running wheels 13 motor
4 drum cover 14 switch box
5 V-belt tension bolt 15 dust bag
6 tension lever 16 cable arm
7 knurled nut 17 left hand grip
8 clamping lever 18 main lifting lever
9 motor plug 19 right hand grip
10 carrying handle 20 gentle lifting lever
8 05/2011
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
9 05/2011
3.2 Technical data
Single-phase AC motor . . . . . . . . . . . . . . . . . . . . . . 240 V, 60 Hz
Motor power. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3,68kW (5,0HP)
Sanding drum speed . . . . . . . . . . . . . . . . . . . . . . . . . . 2550 rpm
Sanding width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 mm
Sanding belt dimensions . . . . . . . . . 250 mm x 750 mm, endless
Machine weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 kg
3.3 Safety and machine protection facilities
KING COBRA is equipped with an
-overcurrent cutout and an
-no-volt release
The overcurrent cutout protects the machine from damage and persons from endangering in the
case of short circuits.
The no-volt release prevents uncontrolled restart of the machine after power failure. The motor
will not restart automatically when the power returns, it will have to be switched on again.
4 Proper use
The parquet floor sander KING COBRA is suitable for dry sanding of parquet and plank
floors. No other use is allowed.
Caution!
Never use KING COBRA for wet procedures (mortal risk from electric shock)!
10 05/2011

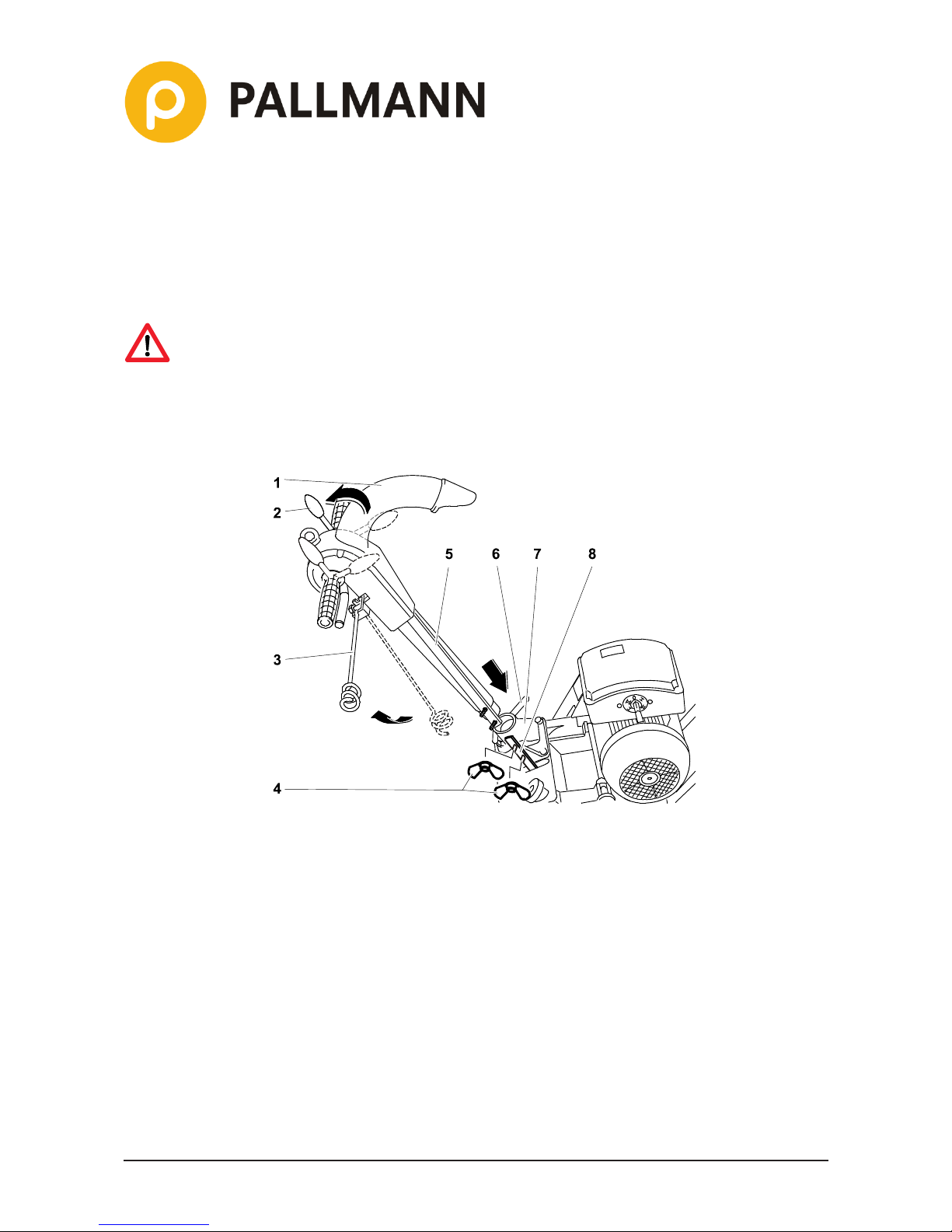

5 Installing the guide tube
Note: The KING COBRA is delivered with the guide tube (1) removed.
Caution!
Injury to the operator or other persons could occur or damage could occur if the machine
starts up unintentionally. Disconnect the machine from the power supply before working
on the machine!
Instructions:
1. Insert the guide tube (1) into the guide tube support (7). The curved section of the tube must
face toward the motor. Clamp the guide tube by means of the clamping lever (6) located on
the guide tube support.
2. Fit the connector (8) into the both bolts of th pull rod
3. Move the main lifting lever (2) into the rear position to raise the sanding drum from the floor.
4. Tighten both wing nuts
