Disassembly Instructions for
Palm® Treo™ 650 smartphone
Only authorized recyclers are permitted to use these disassembly instructions.
Any attempted disassembly by a user or unauthorized party will void the
product warranty and may irreparably damage the product.
T650.01 IDENTIFICATION
24MAR06
Disassembly Instructions for
Palm® Treo™ 650 smartphone
Only authorized recyclers are permitted to use these disassembly instructions.
Any attempted disassembly by a user or unauthorized party will void the
product warranty and may irreparably damage the product.
T650.02 REQUIRED HANDTOOLS
H4H1 H2 H3
24MAR06
Disassembly Instructions for
Palm® Treo™ 650 smartphone
Only authorized recyclers are permitted to use these disassembly instructions.
Any attempted disassembly by a user or unauthorized party will void the
product warranty and may irreparably damage the product.

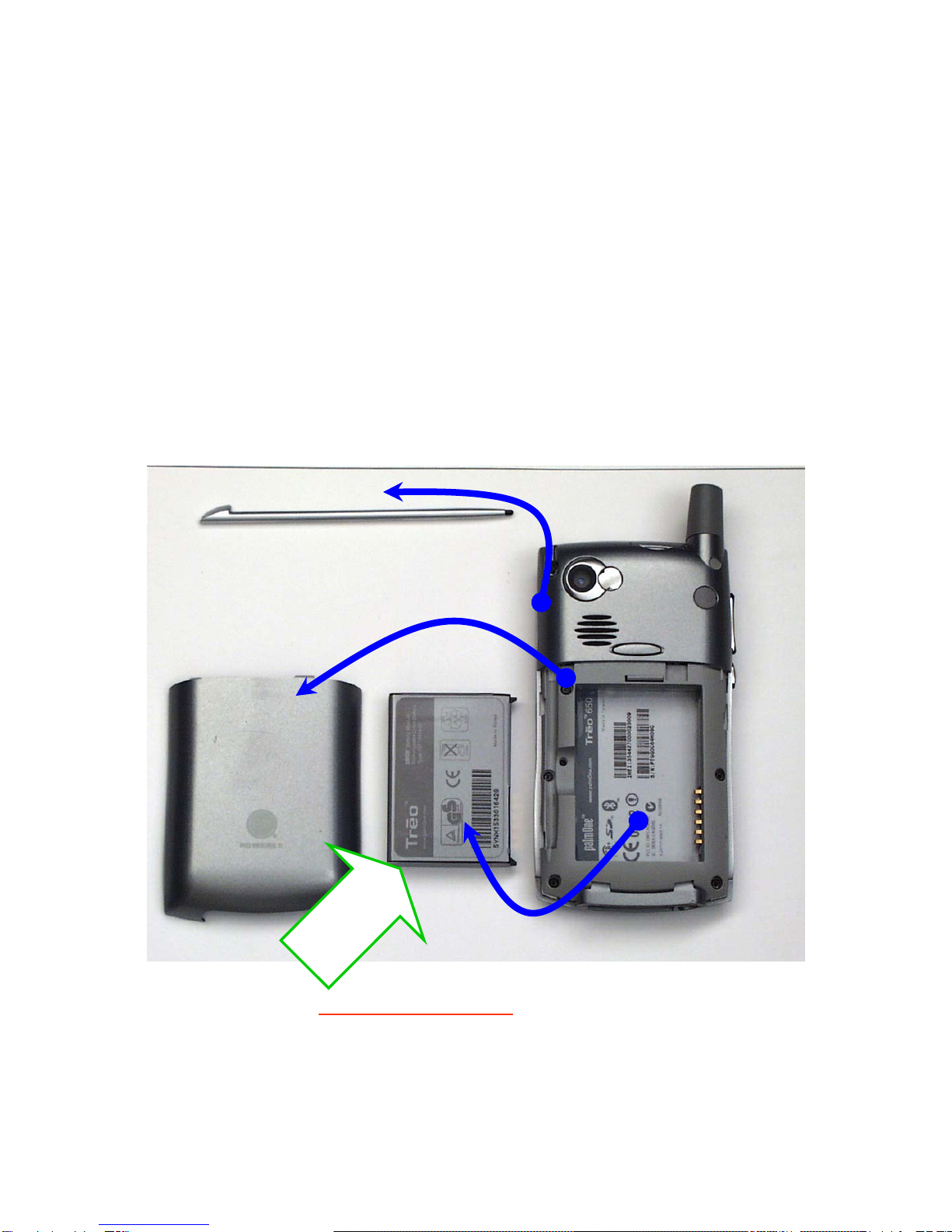

T650.03 REMOVE BATTERY AND STYLUS
BATTERY
Li Ion
1
2
3
24MAR06
Disassembly Instructions for
Palm® Treo™ 650 smartphone
Only authorized recyclers are permitted to use these disassembly instructions.
Any attempted disassembly by a user or unauthorized party will void the
product warranty and may irreparably damage the product.

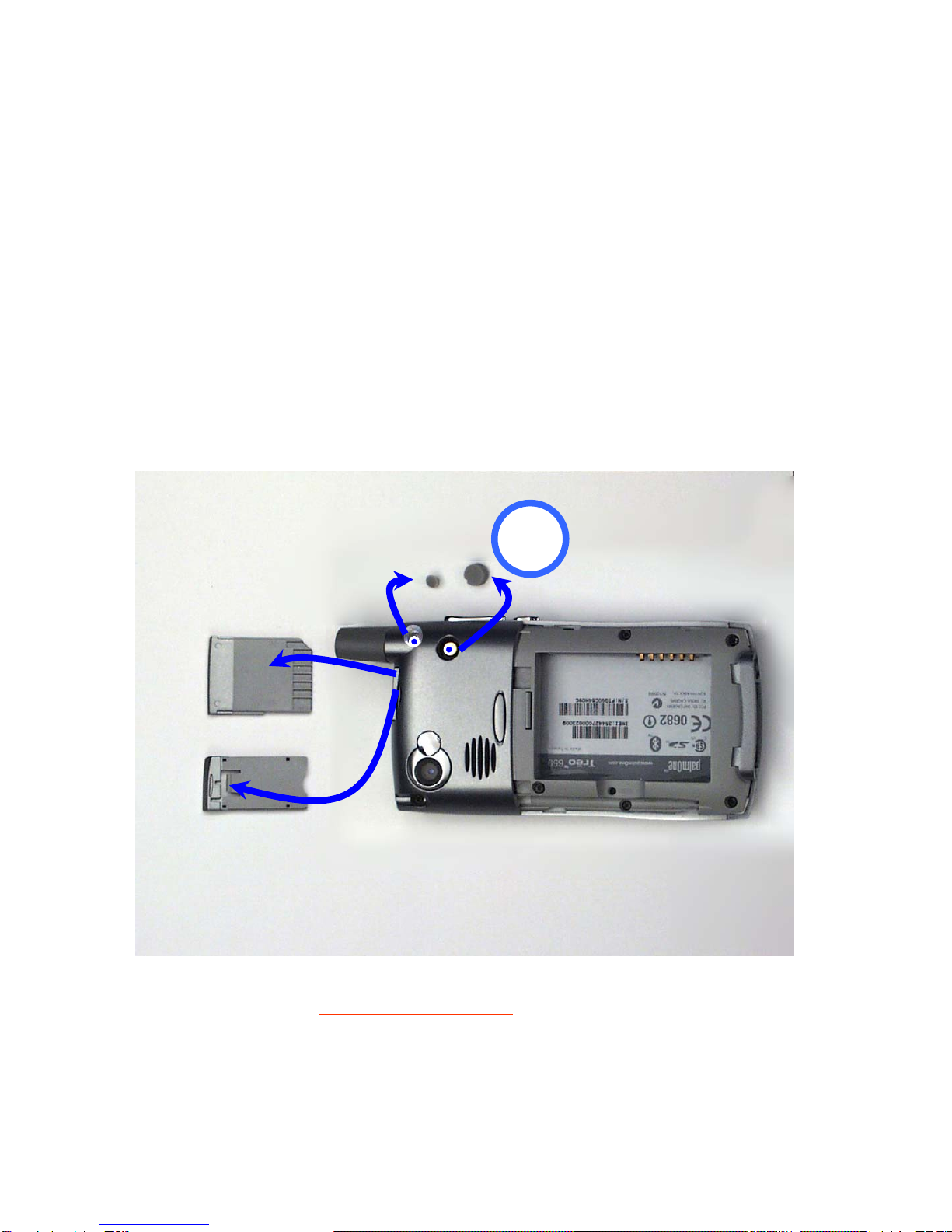

T650.04 REMOVE INSERTS
H4
24MAR06
Disassembly Instructions for
Palm® Treo™ 650 smartphone
Only authorized recyclers are permitted to use these disassembly instructions.
Any attempted disassembly by a user or unauthorized party will void the
product warranty and may irreparably damage the product.
T650.05 REMOVE SCREWS (7)
7
6
1
5
2
3
4
H1
24MAR06
Disassembly Instructions for
Palm® Treo™ 650 smartphone
Only authorized recyclers are permitted to use these disassembly instructions.
Any attempted disassembly by a user or unauthorized party will void the
product warranty and may irreparably damage the product.
T650.06 REMOVE ANTENNA
24MAR06
Disassembly Instructions for
Palm® Treo™ 650 smartphone
Only authorized recyclers are permitted to use these disassembly instructions.
Any attempted disassembly by a user or unauthorized party will void the
product warranty and may irreparably damage the product.
T650.07 OPEN CASE
H2
24MAR06
Disassembly Instructions for
Palm® Treo™ 650 smartphone
Only authorized recyclers are permitted to use these disassembly instructions.
Any attempted disassembly by a user or unauthorized party will void the
product warranty and may irreparably damage the product.
T650.08 REMOVE BACK COVER
24MAR06
Disassembly Instructions for
Palm® Treo™ 650 smartphone
Only authorized recyclers are permitted to use these disassembly instructions.
Any attempted disassembly by a user or unauthorized party will void the
product warranty and may irreparably damage the product.
T650.09 REMOVE BACK COVER REMOVED
24MAR06
Disassembly Instructions for
Palm® Treo™ 650 smartphone
Only authorized recyclers are permitted to use these disassembly instructions.
Any attempted disassembly by a user or unauthorized party will void the
product warranty and may irreparably damage the product.

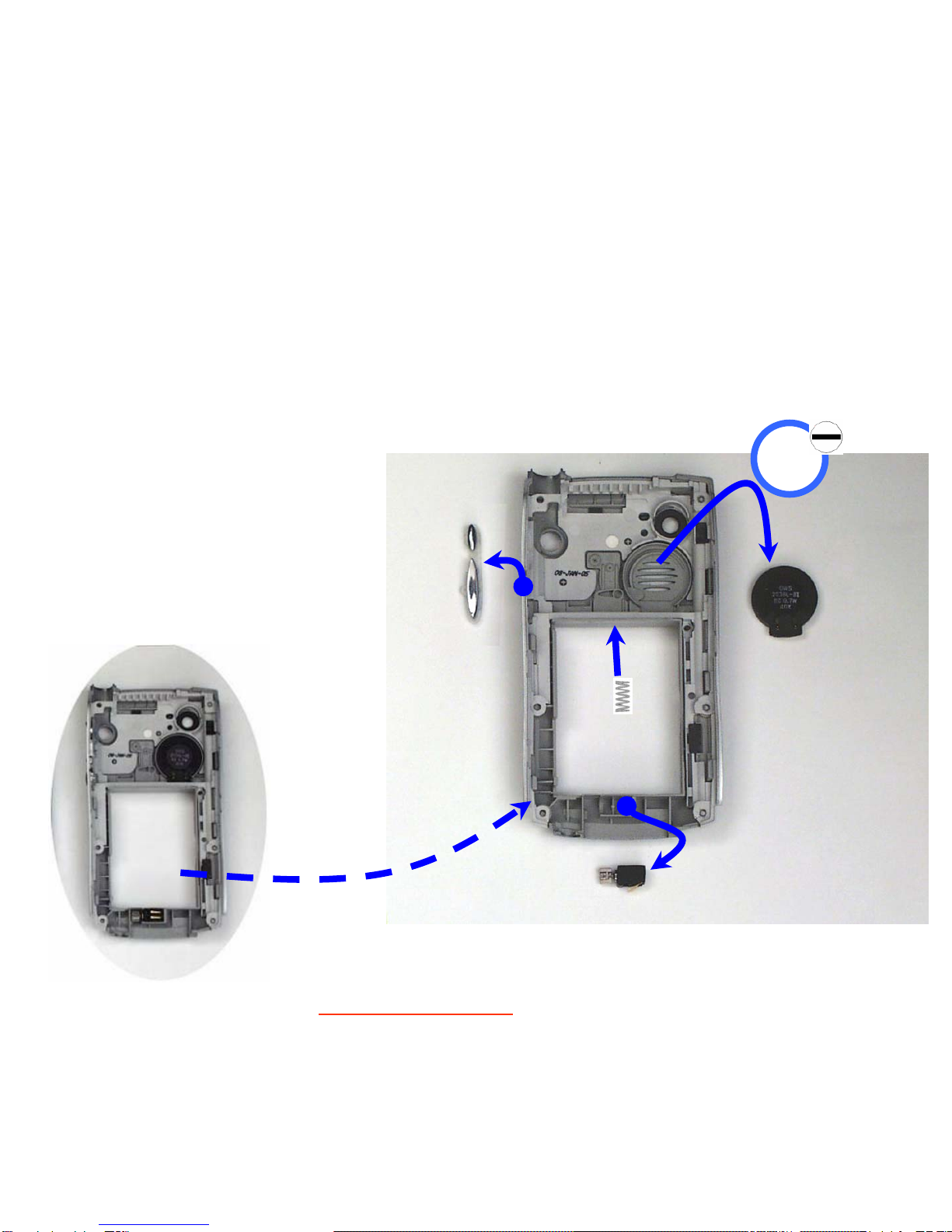

T650.10 REMOVE BUTTON AND VIBRATOR, PRY SPEAKER,
H2
