Palm Treo 700p Istruzioni per l'installazione

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product. 24Jul06

Recycling Disassembly Instructions for

Palm® Treo™ 700 SmartPhone

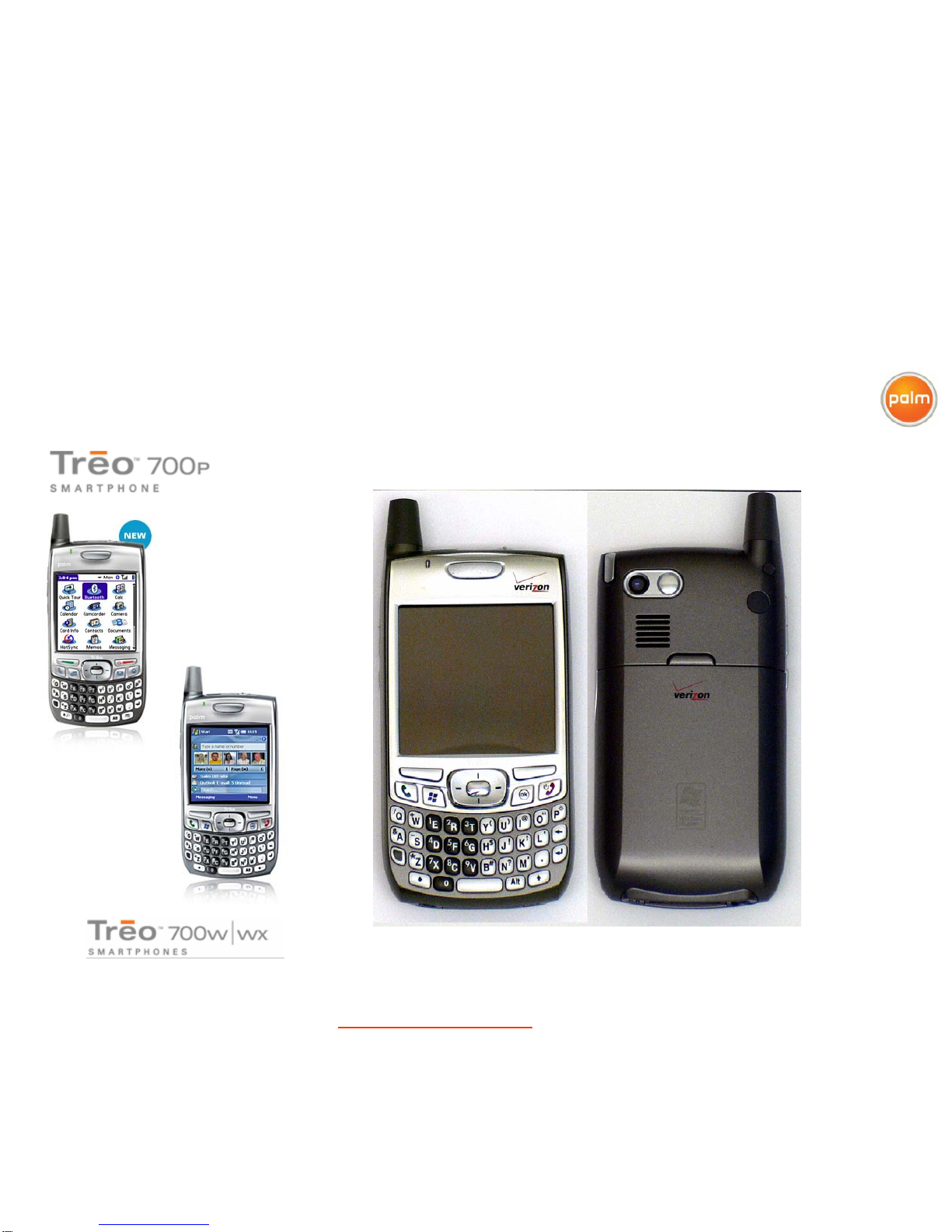

T700.01 IDENTIFICATION

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product. 24Jul06

Recycling Disassembly Instructions for

Palm® Treo™ 700 SmartPhone

T700.02 REQUIRED HANDTOOLS

H4H1 H2 H3

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product. 24Jul06

Recycling Disassembly Instructions for

Palm® Treo™ 700 SmartPhone

T700.03 REMOVE BATTERY AND STYLUS

BATTERY

Li Ion

1

3

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product. 24Jul06

Recycling Disassembly Instructions for

Palm® Treo™ 700 SmartPhone

T700.04 REMOVE INSERTS

H4

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product. 24Jul06

Recycling Disassembly Instructions for

Palm® Treo™ 700 SmartPhone

T700.05 REMOVE SCREWS (7) AND

ANTENNA

7

6

1

5

2

3

4

H1

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product. 24Jul06

Recycling Disassembly Instructions for

Palm® Treo™ 700 SmartPhone

T700.07 OPEN CASE

H2

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product. 24Jul06

Recycling Disassembly Instructions for

Palm® Treo™ 700 SmartPhone

T700.08 REMOVE BACK COVER

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product. 24Jul06

Recycling Disassembly Instructions for

Palm® Treo™ 700 SmartPhone

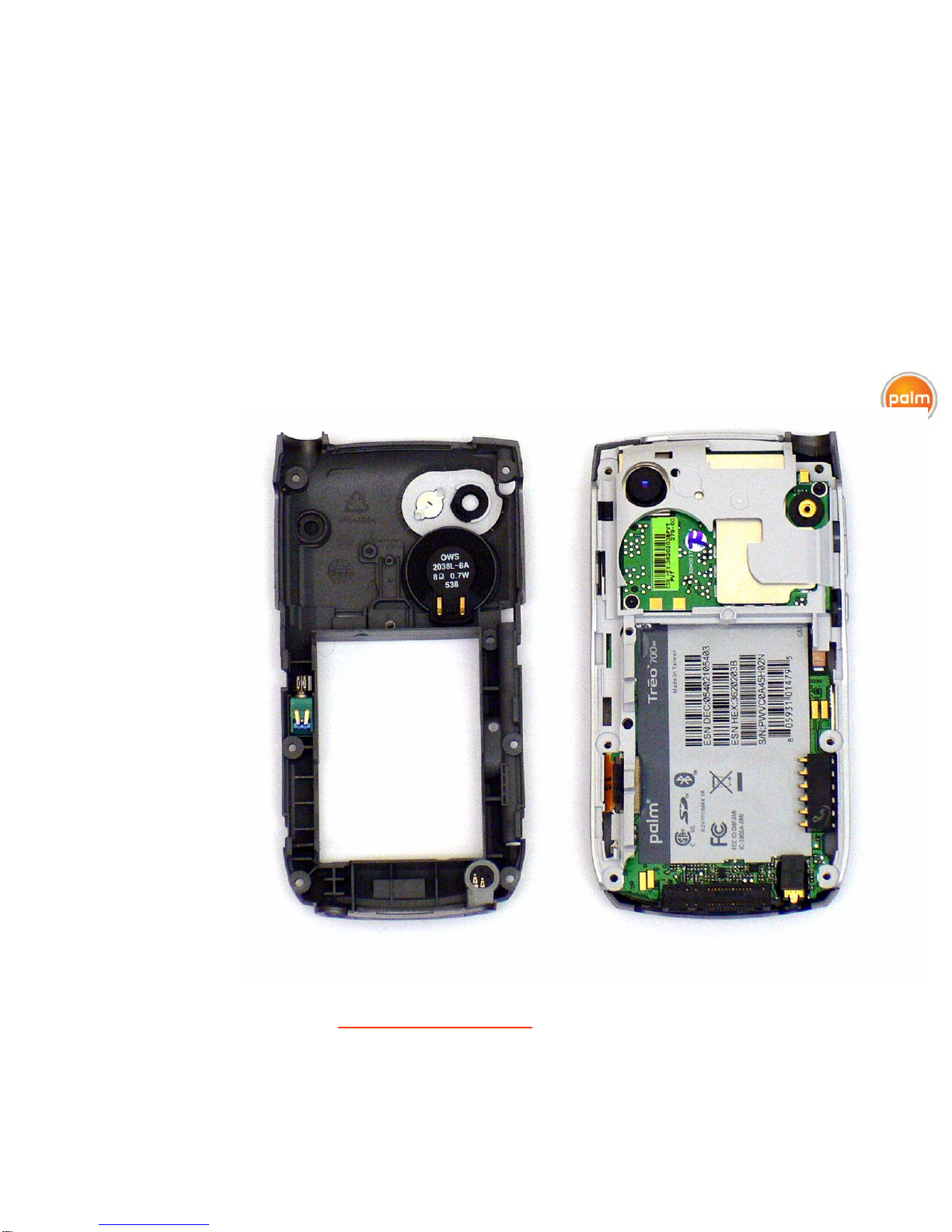

T700.09 BACK COVER REMOVED

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product. 24Jul06

Recycling Disassembly Instructions for

Palm® Treo™ 700 SmartPhone

T700.10 REMOVE MICROPHONE BOOT, VIBRATOR AND SPEAKER,

H4

Only authorized recyclers are permitted to use these disassembly instructions.

Any attempted disassembly by a user or unauthorized party will void the

product warranty and may irreparably damage the product. 24Jul06

Recycling Disassembly Instructions for

Palm® Treo™ 700 SmartPhone

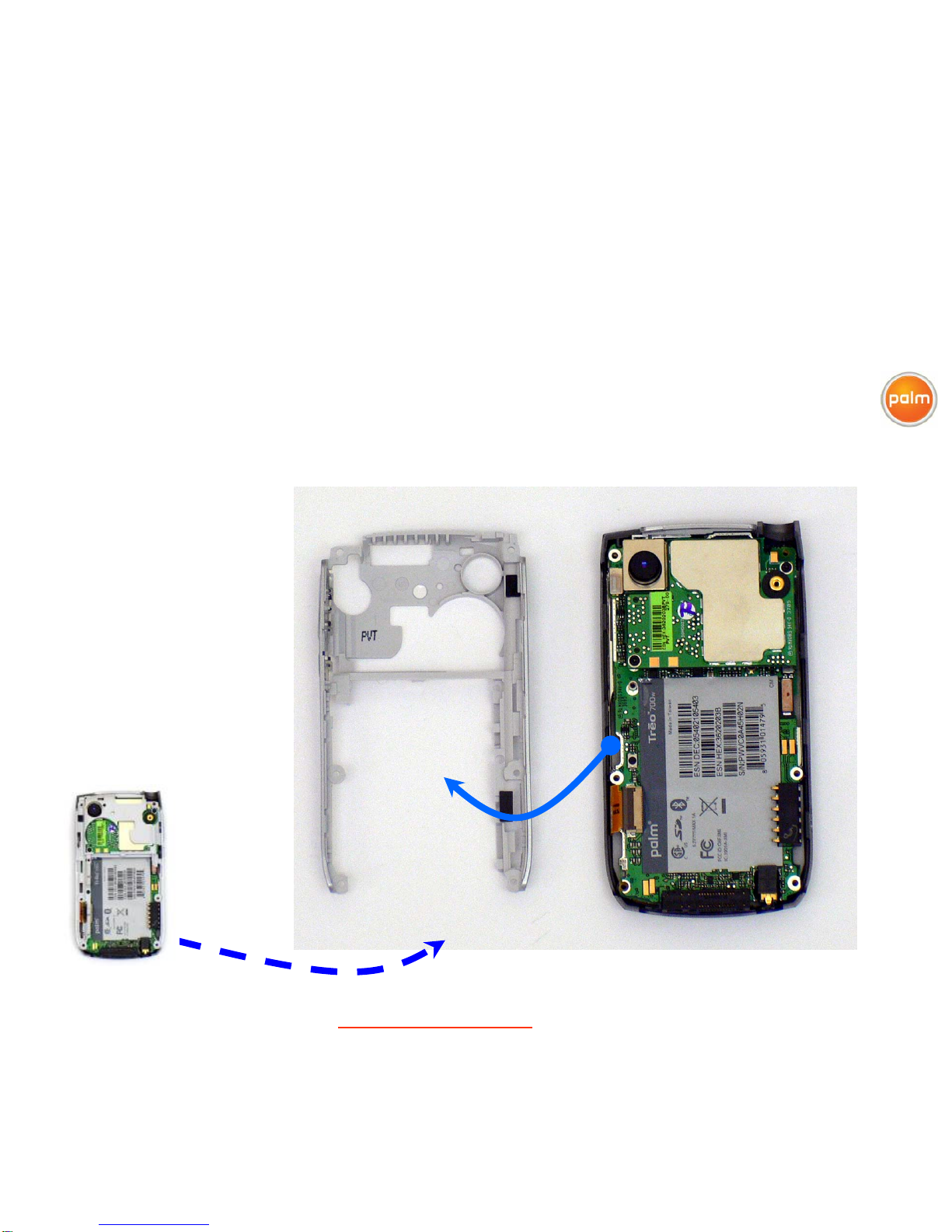

T700.11 REMOVE MIDFRAME
