Palsonic AOS Manuale utente

SPLIT AIR-CONDITIONER

OWNER'S MANUAL

Thank you for selecting super quality Air Conditioner. To ensure satisfactory

operation for many years to come, this Owner's Manual should be read carefully

be fore using your air conditioner. After reading. store it in a Safe place. Please refer

to the manual for questions on use or in the event that any irregularities occur.

This Air Conditioner should be used for household use.

AIRMASTER

1 JOYNTON AVENUE

WATERLOO NSW 2017 AUSTRALIA

TEL: (02) 9313 7111

FAX: (02) 9313 7555

www.palsonic.com.au

AIRMASTER CUSTOMER SERVICE

TELEPHONE

AUSTRALIA: 1300 657 888

CONTENTS

Preparation before use

Before using the air conditioner, be sure to check and preset the following.

Remote Controller presetting

The remote controller is NOT presetting as Cooling Only Air Conditioner or Heat Pump by manufacturer.

Each time after the remote controller replaces batteries or is energised, the arrowhead will flashes on the

Front of "Heat" or "Cool" on LCD of the remote controller.

User can preset the remote controller type depending on the air conditioner type you have purchased as

follows:

Press any button when the arrowhead flashes and pointing to "Heat, then Heat Pump is set

Press any button when the arrowhead flashes and pointing to "Cool", then Cooling Only is set.

If you don't press any button within 10 seconds, the remote controller is preset as Heat Pump automatically.

Note:

if the air conditioner you purchased is a Cooling only one, but you preset the remote controller as Heat Pump,

it doesn't bring any matter. But if the air conditioner you purchased is a Heat Pump one, and you preset the

emote controller as Cooling Only, then you CAN NOT preset the Heating operation with the remote controller.

Auto-restart Presetting:

The appliance is preset as no auto-restart function by manufacture. If Auto-restart function is needed, follow the

step below to activate this function:

1) Make sure the Air-con's power is off:

2) Press down and hold the Emergency button (ON/OFF )on the indoor unit then electrify.

3) Keep pressing the Emergency button for over 10 seconds until three short beeps are heard.

The Auto-restart function is then activated. To cancel the Auto-restart function, repeat above procedure until four

short beeps are heard.

Safety Precautions ....................................................................................................................

Identification of Parts .................................................................................................................

Remote Controller .....................................................................................................................

Operation Instructions ...............................................................................................................

Maintenance ..............................................................................................................................

Protection ..................................................................................................................................

Troubleshooting .........................................................................................................................

Installation Instructions ..............................................................................................................

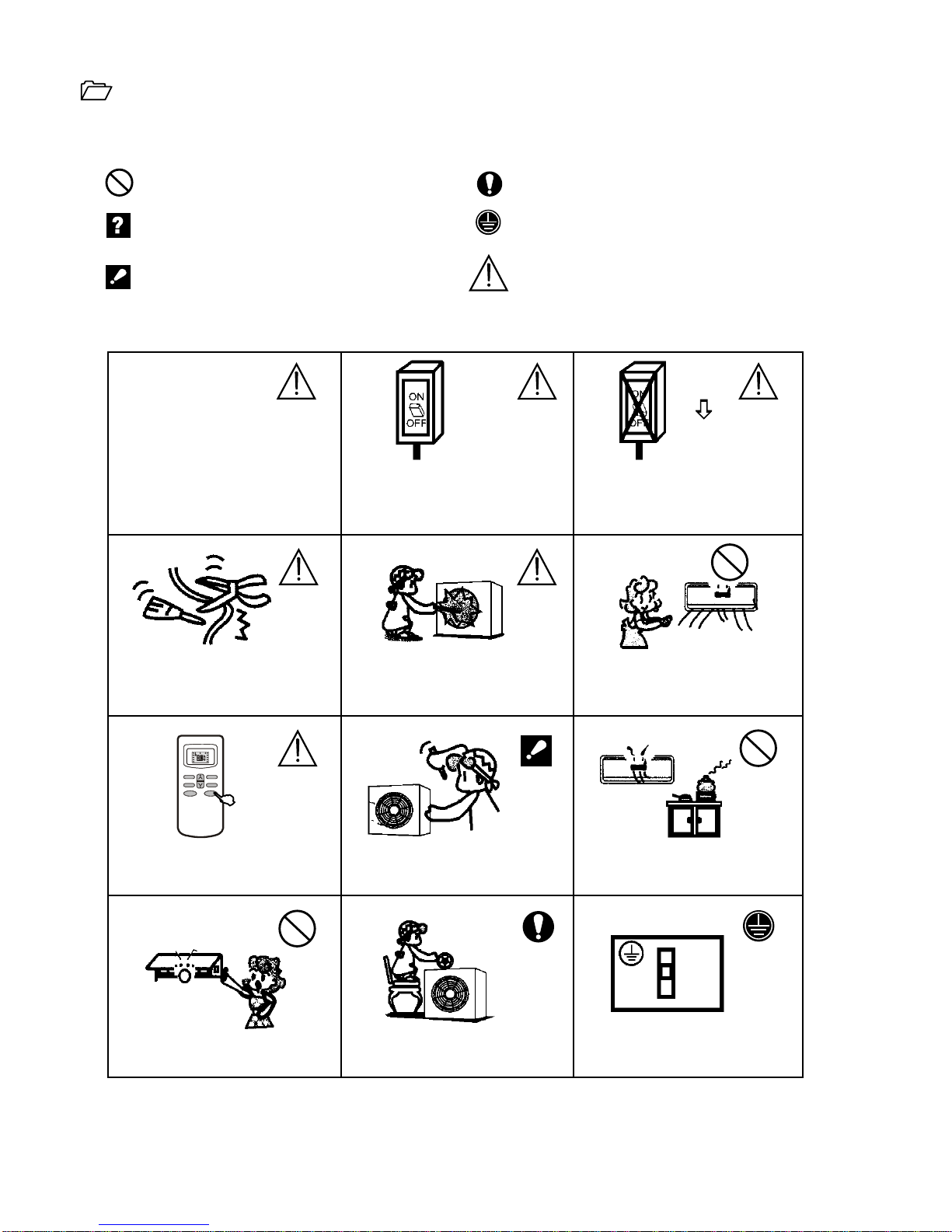

Safety precautions

Symbols in this Use and Care Manual are interpreted as shown below.

Be sure not to do.

The feature of the appliance,

instead of a fault.

Pay attention to such a situation.

Be sure to follow this instruction.

Grounding is essential.

Warning: Incorrect handling could

cause a serious hazard, such as death,

serious injury, etc.

Use correct power supply in accordance

with the rating plate requirement

Otherwise, serious faults or hazard may.

occur or a tie maybe break out.

If the supply cord is damaged, it must

be replaced by the manufacturer, its

service agent or similarly qualified

persons in order to avoid a hazard.

Keep the power supply circuit breaker

or plug away from dirt. Connect the power

supply cord to it firmly and correctly,

lest an electric shock or a fire break out

due to insufficient contact may occur.

Do not use the power supply circuit

breaker or pull off the plug to turn it off

during operation. This may cause a

fire due to a spark, etc.

Do not tangle, pull or press the power

supply cord, as this cold will be

damaged

and an electric shock or fire is probably

caused by a broken power supply cord.

It is

harmful

your health if the

cool

air

reaches you for a long period. It

advisable

to allow the air flow to circulate to all the

whole room.

Never insert a stick or simile obstacle

to the unit. When the fan rotates at high

speed, this may cause an injury.

Firstly turn off the appliance by remote

controller before cutting off power supply

if malfunction occurs.

Do not repair the appliance by yourself.

If this is done incorrectly, It may cause an

electric shock etc. Prevent the air

flow from reaching gas

burners and stoves.

It is

the user's responsibility to ground

the appliance according to local codes

or ordinances by a licensed technician.

Do not touch the operation buttons

when your hands are wet.

Do not put any objects on the outdoor

unit.

Notes: For the purpose of innovation and improvement, above products are subject to change without prior notice.

The air conditioner is not a toy, please keep away from children!

SLEEP FAN

TIMER SWING

ON/OFF

MODE

MID

SWING

AUTO

DRY

FAN

HEAT

COOL

FEEL

SLEEP TIMERON

HIGH

LOW

TIMEROFF

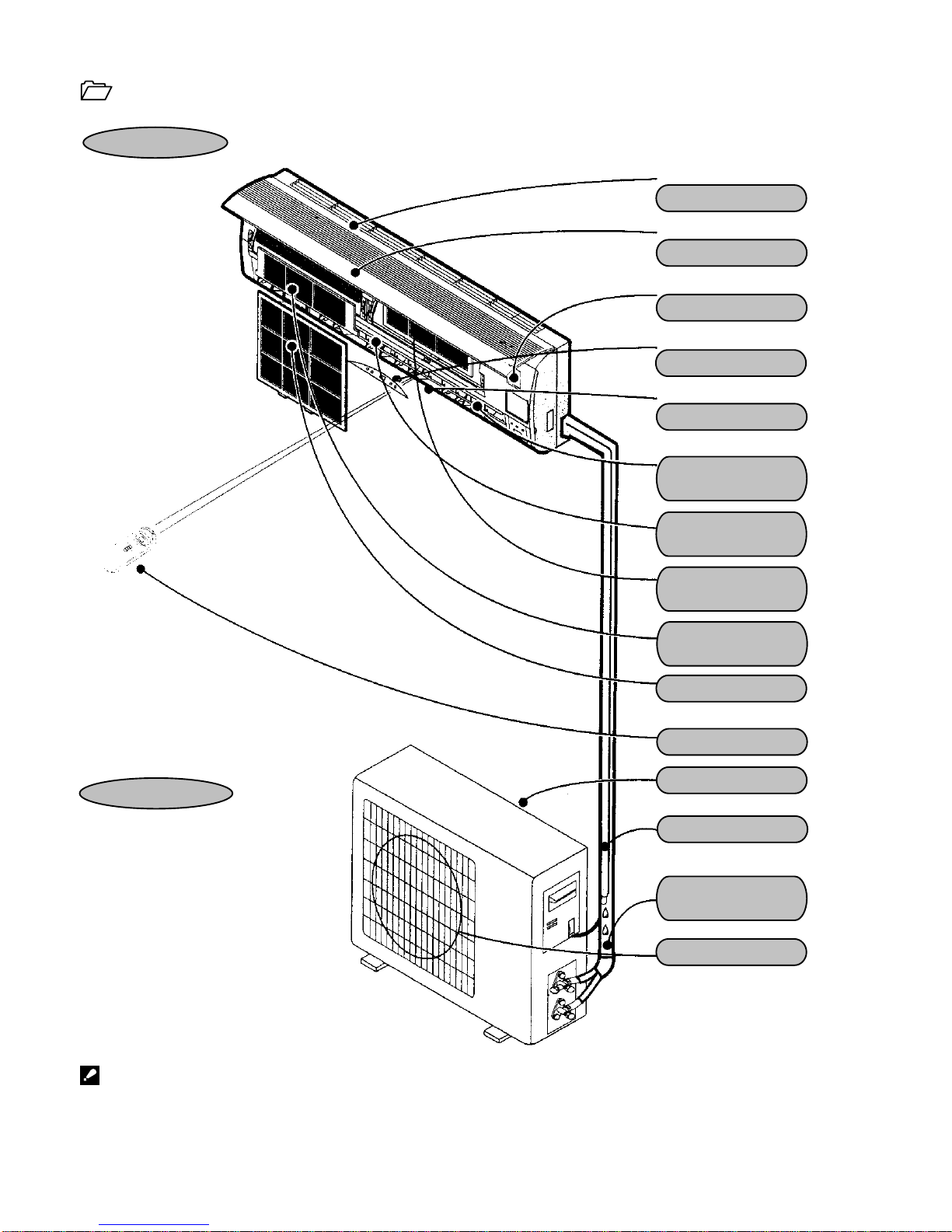

Identification of parts

Indoor unit

Outdoor unit

Note: Condensate water drains

at COOLING or DRY operation

The figures in this manual are based on the external view of a standard model

Consequently, the shape may differ from that of the air conditioner you have selected..

Air intake

Front Panel

Emergency Panel

Display Panel

Air Outlet

Drain Hose

Air Intake

Air Filter

Remote Controller

Air Outlet

Vertical Adjustment

Louvre

Horizontal Adjustment

Louvre

Charcoal Filter

(optional)

Electrostatic Filter

(optional)

Pipes and Power

Connection Cord

ON/OFF

Identification of parts

Receive signal from the

remote controller.

It lights up during the

set time.

It lights up when

power supply is on.

It is on during operation.

It lights up during the

set sleep function.

Switch display of

environmental temperature

and setting temperature Receive signal from the

remote controller.

It lights up when

power supply is on. It is on during operation.

It lights up during the

set sleep function. It lights up during the

set time.

Select display of

environmental temperature

and setting temperature

It lights up during the

set sleep function.

It lights up when

power supply is on.

Used to control the unit when the

remote controller H out of work.

This operation way is suitable for N.

R. L. M. 0 series.

Used to control the unit when the

remote controller is out of work

This operation way is suitable for E.

F. G. H. J. K series.

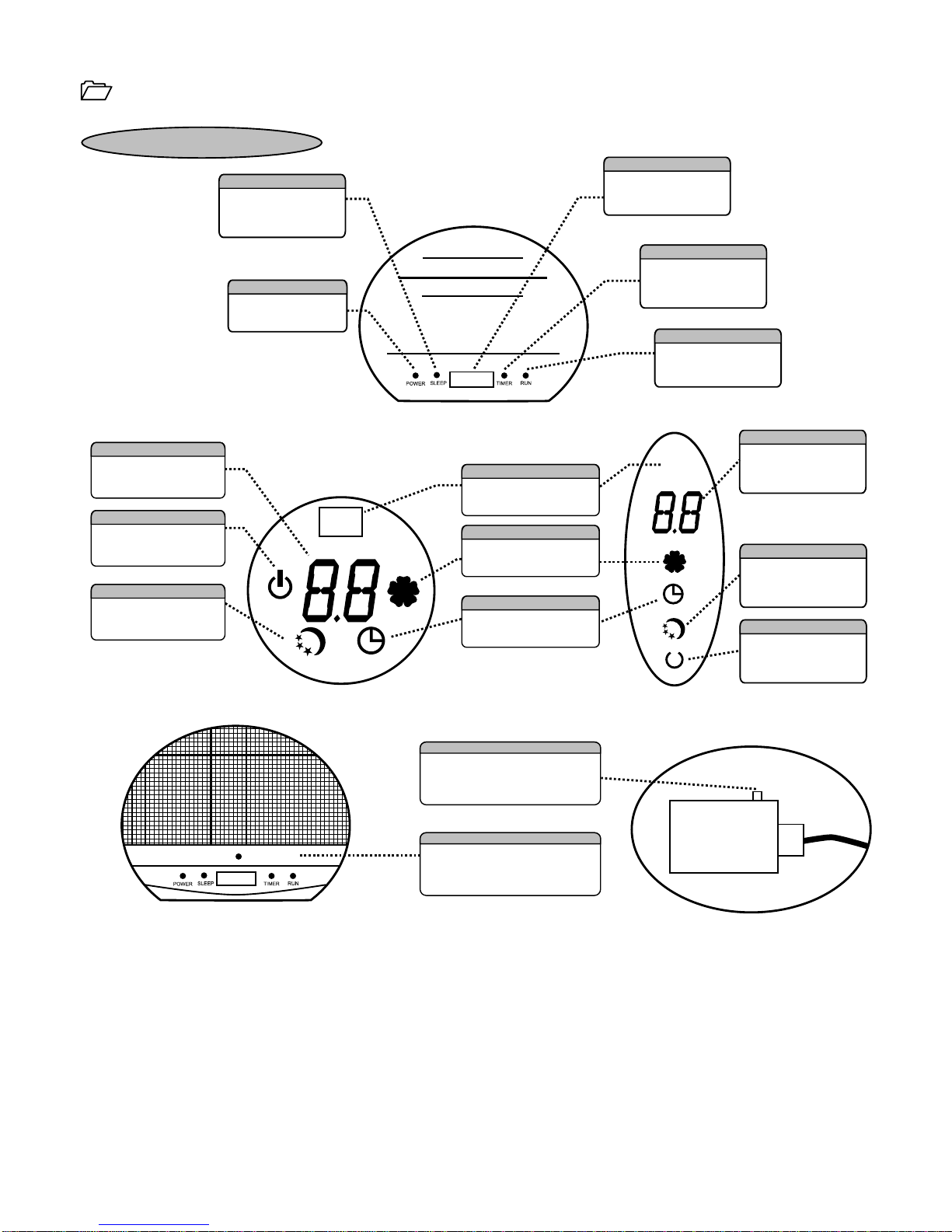

Operating and Display

The above operating sketch map is suitable for E, F, G, H, J, K, M, N series.

The above operating sketch map is suitable for L, R series. The above operating sketch map is suitable for Q series.

Remarks: When remote controller is out of work, open the panel and you can see emergency button there, see the

above picture. The emergency button for 50, 70, 90 series is at the top right, see " ON/OFF " button there.

Auto-restart set:

the appliance is preset as no auto-restart function by manufacturer. If Auto-restart function is needed, follow the

below step to activate this function:

1) Make sure the Air-con's power is off .

2) Press down and hold the Emergency button (ON/OFF )on the indoor unit then electrify .

3) Keep pressing the Emergency button for over 10 seconds until three short beeps are heard, then Auto-restart

function is activated. To cancel the Auto-restart function, repeat above procedure until four short beeps are heard.

The shape and position of the switches and indicators may vary from different models, but their function are similar.

If there is some difference between the sketch map and the substantiality, please subject to the substantiality

Emergency button

ON/OFF

Run Indicator

Timer Indicator

Signal Receives

Sleep Indicator

Power Indicator

Sleep Indicator

Power Indicator

Temperature Display

Signal Receives

Run Indicator

Timer Indicator

Power Indicator

Sleep Timer

Temperature Display

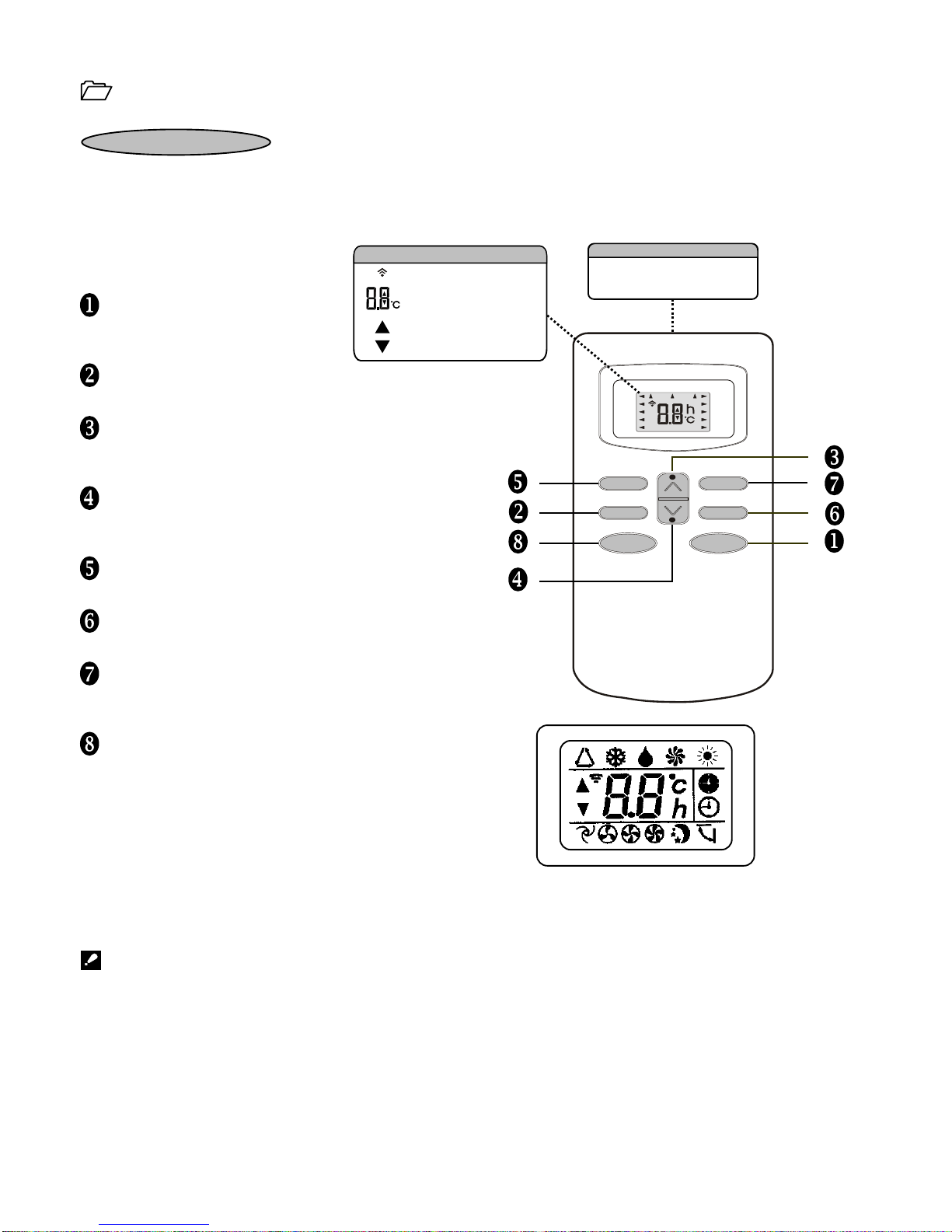

Remote controller

transmitting display

time setting display

temperature setting display

The remote controller transmits signals to the system.

ON/OFF button

Used to start and stop operation

when pressed.

TIMER button

Used to select TIMER operation.

UP button (TOO COOL button)

Used to increase the set room temperature.

and time.

DOWN button (TOO WARM button)

Used to decrease the set room temperature

and time.

SLEEP button

Used to set or cancel sleep mode operation.

SWING control button

Used to adjust airflow direction.

FAN SPEED control button

Used to select the indoor fan motor speed

Auto, High, Mid and Low.

MODE button

Used to select the type of operation mode: Feel,

Cooling, Dry, Fan and Heating (Only for Heat Pump).

Feel mode can select the operation mode such as

COOL, DRY, FAN, HEAT automatically depending

on the room temperature, and the feel mode is

default setting at starting.

some remote controller's display is like he above

Note: The above remote controller is only for reference, please subject to the substantiality.

When the batteries are inserted into the remote controller, all the signals will display on the screen and keep

2 seconds, then the COOLING and HEATING signals will flash respectively. For cooling only air con, please

press any button when the cooling signal is flashing, then the remote controller has been set as cooling only.

For cooling and heating air con, please press any button when the heating signal is flashing, then the remote

controller has been set as cooling and heating. If none of the button is pressed within 10 seconds, the remote

controller will be set as cooling and heating automatically. Cooling only air con can use the remote controller

which has cooling and heating function, but do not have the function of heating.

Although the air con is not running, remote controller still have some display (Only for Cooling and Heat model).

Note: Each model and relevant functions will be further specified in following pages

SLEEP FAN

TIMER SWING

ON/OFF

MODE

MID

SWING

AUTO

DRY

FAN

HEAT

COOL

FEEL

SLEEP TIMER ON

HIGH

LOW

TIMER OFF

Signal Transmitting Window

Transmits signals to the system

Setting Display

setting temperature

adjustment display

(During feel mode)

Remote controller

IPlease slide and remove the cover.

2Exchange the batteries.

3Install the cover.

Signal receptor

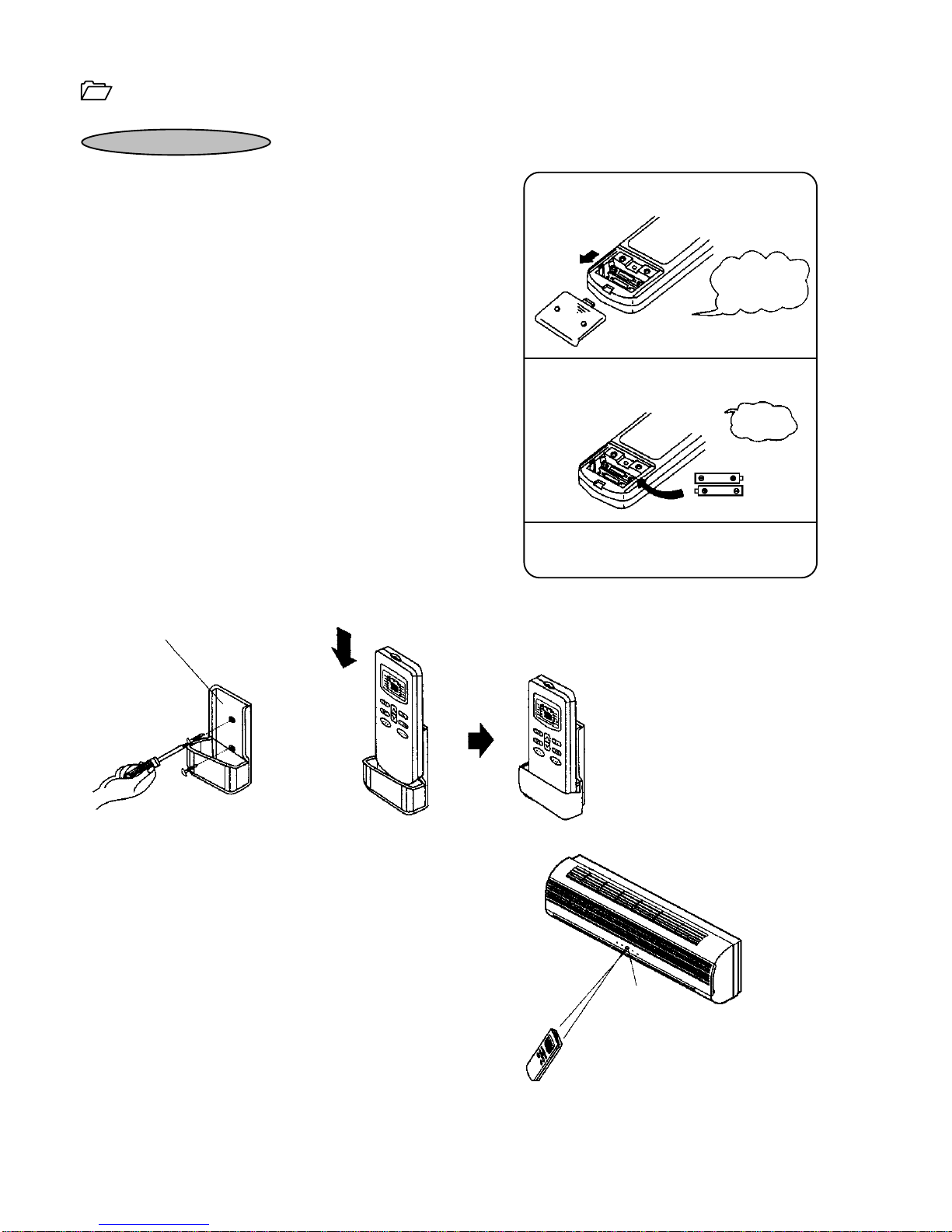

How to Insert the Batteries

Remove the battery cover according to the arrow direction.

Insert new batteries making sure that the (+) and (-) of

battery are matched correctly.

Reattach the cover by sliding it back into position.

Note:

Use 2 LR03 AAA (1.5 volt) batteries. Do not use rechargeable batteries.

Replace batteries with new ones of the same type when the display

becomes dim.

Storage and Tips for Using the Remote Controller

The remote controller may be stored mounted on a wall with

a holder.

Note: The remote controller holder Is an optional part.

Remote controller holder

How to Use

To operate the room air conditioner, aim

the remote controller to the signal receptor.

The remote controller will operate the air

conditioner at a distance of up to 7m when

pointing at signal receptor of indoor unit.

Slide the cover

upwardly in the

direction of the

arrow

Attention to

the - and +

marks

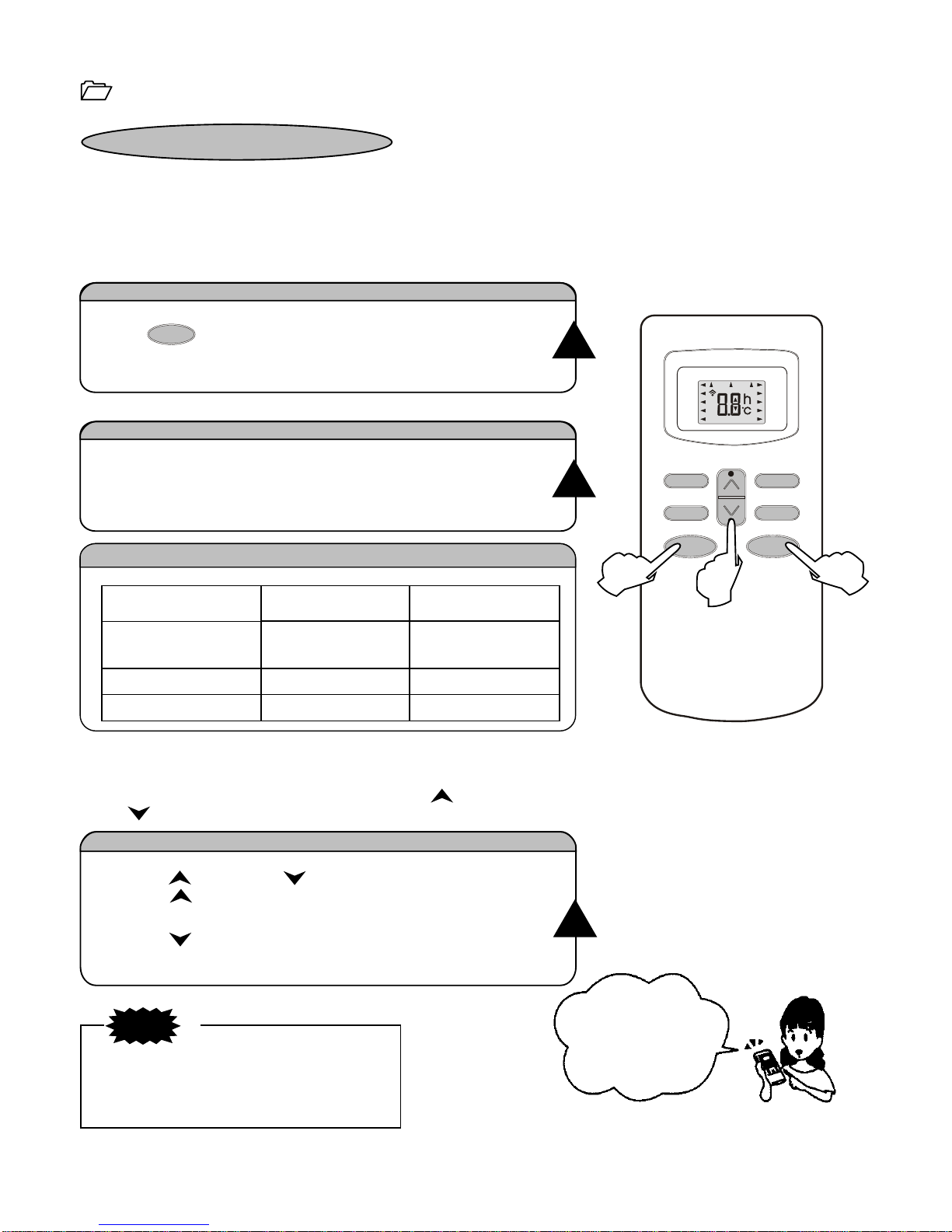

Operation instructions

Operates by selecting automatically the operation mode ( HEAT, DRY, FAN , COOL ) depending on the

room temperature during starting.

With the remote controller pointing towards the air conditioner.

Press button, when the appliance receives the

signal, the RUN indicator of the indoor unit lights up.

When the unit is not at FEEL mode.

Press the MODE select button.

Move the MODE to the FEEL position.

Indoor temperature Operation mode Target temperature

Less than 200CHEATING (FOR HEAT PUMP TYPE)

FAN (FOR COOL ONLY TYPE) 230C

20C~260CDRY 180C

Over 260CCOOLING 230C

Air temperature adjustment is possible even during FEEL operation.

There are 6 levels of adjustment possible with the button or

the button.

There will be a delay when changing mode

is made during the operation.

As there might not be air blown out. If you don't like the content of FEEL mode operation,

change to HEATING, DRY or COOLING than FEEL.

Press the button or the button.

When the button is pushed, the temperature will increase 10C.

After temperature will increase 20C, the indicator will not change

When the button is pushed, the temperature will reduce 10C.

After temperature reduce 20C, indicator will not change.

Operation mode and temperature are determined by indoor temperature

Setting temperature

Selecting FEEL mode

Turning on

NOTE

SLEEP FAN

TIMER SWING

ON/OFF

MODE

MID

SWING

AUTO

DRY

FAN

HEAT

COOL

FEEL

SLEEP TIMER ON

HIGH

LOW

TIMER OFF

231

FEEL mode operation procedure

ON/OFF

The operation of the AUTO

mode can be performed by

only pressing the ON/OFF

button from the next time.

Operation instructions

SLEEP FAN

TIMER SWING

ON/OFF

MODE

MID

SWING

AUTO

DRY

FAN

HEAT

COOL

FEEL

SLEEP TIMER ON

HIGH

LOW

TIMER OFF

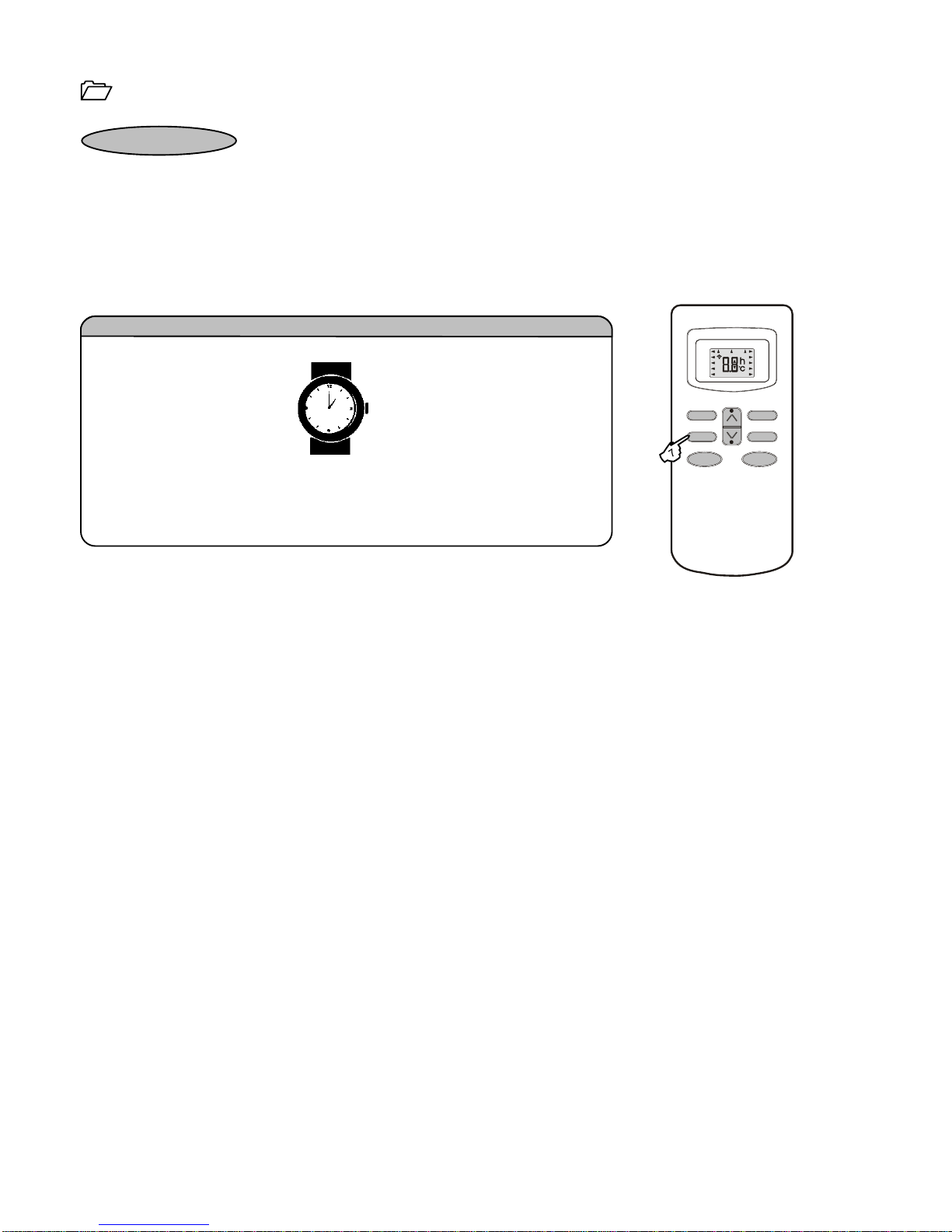

It is convenient to set the timer on with the TIMER button when you go out in the morning

to achieve a comfortable room temperature when you get home. You can also set

timer off at night to enjoy a good sleep.

Press UP and DOWN button to set time.

Time setting is 30-minutes.

Note: After setting the timer, check that TIMER INDICATOR lamp of the indoor

unit lights.

TIMER mode

When the remote controller

is on, press the TIMER

button to set a switch-off timer,

press again again, the setting

will be cancelled.

When the remote controller

is off, press the TIMER

button to set a switch-on timer,

press again, the setting will be

cancelled.

Timer Setting

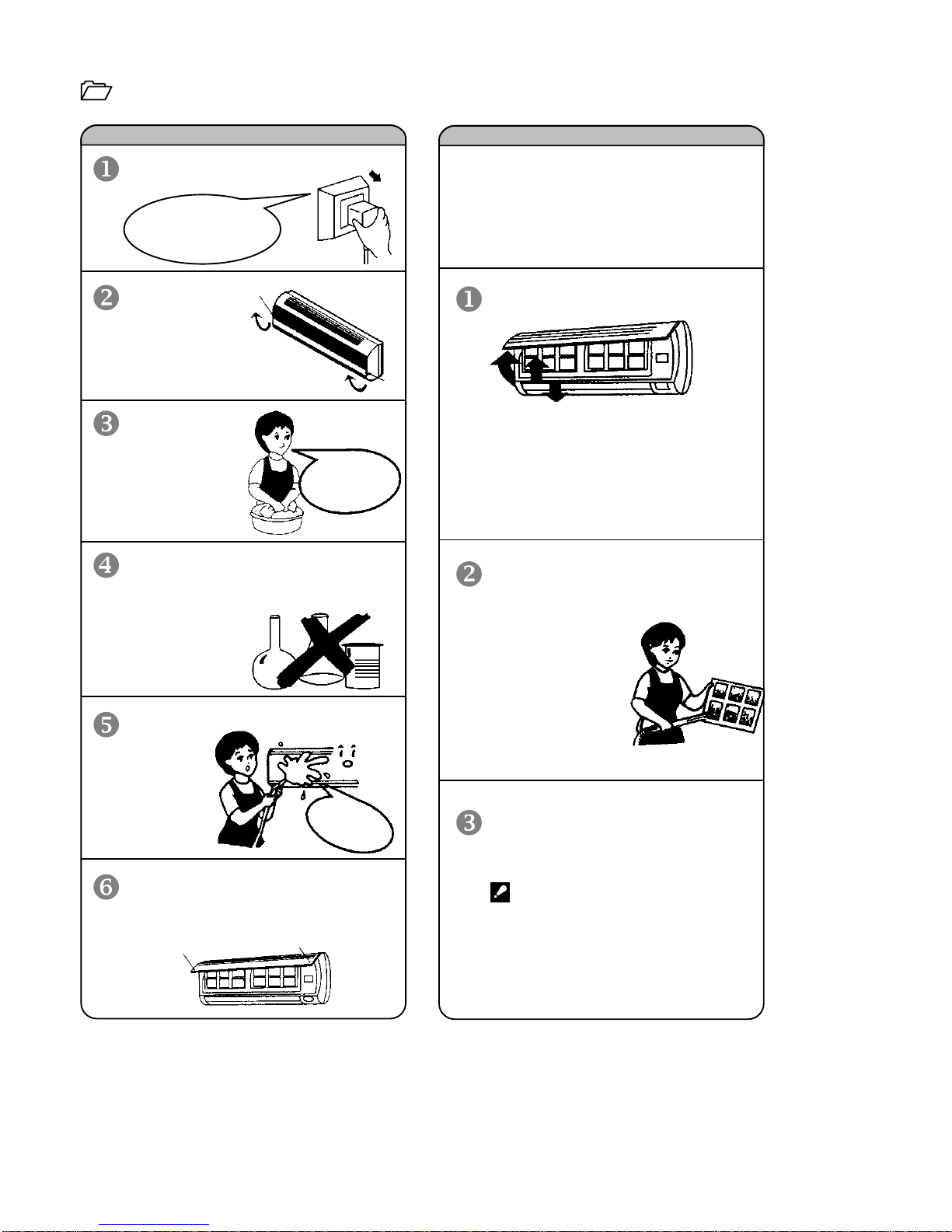

Maintenance

Cut off the power supply

Grasp position "a" an

pull outward to remove the

front panel. a

Wipe with a soft

and dry cloth.

Use lukewarm water

(below 400C) to clean

if the appliance

is very dirty.

Use a dry and

soft cloth to

clean it.

Never use volatile substance

such as gasoline or polishing

powder to clean the appliance.

Never sprinkle water onto the

indoor unit

Reinstall and shut the front panel.

Reinstall and shut the front panel by

pressing position "b" downward.

1. Open the front panel.

2. Press the handle of the filter gently

from the front.

3. Grasp the handle and slide out the filter.

It is necessary to clean the air filter

after using it for about 100 hours.

Clean it as follows:

Stop the appliance and remove

the air filter.

Clean and reinstall the air filter.

If the dirt is conspicuous,

wash it with a solution of

detergent in lukewarm water.

After cleaning, dry well in

shade.

Close the front panel again.

Clean the air filter every two weeks

if the air conditioner operates in an

extremely dusty environment.

Air filter maintenance

Front panel maintenance

Turn off the appliance

first before disconnecting

from power supply

Dangerous!

Electric

shock!

Indice

Altri manuali Palsonic Condizionatore d'aria

Palsonic

Palsonic Airmaster A12HR410 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
