Palsonic 76WSHD Manuale utente

PALSONIC CORPORATION PTY LTD

1 JOYNTON AVENUE

WATERLOO NSW 2017 AUSTRALIA

TEL: (02) 9313 7111

FAX: (02) 9313 7555

www.palsonic.com.au

PALSONIC CUSTOMER SERVICE

TELEPHONE

AUSTRALIA: 1300 657 888

76CM WIDE SCREEN HDTV READY

MODEL: 76WSHD

OWNER'S MANUAL

Type Tested

Electrical

Safety

AS/NZS 3250 Lic 4166

Standards Australia

APP No: N18748

4. Switching on/off .................................................................................................

5. Signal source selection .....................................................................................

Contents

Congratulations on your purchase of Palsonic's HDTV ready.

We recommend that you thoroughly read this manual before use to fully

enjoy the many functions and excellent effects of this equipment.

Retain this manual in an easily accessible location for future reference.

* Screen displays and illustrations in this manual may differ from the

actual ones for better visibility.

1. Cautions for safety ............................................................................................

2. Locations of controls ........................................................................................

2.1 Front view ...............................................................................................................

2.2 Side view .................................................................................................................

2.3 Back view ................................................................................................................

2.4 Remote controller ....................................................................................................

3. Installation ..........................................................................................................

3.1 Antenna connection ................................................................................................

3.2 Battery installation ..................................................................................................

3.3 Effective distance of the remote control transmitter ...............................................

3.4 External equipment connections ............................................................................

3.4.1 To connect AV input terminals ..........................................................................

3.4.2 To connect DVD input terminals .......................................................................

3.4.3 To connect AV output terminals ........................................................................

3.4.4 To connect XGA input interface ........................................................................

3.4.5 To connect HDTV set top box ...........................................................................

Enhanced TV operation (RF mode)

6. Brief menu operation and introduction ...........................................................

7. Channel presetting ............................................................................................

7.1 Auto tune ................................................................................................................

7.2 Manual search ........................................................................................................

7.3 To skip unnecessary position numbers ..................................................................

7.4 Fine tuning ..............................................................................................................

7.4.1 AFC (auto frequency control) ...........................................................................

7.4.2 Fine tune ..........................................................................................................

7.5 VCR ........................................................................................................................

7.6 The setting of colour and sound system .................................................................

7.6.1 Use OSD button ...............................................................................................

7.6.2 The setting of colour system .............................................................................

7.6.3 The setting of sound system .............................................................................

8. Channel selection ..............................................................................................

8.1 Using the direct select buttons (0-9 & -/-- button) ...................................................

8.2 Using the Channel up/down buttons .......................................................................

8.3 Using the previous channel button .........................................................................

8.4 Using the PREVIEW button ....................................................................................

9.1 Picture adjustment ..................................................................................................

9.1.1 Making use of PERSONAL button ....................................................................

9.1.2 Making use of PICTURE menu .........................................................................

9. Picture and sound adjustments .......................................................................

12. Buttons' function .............................................................................................

13. Signal source selection ..................................................................................

14. OSD introduction .............................................................................................

11. Making use of OPTION menu .........................................................................

9.1.3 Making use of DYNAMIC button .......................................................................

9.1.4 Making use of P.SCAN button ..........................................................................

9.1.5 Making use of STILL button ..............................................................................

9.1.6 Making use of PHOTO button ..........................................................................

9.1.7 Making use of PANORAMA button ..................................................................

9.2 Sound adjustment ..................................................................................................

9.2.1 Bass/Treble adjustment ....................................................................................

9.2.2 BALANCE adjustment ......................................................................................

9.2.3 Making use of surround sound .........................................................................

9.2.4 Making use of LOUDNESS ...............................................................................

9.2.5 Volume adjustment and sound mute ................................................................

9.2.6 NICAM function ......................................................................................................

10. Timer setting ....................................................................................................

10.1 OFF timer ..............................................................................................................

10.2 ON timer ................................................................................................................

10.3 ALARM timer .........................................................................................................

10.4 Program timer .......................................................................................................

10.5 PROG number ......................................................................................................

11.1 OSD language selection .......................................................................................

11.2 AUTO-POWER-OFF function ...............................................................................

11.3 Rotate function .....................................................................................................

11.4 Default screen aspect ratio setting .......................................................................

11.5 Picture moving ......................................................................................................

11.6 Degaussing ...........................................................................................................

11.7 Blue screen setting ...............................................................................................

11.8 Colour bar signal ..................................................................................................

11.9 Game ....................................................................................................................

Menu operation in VIDEO mode ..........................................

Menu operation in YCbCr mode ..........................................

Operation in HDTV mode

14.1 Menu introduction .................................................................................................

14.2 Contrast, brightness adjustment ...........................................................................

14.3 To switch between TEXT mode and IMAGE mode ..............................................

14.4 Volume adjustment ...............................................................................................

14.5 Screen adjustment ................................................................................................

14.6 Function menu item's selection ............................................................................

14.7 Audio adjustment ..................................................................................................

15. Display mode setting .......................................................................................

16. Troubleshooting guide ....................................................................................

17. Specifications ..................................................................................................

Displaying pattern .........................................................................................................

Avoid exposing the set to direct sunlight and other

sources of heat to prevent damage to the cabinet

and components.

Do not expose the TV set to rain or excessive

moisture. Avoid using the set in very warm or

damp places and never use it in a bathroom.

When any unusual situation occurs, turn off the

power supply at once and remove the plug from the

wall outlet. Contact a qualified service department in

your local area.

1. Cautions for safety

Note: This set can be operated on an AC power of 240V, 50Hz. You must not use

a power supply of any other type.

When cleaning dust off the picture tube disconnect

the power first. You can wipe lightly with a piece of

dry, clean and soft cloth.

Normally, the screen surface should not be cleaned;

however, if it is essential, clean the surface with a soft,

dry cloth while the TV is turned off. Never use any

detergent cleaners to clean the surface. The screen

surface may be scratched if a hard cloth is used

When the TV set is to be left unattended for a long

period of time, turn off the power supply and remove

the plug from the wall outlet.

If the power cord or the plug is damaged contact a

qualified service department for service.

Do not cover the ventilating hole in the cabinet

Keep a space of more than 5 cm from the walls to the

TV set to ensure adequate ventilation.

High voltage exists in this TV set. Do not remove the

cover.

Don’t try to push anything into the cabinet or place

any vessel with water on the TV set.

Don't overload wall outlets; extension cords, or

integral convenience receptacles as this can result

in a risk of fire or electric shock.

TV/AV

CH-

CH+

VOL-

VOL+

1. TV/AV button: Open the signal source selection menu.

2. CH- button: Select a lower position number.

3. CH+ button: Select a higher position number.

4. MENU button: Enter into the menu.

5. VOL- button: Lower the volume

6. VOL+ button: raise the volume.

2.1 FRONT VIEW

2.2 SIDE VIEW

2. Location of controls

REMOTE SENSOR

INDICATOR

POWER SWITCH

: Headphone jack

AV3 input terminals

{S-VIDEO, VIDEO,

AUDIO L/MONO, R}

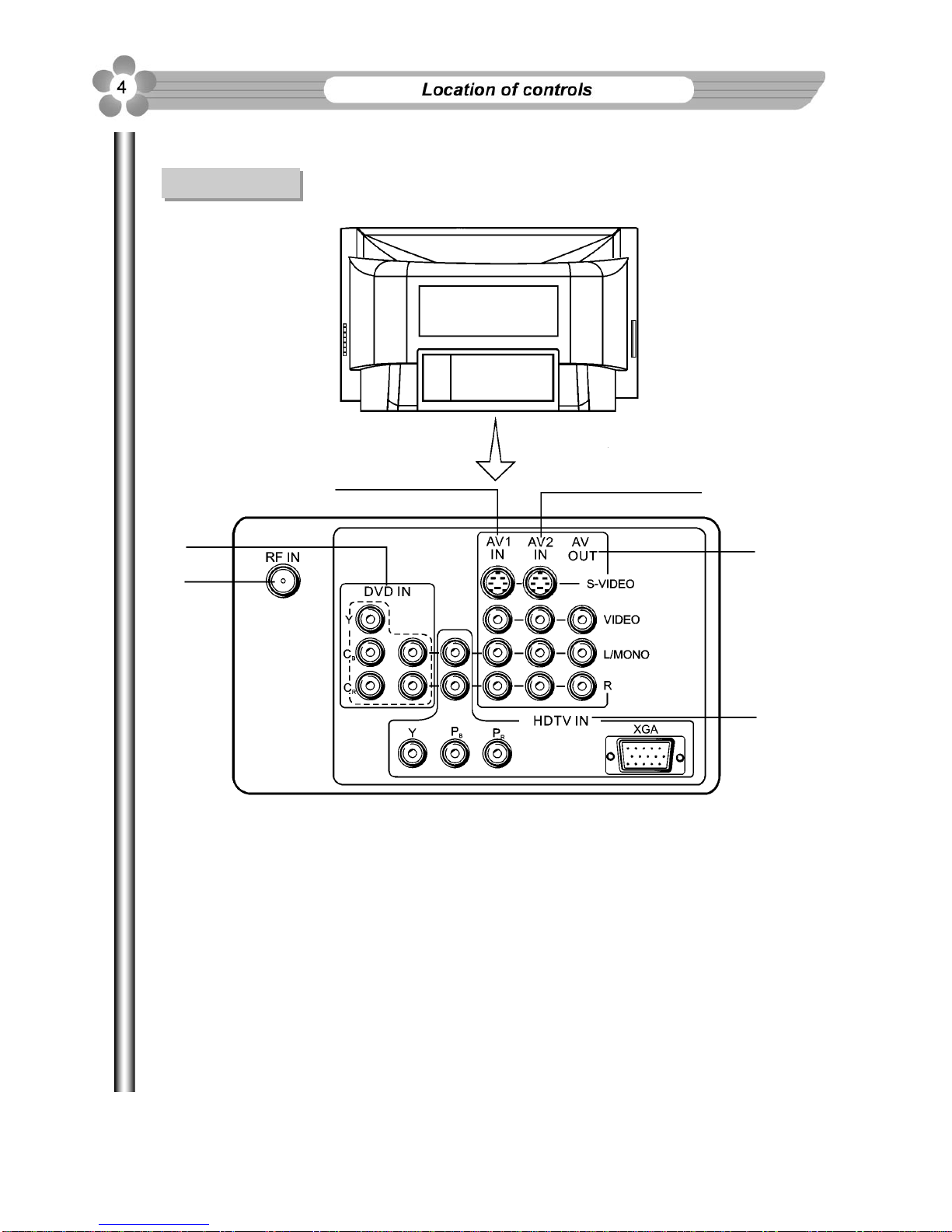

2.3 Back View

1. Antenna input

2. DVD input terminals { VIDEO: Y, CB, CR, AUDIO: L/MONO, R}

3. AV1 input terminals { S-VIDEO, VIDEO, AUDIO: L/MONO, R}

4. AV2 input terminals { S-VIDEO, VIDEO, AUDIO: L/MONO, R}

5. AV output terminals {VIDEO, AUDIO: L/MONO, R}

6. HDTV input {Y, PB, PR, XGA, AUDIO: L/MONO, R}

Button function:

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

Power on/standby

Scan mode selection

To caption moving

into 4 successive frozen

frames

STATIC/MOVING picture

mode selection

Still the current picture

Channel preview

Channel up/down

In menu operation used to

move the cursor upward or

downward.

Text /image mode

switch over

Retain on-screen display

Sleep timer

Surround sound control

NICAM/FORCE FM sound

decoder selection

Play game

Selectable picture

Open the signal source

selection menu

Screen aspect ratio

selection

Open/close the menu

Volume up/down

In menu operation used to

move the cursor leftward /

rightward, adjust menu

item, or enter into the

next level menu

Sound mute

One digit/two digit/three

digit channel selector

Previous channel

Direct channel selector

HDTV/TV

2.4 Remote Controller

3.1 Antenna Connection

3. Installation

To ensure a bright-coloured and clear picture use an outdoor antenna or

CATV cable.

Note:

In case of using the Twin-lead aerial feeder (300 ) for UHF/VHF aerial, use a 300-75 ohm

adaptor (not supplied).

When using the coaxial cable (not supplied) (75 ) for UHF/VHF aerial, connect the plug into

the 75 ohm aerial socket directly.

Note:

1. When you connect the outdoor antenna cable to the antenna terminal on the set, turn off the

power supply to the set first.

2. In thunder and lightning weather, disconnect the outdoor antenna to avoid lightning strike.

3. When receiving CATV programs, a cable box (not supplied) needs to be used.

FAQs

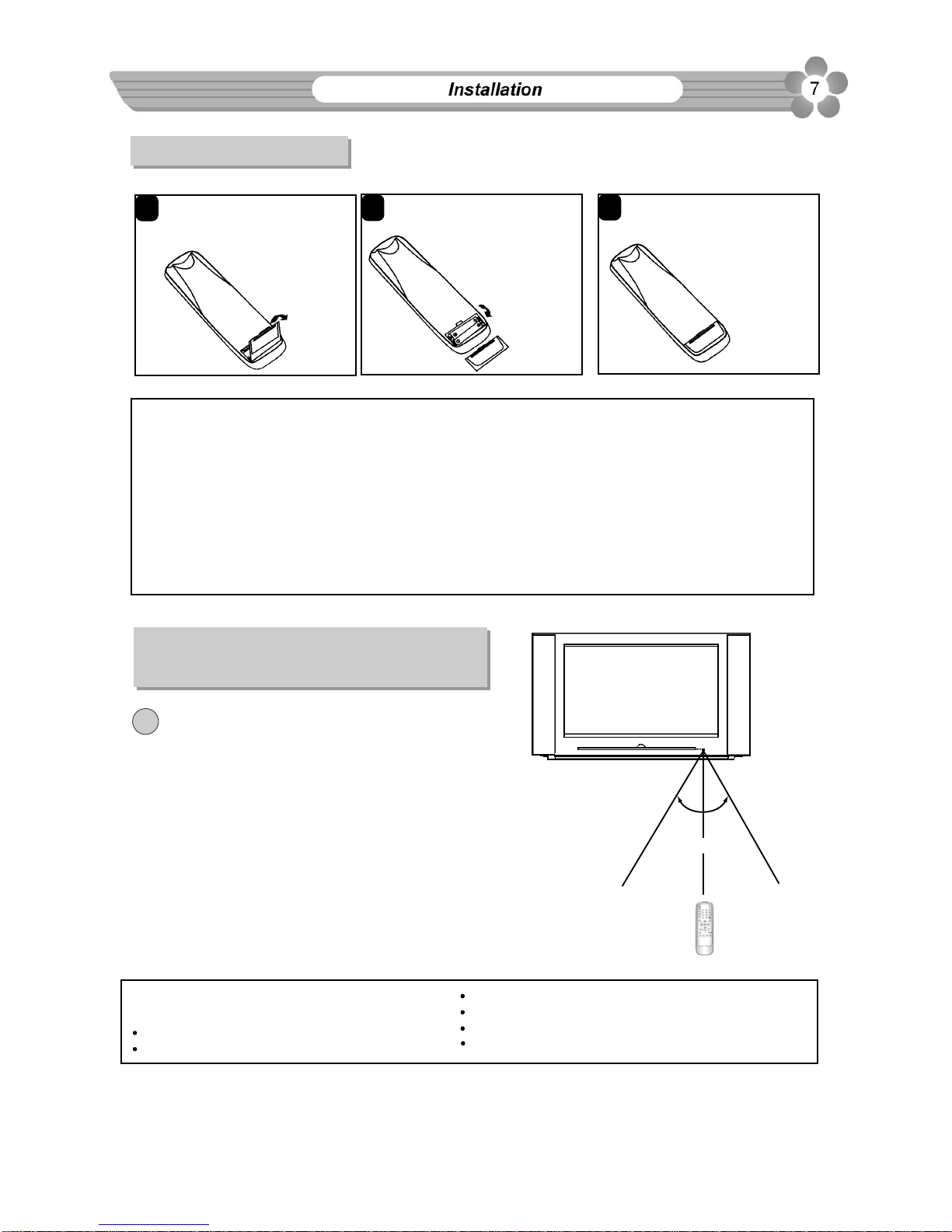

3.3 EFFECTIVE DISTANCE OF THE

REMOTE CONTROL TRANSMITTER

3.2 Battery installation

Open the battery

compartment

cover.

Replace the battery

compartment cover.

BATTERY PRECAUTIONS

Follow these precautions when using batteries in this device:

1. Use only the size and type of batteries specified.

2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery

compartment. Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together or old batteries with fresh ones.

4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury

from possible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow

battery manufacturer's directions.)

NOTES:

When there is an obstacle betweenthe TV and the

transmitter,thetransmittermaynotoperate.

When direct sunlight, an incandescent lamp,

fluorescent lamp or any other strong lightshines on

the REMOTE SENSOR of the TV, the remote

operation may be unstable.

There is too much light in the room.

There is an obstacle in the path of the beam.

The batteries are weak or dead.

The batteries are inserted incorrectly.

Why is the remote not working properly?

The remote control is not aimed at the sensor.

Distance is too far away from the remote sensor

Install two "AAA"

batteries paying

attention to the

polarity diagram

in the battery

compartment.

300

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Palsonic TV ad alta definizione

Palsonic

Palsonic 76WSHDA Manuale utente

Manuali TV ad alta definizione popolari di altre marche

Vizio

Vizio M602i-B3 Manuale utente

JVC

JVC LT-40C750 Manuale utente

Pendo

Pendo PNDLFHU55 Manuale utente

RCA

RCA RTU7575-B Manuale utente

Sharp

Sharp LC60LE830UN Manuale utente

LEECO

LEECO uMax85 Manuale utente

LG 50PC1DRA Manuale utente

Samsung

Samsung Tantus HCJ555W Manuale utente

Sceptre

Sceptre X23 Manuale utente

Medion

Medion LIFE P13901 Manuale utente

Vizio

Vizio D32h-C0 Manuale utente

JVC

JVC EM39T Manuale utente

Sceptre

Sceptre X460BV-FHD Manuale utente

BEA

BEA 49B4KUHD Manuale utente

EQD

EQD Auria EQ3288 Manuale utente

JVC

JVC LT-24C660 Manuale utente

RCA

RCA Scenium D32TF20 Manuale utente

LG M3702C Manuale utente
