Palsonic MODEL 5110PF Manuale utente

PALSONIC CORPORATION PTY LTD

1 JOYNTON AVENUE

WATERLOO NSW 2017 AUSTRALIA

TEL:(02)9313 7111

FAX:(02)9313 7555

www.palsonic.com.au

PALSONIC CUSTOMER SERVICE

TELEPHONE

AUSTRALIA:1300 657 888

51CM CORDLESS REMOTE COLOUR TELEVISION

MODEL: 5110PF

OWNER'S MANUAL

Type Tested

Electrical

Safety

AS/NZS 3250 Lic 4166

Standards Australia

APP No: N15899

PURE FLAT AV STEREO TELEVISION

Congratulations on your purchase of this Palsonic colour television receiver.

We recommend that you thoroughly read this manual before use to fully enjoy the many functions

and excellent effects of this receiver.

Retain this manual in an easily accessible location for future reference.

* Screen displays and illustrations in this manual may differ from the actual ones for better visibility.

Front view ...............................................4

Back view ................................................4

Remote controller ..................................5

Antenna connection ................................3

Battery installation .................................3

Cautions for safety .................................2

Features ...................................................1

INTRODUCTION

NOTES FOR OPERATION

INSTALLATION

APPEARANCE

Contents

Channel selection .....................................11

Convenient Picture Controls ..................12

Convenient Sound Controls ....................13

Other functions ........................................14

OPERATION

Turning the Power On/Off .................6

Tuning in ..............................................7

To preset channels (Auto search) ..........7

To preset channels (Manual search) ......8

To skip unnecessary position numbers .9

MFT (Manual Fine Tuning) ..................9

The setting of colour system & sound system.10

Sleep timer and to select the

language for OSD ................................14

CONNECTING OTHER EQUIPMENT

External Equipment Connections .......15

To connect AV input terminals ..........15

To connect MONITOR

output terminals ..................................16

OTHERS

Troubleshooting ......................................17

Specifications ...........................................17

INTRODUCTION

Features

Hyperband

English/Chinese on-screen menu display

100 preset channels

Auto-search, manual search

Intellectualized I C-bus control

Sleep timer, Auto Power-Off & blue background display

Four picture mode setting

AUDIO/VIDEO input & output terminals

S-VIDEO terminal

Advanced picture improvement circuit

1. Built-in digital comb filter (NTSC system)

To attain the complete separation of brightness and colour signals, to reduce colour

interface, blurry and dotted interruptions, to make the picture clearer.

Black level stretching circuit

To extend the dynamic scope of the picture, to make the picture’s level clearer

51cm pure flat picture tube

Full function remote control

NOTES FOR OPERATION

Do not let the TV set be in stand-by condition for a long period of time. When it is not in use, please

turn off the power supply and remove the power plug. When it is to be left unattended for

a prolonged period of time, it is recommended to disconnect the connection to the outdoor aerial, to

avoid thunder strike.

Please follow cautions for safety in the TV set instructions, and all warnings and descriptions denoted

on the TV set.

Note: This TV set can be operated on an AC power of 240V, 50Hz. You should not use power

supply of the other type.

When an unusual situation

occurs, turn off the power

switch at once and remove the

plug from the wall outlet.

Contact a qualified service

department in your local area.

Do not expose the TV set to

rain or excessive moisture, to

prevent tire disaster or

electric shock. Avoid using

the set in very warm or damp

places. Never use it in a

bathroom.

There exists High Voltage in

this TV set. Do not remove

the cover to avoid danger.

The TV set should be placed

on an adequate place without

exposing it to direct sunlight

and other sources of heat to

prevent the deformation of the

cabinet or damage to components.

When the TV set is to be left

unattended, please turn off the

power switch and remove the

plug from the wall outlet.

In order to wipe dust off the

picture tube or off the cabinet,

you should remove the power

plug from the wall outlet first.

You can wipe lightly with a

piece of dry, clean, soft cloth.

Do not cover the Ventilating

holes in the cabinet. Keep a

space of more than 5cm from

the walls to the TV set, to

guarantee the good ventilation.

When the power cord or the

plug is damaged, please

contact a qualified service

department to get service.

Cautions for safety

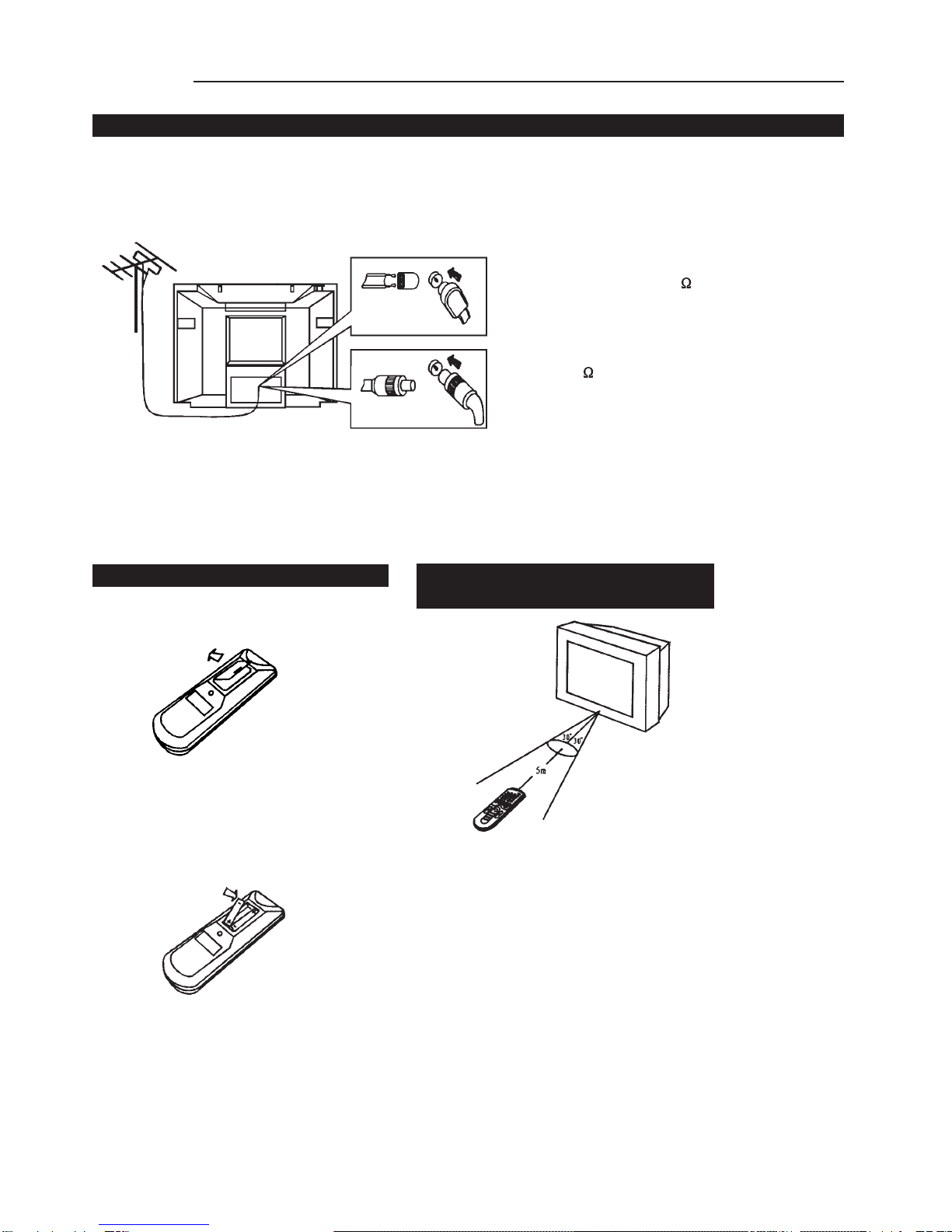

Effective range of the remote

control operation

Antenna Connection

(1) Remove the back battery cover.

Installation

To ensure a bright-coloured and clear picture, you should use an outdoor aerial or CATV cable. If

the signals are strong enough, you may use an indoor aerial.

Note: In case of using the

Twin-lead aerial feeder (300 )

for UHF/VHF aerial, use a 300-75

ohm adaptor (not supplied)

When using the coaxial cable (not

supplied) (75 ) for UHF/VHF

aerial, connect the plug into the

75 ohm aerial socket directly.

Note:

When you connect the outdoor aerial cable to the aerial terminal on the TV set, please turn off the

power switch on the TV while connecting the antenna lead.

In thunder and lightning weather, please disconnect the outdoor aerial to avoid thunder/lightning

strike.

(2) Insert two size AAA batteries according to

the polarity indication inside the remote

controller.

Notes:

When the remote controller is not used for

an extended period of time or the batteries

are worn out, please remove the batteries in

time to avoid battery leakage.

Avoid moisture and mechanical shock to

the remote controller.

Do not drop, dampen or disassemble the

remote controller.

Battery installation

Front view

Back View

Appearance

Note: Functions of MENU, TV/AV, VOL , CH are also provided to the

remote controller.

POWER SWITCH

TV/AV

VOLUME DOWN

CHANNEL UP

CHANNEL DOWN

VOLUME UP

(2) Video 2 input terminals

{VIDEO, AUDIO L/MONO, R}

Antenna input

MONITOR output terminals

{VIDEO, AUDIO L/MONO, R}

S-VIDEO

(1) Video input terminals

{VIDEO, AUDIO L/MONO, R}

Remote Controller

Appearance

If no picture appears on the screen, press the button or any one of 0~9 number buttons on

the remote controller to turn the set on.

Without using the remote controller, you can directly press VOL or CH or

TV/AV button on the set to turn on the TV.

To turn the power on/off

1. Press the POWER switch, the red power indicator lights up.

Turning the Power On/Off

OPERATION

If you want to turn off the TV temporarily, press the button on the remote controller to

switch the set to standby mode.

The following describes how to turn the TV on/off using the TV's main switch and the remote

controller.

3. Press the POWER switch to turn off the set completely.

Special indication:

Auto-Power-Off function: there are two kinds of Auto-Power-Off function:

If a vacant channel is tuned or TV broadcast for a day is finished, the TV will automatically

turn off after about 15 minutes.

Sleep-timer function. However, if the Sleep-timer is operating, it takes precedence, that is,

the function of Auto-Power-Off, if no signals received will be ineffective.

*Note:

If there are no input signals to the TV when the TV set is on, a blue background will

appear on the screen (when B.B (blue back) is set ON.)

After 15 minutes if there are still no signals to the TV, it will enter into standby mode

automatically

OPERATION

Tuning in

There are two ways to preset channels: to preset channels automatically and to preset channels

manually. Below we will describe how to preset the channels by making use of the menu.

Use the AUTO SEARCH function to preset all the active channels in your local area

automatically.

To enter into menu

Press the MENU button repeatedly to call up the POS. MEMORY

menu on the screen.

Note: The MENU button refers to the MENU button on the remote

controller or on the TV set, the or button refers to the or

button on the remote controller or CH button on the TV set, the

or button refers to the or button on the remote

controller or the VOL button on the TV set.

AUTO SEARCH

1. Press the or button to select and highlight

AUTO MEMORY.

Press the button to start the AUTO SEARCH. All active

channels will be preset and stored into the memory

automatically. After presetting, the TV will return to the first

channel program.

During the process of AUTO SEARCH, pressing the

button on the remote controller will stop the process and the

TV will return to the first channel program.

To preset channels (Auto search)

POS.MEMORY

POSITION 01

BAND VHFL

SKIP OFF

SEARCH DOWN

MFT DOWN

AUTO MEMORY

!!!!!!......

POS.MEMORY

POSITION 01

BAND VHFL

SKIP OFF

SEARCH DOWN

MFT DOWN

AUTO MEMORY

!!!!!!......

AUTO MEMORY 5 VHFH

!!!!!!......

STOP

OPERATION

Tuning in (continued)

Use the MANUAL SEARCH function if desired channels can not be preset with the AUTO-

SEARCH or if you would like to preset channels to specific position numbers one by one.

It is convenient to set the channel numbers to the same position numbers using MANUAL

SEARCH and SKIP functions.

Manual search

If AUTO SEARCH can not preset the desired channels, or you want to preset the desired

channels one by one with the preferred channel numbers, please make use of Manual search.

Enter into POS.MEMORY menu, press the or button to

select and highlight POSITION. Press the or button to

select a desired position number (from 00~99).

Note: press the or button to select a channel number

within 0.7 second. Press and hold the or button for over

0.7 second to select a decimal number.

Press the or button to select and highlight SEARCH. Press

the button to search channels from current channel to higher

channel. Press the button to search channels from current

channel to lower channel. When a channel is located, the

searching stops, this channel is then memorised with the preset

channel number.

you can also make use of BAND selection to quicken the

searching process in your desired band. Pressing the or

button moves the band to the next step in the sequence below.

VHFH UHF

3. When you want to store another channel with another position, repeat steps 1 & 2 above.

To preset channels (Manual search)

VHFL

POS.MEMORY

POSITION 01

BAND VHFL

SKIP OFF

SEARCH DOWN

MFT DOWN

AUTO MEMORY

!!!!!!......

POS.MEMORY

POSITION 01

BAND VHFL

SKIP OFF

SEARCH DOWN

MFT DOWN

AUTO MEMORY

!!!!!!......

POS.MEMORY

POSITION 01

BAND VHFL

SKIP OFF

SEARCH DOWN

MFT DOWN

AUTO MEMORY

!!!!!!......

Note:

Indice

Altri manuali Palsonic TV

Palsonic

Palsonic MODEL 6840PFST Manuale utente

Palsonic

Palsonic 3430G Manuale utente

Palsonic

Palsonic 7610WSPF Manuale utente

Palsonic

Palsonic 6875PF Manuale utente

Palsonic

Palsonic MODEL 5169 Manuale utente

Palsonic

Palsonic PDP4220HD Manuale utente

Palsonic

Palsonic 8110Y Manuale utente

Palsonic

Palsonic MODEL 5120PF Manuale utente

Palsonic

Palsonic 6850PF Manuale utente

Palsonic

Palsonic 6826G Manuale utente

Palsonic

Palsonic PDP5055HD Manuale utente

Palsonic

Palsonic TFTV5580M Manuale utente

Palsonic

Palsonic 6850TGPF Manuale utente

Palsonic

Palsonic 6830TG Manuale utente

Palsonic

Palsonic 8110 Manuale utente

Palsonic

Palsonic MODEL 9219SF Manuale utente

Palsonic

Palsonic MODEL 6738 Manuale utente

Palsonic

Palsonic MODEL 6823G Manuale utente

Palsonic

Palsonic MODEL 7128G Manuale utente

Palsonic

Palsonic 8040PFST Manuale utente

Palsonic

Palsonic TFTV4000FHD Manuale utente

Palsonic

Palsonic 6840TS Manuale utente

Palsonic

Palsonic 6860PFST Manuale utente

Palsonic

Palsonic MODEL 6810PF Manuale utente

Manuali TV popolari di altre marche

Philips

Philips Colour Television Manuale utente

Toshiba

Toshiba 27A10 Manuale utente

Philips

Philips 42PF9630A/37 Manuale utente

Hitachi

Hitachi 32FX48B Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuale utente

Changhong Electric

Changhong Electric uhd55b6000is Manuale utente

Philips

Philips Matchline 21CE7551 Manuale utente

Panasonic

Panasonic Genus TX-G10 Manuale utente

Toshiba

Toshiba 19A20 Manuale utente

Philips

Philips 25PT4523-16 Manuale utente

Sony

Sony XBR-100Z9D Manuale utente

Philips

Philips PR0930X3 Manuale utente

Philips

Philips Brilliance 231P4QPY Manuale utente

Samsung

Samsung 55S9 B Series Manuale utente

Philips

Philips 32HF9385D Guida alla risoluzione dei problemi

Sharp

Sharp LC-40FI5012E Manuale utente

Loewe

Loewe Table Stand Reference 55 Manuale utente

Philips

Philips 32PFH5300 Manuale utente
