SP-1786DJ PROFESSIONAL TROLLEY SPEAKER
User’s Guide
Thank you for purchasing Panacom’s SP-1786DJ.
Please read the manual carefully before operating.
PRECAUTIONS
In order to prevent operating problems or serious damage to the device,
please comply with the following remarks.
1. Hold the electric outlet while pulling out the plug. Do not pull the wire.
2. Operating audio appliances should be kept away from heating sources.
3. Do not attempt to x or revise the circuits.
4. Do not touch the internal parts, otherwise electric shock or serious damage
might occur.
5. Place this speaker in a ventilated dry condition with about 20mm of space
around other surfaces for heat dispersion.
WARNING: Do not expose this appliance to rain or moisture or liquids.
SPECIFICATIONS
-Wireless BT connection
-Led lights eects
-USB/SD card
-FM Radio
-Equalizer
-Remote Control
-Microphone input
-Guitar input
-100w power output
-Tweeter with light
-Subwoofer Unit: 10´´
-AUX in
-Wheels
-Retractable Handle
Pg. 4

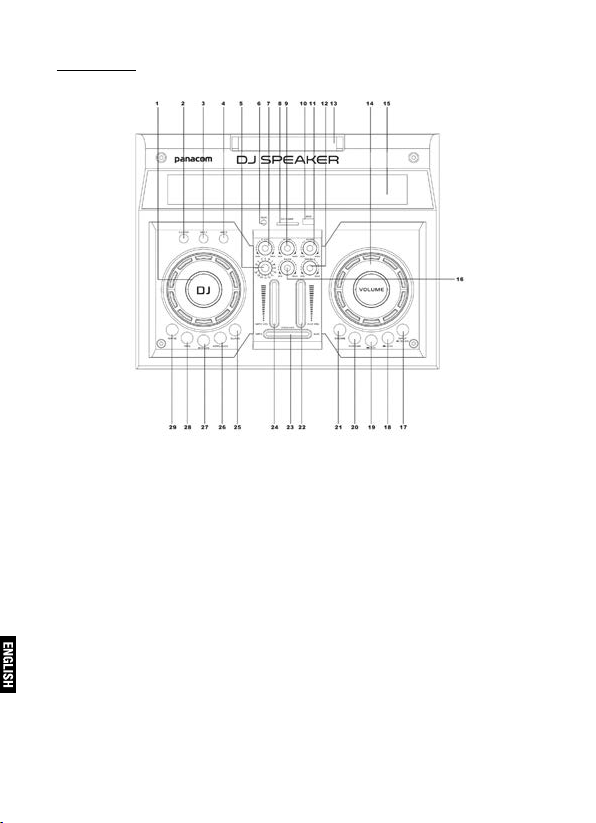

TOP PANEL
1. JOG WHEEL– This wheel has 2 functions:
SCRATCH mode:
Turn the Jog Wheel to N0.6 Eect, activate the scratch function. You can
scratch the track with the Jog Wheel like a vinyl record while the music
is playing.
PARAMETER mode:
TIME BUTTON – When the TIME function is activated you can use the jog
Wheel to adjust the value of the X parameter (time) of the eectors. ( X
parameter No. 28) RATIO BUTTON –When the RATIO function is activated
you can use the jog Wheel to adjust the value of the Y parameter (mix
ratio, resonance or feedback) of the eectors. (Y parameter, No.29)
2. Guitar Input
3. Microphone 1 Input
4. Microphone 2 Input
5. 16 DJ Eects Select Knob: Use this knob to select the DJ eects. There
Pg. 5
are 16 DJ eects:
1. Flanger
2. FlangerVerb
3. Phaser
4. RobotFlange
5. Pitch
6. Scratch
7. Analog Delay
8. Trans
9. Phaser Wah
10. Filter
11. Auto Wah
12. Small Hall
13. Thin plate
14. Plate
15. LPF Reverb
16. Gated Reverb
6. AUX Input: It s possible to connect the following signal sources: DVD
player, CD player, Cell Phone, etc.
7. Guitar Volume Knob
Use this knob to adjust the volume of the guitar.
8. SD Card Input
Insert your SD Card into this slot.
9. Microphone Volume Knob
Use this knob to adjust the volume of the microphone.
10. USB Input
Insert your USB ash drive into this slot.
11. Echo Knob
Use this knob to adjust the echo of the microphone.
12. Treble Knob
Use this knob to adjust the treble levels.
13. Led Light
14. Volume Control Knob
Use this knob to adjust the volume levels in USB/SD/FM/Wireless BT
Connection/LINE mode.
Pg. 6
15. Display Screen
16. Bass Knob
Use this knob to adjust the bass levels.
17. Input/Scan/Play/Pause Button. Press this button one time to change
the input modes (USB/SD –LINE-FM-Wireless BT Connection).
Press and hold this button to automatically scan for radio stations in FM
mode.
Press and hold this button to pause the USB/SD CARD/Wireless BT
Connection/LINE mode signal, press and hold it again to switch to play.
18. Next Track
In USB/SD Card/Wireless BT Connection mode, press this button to go to
the next track.
In FM mode, press this button to go to the next radio station.
Press and hold this button for a few seconds to increase the volume.
19. Previous Track
In USB/SD Card/Wireless BT Connection mode press this button to go to
the previous track.
In FM mode press this button to go to the previous radio station.
Press and hold this button for a few seconds to decrease the volume in
USB/SD/FM/Wireless BT Connection/LINE
mode.
20. Scream Sound Eect
Press this button to choose the SCREAM sound eect.
21. Crowd Sound Eect
Press this button to choose the CROWD sound eect.
22. AUX Vol
It allows you to adjust the volume of the AUX input.
23. Crossfader
It allows you to smoothly switch from MP3 to AUX input sources.
24. MP3 Vol
It allows you to adjust the volume in USB/SD/FM/Wireless BT Connection/
LINE mode.
25. Glass Sound Eect
Press this button to choose the GLASS sound eect.
26. Applause Sound Eect
Pg. 7
Press this button to choose the APPLAUSE sound eect.
27. Bypass Button
Press this button to cancel or choose a DJ eect. Once a DJ eect is
selected, the display screen will show“DJ”.When the DJ eect is cancelled,
the display screen will show“BYPASS”.
28. Time Button
Please see No. 1 for a more detailed explanation.
29. Ratio Button
Please see No. 1 for a more detailed explanation.
Pg. 8
Pg. 9

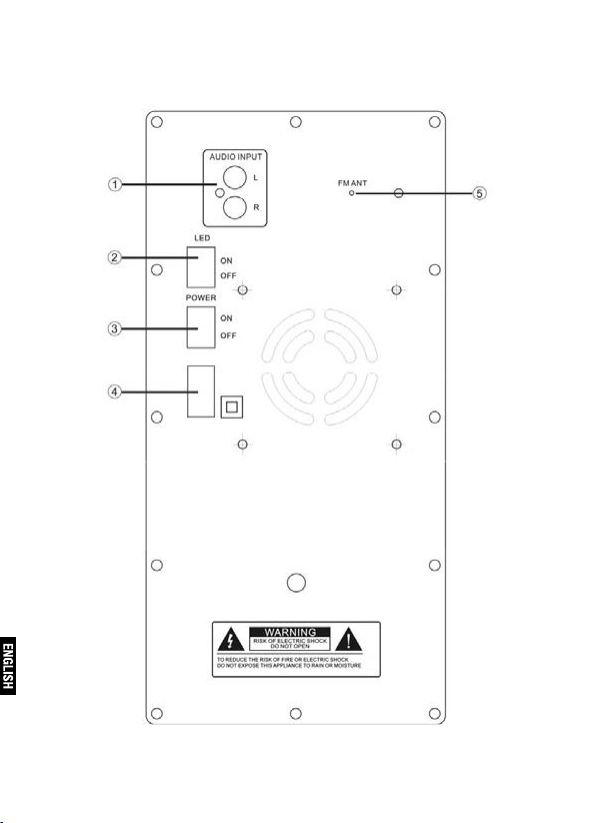

REAR PANEL
1. Audio Input
You can connect audio outputs from the following sources: DVD player, CD
player, etc
2. LED Power Switch
This switch controls the light of the woofer and the led light located on the
top panel (please see NO.13 on the top panel), when the unit is turned on, the
light will shine, when it is turned o the light will turn o too.
3. Power Switch
Before the unit is turned on please ensure that all the control levels are
turned down completely. You should only begin to raise the master volume
levels once the unit is turned on.
4. Power Supply
To power the unit use only the power cord provided with the unit. Please
ensure that the unit is turned o before connecting or
disconnecting the power cord.
5. FM Antenna
WIRELESS BT CONNECTION
A. Press the INPUT button on the unit and enter Wireless BT Connection
mode.
B. Ensure that Wireless BT Connection is activated on your mobile device.
Search for“SP-1786DJ”.
C. Once found, select“SP-1786DJ”and wait for connection.
D. Once the device and unit have successfully paired, the unit screen will dis-
play“BLUE”and it will emit a sound signal.
E. Select PLAY and enjoy de music.
