PREFACE
The ROM in this package is for exclusive use with the
professional jog pad in the non-linear workstation WJ-
MX1000 and WJ-MX1200 series. Be sure to use the
application software version 4.2 or later version.
Before replacing the ROM, install the software of
Version 4.2 or higher.
Connect the professional jog pad after replacing the
ROM.
If you do not have the professional jog pad AY-JP2000,
it is not necessary to replace the ROM.
Important
• Before replacing the ROM, be sure to press the
power switch off and pull out the power plug
from the electrical outlet.
• Before handling the board, touch a metal part of
it with your hand to discharge static from your
body. Touching the board while you still have
static in your body may cause the board to fail.
It would be safer to wear an antistatic wrist
strap.
• When it is necessary to temporarily place the
board, put it on an antistatic mat or the like. Do
not let any metal part of the board contact the
metal parts of other boards.
-3-
-4-
UC1AO
14A

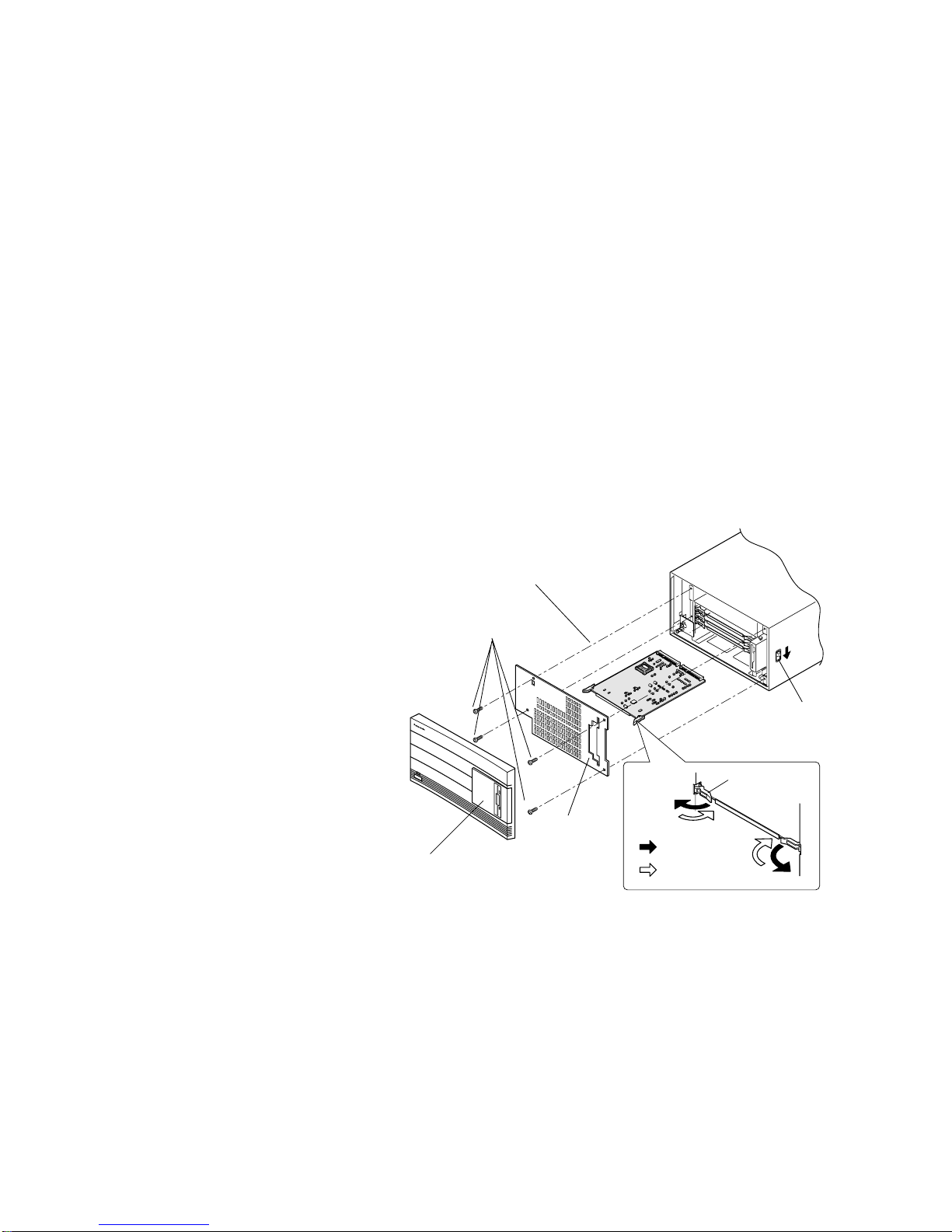

Lock Lever
Pull the lever to
release the board.
Press the lever to
lock the board.
Hook Button
eLoosen the screws and remove the
protection cover. (Be careful not to lose
the screws.)
qSwitch power off
and pull out the
power cable plug.
wPush the hook button
down and remove the
front panel.
rRemove the input board
(the second one from the bottom).
Protection
Board
Front Panel
BOARD REMOVAL
qQuit system operation, switch power off, and pull
out the power plug from the electrical outlet. Be
sure to read the Installation Manual for the Main Kit
(WJ-MX1000 and WJ-MX1200 series) for how to
quit system operation.
wPush down the hook button on the right and left
sides of the main unit and remove the front panel.
eLoosen the screws and remove the protective
cover. Be careful not to loose the screws.
rRemove the second board from the bottom (input
board).
Note: Some models have a fan mounted on the protec-
tion board. Exercise good care about the wires
when removing the board.
-5-
Fig. 2Fig. 1
There is the danger of damaging the ROM if the
remover is not fully inserted.
[How to Use Remover]
Insert the hooks at the ends of the remover into the two
diagonally located holes in the ROM socket as shown in
Figure 1, and grip the remover as shown in Figure 2.
* Never forcibly pull the remover upwards.
The ROM can be removed by lifting it out of the socket.
Mark the removed ROM with red ink, for example, so it
will not be mistaken for a new ROM.
Replacing the ROM
tWith the shielding plate down, place the removed
input board on an antistatic mat or the like, and
remove the ROM from the input board.
Caution: Insert the hooks at the ends of the remover all
the way in, then pull out the ROM.
Hook
UC1AO
14A
yPlace a new ROM in the socket. Check the direc-
tion of the mark for pin 1 so that the ROM will be
inserted in the correct direction, keep the ROM
level, apply an even force on the ROM taking care
not to bend the pins, and insert it fully till it clicks.
-6-
Mark for pin 1
BOARD MOUNTING
uPull the board tabs toward yourself and insert the
removed board into its original position. Push the
tabs to fasten the board. Be sure to push the tabs
all the way.
iFasten the protective cover with the screws.
oPush down the hook buttons on the right and left
sides of the main unit.
!0 Hold the front panel where it should be, then mount
it back. The hook buttons come up to fasten the
front panel.
!1 Make sure that the front panel is securely fastened.
!2 Insert the power plug back into the electrical outlet,
and switch power on. Check that the system is
started.
Be sure to read the Installation Manual for the Main
Kit (WJ-MX1000 and WJ-MX1200 series) for how to
start the system.
Accessories
Remover ...................................................................... 1
Warranty ...................................................................... 1
-7-
