Installation Instructions
R32 refrigerant leakage detection sensor
Model No. CZ-CGLSC1
POLSKI
ENGLISH
FRANÇAIS
ESPAÑOL
DEUTSCH
ITALIANO
N
EDERLANDS
PORTUGUÊS
TÜRKÇE
ACXF60-41441
W1220-11121
ITALIANO
Leggere le procedure per l'installazione prima di procedere con l'installazione.In particolare,
leggere attentamente le “Precauzioni di Sicurezza”.Panasonic non accetta responsabilità
per incidenti o danni causati da installazioni inappropriate non previste nelle istruzioni
per l'installazione.Inoltre, la garanzia del prodotto non copre malfunzionamenti dovuti a
montaggio non corretto.Scandire il codice a barre 2D a matrice per visualizzare il manuale.
39-47
NEDERLANDS
Lees de installatieprocedures alvorens tot installatie over te gaan.Lees in het bijzonder de
“Veiligheidsvoorschriften”.Panasonic aanvaardt geen aansprakelijkheid voor ongelukken
of schade als gevolg van onjuiste installaties die niet in de Installatie-instructies getoond
worden.Bovendien dekt de productgarantie geen storingen die optreden als gevolg van
een verkeerde montage.Scan de matrix 2D-streepjescode om de handleiding te zien.
48-56
PORTUGUÊS
Leia os procedimentos de instalação antes de iniciar a instalação.Em especial, por favor,
leia com atenção as “Precauções de segurança”.A Panasonic não se responsabiliza por
acidentes ou danos resultantes de uma instalação inadequada que não seja apresentada
nas instruções de instalação.Além disso, a garantia do produto não abrange um mau
funcionamento devido a uma montagem incorreta.Leia o código de barras bidimensional
(2D) em matriz para visualizar o manual.
57-65
TÜRKÇE
Kuruluma devam etmeden önce kurulum prosedürlerini okuyun.Lütfen özellikle
“Güvenlik Önlemleri” bölümünü dikkatli bir şekilde okuyun.Panasonic, Kurulum
Talimatlarında gösterilmeyen uygun olmayan kurulumlardan kaynaklanan kazalardan
veya hasarlardan sorumlu değildir.Ayrıca ürün garantisi, uygun olmayan montajdan
kaynaklanan arızaları kapsamaz.Kılavuzu görüntülemek için iki boyutlu (2D) matris
barkodunu taratın.
66-74
POLSKI
Przed przystąpieniem do instalacji należy przeczytać procedury instalacji.W
szczególności należy uważnie przeczytać rozdział „Środki ostrożności”.Firma Panasonic
nie ponosi odpowiedzialności za wypadki lub uszkodzenia wynikające z niewłaściwej
instalacji, która nie została przedstawiona w Instrukcji instalacyjnej.Ponadto gwarancja
produktu nie obejmuje usterek spowodowanych nieprawidłowym montażem.Aby
przeglądać instrukcję, należy zeskanować dwuwymiarowy (2D) kod kreskowy.
75-83
3
ENGLISH
Precautions for Installation
WARNING
●Turn off the circuit breaker of the units before installation.
●Ask your dealer or professionals for installation and electric work.
●This sensor unit must be installed in accordance with National
Wiring Regulations.
●Connect and fi x the specifi ed cables for wiring securely.
●Do not allow the connection to be exposed to external force
from the cables.
●Select an installation location which is rigid and strong enough
to support or hold this sensor unit, and select a location for
easy maintenance.
●Use only the parts specifi ed by Panasonic as supplied
accessories.
●Disassembly and modifi cation of this sensor unit is not
permitted under any circumstances.
●This sensor unit must be installed by the sales dealer or installer.
Contents
Safety Precautions .......................................... 3
Specifi cations .................................................. 6
Part Names ....................................................... 6
Parts.................................................................. 7
Installation Precautions .................................. 7
Mounting .......................................................... 8
Operation ........................................................ 10
Self-diagnostics table ....................................11
Test run ............................................................11
Safety Precautions
Please Read Before Starting
●Read the Installation Instructions carefully to install the sensor unit correctly and safely.
Be sure to read the “Safety Precautions” before installation.
●After the installation is complete, perform test operation to confi rm that no abnormality is present.
●We assume no responsibility for accidents or damages resulting from methods other than those described in the
Installation Instructions or methods using unspecifi ed parts.
Malfunctions that occur due to unauthorised installation methods are not covered by the product warranty.
●Read the Installation Instructions supplied with indoor units as well.
●When relocating or repairing this sensor unit, provide the Installation Instructions to the servicing personnel.
●Please provide this Installation Instructions to the user after installation.
NOTICE
The English text is the original instructions. Other languages are translations of the original instructions.
WARNING CAUTION
This symbol refers to a hazard or unsafe
practice which can result in severe personal
injury or death.
This symbol refers to a hazard or unsafe
practice which can result in personal injury or
product or property damage.
Prohibited matters
Page Page
4
ENGLISH
WARNING
●Repairs must be carried out only by the method specifi ed by
Panasonic.
●Only replace parts specifi ed by Panasonic when replacing parts.
●Torch detectors (or other open fl ame detectors) should not be used
when checking for refrigerant leaks.
●This sensor unit should be securely installed in accordance with
the Installation Instructions.
●Electric work must be performed by authorised personnel in
accordance with the local regulations and the instructions detailed
in the Installation Instructions.
●Attach the electrical cover to the indoor unit securely.
●Make sure to connect the sensor unit to the PCB and terminal
board of the indoor unit properly.
●In case of an abnormal condition (such as a burning smell), stop
the indoor unit and turn the breaker OFF.
●When devices that use fl ammable refrigerants are installed in
unventilated areas, ensure the refrigerants do not accumulate and
present the risk of fi re or explosion, even in the unlikely event that
refrigerant does happen to leak.
●Do not operate with wet hands.
●Do not splash water on the sensor unit or use it in the bathroom.
CAUTION
●Do not use the sensor unit at the following locations. Because
may lead to severe decrease in functionality and damage to
parts.
• Location where condensation occurs
• Location where fl ammable gases, etc. may leak
• Location where corrosive gases, etc. may leak
• Location with lots of water or oil droplets (including machine oil)
• Steamy locations
• Location where voltage fl uctuation frequently occurs
• Location where there is a machine producing electromagnetic
radiation
• Location where droplets of organic solvents spread
• Location where acidic or alkaline solutions or special sprays
are frequently used
• Locations where dust easily accumulates or Extremely dusty
5
ENGLISH
CAUTION
●Ground yourself to discharge static electricity before performing
any wiring.
●Do not install the sensor unit in places with direct sunlight or
where the ambient temperature is more than 40 ˚C or is less
than 0 ˚C. Follow specifi cations. (P.6)
●The connecting cable must not touch piping directly.
●Install this sensor unit horizontally.
●The warranty does not cover the product if it falls from an
elevated location.
●The semi-conductor sensor may react or malfunction if
exposed to gases other than the refrigerant gas or to steam.
Accordingly, the following must be avoided when installing.
• Using in atmospheres where silicone gases (siloxane, etc.)
may occur
The sensor unit may malfunction or operate incorrectly if items
such as adhesives, hair products, rubbers, or putties with
silicone in them are used in the vicinity of the sensor.
• Exposing to organic solvents/chloric gases
Alcohols, VOCs, chloric gases, etc., can be the cause of
malfunction or incorrect operation.Large amounts of organic
solvents are produced by paints, fl oor waxes, etc., when
building or renovating structures, so ensure the area is
properly dried and ventilated before installing the sensor.
• Polluting with alkaline metals (especially salt mist)
Precautions for Operation
WARNING
●Do not block the gas detector. (It will be unable to detect
refrigerant leaks and may result in a fi re.)
●Do not power off the air conditioner even if it is not used for a
long time. The refrigerant sensor will not operate.
●The buzzer starting to sound indicates that there has been a
refrigerant leak. Ignition or fi re may result as the concentration
of refrigerant increases, so the area should be ventilated and
evacuated as quickly as possible.
●If a leak is suspected, all naked fl ames should be removed and
extinguished.
6
ENGLISH

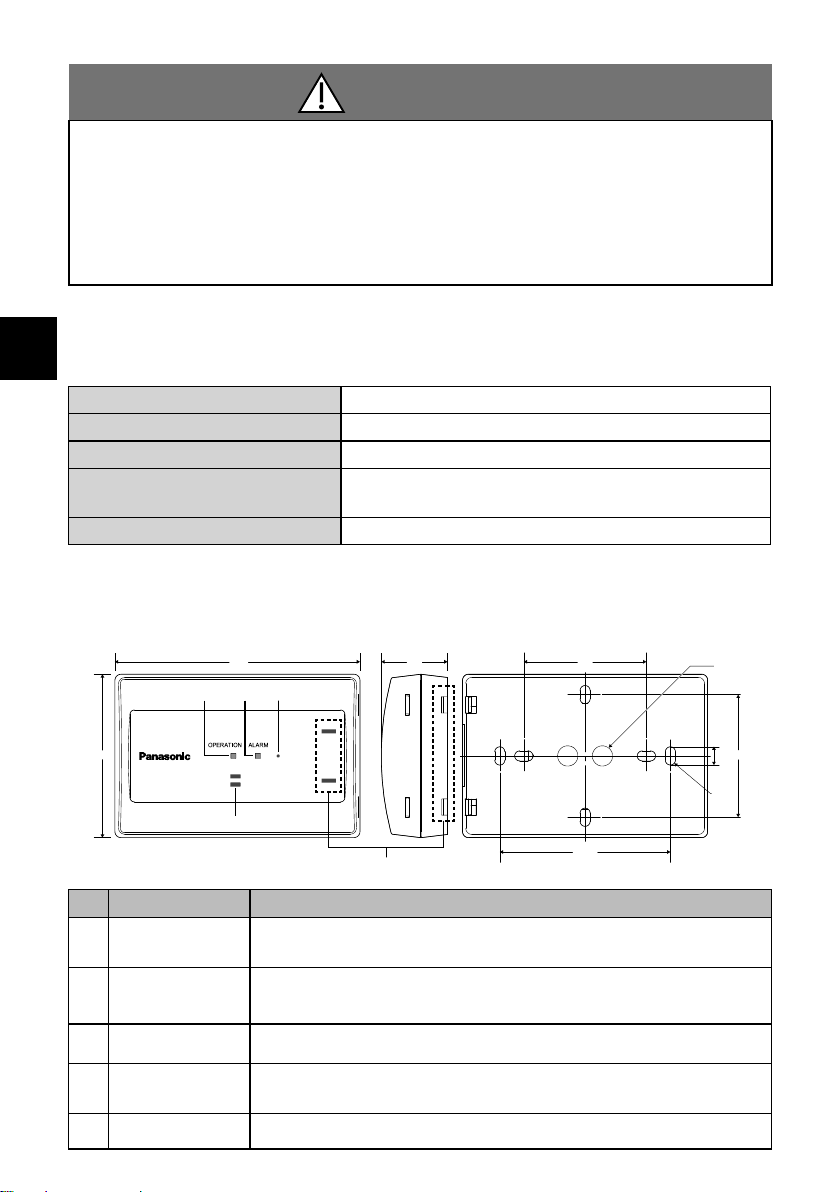

Part Names
䃥10
60
60
83.5
80
120 33
9
6-5×10
(mm)
123
4
5
No Item Description
1OPERATION LED
(Green)
This is off , on, or blinking depending on the status of the sensor unit.
(Refer to “Self-diagnostics table” (P.11) for details)
It is on while the sensor is monitoring.
2ALARM LED (Red)
This is off , on, or blinking depending on the status of the sensor unit.
(Refer to “Self-diagnostics table” (P.11) for details)
It is off while the sensor is monitoring.
3Switch This switch stops the buzzer when it is sounding. If the buzzer was stopped with the switch, the
buzzer sounds again after 1 hour if refrigerant is still detected.
4Gas detector
This aperture is used for detecting the refrigerant.
Do not block the aperture or place objects immediately in front of the aperture as this will mean
that refrigerant leaks will not be detected.
5Buzzer This sounds an alarm when a refrigerant leak is detected.
A switch setting can disable the buzzer. (P.8)
Precautions for Operation
WARNING
●When someone may touch the air conditioner due to
maintenance, etc., do not allow spray to get onto the sensor
unit or use fl ammable gases near the sensor unit. Also
make sure that the breaker is turned off when performing
maintenance on the air conditioner or sensor unit.
●Do not use sprays or chemicals when cleaning.
Specifi cations
Model No. CZ-CGLSC1
Dimensions (H) 80 mm × (W) 120 mm × (D) 33 mm
Weight 0.1 kg
Temperature/Humidity range 0 °C to 40 °C / 20 % to 80 % (no condensation)
*Indoor use only.
Power Source DC16 V (supplied from indoor unit)
7
ENGLISH
Installation Precautions
Installation location
●You need to observe the regulations of the local government,
state and country that govern the installation of sensor units
when installing the sensor unit.
You must ensure that installation complies with all relevant rules
and regulations.
●Keep a space around the sensor unit as detailed on the fi gure
shown right.
●Install so the sensor unit is within 300 mm of the fl oor.
This is stipulated in regulations.
●Install this sensor unit horizontally.
●Do not block the gas detector or place objects immediately in front
of the gas detector as this will mean that refrigerant leaks will not
be detected.
●If no obstacles exist in a straight line from the sensor unit to the
indoor unit, wall distance should be within 10 m in horizontal
straight line.
●If obstacles exist in a straight line from the sensor unit to the
indoor unit, wall distance should be within 7 m in horizontal
straight line.
●This sensor unit should be mounted in a position where it can be
easily accessed for maintenance and repairs.
●Avoid the following locations for installation.
• By a window, etc. exposed to direct sunlight or external airflow
• In the shadow or backside of objects deviated from the room
airflow
• Location where condensation occurs
( The sensor unit is not moisture proof or drip proof)
• Location near heat source
• Uneven surface
• Location where there is a danger of mechanical damage being
infl icted on the sensor unit
• Location where there is a danger of the generation of
contaminants such as silicone gases (siloxane, etc.), organic
solvents/chloric gases, etc.
●Use the unit while being suffi ciently aware of and confi rming the
eff ects of the environment in which the indoor unit is installed.
There is a possibility that the sensor will react in installation
environments such as hospitals, beauty salons, and factories.
For example, the DME and LPG included as propellants in
hair sprays and insect sprays are reductive gases with high
concentrations, and this sensor unit may react to them.
Refer to the installation instructions supplied with the indoor
unit for details about the location for installing the sensor unit.

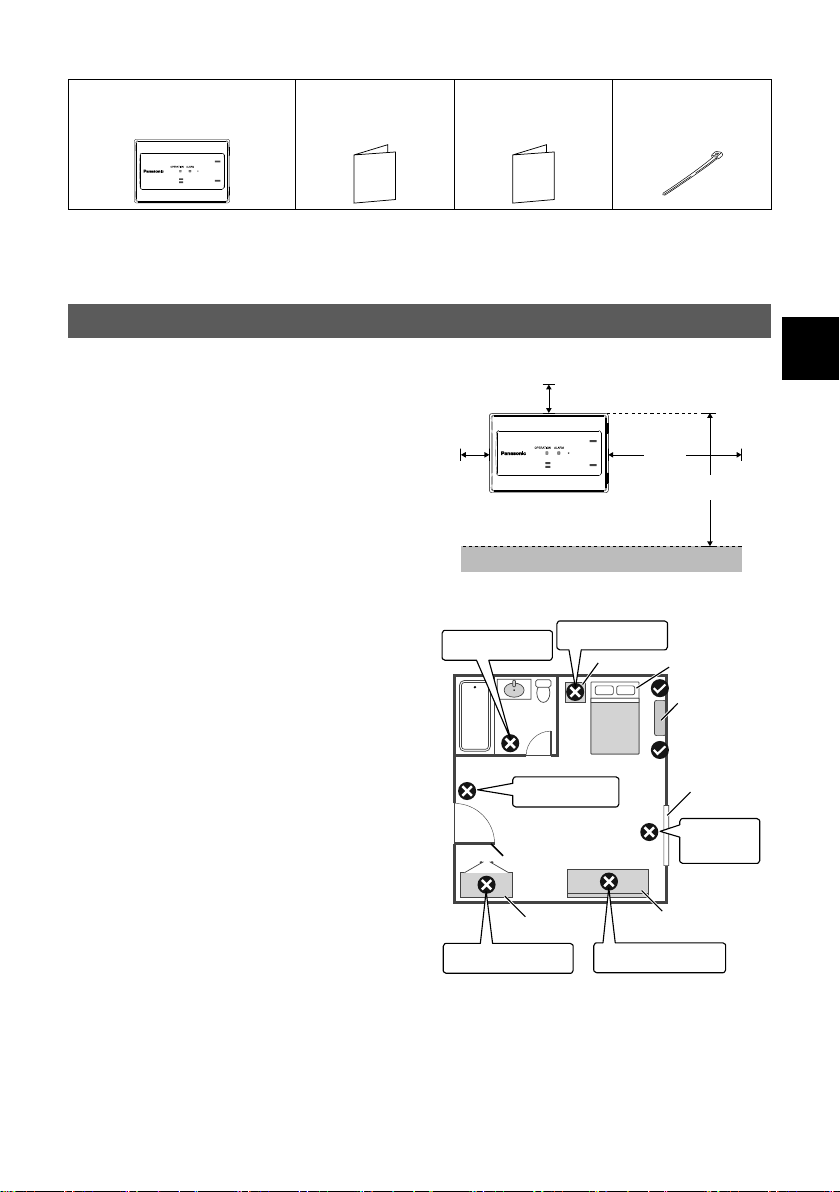

■Mounting Position
Floor
300 mm
or less
50 mm
50 mm
300 mm
■Recommended Installation Locations
Door
Door
Window
BedDesk
Indoor unit
Desk
Cupboards
Do not install
near windows
or vents.
Do not install next to or
below desks or mirrors.
Do not install next to or
inside cupboard doors.
Do not install inside
bathrooms.
Do not install below
desks or shelves.
Do not install next
to door openings.
Parts ( ): Number of pieces
R32 refrigerant leakage detection
sensor (Sensor unit)(CZ-CGLSC1) Installation Instructions Operating Instructions Clamper
(1) (1) (1) (2)
A switch box and the screws for securing the sensor unit are not supplied. (fi eld supplied)
8
ENGLISH
Installation Precautions

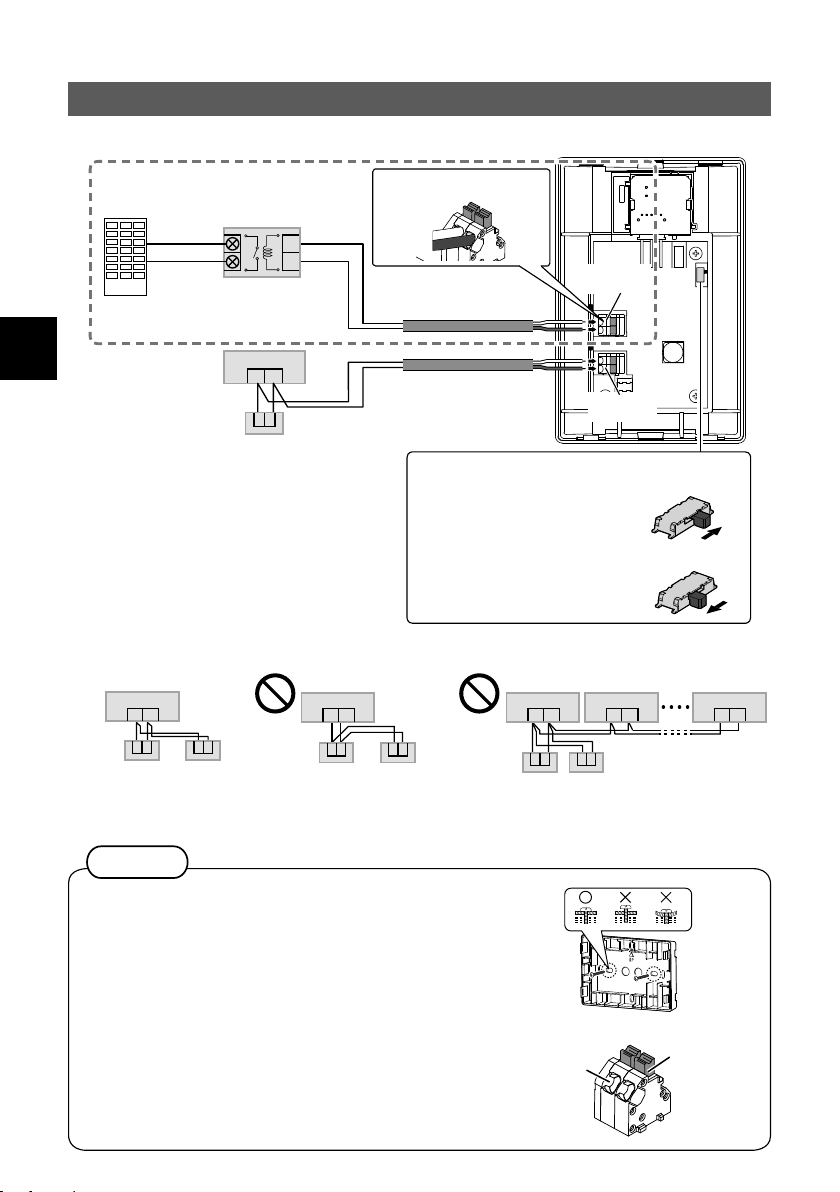

Basic wiring diagram
Wiring diagram
1
2
R1 R2
12
+
-
+
-
CN6
CN2
CN5
Indoor unit
Wired remote controller
Remote controller wiring
(fi eld supply)
• No polarity
Ext output wiring
(fi eld supply)
External Relay
(fi eld supply)
Central monitor
Make sure that the polarity (+/-)
is correct before connecting.
(
+
)
(
-
)
CN6
When the refrigerant leakage alarm is to be
output externally
RC terminal
board
Ext output
terminal board
Remote controller wiring Buzzer enable/disable switch
Enable : Buzzer is enabled
• An alarm sounds when a refrigerant leak
is detected.
Enable
Disable : Buzzer is disabled
• An alarm does not sound when a
refrigerant leak is detected.(Ext
output and the indicator LEDs operate
normally.)
Disable
■Type of wiring
●Use cables of 0.75 to 1.25 mm2 (Min. 0.75 mm2)
■Total wire length : 20 m or less
■Number of connectable units
●Wired remote controller
: 1 unit connection only
●Indoor unit : 1 unit connection only
●Sensor unit : 1 unit connection only
Ext output wiring
■Type of wiring
●Use cables of 0.75 mm2 (Min. 0.75 mm2)
■Total wire length : 1.9 m or less
Correct wiring diagram
Wiring as shown below is prohibited.
R1 R2
1212
Indoor unit
Sensor unit
Wired remote
controller
Remote
controller wiring
Wired remote
controller
R1 R2
12 12
Indoor unit Remote
controller wiring
Sensor unit
R1 R2 R1 R2 R1 R2
12 12
Indoor unit Indoor unit Indoor unit
Wired remote controller
Sensor unit
Remote controller
wiring
Mounting
Mounting the bottom case
●Tighten the screws securely until the screw heads touch the bottom case.
( Otherwise, loose screw heads may hit the PCB and cause malfunction
when mounting the top case.)
●Do not over-tighten the screws.
( The bottom case may be deformed, resulting in the unit becoming
detached from the surface it is fi xed to.)
Connection to the terminal board
●Depress the push button using a round bar or fi nger, insert the wiring
securely from the insertion slot and release the push button.
●Pull the wiring lightly, and confi rm it is secured.
●There is the danger of shorting if copper wire is exposed. Make sure the
wire is properly inserted.
Insertion slot
Push button
Terminal board
Attention
9
ENGLISH

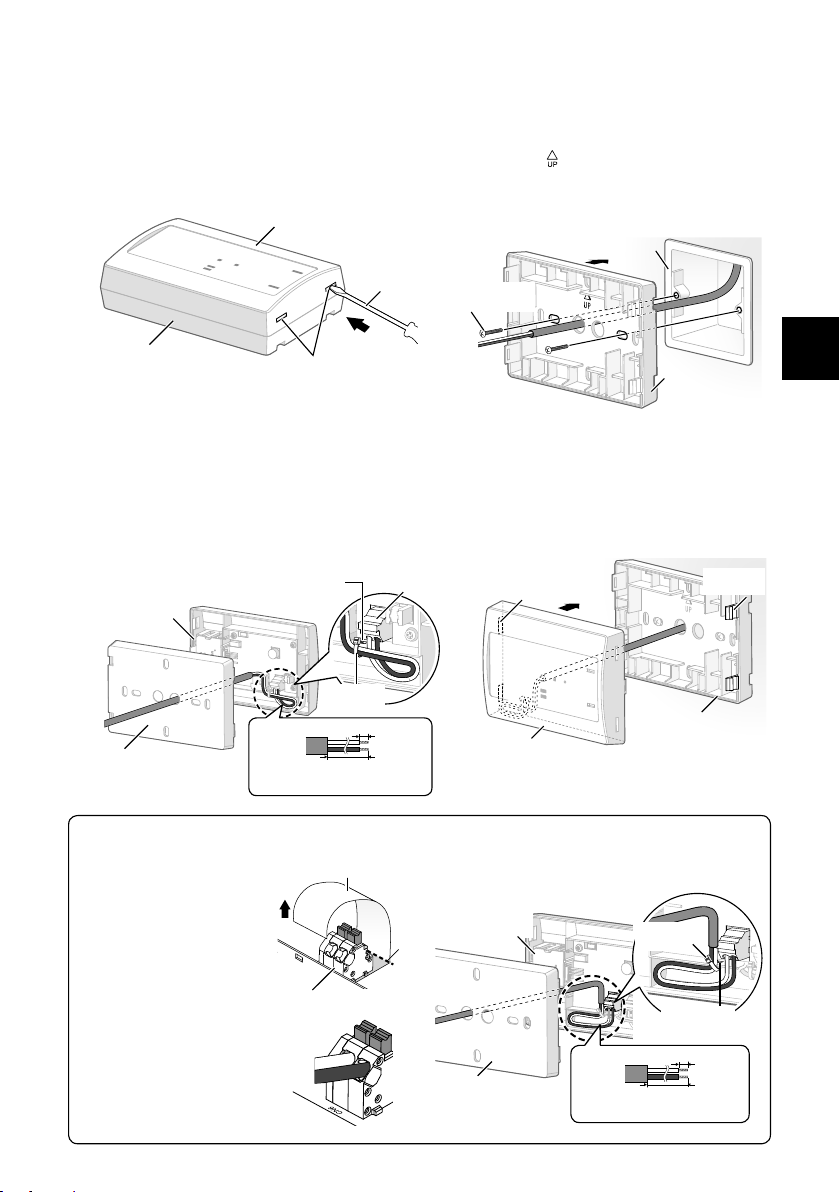

Before starting, embed a switch box to which the sensor unit can be secured into the wall.
(Refer to “Part Names” (P.6) when selecting the switch box.)
Refer to “Basic wiring diagram” (P.8) and “When Ext output is to be used” to turn off the buzzer of the sensor unit or when Ext
output is to be fi tted.
1Remove the top case 2Mount to the switch box
● Insert the screwdriver to the bottom case.
Insert the fl at-blade screwdriver to the claws as show in
the fi gure.
●Secure the bottom case onto the switch box (fi eld
supplied) that has been embedded in the wall.
Make sure the “ ” in the bottom case is at the top, as
shown in the below diagram.
Thread the wiring through the hole in the centre of the
bottom case at this time.
Ensure no external force is being applied to the wiring.
*When securing with 2 screws
Switch box
(fi eld supplied)
Bottom case
Screw
(fi eld supplied)
●Push the fl at-blade screwdriver in.
Push down the fl at-blade screwdriver along with the slope
of the claws until the top case comes off .
Claw (2 locations)
Bottom case
Top case
Flat-blade
screwdriver
3Connect the remote control wiring (Electric
wiring) 4 Mount the top case
●Connect the remote controller wiring to the RC terminal
board(CN2). Make sure there is no unnecessary wiring left in
the case of the sensor unit when wiring. Refer to “Connection
to the terminal board” in
“Attention” for connection instructions.
●Refer to “When Ext output is to be used” when Ext output is
to be used.
Remove the coating. Approx. 9 mm
Remove the sheath. Approx.
85
mm
●
Make sure the wiring connection is
in the correct direction.
RC terminal
board(CN2)
Pass the clamper (supplied)
through the hole, and fi x
the wiring.
Clamper
(supplied)
Top case
(Back side)
Bottom case
(Back side)
●Do not allow the wires to come in contact with parts
on the PCB.
( Caught wires may destroy the PCB.)
●Align the claws of the top case and then align the
claws of the bottom case.
Claw
(2 locations)
Claw
(2 locations)
Top case
Bottom case
When Ext output is to be used
*Do this at the same time that you do step
3
➊
Remove the insulation sheet that
is covering the Ext output terminal
board(CN6).
❷Cut off the insulation sheet. ߑ
㣸
Insulation sheet
Ext output terminal board(CN6)
❹
Pass the clamper (supplied) through the hole in the top case to
secure the wiring.
❸Connect the wiring to the Ext
output terminal board(CN6).
（Make sure that the polarity (+/-)
is correct before connecting.）(+)
(
-
)
Top case
(Back side)
Remove the coating. Approx. 9 mm
Remove the sheath. Approx. 85 mm
● Make sure the wiring connection is
in the correct direction.
Bottom case
(Back side)
Pass through
the hole
Clamper
(supplied)
10
ENGLISH

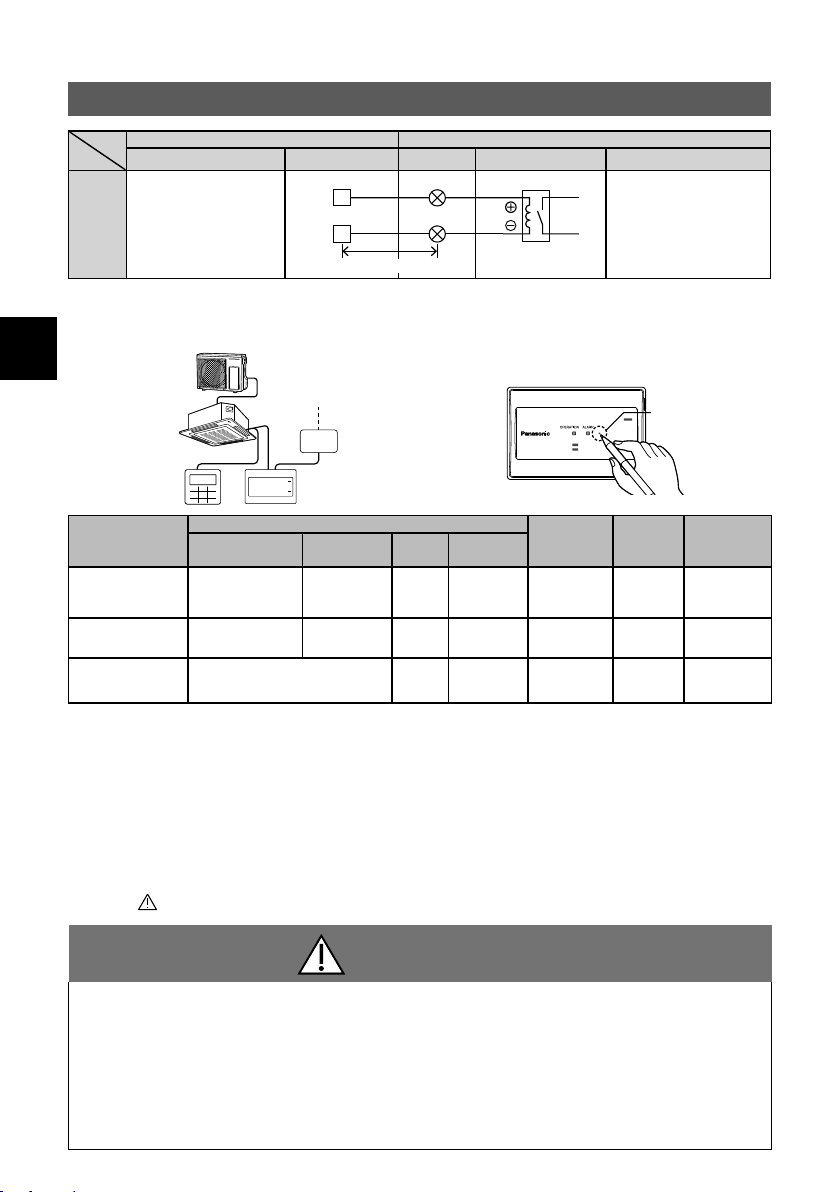

Operation
Behaviour is as follows according to the status of the sensor unit.
• Sensor unit
• Wired remote
controller
• Outdoor unit
• Ext output
• Indoor unit
The buzzer sounds when Refrigerant leakage alarm operations.
To stop the buzzer, use the tip of a pen, etc., to press the switch.
Switch
Status of the
sensor unit
Sensor unit Wired remote
controller
Indoor
unit Outdoor unit
OPERATION
LED(Green)
ALARM
LED(Red)
Buzzer Ext output
Leaking Off Blinking On*1DC5V output
Error code
P08 is
displayed
Mixing
operation Stop operation
Abnormal Blinking On Off No output Error code J01
is displayed Fan stops Operation
continues
Service life
exceeded*2Alternately Off No output Error code J02
is displayed Fan stops Operation
continues
●When the gas concentration returns to the normal level, the ALARM LED (Red) turns off , the OPERATION LED (Green) turns on,
and the buzzer stops sounding. Even when the gas concentration returns to the normal level, the sensor unit alarm operations
indicated above for the Ext output, remote controller, and outdoor unit will continue.
●When the gas concentration returns to the normal level, mixing operation ceases a certain amount of time later.
●If the buzzer was stopped with the switch, the buzzer sounds again after 1 hour if refrigerant is still detected.
●Also replace the sensor PCB with a new one after an alarm occurs notifying of a refrigerant leakage. The sensor is less responsive
to refrigerant after it has detected a high concentration of refrigerant once.
●The recommended period of use for the sensor PCB is 10 years.（ When the unit is used by observing the“Safety Precautions”
correctly and continuously)
●When the service life is exceeded, contact the manager of the facility and the person responsible for servicing to have the sensor
PCB replaced.
*1 A switch setting can disable the buzzer.
*2 When you restart using the remote controller, the error on the remote controller disappears, then operation becomes possible
when the “ ” is blinking on the screen.
WARNING
●When a gas alarm occurs, immediately ventilate the area and
evacuate from the room. Also contact the manager of the
facility and the person responsible for servicing.
●If there is abnormal behaviour, contact the manager of the
facility and the person responsible for servicing.This sensor unit
may be in a state where it is unable to detect refrigerant.
Mounting
Connection Specifi cations
Sensor unit side External equipment side
Condition Terminal name Terminal Circuit example Condition
Status
output
Monitoring : No output
Leaking : 5 V output
Output voltage
: DC5 V
Output allowable current:
Max. 50 mA
Rated coil voltage: DC5 V
Alarm output Coil
1
2
Common (COM) Relay
+
-
1.9 m or less / 0.75 mm
2
Indice
Lingue:
Altri manuali Panasonic Accessori
Panasonic
Panasonic EX-FC1 Manuale utente
Panasonic
Panasonic Digital Fiber Sensor FX-301 Manuale utente
Panasonic
Panasonic CF-VPF Series Manuale utente
Panasonic
Panasonic TY-TPEN2 Manuale utente
Panasonic
Panasonic MA3X715 (MA715) Manuale utente
Panasonic
Panasonic MA22D17 Manuale utente
Panasonic
Panasonic MA2J7040G Manuale utente
Panasonic
Panasonic KX-HNS102FX Manuale utente
Panasonic
Panasonic MA3X791 (MA791) Manuale utente
Panasonic
Panasonic GP-X SERIES Manuale utente
Panasonic
Panasonic MA2Z7850G Manuale utente
Panasonic
Panasonic MA2J1120G Manuale utente
Panasonic
Panasonic WX-LA20 Manuale utente
Panasonic
Panasonic MA2J1150G Manuale utente
Panasonic
Panasonic KX-HNS104FX Manuale utente
Panasonic
Panasonic HG-T Series Manuale utente
Panasonic
Panasonic Light Emitting Diodes LN222RPX Manuale utente
Panasonic
Panasonic MA3J700 Manuale utente
Panasonic
Panasonic MA2J7270G Manuale utente
Panasonic
Panasonic LS-H A Series Manuale utente
Manuali Accessori popolari di altre marche
IFM Electronic
IFM Electronic Efector 250 Series Guida di riferimento
DigiDesign
DigiDesign 888/24 I/O Manuale utente
PROZIS
PROZIS QUAY Manuale utente
patagonia
patagonia PSI Vest Manuale utente
SFC Energy
SFC Energy EFOY GO! Manuale utente
Axminster
Axminster Tooling Stylus Tip Ballpoint Pen Kit Manuale utente
