Installation Guide

Home Network System

Garage Door Sensor

Model No. KX-HNS107

Thank you for purchasing a Panasonic product.

This document explains how to install the sensor properly.

For details about how to use the system, refer to the User’s Guide

(page 16).

Please read this document before using the unit and save it for future

reference.

For assistance, please contact us at 1-800-272-7033 or visit our Web

site: http://shop.panasonic.com/support for customers in the U.S.A.

Please register your product: http://shop.panasonic.com/support

In order to use this device:

RDownload the latest version of the [Home Network] app.

RUpdate your hub to the latest firmware version (version 7.00 or later).

For more information, refer to the User’s Guide (page 16).

Printed in China

HNS107_(en_en)_0120_ver.101.pdf 1 2017/01/20 21:11:38

Introduction

Accessory information ...............3

Important Information

About this system ......................4

For your safety ...........................4

Important safety instructions ......5

For best performance ................6

Other information .......................6

Setup

Part names and functions ..........8

LED indicator .............................8

Setup overview ..........................9

Inserting the battery ...................9

Registering the sensor .............10

Information about sensor

features ....................................11

Confirming the usage area ......12

Mounting the sensor ................13

Appendix

Features available when using the

[Home Network] app ................16

Accessing the User’s Guide ....16

Specifications ..........................17

FCC and other information ......18

Customer services ...................19

Limited Warranty (ONLY FOR

U.S.A.) .....................................20

Table of Contents

HNS107_(en_en)_0120_ver.101.pdf 2 2017/01/20 21:11:38

Accessory information

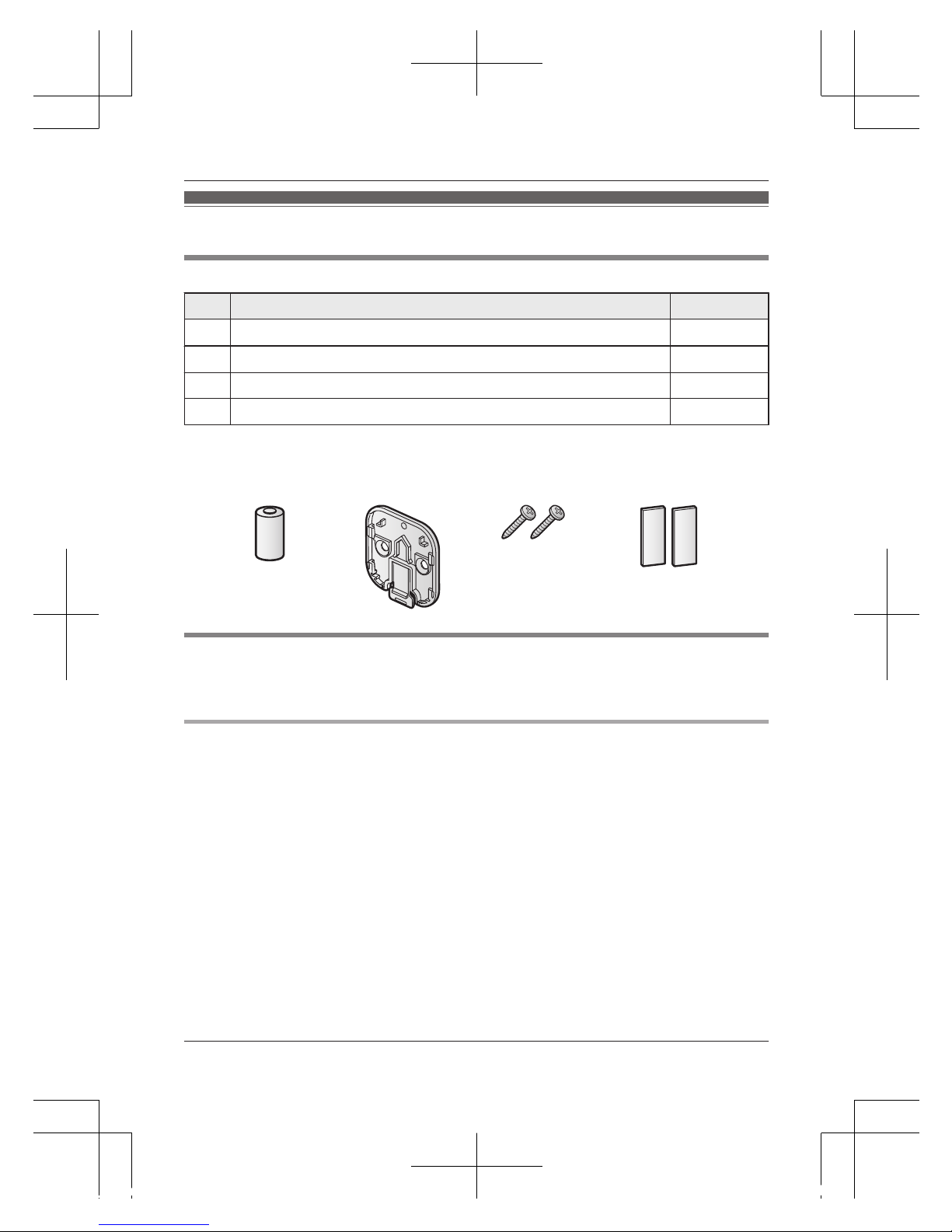

Supplied accessories

No. Accessory item/Part number Quantity

ABattery*11

BMounting adaptor*2/PNKL1062Z1 1

CMounting screws (20 mm (25/32 inches))/XTS4+20AVWC3 2

DDouble-sided mounting tapes/PNHS1724Z 2

*1 When replacing the battery, see “Power source” of “Specifications”, page 17

for battery information.

*2 The mounting adaptor is attached to the product at the time of shipment.

AB C D

Other information

RDesign and specifications are subject to change without notice.

RThe illustrations in these instructions may vary slightly from the actual product.

Trademarks

RiPhone and iPad are registered trademarks of Apple Inc.

RAndroid is a trademark of Google Inc.

RMicrosoft, Windows, and Internet Explorer are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries.

RAll other trademarks identified herein are the property of their respective owners.

For assistance, please visit http://shop.panasonic.com/support 3

Introduction

HNS107_(en_en)_0120_ver.101.pdf 3 2017/01/20 21:11:38

About this system

RThis system is an auxiliary system; it

is not designed to provide complete

protection from property loss.

Panasonic will not be held

responsible in the event that

property loss occurs while this

system is in operation.

RThe system’s wireless features are

subject to interference, therefore

functionality in all situations cannot

be guaranteed. Panasonic will not

be held responsible for injury or

damage to property that occurs in

the event of wireless communication

error or failure.

For your safety

To prevent severe injury and loss of

property, read this section carefully

before using the product to ensure

proper and safe operation of your

product.

WARNING

Power connection

RDo not connect non-specified

devices.

Installation

RInstall this product in accordance

with the provided instructions.

RTo prevent the risk of fire or

electrical shock, do not expose the

product to rain or any type of

moisture.

RDo not place or use this product

near automatically controlled

devices such as fire alarms. Radio

waves emitted from this product may

cause such devices to malfunction

resulting in an accident.

RInstall the product only on a vertical

surface. Do not install the product on

a ceiling, as the product may fall,

resulting in damage or injury.

RKeep small parts (screws, etc.) out

of the reach of children. There is a

risk of swallowing. In the event they

are swallowed, seek medical advice

immediately.

RPanasonic will not be held

responsible for damage or injury

caused by improper connection,

installation, or usage.

Operating safeguards

RDo not disassemble the product.

Medical

RConsult the manufacturer of any

personal medical devices, such as

pacemakers or hearing aids, to

determine if they are adequately

shielded from external RF (radio

frequency) energy. DECT features

operate between 1.92 GHz and

1.93 GHz with a peak transmission

power of 115 mW.

RDo not use the product in health

care facilities if any regulations

posted in the area instruct you not to

do so. Hospitals or health care

facilities may be using equipment

that could be sensitive to external

RF energy.

CR Lithium battery

RDo not recharge, disassemble,

remodel, heat or throw it into fire.

4For assistance, please visit http://shop.panasonic.com/support

Important Information

HNS107_(en_en)_0120_ver.101.pdf 4 2017/01/20 21:11:38

RDo not touch the terminals and

with metal objects.

RRisk of explosion if battery is

replaced by an incorrect type.

Dispose of used battery according to

local regulations.

RIf any electrolyte should come into

contact with your hands or clothes,

wash it off thoroughly with water.

RIf any electrolyte should come into

contact with your eyes, never rub

your eyes. Rinse your eyes

thoroughly with water, and then

consult a doctor.

CAUTION

Installation and location

RDo not mount the product on

plywood less than 25 mm (1 inch)

thick.

CR Lithium battery

RUse only the battery noted on

page 3.

RInsert the battery correctly.

RDo not leave the battery in an

automobile exposed to direct

sunlight for a long period of time with

the doors and windows closed.

RRemove the battery if you do not

use the product for a long period of

time. Keep it in a cool, dark area.

RDo not replace a battery with wet

hands.

RKeep out of the reach of small

children. There is a risk of

swallowing. If the battery is

swallowed, seek medical attention

immediately.

RRemove the battery if it becomes

unusable. There is a risk of leakage,

overheating, and rupture. Do not

attempt to use a battery if it is

leaking.

RExercise care when handling the

battery. Do not allow conductive

materials such as rings, bracelets, or

keys to touch the battery, otherwise

a short circuit may cause the battery

and/or the conductive material to

overheat and cause burns.

RDo not intentionally pour water on

the battery or allow it to get wet.

There is a risk of fire and smoke. If

the battery becomes wet, remove it

immediately and contact an

authorized service center.

RThe battery should be used

correctly, otherwise the product may

be damaged due to battery leakage.

RDo not charge, short-circuit,

disassemble, or heat the battery.

RDo not dispose of batteries in a fire.

Important safety

instructions

When using your product, basic safety

precautions should always be followed

to reduce the risk of fire, electric shock,

and injury to persons, including the

following:

1. Do not use this product near water

for example, near a bathtub,

washbowl, kitchen sink, or laundry

tub, in a wet basement or near a

swimming pool.

2. Use only the batteries indicated in

this document. Do not dispose of

batteries in a fire. They may

explode. Check with local codes for

possible special disposal

instructions.

SAVE THESE INSTRUCTIONS

For assistance, please visit http://shop.panasonic.com/support 5

Important Information

HNS107_(en_en)_0120_ver.101.pdf 5 2017/01/20 21:11:38

For best performance

Hub location/avoiding noise

The hub and other compatible

Panasonic devices use radio waves to

communicate with each other.

RFor maximum coverage and

noise-free communications, place

your hub:

– at a convenient, high, and central

location with no obstructions

between the product and hub in

an indoor environment.

– away from electronic appliances

such as TVs, radios, personal

computers, wireless devices, or

other phones.

– facing away from radio frequency

transmitters, such as external

antennas of mobile phone cell

stations. (Avoid putting the hub

on a bay window or near a

window.)

RIf the reception for a hub location is

not satisfactory, move the hub to

another location for better reception.

Environment

RKeep the product away from

electrical noise generating devices,

such as fluorescent lamps and

motors.

RDo not place heavy objects on top of

the product.

RThe product should be kept away

from heat sources such as heaters,

kitchen stoves, etc. It should not be

placed in rooms where the

temperature is less than -20 °C

(-4 °F) or greater than 50 °C

(122 °F). Damp basements should

also be avoided.

ROperating the product near electrical

appliances may cause interference.

Move away from the electrical

appliances.

Other information

CAUTION: Risk of explosion if battery

is replaced by an incorrect type.

Dispose of used batteries according to

the instructions.

Routine care

RWipe the outer surface of the

product with a soft moist cloth.

RDo not use any cleaning products

that contain alcohol, polish powder,

powder soap, benzine, thinner, wax,

petroleum, or boiling water. Also do

not spray the product with

insecticide, glass cleaner, or hair

spray. This may cause a change in

color or quality of the product.

Information on Disposal in other

Countries outside the European

Union

These symbols are only valid in the

European Union. If you wish to discard

these items, please contact your local

authorities or dealer and ask for the

correct method of disposal.

6For assistance, please visit http://shop.panasonic.com/support

Important Information

HNS107_(en_en)_0120_ver.101.pdf 6 2017/01/20 21:11:39

Note for the battery removal

procedure

Refer to “Inserting the battery” on

page 9.

Notice

For assistance, please visit http://shop.panasonic.com/support 7

Important Information

HNS107_(en_en)_0120_ver.101.pdf 7 2017/01/20 21:11:39

Part names and

functions

Front cover

Mounting adaptor release lever

Mounting adaptor

M N

Used to confirm the status of the

sensor or register the sensor to

the hub.

LED indicator

You can press M N and check the

LED indicator to confirm the sensor’s

status. After confirming the sensor’s

status, we recommend turning the LED

indicator off by pressing MN again

as soon as possible, otherwise battery

life may be reduced.

Indicator Status

Green, lit Door is closed

Red, lit Door is open

Red,

blinking

Sensor is out of range

of the hub

Green,

blinking

slowly

Registration mode

(You pressed and held

MN)

Off No battery power

Note:

RThe LED indicator does not indicate

sensor status if the sensor has not

been registered (page 10).

8For assistance, please visit http://shop.panasonic.com/support

Setup

HNS107_(en_en)_0120_ver.101.pdf 8 2017/01/20 21:11:39

Setup overview

1Initial setup

Make sure you can access the

system using your mobile device.

For details, refer to the System

Setup Guide included with your

hub.

2Insert the battery

The sensor is battery powered.

3Registration

Required only if the sensor was

purchased separately (i.e., not as

part of a bundle).

4Confirm the installation area

Read the information in this

document to confirm that the

desired installation area is suitable

to proper operation.

5Installation

Install the sensor in the desired

location.

Inserting the battery

RUse ONLY a CR2 Lithium battery.

RConfirm the polarities ( , ).

1Remove the front cover.

RLift from the indented area (A)

and remove the cover (B).

2Insert the battery.

3Attach the front cover.

For assistance, please visit http://shop.panasonic.com/support 9

Setup

HNS107_(en_en)_0120_ver.101.pdf 9 2017/01/20 21:11:39

Replacing the battery

Use this procedure when replacing the

battery after installation.

1Remove the sensor from the

mounting adaptor by pressing the

release lever, sliding the sensor up

and lifting it away from the

mounting adaptor.

2Remove the front cover.

3Replace the battery with a new

one.

4Attach the front cover.

5Attach the sensor to the mounting

adaptor.

RThe sensor will click into place

when it is secured.

RMake sure the “UP” marks on

the back of the sensor and the

inside of the mounting adaptor

point in the same direction.

Registering the

sensor

This procedure is not required for

devices that were included as part of

a bundle.

Before you can use the sensor, it must

be registered to the hub.

If you purchased devices separately

(i.e., not as part of a bundle), you must

You can register each device by using

the registration buttons or the [Home

Network] app.

Using registration buttons

1Hub:

Press and hold M OTHER

DEVICEN until the LED indicator

blinks slowly in green.

2Sensor:

Remove the front cover, and then

press and hold MN until the

LED indicator blinks slowly in

green (page 8).

RWhen registration is complete,

the hub sounds one long beep.

Note:

RTo cancel without registering the

sensor, press MN on the hub and

on the sensor again.

RIf registration fails, the hub sounds

several short beeps.

Using the app

When you register the sensor by using

the [Home Network] app, you can

assign it a name and location. For

more information, refer to the User’s

Guide (page 16).

10 For assistance, please visit http://shop.panasonic.com/support

Setup

HNS107_(en_en)_0120_ver.101.pdf 10 2017/01/20 21:11:39

Altri manuali per KX-HNS107

Indice

Altri manuali Panasonic Accessori

Panasonic

Panasonic AMGU4241 Manuale utente

Panasonic

Panasonic MA6X125 (MA125) Manuale utente

Panasonic

Panasonic SF4C Series Manuale utente

Panasonic

Panasonic WV-TW370 Manuale operativo

Panasonic

Panasonic Light Emitting Diodes LN29RPX Manuale utente

Panasonic

Panasonic MA3X720 (MA720) Manuale utente

Panasonic

Panasonic GX-M Series Manuale utente

Panasonic

Panasonic LNJ216C8ARA Manuale utente

Panasonic

Panasonic LS-H F-A Series Manuale utente

Panasonic

Panasonic MA3X157A Manuale utente

Panasonic

Panasonic MA3D750 Manuale utente

Panasonic

Panasonic PIMITES GS1 Manuale utente

Panasonic

Panasonic MA2S7840G Manuale utente

Panasonic

Panasonic MA3S133 (MA133) Manuale utente

Panasonic

Panasonic LS-H Series Manuale utente

Panasonic

Panasonic MA3D652 Manuale utente

Panasonic

Panasonic MA6Z121 Manuale utente

Panasonic

Panasonic MQ-W EM Series Manuale utente

Panasonic

Panasonic FX-100 Series Manuale utente

Panasonic

Panasonic CF-VNP011AU Manuale utente

Panasonic

Panasonic MA3D755 (MA7D55) Manuale utente

Panasonic

Panasonic HL-C1 Series Manuale utente

Panasonic

Panasonic PD50 Manuale utente

Panasonic

Panasonic MA3S132A Manuale utente

Manuali Accessori popolari di altre marche

Hillco

Hillco 2810 Manuale utente

Siemens

Siemens QSA2700D Manuale dell'operatore

Contours

Contours ZY024 Manuale utente

Saivod

Saivod VS621 Manuale utente

Virtuox

Virtuox VirtuCLEAN 2.0 Manuale utente

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuale utente

Z-Wave

Z-Wave HSD-200Z Manuale utente

turck

turck FMX-IM-2UPLI63FX Manuale utente

Decagon Devices

Decagon Devices 10HS Manuale utente

UPPAbaby

UPPAbaby Cup Holder Manuale utente

Elko

Elko SmartSensor Leakage Wireless Manuale utente

Grizzly

Grizzly H8371 Manuale utente

IFM Electronic

IFM Electronic Efector 250 Series Guida di riferimento

DigiDesign

DigiDesign 888/24 I/O Manuale utente

PROZIS

PROZIS QUAY Manuale utente

patagonia

patagonia PSI Vest Manuale utente

SFC Energy

SFC Energy EFOY GO! Manuale utente

Axminster

Axminster Tooling Stylus Tip Ballpoint Pen Kit Manuale utente
