Installation Manual

Model No. KX-TGA20

Key Detector

Thank you for purchasing a Panasonic product.

Please read this installation manual before using the unit and save it for future

reference.

This unit is an accessory for use with a Panasonic Digital Cordless Phone.

For more details, visit our Web site:

http://panasonic.net/pcc/products/telephone/p/tga20/

For U.S.A. users

For assistance, visit our Web site: http://www.panasonic.com/help

for customers in the U.S.A. or Puerto Rico.

For Canada users

For assistance, please call 1-800-561-5505 or visit us at www.panasonic.ca

Supplied accessory (Replacement accessory)

Battery (CR2032): 1 pc

Battery type: CR coin cell lithium battery

Introduction

By registering the key detector to a Panasonic Digital Cordless Phone and

attaching it to an easy-to-lose item in advance, you can locate and find the mislaid

item to which the key detector is attached.

Important:

RUp to 4 key detectors can be registered to a Panasonic Digital Cordless Phone.

RThe key detector is not water-resistant. Exposing it to rain, water, or high

humidity may cause it to malfunction.

Note:

REven if the handset is out of the range of the base unit, you can use the handset

to search for the key detector. While searching, the handset cannot receive calls.

RIf a call is received while you are searching for the key detector with the

handset, that handset does not ring. If you find that a call is being received on

the base unit or another handset, you can stop searching and answer the call by

using that handset.

RIf the handset is placed on the base unit for the power back-up feature, the key

detector function does not work.

Installation

TGA20(en-en)_1201_ver022.pdf 2 2012/12/01 19:54:54

Registering a key detector to the unit

Important:

RFor key detector supplied users: The supplied key detector has been

pre-registered to the unit.

RDo not install the battery until you activate the key detector registration using the

handset.

RAfter installing the battery in step 2, the registration mode will end within 30

seconds.

1Handset:

For key detector 1: MMENUN#6571

For key detector 2: MMENUN#6572 *1

For key detector 3: MMENUN#6573 *1

For key detector 4: MMENUN#6574 *1

*1 If you have 2 or more key detectors.

2Key detector:

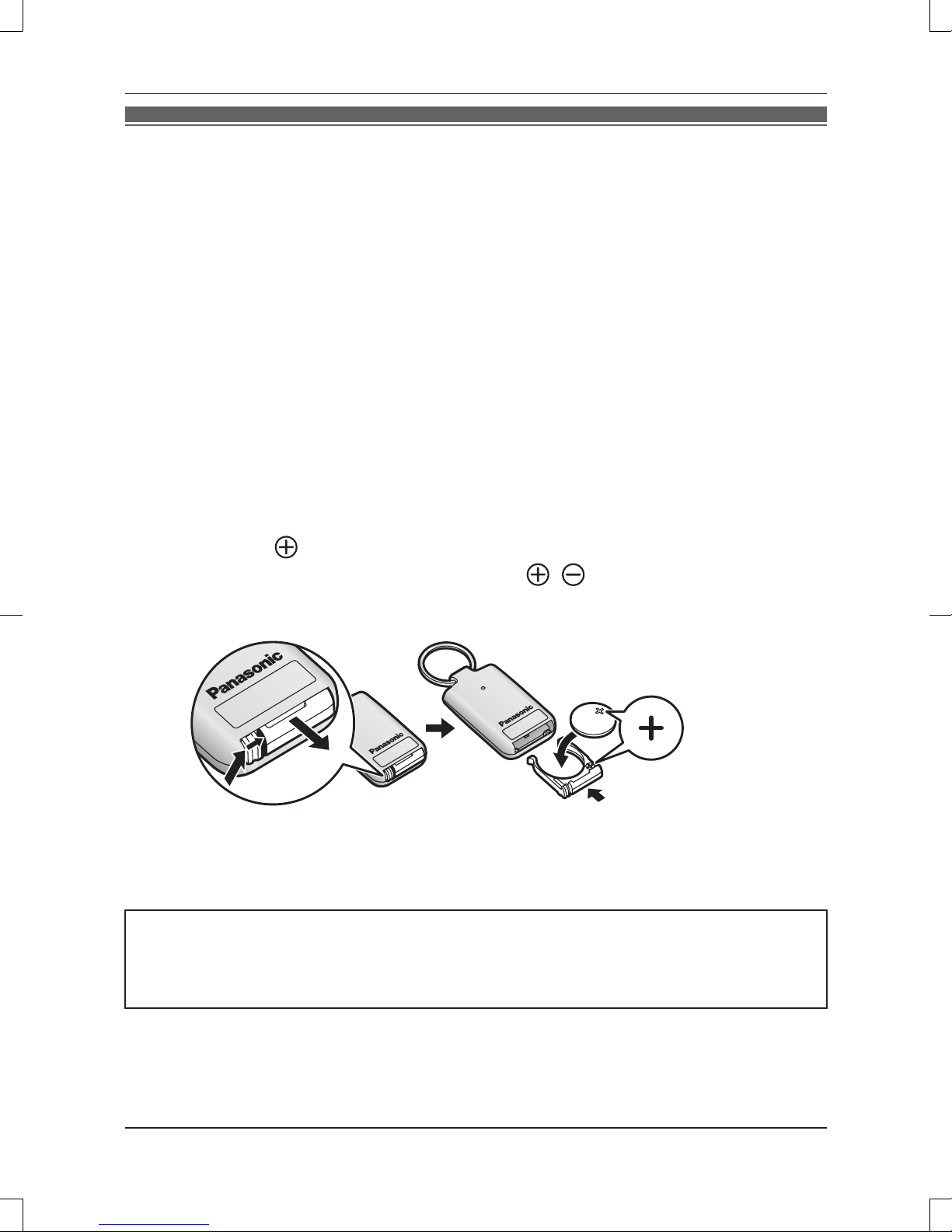

With the tab pushed to the right (A), pull out the battery holder (B). Insert the

battery with ( ) facing up (C), then close the battery holder (D).

RConfirm that the battery is set correctly ( , ).

RThe key detector will go into the registration mode automatically and the

registration tones will sound.

3Wait until a long beep sounds.

RAfter the key detector is registered, the detector number is displayed.

4Handset: MOFFN

If the registration tones do not sound or the registration fails, you need to remove

the battery from the key detector once to make the key detector available for

registration again. Leave the battery out of the key detector for over 2 minutes,

and then repeat from step 1.

Installation

TGA20(en-en)_1201_ver022.pdf 3 2012/12/01 19:54:54

Changing the key detector name

1Handset:

For key detector 1: MMENUN#6561

For key detector 2: MMENUN#6562 *1

For key detector 3: MMENUN#6563 *1

For key detector 4: MMENUN#6564 *1

*1 If you have 2 or more key detectors.

2Enter the desired name (10 characters max.).

3MSAVEN a MOFFN

Attaching the key detector to an easy-to-lose item

You can attach the key detector to items such as a car key or house key, etc.

Locating and finding a mislaid item

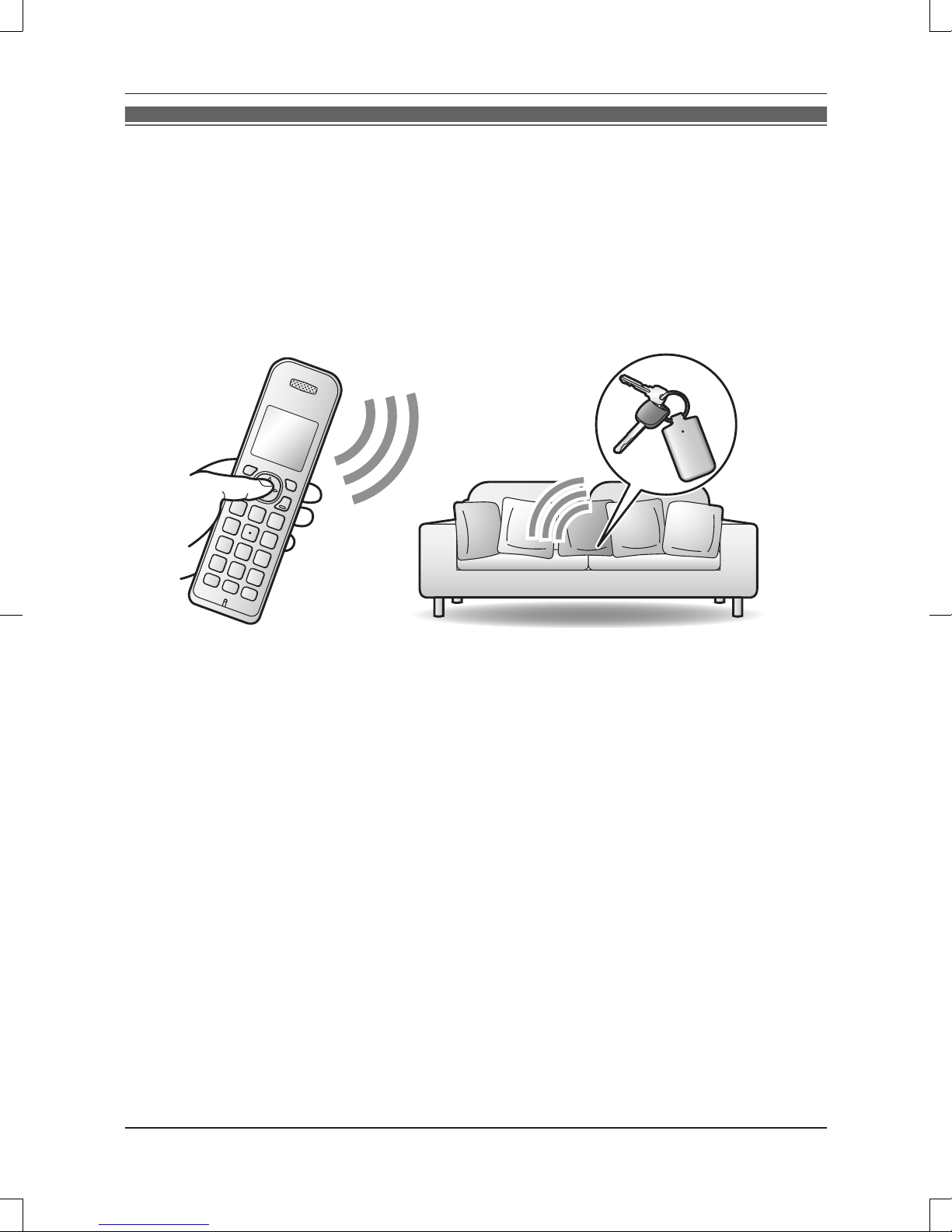

You can locate and find the mislaid item to which the key detector is attached using

the handset.

1Handset: MMENUN#655

2MbN: “Search” a MSELECTN

3MbN: Select the desired key detector. a MSELECTN

RWhen the handset searches for the key detector, the handset emits the

detection beeps and displays the signal strength (5 levels) and level value

(1 – 100), and then the key detector emits responding beeps. As you point

the handset in the right direction and then move closer to the item:

–Handset: the frequency of the detection beeps will increase and a higher

signal strength and level value will be displayed.

–Key detector: the responding beeps are emitted during searching.

RThe search is stopped after 3 minutes. To continue searching, repeat from

step 3.

RWhile searching, you can turn off the handset detection beeps by pressing

MMUTEN.

4To stop searching, press MOFFN.

Installation

TGA20(en-en)_1201_ver022.pdf 4 2012/12/01 19:54:54

Note:

ROnly one handset can search for a key detector. Other handsets cannot search

at the same time.

RThe volume of the detection beeps and responding beeps cannot be changed.

Range guidelines

RThe range of the handset and key detector under the best conditions is about

50 m (160 feet) indoors and about 200 m (650 feet) outdoors. Please note this

range may be shorter when the key detector is near concrete barriers, etc.

Operating tips

RPlace the key detector away from the handset and practice locating it a few

times to get a feel for how it works.

RIf you cannot figure out which room of your house the key detector was left in,

first point the handset upwards to search higher floors and then point the

handset downwards to search lower floors in order to check the search level.

Then, start your search from the room which shows the highest search level with

the doors closed.

RWhen the level value reaches 70 – 90, we recommend you turn off the handset

detection beeps by pressing MMUTEN and listen for the responding beeps from

the key detector.

RWhen you search for the key detector, we recommend that you:

– turn off electronic appliances such as TVs, radios, washing machines, and

cleaners and search in a quiet environment.

– refrain from using other wireless appliances.

RIf you are close to a wall and getting a strong signal, check the room next door.

RIf error messages are displayed, try moving to a different area.

Checking the battery

Important:

RPlace the key detector near the handset when checking the battery of the key

detector.

1Handset: MMENUN#655

2MbN: “Battery check” a MSELECTN

3MbN: Select the desired key detector. a MSELECTN

RIf the battery is good, the key detector emits beeps until the handset

displays “OK”.

RIf the battery is dead, the handset displays “Battery dead” and the key

detector does not sound. It is time to replace the battery.

4MOFFN

Installation

TGA20(en-en)_1201_ver022.pdf 5 2012/12/01 19:54:54

Note:

R“Battery dead” may be displayed when there is radio interference or the key

detector is out of range of the handset.

Replacing the battery

CR coin cell lithium battery performance

(supplied battery)

6 months max.*1

*1 Actual battery performance depends on usage and ambient environment.

Note:

RWe recommend you check the battery once a month and replace the battery

regularly so that you can use the key detector anytime.

RAfter installing the replacement battery, the key detector emits a registration

tone for 30 seconds. Wait until the tone stops. You do not need to register the

key detector to the unit again.

Deregistering a key detector

1Handset:

For key detector 1: MMENUN#6581

For key detector 2: MMENUN#6582 *1

For key detector 3: MMENUN#6583 *1

For key detector 4: MMENUN#6584 *1

*1 If you have 2 or more key detectors.

2MbN: “Yes” a MSELECTN a MOFFN

Troubleshooting

Problem Cause/solution

The desired key detector

does not work.

I cannot locate and find the

key detector.

RMake sure the battery is installed correctly

(page 3).

RChecking the battery (page 5).

RThe battery is dead. It is time to replace the

battery.

RThe key detector is out of range. Check the

range guidelines (page 5).

Installation

TGA20(en-en)_1201_ver022.pdf 6 2012/12/01 19:54:54

Liquid damage

Problem Cause/solution

Liquid or other form of

moisture has entered the key

detector.

RRemove the battery from the key detector

and leave to dry for at least 3 days. After the

key detector is completely dry, insert the

battery. If the key detector does not work

properly, contact an authorized service

center.

Caution:

RTo avoid permanent damage, do not use a microwave oven to speed up the

drying process.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before

using the product to ensure proper and safe operation of your product.

WARNING

CR coin cell lithium battery

RThe battery poses a choking hazard. Keep it out of reach of children. If the

battery is accidentally swallowed, consult a doctor immediately.

RDo not recharge, disassemble, remodel, heat or throw it into fire.

RDo not touch the terminals ( and ) with metal objects.

RRisk of explosion if battery is replaced by an incorrect type.

Dispose of used battery according to local regulations.

RIf any electrolyte should come into contact with your hands or clothes, wash it off

thoroughly with water.

RIf any electrolyte should come into contact with your eyes, never rub your eyes.

Rinse your eyes thoroughly with water, and then consult a doctor.

CAUTION

CR coin cell lithium battery

RUse only the battery specified.

RInsert the battery correctly.

RDo not leave the battery in an automobile exposed to direct sunlight for a long

period of time with the doors and windows closed.

RRemove the battery if you do not use the product for a long period of time. Keep

it in a cool, dark area.

Installation

TGA20(en-en)_1201_ver022.pdf 7 2012/12/01 19:54:54

RDo not replace a battery with wet hands.

For U.S.A. users

CR Coin Cell Lithium Battery Information:

This product contains a CR Coin Cell Lithium Battery which contains

Perchlorate Material - special handling may apply.

See http://www.dtsc.ca.gov/hazardouswaste/perchlorate

FCC and other information (for U.S.A. users)

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation.

Caution:

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this device.

Note:

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

RF Exposure Warning:

RThis Key Detector complies with FCC radiation exposure limits set forth for an

uncontrolled environment and portable operation, which does not require any

minimum spacing be provided between antenna and person’s body (excluding

extremities of hands, wrist and feet) during wireless mode of operation.

Notice:

RFCC ID can be found on the surface of the unit.

Installation

TGA20(en-en)_1201_ver022.pdf 8 2012/12/01 19:54:54

Industry Canada Notices (for Canada users)

NOTICE:

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

RF Exposure Warning:

RThis Key Detector complies with IC radiation exposure limits set forth for an

uncontrolled environment and portable operation, which does not require any

minimum spacing be provided between antenna and person’s body (excluding

extremities of hands, wrist and feet) during wireless mode of operation.

Other information

Notice:

Lߎߩ⵾ຠߪޔᣣᧄ࿖ᄖߢߩ૶↪ࠍ⋡⊛ߣߒߡ⸳⸘ߐࠇߡ߅ࠅޔᣣᧄ࿖ౝߢߩ

૶↪ߪᴺᓞ㆑෻ߣߥࠅ߹ߔޕᓥߞߡޔᒰ␠ߢߪᣣᧄ࿖ౝߦ߅޿ߡߪේೣߣߒ

ߡୃℂߥߤߩࠨ࡯ࡆࠬߪ⥌ߒ߆ߨ߹ߔޕ

Specifications

RStandard: DECT 6.0 (Digital Enhanced Cordless Telecommunications 6.0)

RFrequency range: 1.92 GHz to 1.93 GHz

RRF transmission power: 115 mW (max.)

RPower source: CR2032 Lithium battery

RPower consumption:

Standby: Approx. 0.2 mW, Maximum: Approx. 40 mW

ROperating conditions:

0 °C – 40 °C (32 °F – 104 °F), 20 % – 80 % relative air humidity (dry)

Note:

RDesign and specifications are subject to change without notice.

RThe illustrations in these instructions may vary slightly from the actual product.

RDo not use or place the key detector in areas where there are high

temperatures, such as near fire or heater, areas exposed to direct sunlight, or

inside a car.

Installation

TGA20(en-en)_1201_ver022.pdf 9 2012/12/01 19:54:55

Customer services (for U.S.A. users)

Customer Services Directory (United States and

Puerto Rico)

TTY users (hearing or speech impaired users) can call 1-877-833-8855.

TTY users (hearing or speech impaired users) can call 1-866-605-1277.

Accessory Purchases (United States and

Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest

Dealer or Service Center; purchase Parts and Accessories; or make Customer

Service and Literature requests by visiting our Web Site at:

or, contact us via the web at:

You may also contact us directly at: 1-800-211-PANA (1-800-211-7262),

Monday - Friday 9 am to 9 pm; Saturday - Sunday 10 am to 7 pm, EST.

http://www.panasonic.com/help

http://www.panasonic.com/contactinfo

Purchase Parts, Accessories and Instruction Books online for all Panasonic

Products by visiting our Web Site at:

or, send your request by E-mail to:

You may also contact us directly at: 1-800-332-5368 (Phone)

1-800-237-9080 (Fax Only)

(Monday - Friday 9 am to 9 pm, EST.)

Panasonic Service and Technology Company

20421 84th Avenue South, Kent WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal

Checks.)

http://www.pstc.panasonic.com

[email protected]

Installation

TGA20(en-en)_1201_ver022.pdf 10 2012/12/01 19:54:55

Altri manuali per KX-TGA20

Indice

Altri manuali Panasonic Accessori

Panasonic

Panasonic DP-00 Series Manuale utente

Panasonic

Panasonic EX-F70 SERIES Manuale utente

Panasonic

Panasonic MCO-230AIC Manuale utente

Panasonic

Panasonic MA3X717E Manuale utente

Panasonic

Panasonic CX-400 Series Manuale utente

Panasonic

Panasonic MA2S7280G Manuale utente

Panasonic

Panasonic Light Emitting Diodes LNG692CF6 Manuale utente

Panasonic

Panasonic Light Emitting Diodes LN217RPH Manuale utente

Panasonic

Panasonic PD50 Manuale utente

Panasonic

Panasonic ADP5100 Manuale utente

Panasonic

Panasonic AW-PB304 Manuale utente

Panasonic

Panasonic WV-PB5548 Manuale utente

Panasonic

Panasonic CY-11A Manuale utente

Panasonic

Panasonic EQ-34 Manuale utente

Panasonic

Panasonic Multi Chip Discrete UP05C8B Manuale utente

Panasonic

Panasonic CZ-CSRC2 Manuale utente

Panasonic

Panasonic WJ-HDE500 Manuale utente

Panasonic

Panasonic HG-F1 Series Manuale utente

Panasonic

Panasonic KX-HNS104C Manuale utente

Panasonic

Panasonic HG-T1110 Manuale utente

Panasonic

Panasonic WX-LA20 Manuale utente

Panasonic

Panasonic MA27111 Manuale utente

Panasonic

Panasonic WV-PB5508 Manuale utente

Panasonic

Panasonic KX-HNA101 Manuale utente

Manuali Accessori popolari di altre marche

Hillco

Hillco 2810 Manuale utente

Siemens

Siemens QSA2700D Manuale dell'operatore

Contours

Contours ZY024 Manuale utente

Saivod

Saivod VS621 Manuale utente

Virtuox

Virtuox VirtuCLEAN 2.0 Manuale utente

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuale utente

Z-Wave

Z-Wave HSD-200Z Manuale utente

turck

turck FMX-IM-2UPLI63FX Manuale utente

Decagon Devices

Decagon Devices 10HS Manuale utente

UPPAbaby

UPPAbaby Cup Holder Manuale utente

Elko

Elko SmartSensor Leakage Wireless Manuale utente

Grizzly

Grizzly H8371 Manuale utente

IFM Electronic

IFM Electronic Efector 250 Series Guida di riferimento

DigiDesign

DigiDesign 888/24 I/O Manuale utente

PROZIS

PROZIS QUAY Manuale utente

patagonia

patagonia PSI Vest Manuale utente

SFC Energy

SFC Energy EFOY GO! Manuale utente

Axminster

Axminster Tooling Stylus Tip Ballpoint Pen Kit Manuale utente
