• Product

− Four modes of operation selection

− Powerful Mode operation

− 24-Hour Real Time Timer Control

− Quiet Mode Operation

− Discharged air can be swung automatically or manually

by remote control

− Air filter with function to reduce dust and smoke

14.1. CS-E15DTEW CS-E18DTEW CS-E21DTES 76

15 Replacement Parts List (Indoor Unit) 77

15.1. CS-E15DTEW CS-E18DTEW CS-E21DTES 77

16 Exploded View (Outdoor Unit) 78

16.1. CU-E15DBE CU-E18DBE CU-E21DBE 78

17 Replacement Parts List (Outdoor Unit) 79

17.1. CU-E15DBE CU-E18DBE CU-E21DBE 79

18 Electronic Circuit Diagram 80

18.1. Indoor Unit 80

18.2. Outdoor Unit 83

18.3. Remote Control 88

18.4. Print PatternIndoor Unit Printed Circuit Board 89

18.5. Print PatternOutdoor Unit Printed Circuit Board View 90

• Serviceability Improvement

− Removable and washable Intake Grille

− Breakdown Self Diagnosis function

• Environmental Protection

− Non-ozone-depletion substances refrigerant (R410A)

• Quality Improvement

− Gas leakage detection

− Deice operation

− Auto restart control

1 Features

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

2 Functions

2.1. Remote Control

Operation OFF / ON Room Temperature Setting

TEMP

Operation Mode Selection

•AUTO Automatic Operation

•HEAT Heating Operation

•COOL Cooling Operation

•DRY Soft Dry Operation

Time / Timer Setting

• Hours and minutes setting.

Clock Setting

• Current time setting.

Quiet Mode Operation

QUIET

Airflow Direction Control

• 24-hour, OFF / ON Real Timer Setting.

Timer Setting

Timer Operation Set / Cancel

• ON Timer and OFF Timer setting and

cancellation.

CLOCK

Powerful Mode Operation

POWERFUL

• Increase or decrease set temperature.

(16°C to 30°C)

•AUTO Vertical Automatic Airflow

Direction Control.

• MANUAL Vertical Manual Airflow

Direction Control.

FAN SPEED

Check Point

Reset Point

RESET

CHECK

AIR SWING

• Breakdown self diagnosis function.

• Clear memory data.

CANCEL

OFF

TIMER

FAN

SPEED

AUTO

HEAT

DRY

COOL

OFF

MODE

TIMER

123

OFF

CLOCK RESET

SET

CANCEL

TEMP

POWERFUL

FAN SPEED

AIR SWING

OFF/ON

QUIET

AUTO

MANUAL

CHECK

INVENTER

OFF / ON I

MODE

Indoor Fan Speed Selection

•Low

•Medium-

•Medium

•Medium+

•High

•AUTO Automatic Fan Speed

TIMER-ON

TIMER-OFF

SET

CANCEL

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

2.2. Indoor Unit

Automatic and 5 Manual Indoor

Fan Speeds

Powerful Mode

•For quick cooling or heating.

24-Hour Real Time Timer Control

Microcomputer-controlled Room

Temperature Control

Breakdown Self Diagnosis Function

Indoor Power Relay Control

Anti-Dew Formation Control

Anti Freezing Control

Anti-Cold Draft Control

Hot Start

Intake Air Temperature Control

Quiet Mode

•To provide quiet operation.

Automatic Restart Control

•Operation is restarted after power failure at

previous setting mode.

Low Pressure Control

(Gas Leakeage Detection)

Deodorizing Control

Four Operation Modes

•Automatic, Heating, Cooling and Soft Dry

Operation.

Operation Indication Lamps (LED)

•

POWER (Green) ........ Lights up in operation,

blinks in Automatic

Operation Mode judging,

deice, On Timer sampling

and Hot Start operation.

•

TIMER (Orange) ...... Lights up in Timer Setting.

Blinks in Self Diagnosis

Control.

•

QUIET (Orange) ...... Lights up in Quiet Mode

Operation.

•

POWERFUL (Orange) ... Lights up when Powerful

Mode is selected.

•

AIR SWING (Orange) .... Lights up in Auto Air

Swing.

Airflow Direction Control

•Vertical discharged air can be swung

automatically or manually by remote control.

•Horizontal discharged air can be adjusted by

hand.

Automatic Operation Switch

•To run automatic operation, force cooling or

heating operation, or change remote control

signal type.

High Pressure Control

Deice Operation

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

2.3. Outdoor Unit

30 seconds Forced Operation

Time Delay Safety Control

Overload Protection Control

Deice Operation

Standby Control

Compressor Overheating

Prevention Control

IPM (Power Transistor)

Overheating Protection Control

Total Running Current Control

Mininum Operation Frequency

Protection Control

Low Operation Frequency

Protection Control

Outdoor Air Temperature

Control

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

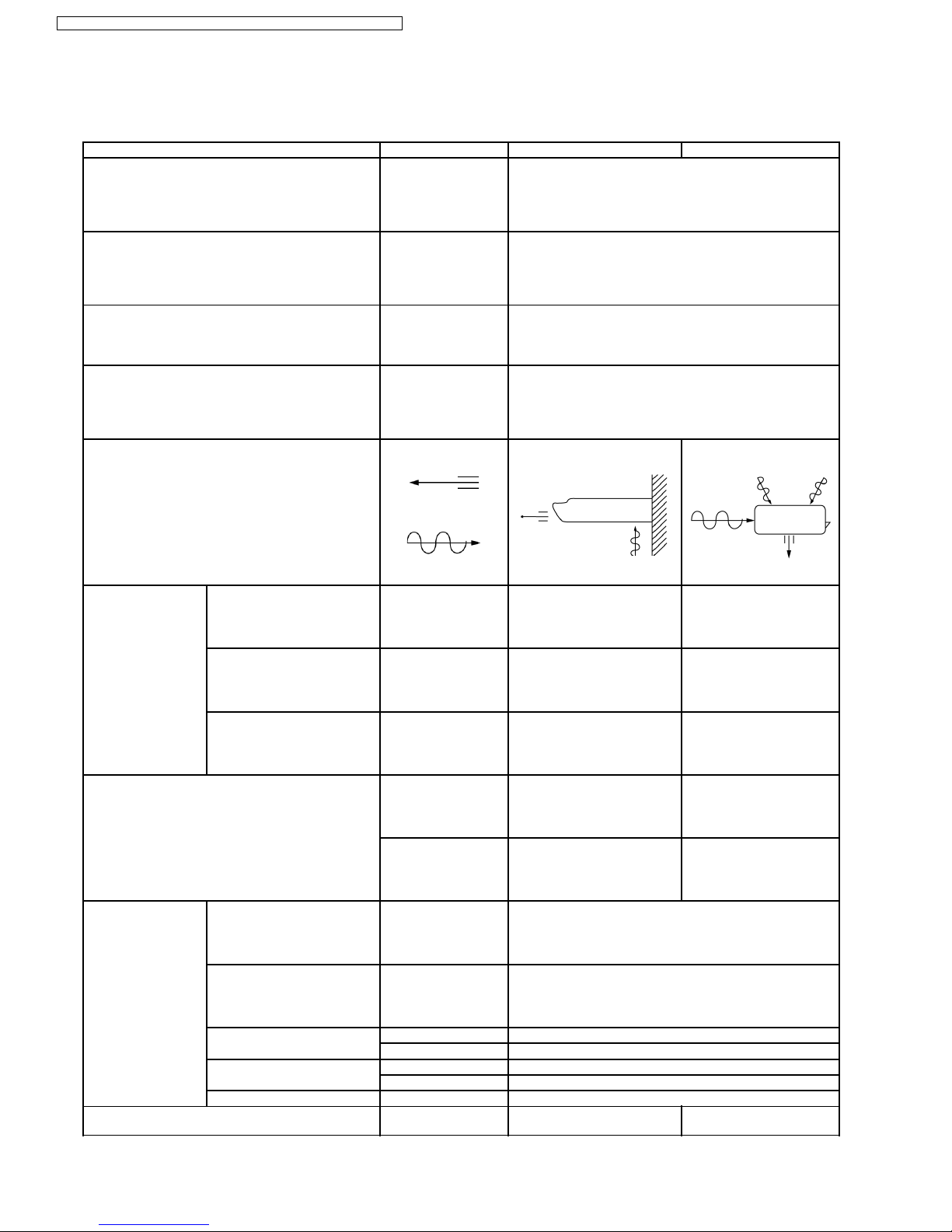

3.1. CS-E15DTEW CU-E15DBE

3 Product Specifications

Unit CS-E15DTEW CU-E15DBE

Cooling Capacity kW

kcal/h

BTU/h

4.15 (0.90 - 4.55)

3,570 (770 - 3,910)

14,200 (3,070 - 15,500)

Heating Capacity kW

kcal/h

BTU/h

5.17 (0.90 - 6.30)

4,450 (770 - 5,420)

17,600 (3,070 - 21,500)

Moisture Removal l/h

Pint/h

2.4

(5.1)

Power Source (Phase, Voltage, Cycle) ø

Single

230 - 240

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 9.1 (320) —

Heating; 8.3 (290)

Me m3/min (cfm) Cooling; 10.6 (370) —

Heating; 10.4 (360)

Hi m3/min (cfm) Cooling; 12.0 (420) Cooling; 48.5 (1,710)

Heating; 12.2 (430) Heating; 48.5 (1,710)

dB (A) Cooling; High 45, Low 37 Cooling; 46

Heating; High 45, Low 33 Heating; 47

Noise Level

Power level dB Cooling; High 58 Cooling; High 59

Heating; High 58 Heating; High 60

Electrical Data Input Power WCooling; 1,290 (255 - 1,550)

Heating; 1,550 (260 - 2,050)

Running Current ACooling; 6.0 - 5.9

Heating; 7.1 - 7.0

EER W/W Cooling; 3.22 (3.53 - 2.94)

BTU/hW Cooling; 11.0 (12.0 - 10.0)

COP W/W Heating; 3.34 (3.46 - 3.07)

BTU/hW Heating; 11.4 (11.8 - 10.5)

Starting Current A7.1

Piping Connection Port

(Flare piping)

inch

G ; Half Union 1/2”

L ; Half Union 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

Unit CS-E15DTEW CU-E15DBE

Pipe Size

(Flare piping)

inch

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

Drain

Hose

Inner diameter mm 14 —

Length m0.66 —

Power Cord Length

Number of core-wire

—— —

—

Dimensions Height inch (mm) 21 - 9/32 (540) 29 - 17/32 (750)

Width inch (mm) 40 - 1/2 (1,028) 34 - 7/16 (875)

Depth inch (mm) 7 - 7/8 (200) 13 - 19/32 (345)

Net Weight lb (kg) 37 (17) 106 (48)

Compressor Type —Involute scroll

Motor Type —Brushless (4-pole)

Rated Output W—900

Air Circulation Type Sirocco Propeller Fan

Material ABS + GF 10% P.P

Motor Type Transistor (8-poles) Transistor (8-poles)

Rate Output W51 40

Fan Speed Lo (Cool/Heat) rpm 730 / 660 —

Me (Cool/Heat) rpm 845 / 830 —

Hi (Cool/Heat) rpm 960 / 1,000 660 / 660

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium

Fin Type Louver Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/12 1/28

FPI 20 18

Size (W × H × L) mm 857 × 252 × 25.4 871.7 × 711.2 × 22

Refrigerant Control Device —Expansion Valve

Refrigeration Oil (cm3) — RB68A (400)

Refrigerant (R410A) kg (oz) —1.23 (43.4)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

• Specifications are subjected to change without notice for further improvement.

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

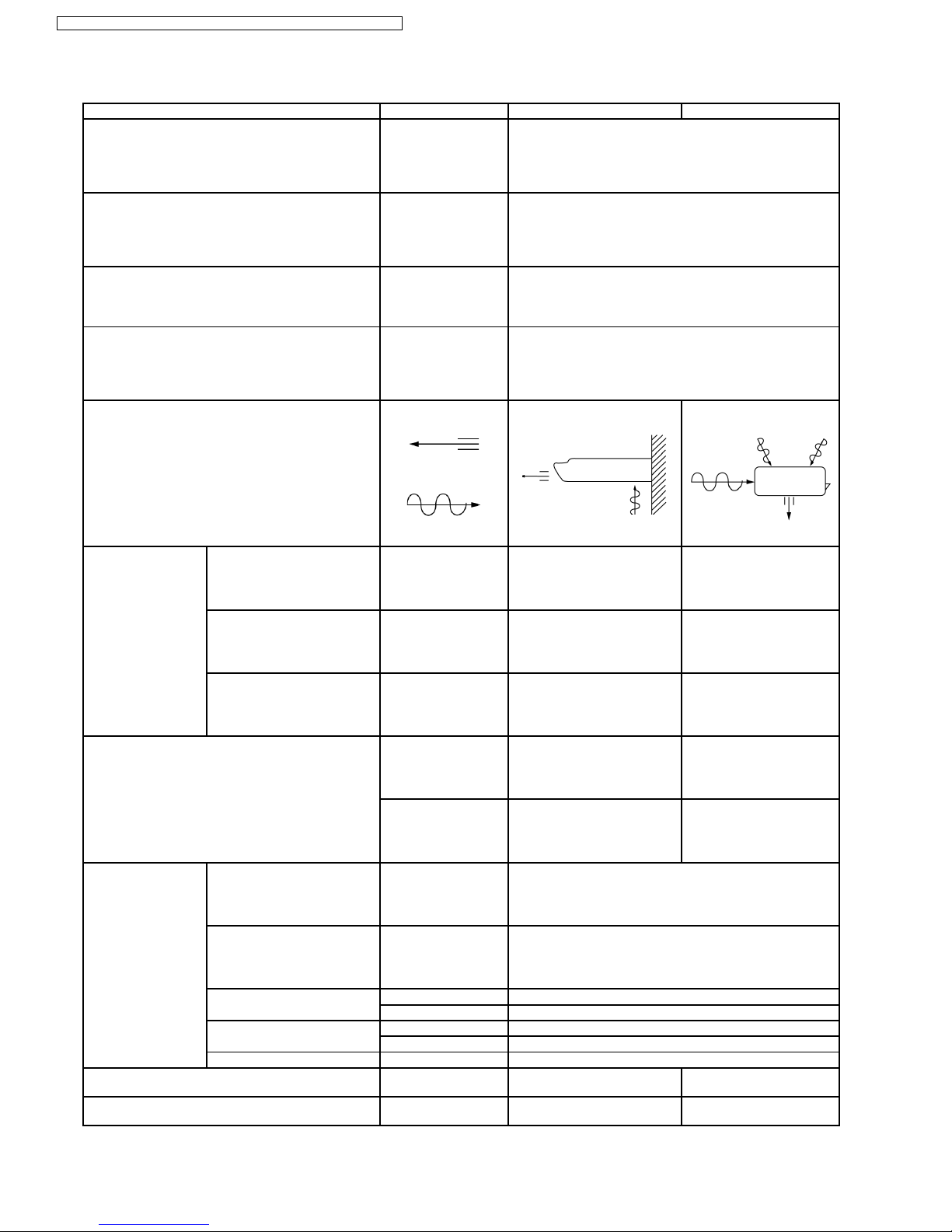

3.2. CS-E18DTEW CU-E18DBE

Unit CS-E18DTEW CU-E18DBE

Cooling Capacity kW

kcal/h

BTU/h

5.00 (0.90 - 5.40)

4,300 (770 - 4,640)

17,100 (3,070 - 18,400)

Heating Capacity kW

kcal/h

BTU/h

6.10 (0.90 - 7.60)

5,250 (770 - 6,540)

20,800 (3,070 - 25,900)

Moisture Removal l/h

Pint/h

2.8

(5.9)

Power Source (Phase, Voltage, Cycle) ø

Single

230 - 240

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 9.8 (350) —

Heating; 8.6 (300)

Me m3/min (cfm) Cooling; 11.2 (390) —

Heating; 10.7 (380)

Hi m3/min (cfm) Cooling; 12.5 (440) 40.0 (1,410)

Heating; 12.7 (450)

dB (A) Cooling; High 46, Low 39 Cooling; 47

Heating; High 47, Low 35 Heating; 48

Noise Level

Power level dB Cooling; High 59 Cooling; High 60

Heating; High 60 Heating; High 61

Electrical Data Input Power WCooling; 1,660 (255 - 1,890)

Heating; 1,820 (260 - 2,380)

Running Current ACooling; 7.5 - 7.4

Heating; 8.2 - 8.1

EER W/W Cooling; 3.01 (3.53 - 2.86)

BTU/hW Cooling; 10.3 (12.0 - 9.7)

COP W/W Heating; 3.35 (3.46 - 3.19)

BTU/hW Heating; 11.4 (11.8 - 10.9)

Starting Current A8.2

Piping Connection Port

(Flare piping)

inch

G ; Half Union 1/2”

L ; Half Union 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

Unit CS-E18DTEW CU-E18DBE

Drain

Hose

Inner diameter mm 14 —

Length m0.66 —

Power Cord Length

Number of core-wire

—— —

—

Dimensions Height inch (mm) 21 - 9/32 (540) 29 - 17/32 (750)

Width inch (mm) 40 - 1/2 (1,028) 34 - 7/16 (875)

Depth inch (mm) 7 - 7/8 (200) 13 - 19/32 (345)

Net Weight lb (kg) 40 (18) 106 (48)

Compressor Type —Involute scroll

Motor Type —Brushless (4-pole)

Rated Output W—900

Air Circulation Type Sirocco Propeller Fan

Material ABS + GF 10% P.P

Motor Type Transistor (8-poles) Transistor (8-poles)

Rate Output W51 40

Fan Speed Lo (Cool/Heat) rpm 800 / 700 —

Me (Cool/Heat) rpm 910 / 875 —

Hi (Cool/Heat) rpm 1,020 / 1,050 660 / 660

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium

Fin Type Louver Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/12 2/34

FPI 20 16

Size (W ×H×L) mm 857 ×252 ×25.4 849.3

878

×714 ×36.4

Refrigerant Control Device —Expansion Valve

Refrigeration Oil (cm3)—RB68A (400)

Refrigerant (R410A) kg (oz) —1.06 (37.4)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

• Specifications are subjected to change without notice for further improvement.

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

3.3. CS-E21DTES CU-E21DBE

Unit CS-E21DTES CU-E21DBE

Cooling Capacity kW

kcal/h

BTU/h

5.80 (0.90 - 6.60)

4,990 (770 - 5,680)

19,800 (3,070 - 22,500)

Heating Capacity kW

kcal/h

BTU/h

6.80 (0.90 - 8.10)

5,850 (770 - 6,970)

23,200 (3,070 - 27,600)

Moisture Removal l/h

Pint/h

3.2

(6.8)

Power Source (Phase, Voltage, Cycle) ø

Single

230 - 240

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 10.0 (350) —

Heating; 8.8 (310)

Me m3/min (cfm) Cooling; 11.6 (410) —

Heating; 11.0 (390)

Hi m3/min (cfm) Cooling; 13.1 (460) Cooling; 42.8 (1,510)

Heating; 13.2 (465) Heating; 41.5 (1,460)

dB (A) Cooling; High 47, Low 41 Cooling; 48

Heating; High 47, Low 37 Heating; 49

Noise Level

Power level dB Cooling; High 60 Cooling; High 61

Heating; High 60 Heating; High 62

Electrical Data Input Power WCooling; 1,930 (255 - 2,240)

Heating; 1,990 (260 - 2,650)

Running Current ACooling; 8.7 - 8.6

Heating; 9.0 - 8.8

EER W/W Cooling; 3.01 (3.53 - 2.95)

BTU/hW Cooling; 10.3 (12.0 - 10.0)

COP W/W Heating; 3.42 (3.46 - 3.06)

BTU/hW Heating; 11.7 (11.8 - 10.4)

Starting Current A9.3

Piping Connection Port

(Flare piping)

inch

G ; Half Union 1/2”

L ; Half Union 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

Altri manuali per CS-E15DTEW

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Condizionatore d'aria

Panasonic

Panasonic CW-XN1821EA Manuale utente

Panasonic

Panasonic CS-E9CKP Manuale utente

Panasonic

Panasonic CS-E12DKRW Manuale utente

Panasonic

Panasonic CU-E21HKE Manuale utente

Panasonic

Panasonic S-20LM3HPQ Manuale utente

Panasonic

Panasonic CS-E9VKA Manuale utente

Panasonic

Panasonic S-3650PU3E Manuale utente

Panasonic

Panasonic CS-MKE12NKU Manuale di installazione e d'uso

Panasonic

Panasonic TZ71ZKE Series Manuale utente

Panasonic

Panasonic S-22MU2E5B Manuale utente

Panasonic

Panasonic CS-YA18NKS Manuale utente

Panasonic

Panasonic CSA24CKPG - SPLIT A/C IN DOOR Manuale utente

Panasonic

Panasonic CS-PC30JKF Manuale utente

Panasonic

Panasonic CS-Z60XKRW Manuale utente

Panasonic

Panasonic U-8MF1E8 Manuale utente

Panasonic

Panasonic CS-CZ25ZKE Manuale utente

Panasonic

Panasonic CS-TU12VKY Series Manuale utente

Panasonic

Panasonic CS-CE9JKE-1 Manuale utente

Panasonic

Panasonic CS-C12PKF-3 Manuale utente

Panasonic

Panasonic CS-S12MB4ZW Manuale utente

Panasonic

Panasonic CS-E9SD3RW Manuale utente

Panasonic

Panasonic CS-S9VKV-2 Manuale utente

Panasonic

Panasonic CS-PN30XKH-1 Manuale utente

Panasonic

Panasonic CS-MS9SD3H Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente

Webasto

Webasto Frigo Top 25 DS Manuale utente
