Panasonic CS-E18JKK Manuale utente

Unauthorized copying and distribution is a violation

of law.

F567333

ENGLISH 2 ~ 9

Before operating the unit, read these operating

instructions thoroughly and keep them for future

reference.

FRANÇAIS 11 ~ 19

Avant d’utiliser le climatiseur, lire ces instructions

d’utilisation et les conserver pour s’y référer dans

le futur.

QUICK GUIDE

GUIDE SOMMAIRE

Operating Instructions

Air Conditioner

Model No.

Indoor Unit Single Split

Outdoor Unit

CS-E9JKKW CU-E9JKK

CS-E12JKKW CU-E12JKK

CS-E18JKK CU-E18JKK

CS-E22JKK CU-E22JKK

Multi Split

Outdoor Unit

CU-2E18JBK

SAFETY PRECAUTIONS

To prevent personal injury, injury to others, or property damage, please

comply with the following.

Incorrect operation due to failure to follow instructions below may cause

harm or damage, the seriousness of which is classiﬁed as below:

WARNING

This sign warns of death or serious injury.

CAUTION

This sign warns of injury or damage to

property.

The instructions to be followed are classiﬁed by the following symbols:

This symbol denotes an action that is

PROHIBITED.

These symbols denote an actions that

is COMPULSORY.

WARNING

INDOOR UNITAND OUTDOOR UNIT

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not

play with the appliance.

Please consult authorized dealer or specialist to repair,

install, remove and reinstall the unit. Improper installation

and handling will cause leakage, electric shock or ﬁre.

Do not install the unit in a potentially explosive or ﬂammable

atmosphere. Failure to do so could result in ﬁre.

Do not insert your ﬁngers or other objects into the

air conditioner indoor or outdoor unit, rotating parts

may cause injury.

Do not touch the outdoor unit during lightning, it may cause

electric shock.

REMOTE CONTROL

Do not allow infants and small children to play with the

remote control to prevent them from accidentally swallowing

the batteries.

Thank you for purchasing

Panasonic Air Conditioner

TABLE OF CONTENTS

SAFETY PRECAUTIONS2~3

MULTI AIR CONDITIONER

SYSTEM 4

INDOOR UNIT 5

REMOTE CONTROL 6~7

TROUBLESHOOTING 8

INFORMATION 9

QUICK GUIDE

BACK COVER

NOTE

The illustrations in this manual are for

explanation purposes only and may

differ from the actual unit. It is subjected

to change without notice for future

improvement.

OPERATION CONDITION

Use this air conditioner under the following

temperature range

Temperature (°C) Indoor

*DBT *WBT

COOLING Max. 32 23

Min. 16 11

HEATING Max. 30 -

Min. 16 -

Temperature (°C) Outdoor

*DBT *WBT

COOLING Max. 43 26

Min. 16 11

HEATING Max. 24 18

Min. -15 -16

* DBT: Dry bulb temperature

* WBT: Wet bulb temperature

ENGLISH

CAUTION

INDOOR UNITAND OUTDOOR UNIT

Do not wash the indoor unit with water, benzene,

thinner or scouring powder.

Do not use for other purpose such as

preservation of food.

Do not use any combustible equipment in front of

the airﬂow outlet to avoid ﬁre.

Do not expose yourself directly to cold air for a

long period.

Do not sit or step on the unit, you may

fall down accidentally.

Do not touch the sharp aluminium ﬁn,

sharp parts may cause injury.

Do not switch ON the indoor unit when waxing

the ﬂoor.After waxing, aerate the room properly

before operating the unit.

Do not install the unit in oily and smoky areas.

Ensure drainage pipe is connected properly.

Otherwise, leakage may occur.

Aerate the room regularly.

After long period of use, make sure the

installation rack is not deteriorate to prevent the

unit from falling down.

REMOTE CONTROL

Do not use rechargeable (Ni-Cd) batteries.

It may damage the remote control.

Remove the batteries if the unit is not going to be

used for a long period of time.

New batteries of the same type must be inserted

following the polarity stated to prevent

malfunction of the remote control.

WARNING

POWER SUPPLY

Do not use modiﬁed cord,

joint cord, extension cord or

unspeciﬁed cord to prevent

overheating and ﬁre.

Do not share the same power outlet with other

equipment to prevent overheating and ﬁre.

Do not operate with wet hands to prevent electric

shock.

If the supply cord is damage, it must be replaced

by the manufacturer, its service agent or similarly

qualiﬁed persons in order to avoid a hazard.

It is strongly recommended to be installed

with Earth Leakage Circuit Breaker (ELCB)

or Residual Current Device (RCD) to prevent

electric shock or ﬁre.

This equipment must be earthed to prevent

electrical shock or ﬁre.

In case of emergency or abnormal conditions

(burnt smell, etc), turn off the power supply, and

please consult authorized dealer.

Prevent electric shock by switching off the power

supply when:

- Before cleaning or servicing.

- Extended non-use.

-Abnormally strong lightning activity.

Air Inlet

Air Outlet

Air Inlet

Indoor

Unit

Power

Supply

Remote

Control

Outdoor

Unit

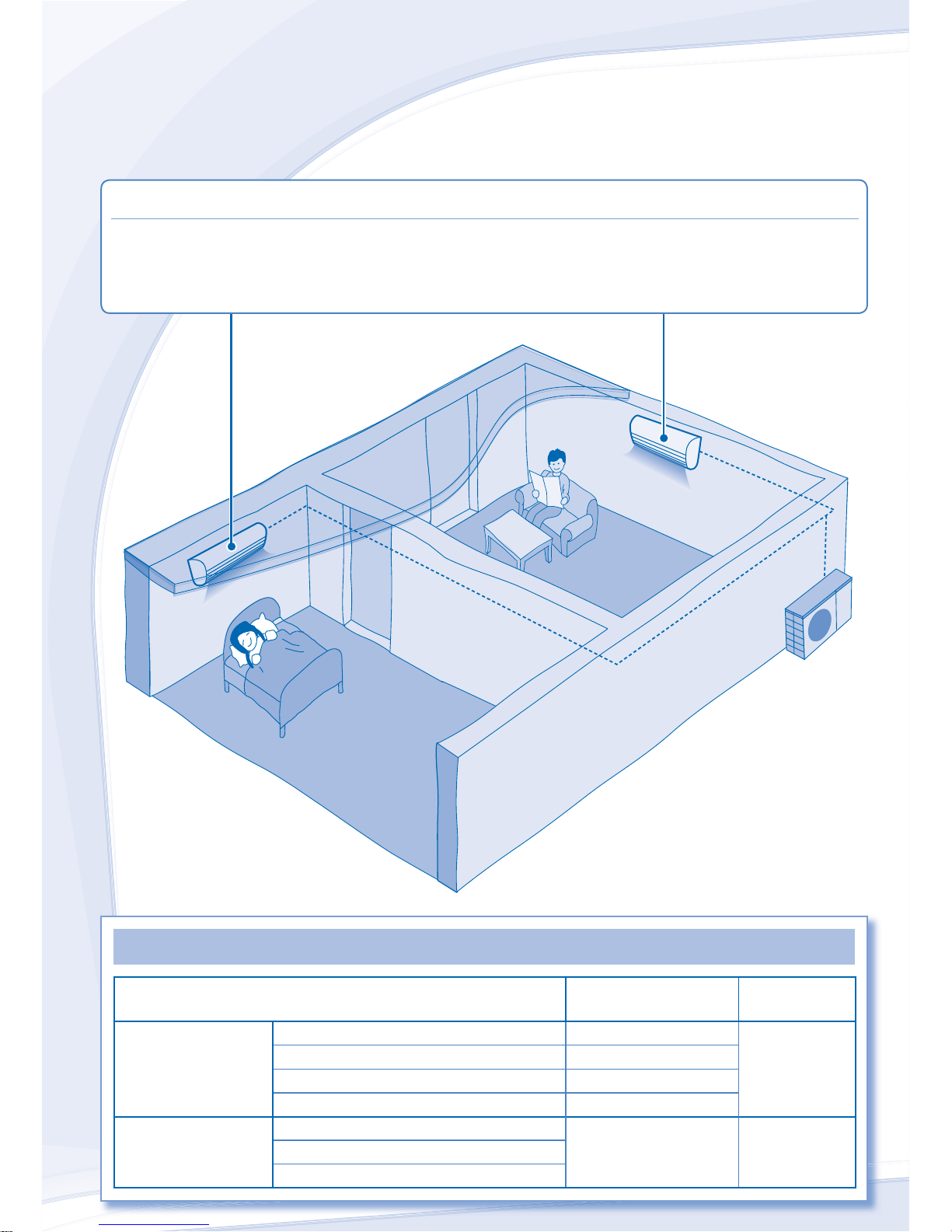

MULTI AIR CONDITIONER SYSTEM

Multi Split Outdoor Unit

(CU-2E18JBK)

DEFINITION

Multi air conditioner systems save space by letting you connect multiple indoor units to a single outdoor unit.

Living room

Multi Split Outdoor Unit

INDOOR UNIT

• It is possible to operate the indoor units individually or simultaneously. The operation mode priority is given to the ﬁrst unit

that turned on.

• During operation, heating and cooling mode could not be activated at the same time for different indoor unit. The power

indicator blinks to indicate the indoor unit is standing by for different operation mode.

Bedroom

POWER SUPPLY

Models Number Time Delay Circuit

Breaker Rated Volts

Single Split System

CS-E9JKKW / CU-E9JKK 15Amps

208/230V

CS-E12JKKW / CU-E12JKK 15Amps

CS-E18JKK / CU-E18JKK 20Amps

CS-E22JKK / CU-E22JKK 25Amps

Multi Split System CS-E9JKKW, CS-E9JKKW / CU-2E18JBK 25Amps 208/230VCS-E9JKKW, CS-E12JKKW / CU-2E18JBK

CS-E12JKKW, CS-E12JKKW / CU-2E18JBK

ENGLISH

CAUTION

•Switch off the power supply before cleaning.

•Do not touch the aluminium ﬁn, sharp parts may cause injury.

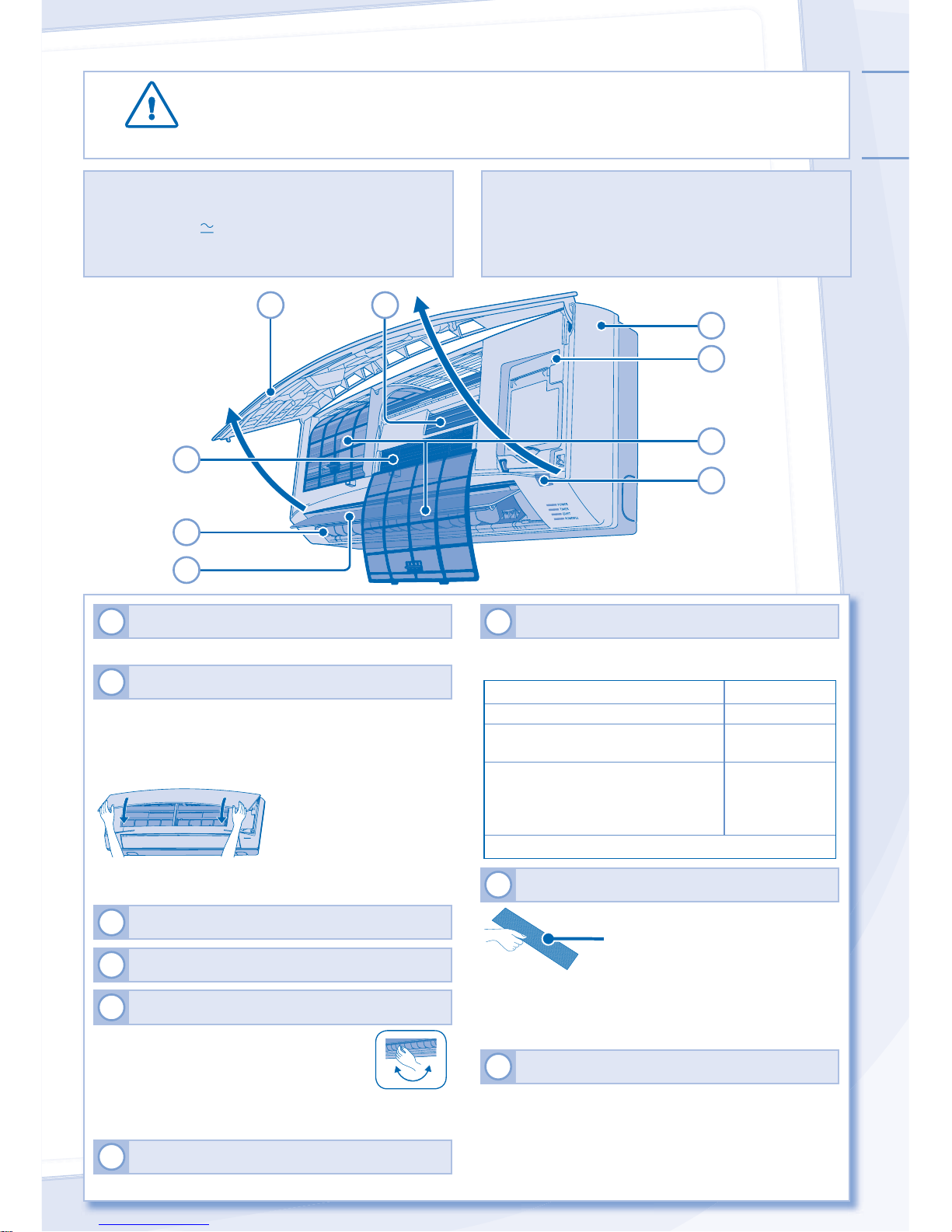

INDOOR UNIT

CLEANING INSTRUCTIONS

HINT

• Do not use benzene, thinner or scouring powder.

• Use only soap ( pH7) or neutral household detergent.

• Do not use water hotter than 40°C.

• To ensure optimal performance of the unit, cleaning

maintenance has to be carried out at regular intervals.

Dirty unit may cause a malfunction and you may see

error code “H99”. Please consult authorized dealer.

1INDOOR UNIT

• Wipe the unit gently with a soft, dry cloth.

2FRONT PANEL

Remove Front Panel

• Raise and pull to remove the front panel.

• Wash gently and dry.

Close Front Panel

• Press down both ends of the front panel to close it

securely.

3REMOTE CONTROL RECEIVER

4ALUMINIUM FIN

5HORIZONTALAIRFLOW DIRECTION LOUVER

E9JKKW, E12JKKW

• Manually adjustable.

E18JKK, E22JKK

• Do not adjust by hand.

6VERTICALAIRFLOW DIRECTION LOUVER

• Do not adjust by hand.

7AUTO OFF/ON BUTTON

• Use when remote control is misplaced or a malfunction

occurs. Action Mode

Press once. Auto

Press and hold until 1 beep is heard,

then release. Cooling

Press and hold until 1 beep is heard,

then release.

Press again until 2 beeps are heard,

then release. Heating

Press the button to turn off.

8SUPERALLERU-BUSTER FILTER

Vacuum the super

alleru-buster ﬁlter.

• It is recommended to clean the ﬁlter every 6 months.

• Replace the ﬁlter every 3 years or replace any damaged

ﬁlter.

Part no.: CZ-SA14P

9AIR FILTERS

• Air ﬁlter cleaning is required every two weeks.

• Wash/rinse the ﬁlters gently with water to avoid damage

to the ﬁlter surface.

• Dry the ﬁlters thoroughly under the shade, away from

ﬁre or direct sunlight.

• Replace any damaged ﬁlters.

REMOTE CONTROL

4TO SELECT FAN SPEED (5 OPTIONS)

FAN

PEED

• ForAUTO, the indoor fan speed is automatically adjusted

according to the operation mode.

5TOADJUST VERTICALAIRFLOW DIRECTION

(5 OPTIONS)

AIR SWING

• Keeps the room ventilated.

• In COOL/DRYmode, ifAUTO is set, the louver swing

up/down automatically.

• In HEAT mode, ifAUTO is set, the louver ﬁx at

predetermined position.

6TOADJUST AIRFLOW DIRECTION (5 OPTIONS)

(PAGE 7)

AIR SWING

• Keeps the room ventilated.

• In COOL/DRYmode, ifAUTO is set, the louver swing

left/right and up/down automatically.

• In HEAT mode, ifAUTO is set, the horizontal louver ﬁx at

predetermined position. The vertical louver swing left/right

after the temperature rises.

Maximum distances: 8m

INDICATOR

POWER

(Green)

TIMER

(Orange)

QUIET

(Orange)

POWERFUL

(Orange)

E9JKKW, E12JKKW

Press the remote control’s button

1TO TURN ON OR OFF THE UNIT

• Please be aware of the OFF indication on the remote

control display to prevent the unit from starting/stopping

improperly.

2TO SET TEMPERATURE

• Selection range: 16°C ~ 30°C.

• Operating the unit within the recommended temperature

could induce energy saving.

HEAT mode : 20°C ~ 24°C.

COOLmode : 26°C ~ 28°C.

DRYmode : 1°C ~ 2°C lower than room temperature.

3TO SELECT OPERATION MODE

AUTO mode - For your convenience

• During operation mode selection the power indicator

blinks.

• Unit selects operation mode every 30 minutes according

to temperature setting, outdoor and room temperature

(For Single Split System).

• Unit selects operation mode every 3 hours according to

temperature setting, outdoor and room temperature (For

Multi Split System).

HEAT mode - To enjoy warm air

• Unit takes a while to warm up. The power indicator blinks

during this operation.

COOL mode - To enjoy cool air

• Use curtains to screen off sunlight and outdoor heat to

reduce power consumption during cool mode.

DRY mode - To dehumidify the environment

• Unit operates at low fan speed to give a gentle cooling

operation.

AUTO

HEAT

COOL

DRY

FAN

SPEED

AIR

SWING

FAN SPEED

AIR SWING

MODE

QUIET

TEMP

OFF/ON

POWERFUL

TIMER

SET

CANCEL

OFF

123

SET CHECK CLOCKRESET

AC RC

Remote Control display

ENGLISH

E18JKK, E22JKK

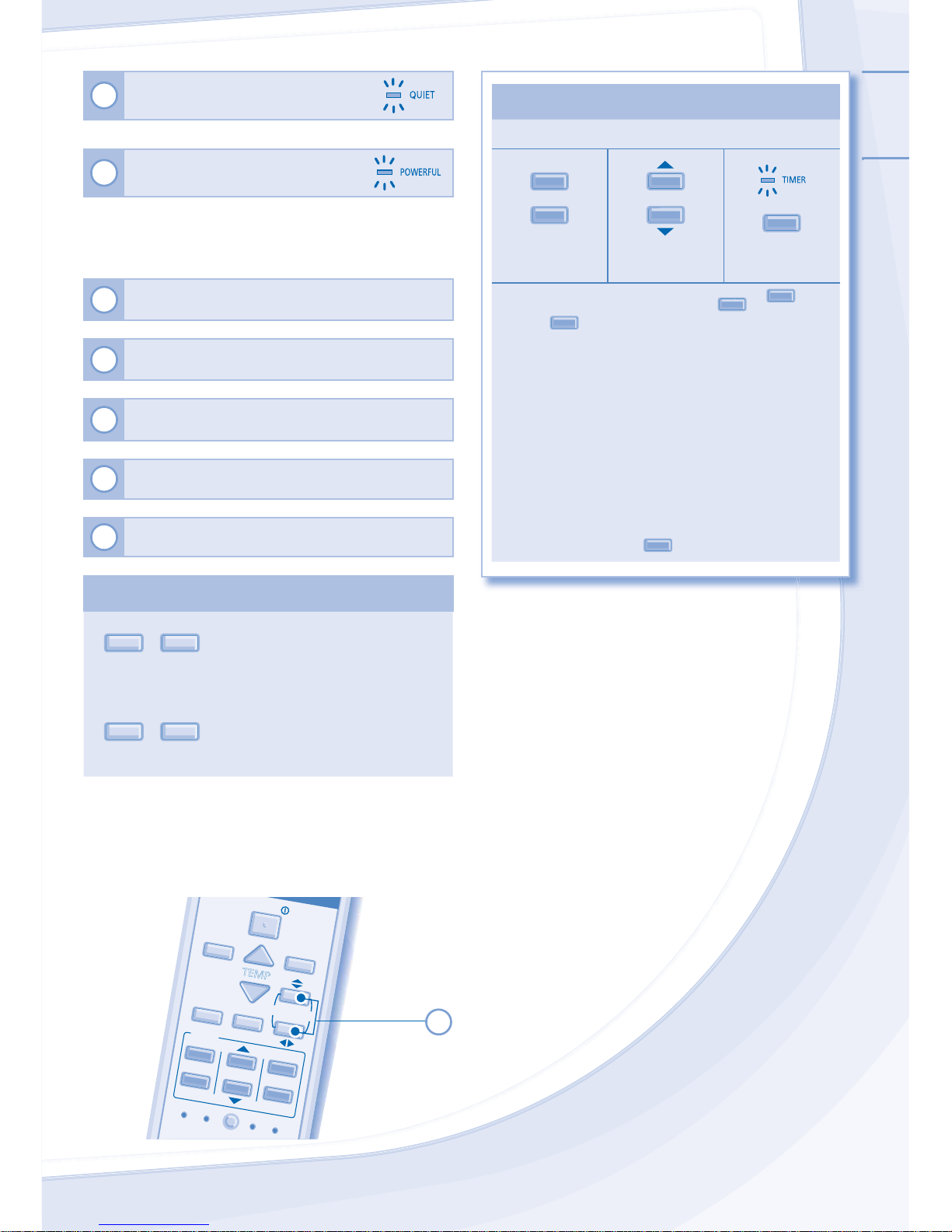

7TO ENJOY QUIET OPERATION

• This operation reduces airﬂow noise.

8TO REACH TEMPERATURE

QUICKLY

• Single Split System: This operation stops automatically

after 20 minutes.

• Multi Split System: Press the button again or turn OFF the

unit to stop this operation.

9Press and hold for 5 seconds to dim or restore the

unit’s indicator brightness.

10 Press and hold for approximately 10 seconds to

show temperature setting in °C or °F

11 Press and hold for approximately 5 seconds to show

12-hour (am/pm) or 24-hour time indication.

12 Press to restore the remote control’s default setting.

13 Not used in normal operations.

NOTES

QUIET

POWERFUL

• Can be activated in all modes and can be cancelled by

pressing the respective button again.

UIET ,

WERFUL

• Cannot be selected at the same time.

TO SET THE TIMER

• To turn ON or OFF the unit at a preset time.

OFF

Select ON or

OFF timer Set the time Conﬁrm

• To cancel ON or OFF timer, press

Nor OFF then

press CANCEL.

• When ON Timer is set, the unit may start earlier (up

to 35 minutes) before the actual set time in order to

achieve the desired temperature on time.

• Timer operation is based on the clock set in the

remote control and repeats daily once set. For clock

setting, please refer to Remote Control Preparation at

back cover.

• If timer is cancelled manually or due to power failure,

you can restore the previous setting (once power is

resumed) by pressing SET .

FAN SPEED

MODE

QUIET

TEMP

OFF/ON

AIR SWING

POWERFUL

TIMER

SET

CANCEL

OFF

123

SET CHECK CLOCK RESE

AC RC

TROUBLESHOOTING

The following symptoms do not indicate malfunction.

SYMPTOM

CAUSE

Mist emerges from indoor unit. ►• Condensation effect due to cooling process.

Water ﬂowing sound during operation. ►• Refrigerant ﬂow inside the unit.

The room has a peculiar odour. ►• This may be due to damp smell emitted by the wall,

carpet, furniture or clothing.

Indoor fan stops occasionally during automatic fan speed

setting. ►• This helps to remove the surrounding odours.

Airﬂow continues even after operation has stopped. ►• Extraction of remaining heat from the indoor unit

(maximum 30 seconds).

Operation is delayed a few minutes after restart. ►• The delay is a protection to the unit’s compressor.

Outdoor unit emits water/steam. ►• Condensation or evaporation occurs on pipes.

Timer indicator is always on. ►• The timer setting repeats daily once set.

Power indicator blinks during HEAT mode with no warm air

supply (and louver is closed). ►• The unit is in defrost mode (and AIR SWING is set to

AUTO).

Indoor fan stops occasionally during heating operation. ►• To avoid unintended cooling effect.

Power indicator blinks before the unit is switched on. ►• This is a preliminary step in preparation for the operation

when the ON timer has been set.

Cracking sound during operation. ►• Changes of temperature cause the expansion/contraction

of the unit.

Check the following before calling for servicing.

SYMPTOM

CHECK

Heating/Cooling operation is not working efﬁciently. ►• Set the temperature correctly.

• Close all doors and windows.

• Clean or replace the ﬁlters.

• Clear any obstruction at the air inlet and air outlet vents.

Noisy during operation. ►• Check if the unit has been installed at an incline.

• Close the front panel properly.

Remote control does not work.

(Display is dim or transmission signal is weak.) ►• Insert the batteries correctly.

• Replace weak batteries.

The unit does not work. ►• Check if the circuit breaker is tripped.

• Check if timers have been set.

The unit does not receive the signal from the remote

control. ►• Make sure the receiver not obstructed.

• Certain ﬂuorescent lights may interfere with signal

transmitter. Please consult authorized dealer.

The unit stops and the timer indicator blinks.

Use remote control to retrieve error code.

TIMER

SET

CANCEL

OFF

123

SET CHECK CLOCK RESET

AC RC

1Press for 5

seconds.

3Press for 5

seconds to

quit checking.

2Press until you hear

beep sound, then

write down the error

code.

Note:

• For certain errors, you

may restart the unit for

limited operation with 4

beeps during operation

starts.

4Turn the unit off and reveal the error code to authorized dealer.

ENGLISH

Information for Users on Collection and Disposal of Old Equipment and used Batteries

[Information on Disposal in other Countries

outside the European Union]

These symbols are only valid in the European

Union. If you wish to discard these items,

please contact your local authorities or dealer

and ask for the correct method of disposal.

Note for the battery symbol (bottom two

symbol examples):

This symbol might be used in combination with

a chemical symbol. In this case it complies with

the requirement set by the Directive for the

chemical involved.

FOR SEASONAL INSPECTIONAFTER EXTENDED

NON-USE

• Checking of remote control batteries.

• No obstruction at air inlet and air outlet vents.

• After 15 minutes of operation, it is normal to have the

following temperature difference between air inlet and air

outlet vents:

Cooling: ≥8°C Heating: ≥14°C

FOR EXTENDED NON-USE

• Activate Heat mode for 2~3 hours to remove moisture left

in the internal parts thoroughly to prevent mould growth.

• Turn off the power supply.

• Remove the remote control batteries.

SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY then please consult

authorized dealer under the following conditions:

• Abnormal noise during operation.

• Water/foreign particles have entered the remote control.

• Water leaks from Indoor unit.

• Circuit breaker switches off frequently.

• Power cord becomes unnaturally warm.

• Switches or buttons are not functioning properly.

• Timer indicator blinks.

INFORMATION

Models Number

Single Split System CS-E9JKKW / CU-E9JKK

CS-E12JKKW / CU-E12JKK

CS-E18JKK / CU-E18JKK

Multi Split System CS-E12JKKW, CS-E12JKKW / CU-2E18JBK

The above listed models have been designed and manufactured to meet ENERGY STAR®criteria for

energy efﬁciency when matched with appropriate coil components. However, proper refrigerant charge

and proper air ﬂow are critical to achieve rated capacity and efﬁciency. Installation of this product should

follow the manufacturer’s refrigerant charging and airﬂow instructions. Failure to conﬁrm proper charge and

airﬂow may reduce energy efﬁciency and shorten equipment life.

FAN

SPEED

AIR

SWING

FAN SPEED

MODE

QUIET

TEMP

OFF/ON

AIR SWING

POWERFUL

TIMER

SET

CANCEL

OFF

123

SET CHECK CLOCK RESET

AC RC

AUTO

HEAT

COOL

DRY

AUTO

HEAT

COOL

DRY

FAN

SPEED

AIR

SWING

FAN SPEED

AIR SWING

MODE

QUIET

TEMP

OFF/ON

POWERFUL

TIMER

SET

CANCEL

OFF

123

SET CHECK CLOCK RESET

AC RC

QUICK GUIDE/GUIDE SOMMAIRE

E9JKKW, E12JKKW E18JKK, E22JKK

MODE

AUTO HEAT

DRY COOL

Select the desired mode.

Sélectionner le mode voulu.

OFF/ON

Start/stop the operation.

Mettre l’appareil en/hors marche.

TEMP

Select the desired temperature.

Régler la température souhaitée.

Panasonic Corporation

Site Web: http://panasonic.net/

Panasonic Canada Inc.

Site Web: http://www.panasonic.ca

Imprimé en Malaisie

OSTH0907-00 F567333

Remote Control Preparation • Préparation de la télécommande

TIMER

SET

CANCEL

OFF

123

SET CHECK CLOCK RESET

AC RC

45 6

1Pull out • Dégager le couvercle

2InsertAAAor R03 batteries (can be used ~ 1 year) •

Mettre en place des pilesAAAou R03 (durée de vie d’environ 1 an)

3Close the cover • Remettre le couvercle en place

4Press CLOCK •Appuyer sur CLOCK

5Set time • Régler l’heure

6Conﬁrm • Conﬁrmer le réglage

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Condizionatore d'aria

Panasonic

Panasonic CS-TZ20TKEW Manuale utente

Panasonic

Panasonic CS-YW7MKD Manuale utente

Panasonic

Panasonic CS-PV9DKE Manuale utente

Panasonic

Panasonic CU-2TZ41TBE Manuale utente

Panasonic

Panasonic CS-E9SD3UAW Manuale utente

Panasonic

Panasonic CS-YC18MKS Manuale utente

Panasonic

Panasonic CW-XC145HU Manuale utente

Panasonic

Panasonic CS-C18PKF Manuale utente

Panasonic

Panasonic CW-606TU Manuale utente

Panasonic

Panasonic CS-TZ71ZKEW Manuale utente

Panasonic

Panasonic U-26PS1U6 Manuale utente

Panasonic

Panasonic CS-XS12UKY Series Manuale utente

Panasonic

Panasonic CS-PA7KKD Manuale utente

Panasonic

Panasonic CS-E15JD3EA Manuale utente

Panasonic

Panasonic CS-S9JKQ Manuale utente

Panasonic

Panasonic CS-W7DKR Manuale utente

Panasonic

Panasonic CS-KS18NB4UW & CZ-18BT1U + CU-KS18NKU Manuale utente

Panasonic

Panasonic CS-W18CKE Manuale utente

Panasonic

Panasonic CS-S9NKUW-1 Manuale utente

Panasonic

Panasonic CS-PW9GKE Manuale utente

Panasonic

Panasonic CS-YC12MKF Manuale utente

Panasonic

Panasonic CS-XS12VKYF Series Manuale utente

Panasonic

Panasonic CS-PC30JKF Manuale utente

Panasonic

Panasonic CS-PC12QKH Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente

Webasto

Webasto Frigo Top 25 DS Manuale utente
