Panasonic CS-E9BKP Manuale utente

1 Features 2

2 Functions 3

3 Product Specifications 6

4 Dimensions 10

5 Refrigeration Cycle Diagram 12

6 Block Diagram 13

7 Wiring Diagram 14

8 Operation Details 16

9 Operating Instructions 36

and distribution is a violation of law.

CS-E9BKP CU-E9BKP5

CS-E12BKP CU-E12BKP5

10 Installation And Servicing Air Conditioner Using R410A 41

11 Installation Instructions 52

12 Servicing Information 61

13 Technical Data 70

14 Exploded View 73

15 Replacement Parts List 74

16 Exploded View 75

17 Replacement Parts List 76

18 Electronic Circuit Diagram 77

Room Air Conditioner

CONTENTS

Page Page

Order No: MAC0112083C2

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

• Product

− Microcomputer-controlled compressor operating

frequency

− Vertical and Horizontal Airflow Directions

− Five modes of operation selection

− Power Mode operation

− Sleep Mode operation

− Delay ON Timer and OFF Timer

− Standby operation

− Remote Controller with illuminable buttons

− Power Monitor Display LED

− Catechin Air Purifying Filter

− Solar Refreshing Deodorizing Filter

• Serviceability

− Washable Front Panel

− Breakdown Self Diagnosis function

• Environmental Protection

− Non-ozone depletion substances refrigerant (R410A)

• Quality Improvement

− Gas leakage detection

− Deice operation

− Auto restart control

1 Features

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

2 Functions

Remote Control

Operation OFF / ON

OFF/ON

Room Temperature Setting

TEMP

Operation Mode Selection

•

Automatic Operation

•

HEAT

Heating Operation

•

COOL

Cooling Operation

•

DRY

Soft Dry Operation

•

FAN

Fan Operation

Time / Timer Setting

• Hours and minutes setting.

Clock Setting

• Current time setting.

Sleep Mode Operation OFF / ON

SLEEP

Airflow Direction Control

• 24-hour, OFF / ON Real Timer Setting.

Timer Operation Selection

Timer Operation Set / Cancel

• ON Timer and OFF Timer setting and

cancellation.

CLOCK

Powerful Mode Operation

POWERFUL

• Temperature Setting (16°C to 30°C)

Illuminable

buttons

•Vertical Automatic Airflow

Direction Control and Manual

Airflow Direction Control (5

stages of adjustment).

•Horizontal Automatic Airflow

Direction Control and Manual

Airflow Direction Control (5

stages of adjustment).

Indoor Fan Speed Selection

FAN SPEED

•Low

•Medium-

• Medium

•Medium+

•High

•

AUTO

Automatic Fan Speed

FAN

Check Point

Reset Point

RESET

TIMER

OFF

∧

∨

SET

CANCEL

CHECK

MODE

AIR SWING

• Breakdown self diagnosis function.

• Clear memory data.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

Indoor Unit

Automatic Operation Switch

•Press for < 5s to run Automatic Operation.

(Used when the remote control cannot be used.)

•Press continuously for 5s and < 8s to run

Forced Cooling Operation.

•Press continuously for 8s and < 11s to run

Forced Heating Operation.

•Press continuously for 11s and < 16s to

change different remote controlling

setting (A↔B Mode).

•Press continuously for 16s or < 21s to

switch OFF / ON Remote Control

Receiving Sound or H14 Abnormality

Detection Mode.

Operation Indication Lamps (LED)

Sleep Mode

Five Operation Modes

•Automatic, Heating, Cooling, Soft Dry

and Fan Operation.

Delay ON Timer and OFF Timer

Powerful Mode

•For quick cooling or heating.

•

POWER

(Orange) .....

Lights up during

MONITOR

compressor operation.

•

POWER

(Green) ........ Lights up in

operation, blinks in

Automatic Operation

Mode judging and

Hot Start operation.

•

TIMER

(Orange) ....... Lights up in Timer

Setting.

Blinks in Self

Diagnosis Control.

•

SLEEP

(Orange)........ Lights up in Sleep

Mode Operation.

•

POWERFUL

(Orange)..Lights up when

Powerful Mode is

selected.

Automatic and 5 Manual Indoor

Fan Speeds

Automatic and 5 Manual Vertical

Airflow Directions

Automatic and 5 Manual Horizontal

Airflow Directions

Automatic Restart Control

•Operation is restarted after power failure

at previous setting mode.

Microcomputer-controlledRoom

Temperature Control

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

Deodorizing Control

Indoor Power Relay Control

Anti-Fog Discharge Control

Anti Freezing Control

Low Pressure Control

(Gas Leakage Detection)

Breakdown Self Diagnosis

Function

Automatic Restart Control

Anti-Cold Draft Control

High Pressure Control

Hot Start

Intake Air Temperature Control

Standby Control

Deice Operation

Outdoor Unit

30 seconds Forced Operation

Time Delay Safety Control

High Pressure Control

Deice Operation

Standby Control

Compressor Overheating

Prevention Control

IPM (Power Transistor)

Overheating Protection Control

Total Running Current Control

Mininum Operation Frequency

Protection Control

*Details can be refered to OPERATION

DETAILS in this manual.

Low Operation Frequency

Protection Control

Outdoor Air Temperature

Control

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

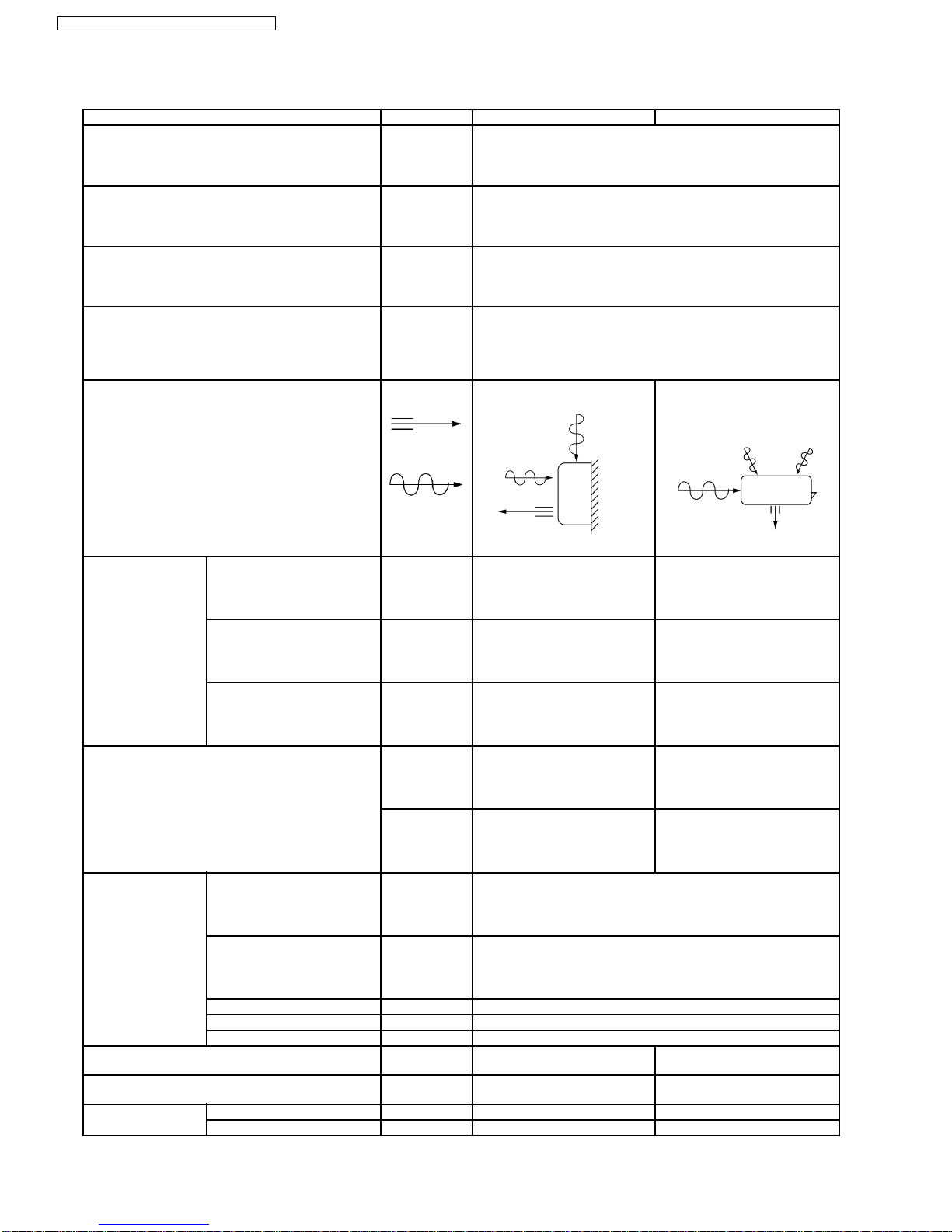

3 Product Specifications

Unit CS-E9BKP CU-E9BKP5

Cooling Capacity kW

kcal/h 2.6 (0.60 - 3.00)

2,240 (520 - 2,580)

Heating Capacity kW

kcal/h 3.6 (0.60 - 5.00)

3,100 (520 - 4,300)

Moisture Removal l/h

Pint/h 1.6

(3.4)

Power Source Phase

Cycle

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 6.5 (231) —

Heating; 7.1 (249)

Indoor Air (Me) m3/min (cfm) Cooling; 8.1 (286) —

Heating; 8.8 (312)

Indoor Air (Hi) m3/min (cfm) Cooling; 9.9 (350) —

Heating; 10.6 (374)

dB (A) Cooling; High 39, Low 26 Cooling; 46

Heating; High 40, Low 27 Heating; 47

Noise Level

Power level dB Cooling; High 50 Cooling; High 59

Heating; High 51 Heating; High 60

Electrical Data Input WCooling; 700 (115 - 880)

Heating; 900 (110 - 1,400)

Running Current ACooling; 3.3

Heating; 4.0

EER W/W (kcal/hw) Cooling; 3.71(3.20)

COP W/W (kcal/hw) Heating; 4.00 (3.44)

Starting Current A4.00

Piping Connection Port

(Flare piping) inch

inch G ; Half Union 3/8”

L ; Half Union 1/4”G ; 3-way valve 3/8”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping) inch

inch G (gas side) ; 3/8”

L (liquid side) ; 1/4”G (gas side) ; 3/8”

L (liquid side) ; 1/4”

Drain

Hose Inner diameter mm 12 —

Length m0.7 —

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

Power Cord Length

Number of core-wire 2.1 m

3 core wires × 1.0 mm2—

—

Dimensions Height inch (mm) 10 - 31/32 (275) 21 - 9/32 (540)

Width inch (mm) 31 - 15/32 (799) 27 - 17/32 (780)

Depth inch (mm) 7 - 27/32 (210) 11 - 7/32 (289)

Net Weight lb (kg) 20 (9.0) 77 (35)

Compressor Type —Involute scroll

Motor Type —Brushless (4-pole)

Rated Output W — 700

Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% P.P

Motor Type Transistor (4-poles) Induction (6-poles)

Input W — 61.3

Rate Output W30 25

Fan Speed Lo (Cool/Heat) rpm 800 / 840 —

Me (Cool/Heat) rpm 1,000 / 1,040 —

Hi (Cool/Heat) rpm 1,200 / 1,270 770

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium Aluminium

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 1/20

FPI 21 19

Size (W × H × L) mm 610 × 315 × 25.4 732.1 × 508 × 22

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (c.c) —RB68A (360)

Refrigerant (R-22) g (oz) —840 (29.7)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

Length mm —C1, C2 ; 1,100, C3 ; 440

Capillary Tube Flow Rate l/min —C1, C2 ; 5.0, C3 ; 18.6

Inner Diameter mm —C1, C2 ; 1.2, C3 ; 1.7

Air Filter Material

Style P.P.

Honeycomb —

Fan Motor Capacitor µF, VAC —1.8 µF, 400 VAC

• Specifications are subject to change without notice for further improvement.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

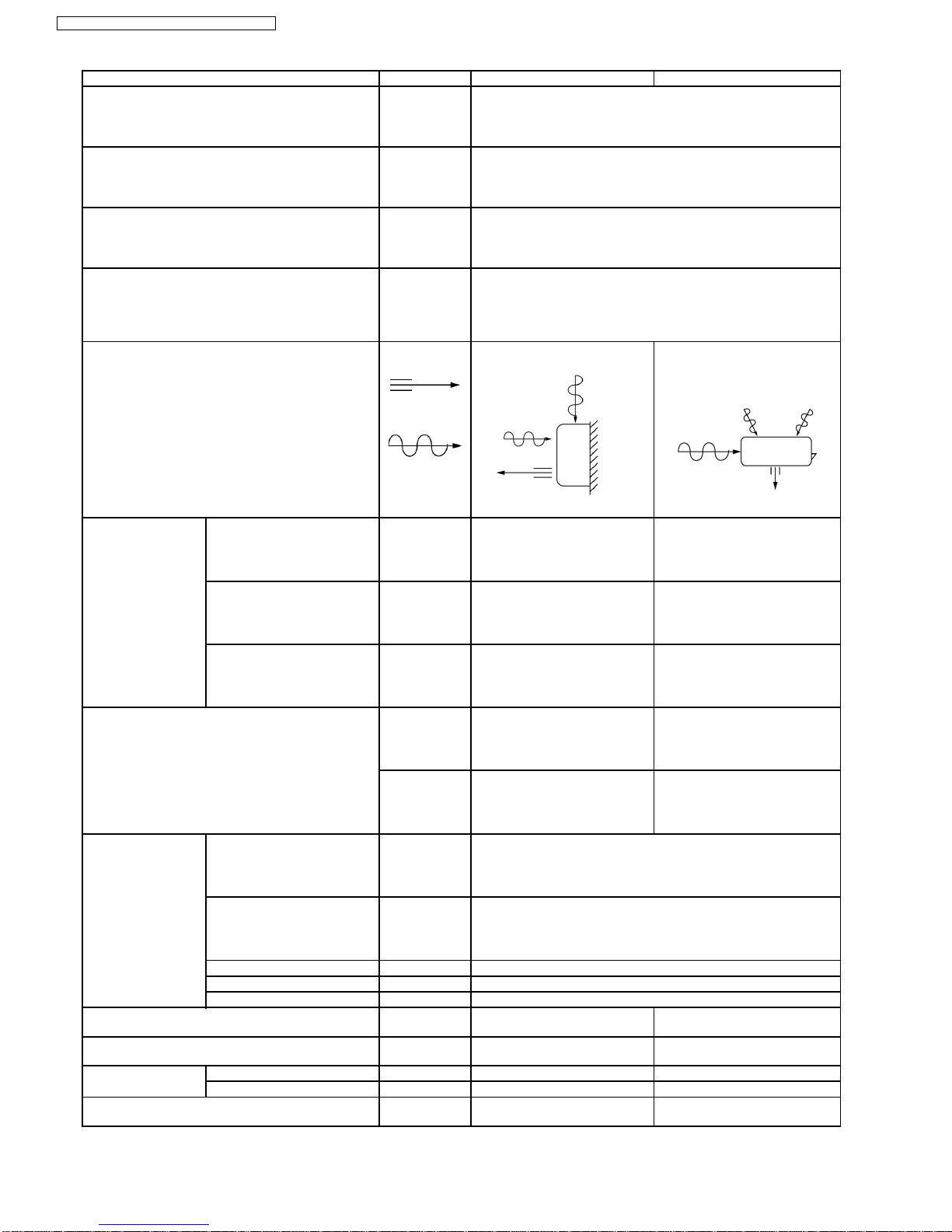

Unit CS-E12BKP CU-E12BKP5

Cooling Capacity kW

kcal/h 3.45 (0.60 - 4.00)

2,970 (520 - 3,440)

Heating Capacity kW

kcal/h 4.80 (0.60 - 6.50)

4,130 (520 - 5,590)

Moisture Removal l/h

Pint/h 2.0

(4.2)

Power Source Phase

Cycle

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 7.3 (258) —

Heating; 9.2 (325)

Indoor Air (Me) m3/min (cfm) Cooling; 9.2 (323) —

Heating; 10.3 (360)

Indoor Air (Hi) m3/min (cfm) Cooling; 10.9 (384.4) —

Heating; 11.8 (416.5)

dB (A) Cooling; High 42, Low 29 Cooling; 48

Heating; High 42, Low 33 Heating; 50

Noise Level

Power level dB Cooling; High 53 Cooling; High 61

Heating; High 53 Heating; High 63

Electrical Data Input WCooling; 950 (120 - 1,280)

Heating; 1,260 (115 - 1,890)

Running Current ACooling; 4.4

Heating; 5.6

EER W/W (kcal/hw) Cooling; 3.63 (3.13)

COP W/W (kcal/hw) Heating; 3.81 (3.28)

Starting Current A5.60

Piping Connection Port

(Flare piping) inch

inch G ; Half Union 1/2”

L ; Half Union 1/4”G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping) inch

inch G (gas side) ; 1/2”

L (liquid side) ; 1/4”G (gas side) ; 1/2”

L (liquid side) ; 1/4”

Drain

Hose Inner diameter mm 12 —

Length m0.7 —

Power Cord Length

Number of core-wire 2.1 m

3 core wires ×1.5 mm2—

—

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

Dimensions Height inch (mm) 10 - 31/32 (275) 21 - 9/32 (540)

Width inch (mm) 31 - 15/32 (799) 27 - 17/32 (980)

Depth inch (mm) 7 - 27/32 (210) 11 - 7/32 (289)

Net Weight lb (kg) 20 (9.0) 81.6 (37)

Compressor Type —Involute scroll

Motor Type —Brushless (4-pole)

Rated Output W—700

Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% P.P

Motor Type Transistor (4-poles) Induction (6-poles)

Input W—65.9

Rate Output W30 29

Fan Speed Lo (Cool/Heat) rpm 880 / 1,100 —

Me (Cool/Heat) rpm 1,100 / 1,230 —

Hi (Cool/Heat) rpm 1,310 / 1,410 830

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium Aluminium

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 2/24

FPI 21 17

Size (W ×H×L) mm 610 ×315 ×25.4 703.8

735.0 ×504 ×36.4

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (c.c) —RB68A (360)

Refrigerant (R410A) g (oz) —1,020 (36.0)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

Length mm —C1, C2 ; 1,100, C3 ; 750

Capillary Tube Flow Rate l/min —C1, C2 ; 5.0, C3 ; 15.4

Inner Diameter mm —C1, C2 ; 1.2, C3 ; 1.7

Air Filter Material

Style P.P.

Honeycomb —

Fan Motor Capacitor µF, VAC —2.0 µF, 400 VAC

• Specifications are subject to change without notice for further improvement.

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

4 Dimensions

CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5

Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy

www.ilmalämpöpumput.com

Altri manuali per CS-E9BKP

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Condizionatore d'aria

Panasonic

Panasonic CS-C12MKF-2 Manuale utente

Panasonic

Panasonic CS-MKE24NKU Manuale di installazione e d'uso

Panasonic

Panasonic CS-N9WKH-8 Manuale utente

Panasonic

Panasonic CS/CU-KU12ZKY Series Guida del prodotto

Panasonic

Panasonic CS-CE9PKE Manuale utente

Panasonic

Panasonic CS-YU9ZKA Manuale utente

Panasonic

Panasonic CS-A281KR Manuale utente

Panasonic

Panasonic S-1821PT3H-8 Manuale utente

Panasonic

Panasonic CW-XC103VU Manuale utente

Panasonic

Panasonic CS-PS18UKA Manuale utente

Panasonic

Panasonic CS-E9DKEW Manuale utente

Panasonic

Panasonic S-60PE1R5B Manuale utente

Panasonic

Panasonic CU-E12QD3EA Manuale utente

Panasonic

Panasonic CS-XZ20XKEW-H Manuale utente

Panasonic

Panasonic CS-PE9CKE Manuale utente

Panasonic

Panasonic U-250PE1E8 Manuale utente

Panasonic

Panasonic CS-35T1HPP Manuale di istruzioni

Panasonic

Panasonic CS-A12CTP Manuale utente

Panasonic

Panasonic CS-MKE9NB4U Manuale di installazione e d'uso

Panasonic

Panasonic CS-PS12UKV-6 Manuale utente

Panasonic

Panasonic CS-E9CKP Manuale utente

Panasonic

Panasonic CS-NE9LKE Manuale utente

Panasonic

Panasonic CU-QZ9SKE Manuale utente

Panasonic

Panasonic WH-UD05JE5 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente

Webasto

Webasto Frigo Top 25 DS Manuale utente
