Panasonic CS-MKE12NB4U Manuale di installazione e d'uso

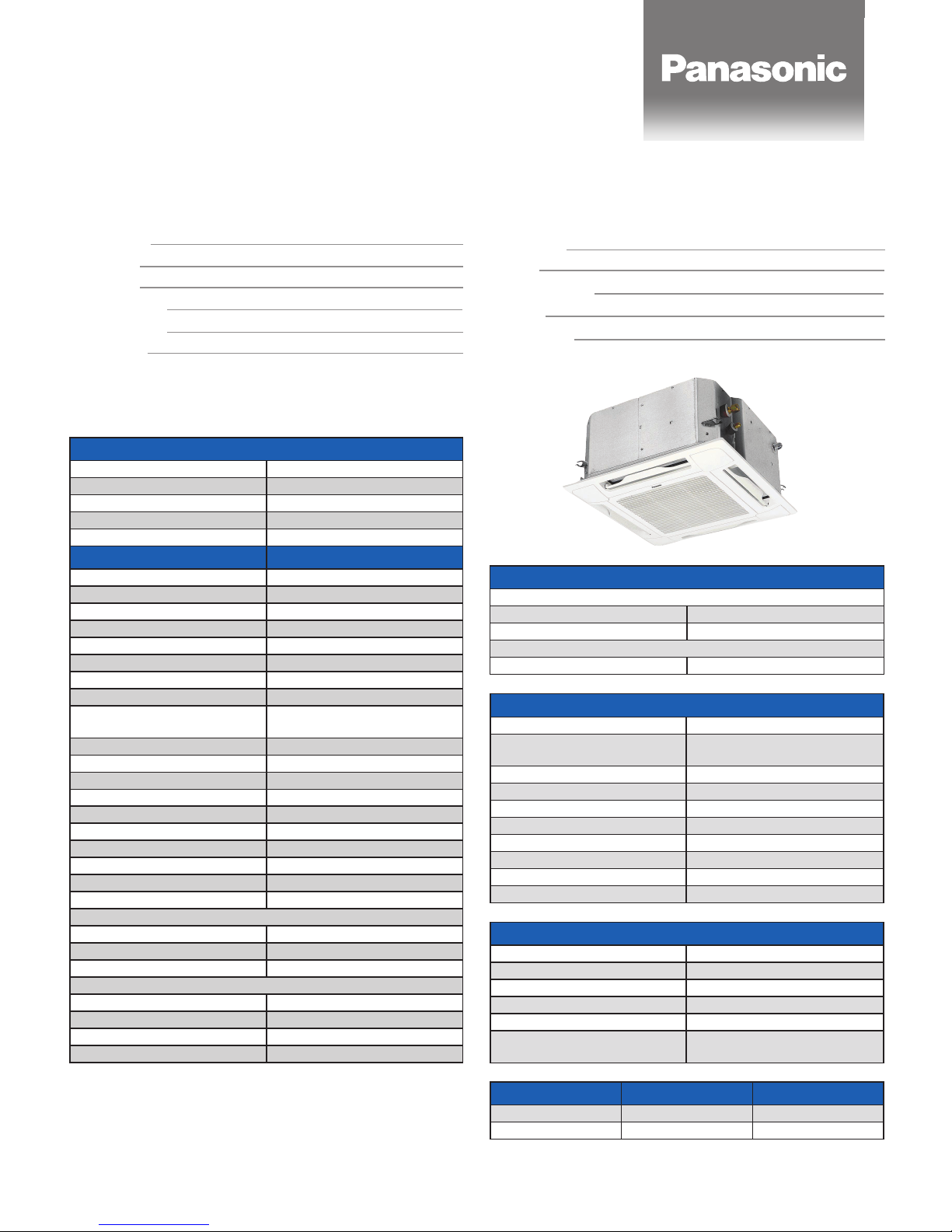

Split System Submittal Data

Indoor: CS-MKE12NB4U

Multi System Indoor Units - Ceiling Recessed

Approval:

Date:

Construction:

Unit#:

Drawing#:

Job Name:

Location:

Engineer:

Submitted to:

Submitted by:

Reference:

General Data

Power (V/P/Hz) 208 - 230/1/60

Circuit Ampacity (A) N/A

Fuse Size, Max.(A) 15

Running Amps (A) COOL .12 / .11 HEAT .14 / .13

Power Input (W) COOL 16 / 17 HEAT 18 / 19

Indoor Unit Cool/Heat

Fan type Turbo

Dia & Length (in.) - No. Speeds D12-5/8 L5-3/4 x 1

No. Speeds 3 & Auto

No. Poles (RPM, High) 8 - 470/520

No. Motors (W) 1-(23)

CFM (HI) 235/268

Operation Sound (HI/Med/Lo) 34/33/31-35/34/32

Coil Type Aluminum Plate Fin & Copper

Tube

Fin Type - Pipe Type Slit Plate - Inner Rifled

Rows - F.P.I. 2 - 18.1

Face Area (sq.ft.) 2.94

Tube Size (in) N/A

Drain Connection Size 3/4

Refrigerant R410A

Line Size (in. O.D. Discharge) 1/4” (Flare)

Line Size (in. O.D. Suction) 3/8” (Flare)

Dimensions (HxWxD)

Indoor Unit (Crated) (in.) 11-13/32 x 24-13/16 x 28-1/8

Indoor Unit (Uncrated) (in.) 12-5/16 x 24-19/32 x 24-19/32

Weight (lbs.)

Net 35.3

Shipping 41.9

Shipping Volume (cu.ft.) 4.59

Performance Data @ ARI Standard Conditions (230V)

Cooling

Total Capacity (BTU/H) 11900

Moisture Removal (HI, Pint/H) 4.26

Heating

Total Capacity (BTU/H) 13600

Features

Controls Microprocessor

Remote Control LCD Wireless Type, Built-in Temp

Sensor

Temperature Control IC Thermostat

Timer 24 Hr. Program, 1 Hr. Off

Night Setback Built-In

Air Louver Automatic

Power Failure Automatic Restart Built-In

Self-Diagnosis Built-In

Quiet Operation Built-In

Air Filter Washable, Anti-Mold

Option

Refrigerant Line Set Available

Fresh Air Intake Knock-out

Airduct Extension N/A

Condensate Drain Pump Standard

Hard Wired Remote Controller Available

Non-Removeable Remo-con

Bracket

Available

Operating Range

Indoor Air Intake Temp

Outdoor Air Intake Temp

Cooling (Max) 95F DB/71F WB 115F DB

Cooling (Min) 67F DB/57F WB 14F DB

Panasonic North America

Air Conditioning Division

1690 Roberts Blvd., NW, Suite 110

Kennesaw, GA 30144

us.panasonic.com/aircon

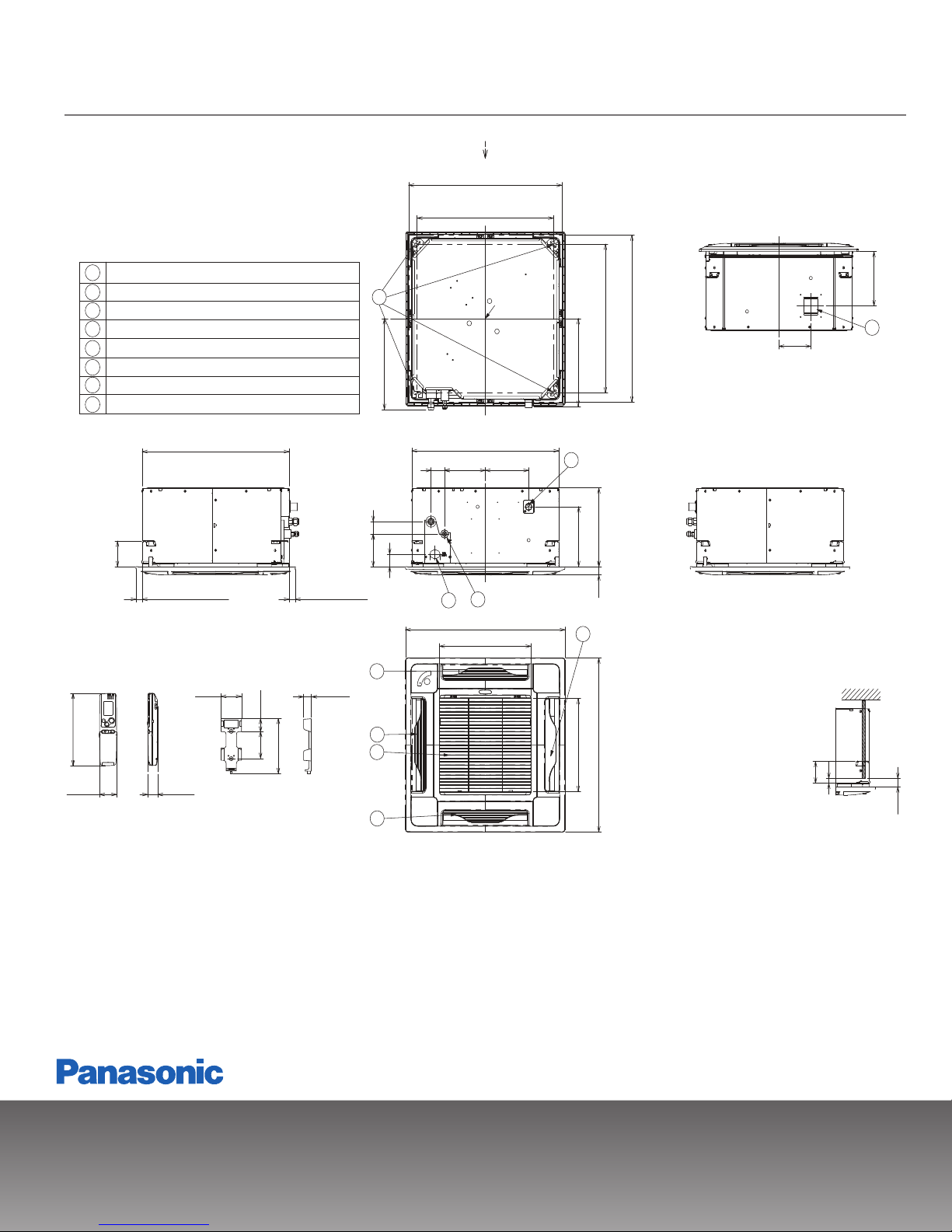

Indoor Dimensions

3. DIMENSIONAL DATA

Indoor Unit CS-KS12NB41 & CZ-18BT1U

CS-KS18NB4UW & CZ-18BT1U

6-5/16 6-11/16

1-3/16 (30)

4-19/32 1-25/32

1-25/32

2-3/32

8-15/32

22-5/8 (575)

11-5/32 (283)

Less than 31/32Less than 31/32

3-5/8

22-5/8 (575)

12-7/8

Suspension bolt pitch

21-1/32 (534)

21-1/32

(534)

12-7/16

23-5/8 (600)

Ceiling opening dimensions

23-5/8 (600)

Ceiling opening dimensions

Center of

panel

24-19/32 (625)

13-5/32 (334)

14-3/32 (358)

7-11/16

4-29/32

A View

1-3/16

21/32

3-1/8

The length of the suspension

bolts should be selected so that

there is a gap of 1-3/16" or

the ceiling (21/32" or more

below the lower surface of the

main unit), as shown in the

figure at right. If the suspension

bolts is too long, it will contact

the ceiling panel and the unit

cannot be installed.

Air intake

Discharge outlet

Refrigerant tubing

(liquid tube)

dia.

1/4" (flared)

Refrigerant tubing

(gas tube)

dia. 1/2"

(flared)

Drain tube connection port VP20 (outer dia. 1")

Power supply port

Suspension bolt hole (4 - 1/2" x 1-1/8" hole)

Fresh air intake duct connection port (dia. 3-7/8")

7-23/32

1-27/32 1-3/32

2-3/32

2-3/4 1-9/32

5-9/16

25/32

Unit : inch (mm)
