Panasonic CS-MKE7NKU Manuale di installazione e d'uso

Split System Submittal Data

Indoor: CS-MKE7NKU

Multi System Indoor Units - Wall Mounted

Approval:

Date:

Construction:

Unit#:

Drawing#:

Job Name:

Location:

Engineer:

Submitted to:

Submitted by:

Reference:

General Data

Power (V/P/Hz) 208 - 230/1/60

Circuit Ampacity (A) 15

Fuse Size, Max.(A) 20

Running Amps (A) 0.11

Power Input (W) 25

Indoor Unit Cool/Heat

Fan type Cross Flow

Dia & Length (in.) - No. Speeds D3-11/16 L24-31/32 -1

No. Speeds 3 & Auto

No. Poles (RPM, High) 8 - 1050/1100

No. Motors (W) 1-(47)

CFM (HI) 241/271

Operation Sound (HI/Med/Lo/

QT*dB-A)

33/30/27/23

Coil Type Aluminum Plate Fin & Copper

Tube

Fin Type - Pipe Type Slit Plate - Inner Rifled

Rows - F.P.I. 2 - 19.5

Face Area (sq.ft.) 2.02

Tube Size (in) 9/32

Drain Connection Size 23/32

Refrigerant R410A

Line Size (in. O.D. Discharge) 1/4” (Flare)

Line Size (in. O.D. Discharge) 3/8” (Flare)

Dimensions (HxWxD)

Indoor Unit (Crated) (in.) 13-25/32 x 35-7/16 x 10-1/32

Indoor Unit (Uncrated) (in.) 11-7/32 x 32-15/32 x 7-7/16

Weight (lbs.) Indoor

Net 19.8

Shipping 24.3

Shipping Volume (cu.ft.) 2.82

Performance Data @ ARI Standard Conditions (230V)

Cooling

Total Capacity (BTU/H) 7500

Moisture Removal (HI, Pint/H) 2.77

Features

Controls Microprocessor

Remote Control LCD Wireless Type, Built-in Temp

Sensor

Temperature Control IC Thermostat

Timer 24 Hr. Program, 1 Hr. Off

Night Setback Built-In

Air Louver, Horizontal Manual

Air Louver, Vertical Automatic

Power Failure Automatic Restart Built-In

Heating/Cooling Automatic

Changeover

Built-In

Self-Diagnosis Built-In

Quiet Operation Built-In

Air Filter Washable, Anti-Mold

Ion Generator N/A

Air Clean Apatite Filer N/A

Option

Refrigerant Line Set Available

Fresh Air Intake N/A

Airduct Extension N/A

Indoor Frame Extension N/A

Condensate Drain Pump Available

Non-Removeable Remo-con

Bracket

Available

Operating Range

Indoor Air Intake Temp

Outdoor Air Intake Temp

Cooling (Max) 95F DB/71F WB 115F DB

Cooling (Min) 67F DB/57F WB 14F DB

Heating (Max) 80F DB/67F WB 75F DB/65F WB

Heating (Min) -DB/-WB 0F DB

Heating

Total Capacity (BTU/H) 8500

Panasonic North America

Air Conditioning Division

1690 Roberts Blvd., NW, Suite 110

Kennesaw, GA 30144

us.panasonic.com/aircon

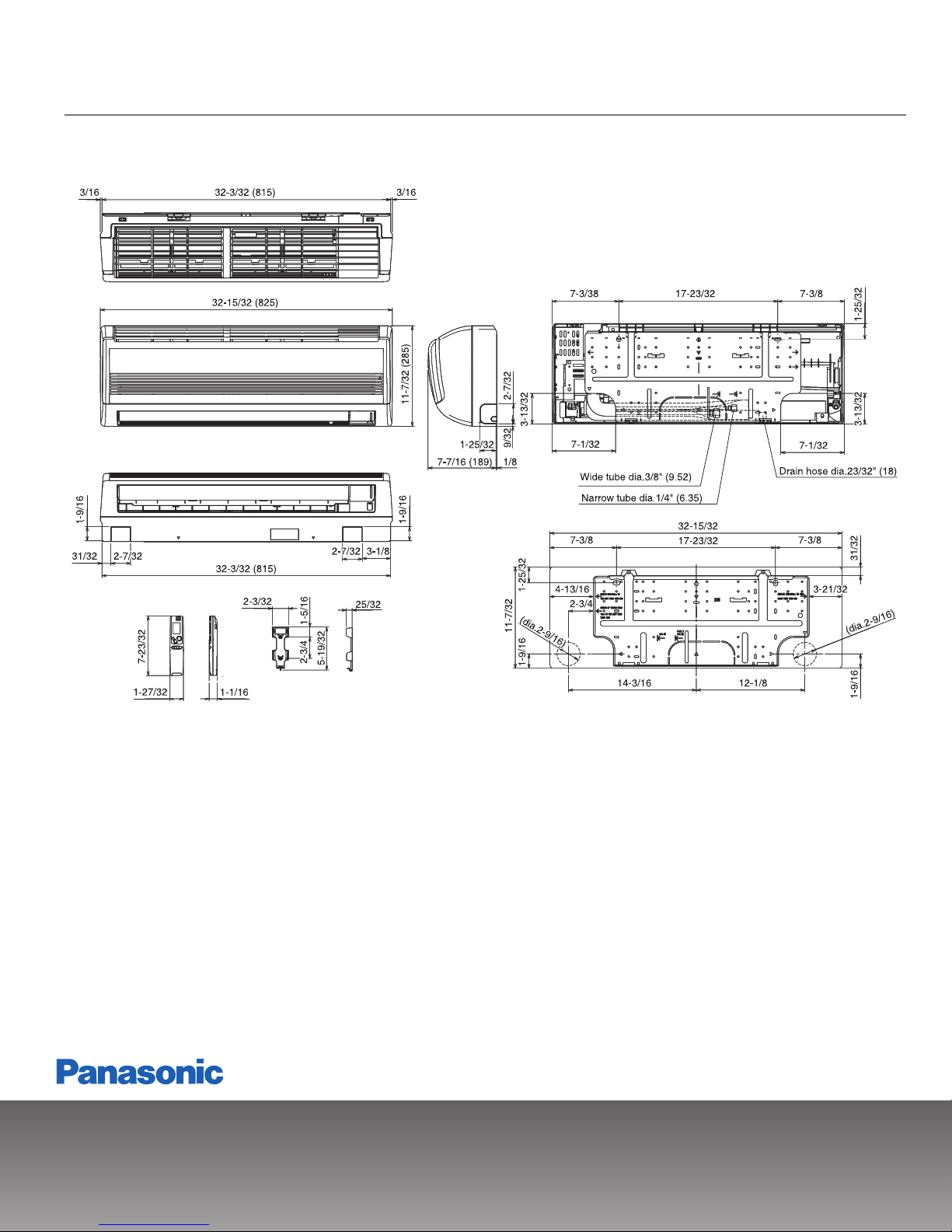

Indoor Dimensions

3. DIMENSIONAL DATA

Indoor Unit CS-MKS7NKU

CS-MKS9NKU

CS-MKS12NKU

Unit: inch(mm)

(852-0-0010-215-00-0)
