1 Features 2

2 Functions 3

3 Product Specifications 6

4 Dimensions 10

5 Refrigeration Cycle Diagram 12

6 Block Diagram 13

7 Wiring Diagram 14

8 Operation Details 15

8.1. BASIC FUNCTION 15

8.2. PROTECTION CONTROL FEATURES 30

8.3. OXYGEN ENRICH OPERATION 40

9 Operating Instructions 52

10 Installation Instructions 60

and distribution is a violation of law.

CS-XE9CKE CU-XE9CKE

CS-XE12CKE CU-XE12CKE

10.1. SAFETY PRECAUTIONS 60

10.2. INDOOR UNIT 63

10.3. OUTDOOR UNIT 67

11 Installation and Servicing Air Conditioner Using R410A 71

11.1. OUTLINE 71

11.2. TOOLS FOR INSTALLING/SERVICING REFRIGERANT

PIPING 72

11.3. REFRIGERANT PIPING WORK 76

11.4. INSTALLATION, TRANSFERRING, SERVICING 78

12 Servicing Information 82

12.1. TROUBLESHOOTING 82

12.2. BREAKDOWN SELF DIAGNOSIS FUNCTION 84

12.3. REMOTE CONTROL 86

Air Conditioner

CONTENTS

Page Page

Order No. MAC0403017C2

12.4. DISASSEMBLY OF PARTS 87

13 Technical Data 91

14 Exploded View 94

15 Replacement Parts List 95

16 Exploded View 96

17 Replacement Parts List 97

18 Electronic Circuit Diagram 98

18.1. REMOTE CONTROL

106

18.2. PRINT PATTERN INDOOR UNIT PRINTED CIRCUIT

BOARD (MAIN) 107

•

• •

• Product

−

− −

− Microcomputer-controlled compressor operating

frequency.

−

− −

− Vertical and horizontal airflow directions.

−

− −

− Five modes of operation selection.

−

− −

− Air filter with function to reduce dust and smoke.

−

− −

− Catechin air purifying filter prevent the growth of

bacteria, viruses trapped, trap dust, tobacco smoke and

tiny particles.

−

− −

− Remote control self-illuminating button.

−

− −

− Ionizer control for generate negative ion in discharge air.

−

− −

− Quiet mode to provide quiet operation.

−

− −

− Oxygen mode to supply oxygen enrich air to indoor

room.

−

− −

− 24-hour timer setting.

−

− −

− Long installation piping up to 15 meter.

•

• •

• Quality Improvement

−

− −

− Random auto restart after power failure for safety restart

operation.

−

− −

− Gas leakage detection.

−

− −

− Blue Coated Condenser for high resistance to corrosion.

•

• •

• Serviceability

−

− −

− Removeable and washable front panel.

−

− −

− Breakdown self diagnosis function.

•

• •

• Environmental Protection

−

− −

− Non-ozone depletion substances refrigerant (R410A).

18.3. PRINT PATTERN INDOOR UNIT PRINTED CIRCUIT

BOARD (POWER) 108

18.4. PRINT PATTERN INDICATOR DISPLAY 108

18.5. PRINT PATTERN OUTDOOR UNIT PRINTED CIRCUIT

BOARD (MAIN)

109

18.6. PRINT PATTERN OUTDOOR UNIT PRINTED CIRCUIT

BOARD (OXYGEN)

110

1 Features

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

2 Functions

Remote Control

Operation OFF / ON

OFF/ON

Room Temperature Setting

TEMP

Operation Mode Selection

• Automatic Operation

•

HEAT

Heating Operation

•

COOL

Cooling Operation

•

DRY

Soft Dry Operation

•

FAN

Fan Operation

Time / Timer Setting

• Hours and minutes setting.

Clock Setting

• Current time setting.

Quiet Mode Operation OFF / ON

QUIET

Airflow Direction Control

• 24-hour, OFF / ON Real Timer Setting.

Timer Setting

Timer Operation Set / Cancel

• ON Timer and OFF Timer setting and

cancellation.

CLOCK

Oxygen Mode Operation OFF/ON

• Increase or decrease set temperature.

(16°C to 30°C)

Illuminable

buttons

• Vertical Automatic Airflow

Direction Control and Manual

Airflow Direction Control (5

stages of adjustment).

•Horizontal Automatic Airflow

Direction Control and Manual

Airflow Direction Control (5

stages of adjustment).

Indoor Fan Speed Selection

FAN SPEED

• Low

•Medium-

•Medium

•Medium+

•High

•

AUTO

Automatic Fan Speed

FAN

Check Point

Reset Point

RESET

TIMER

SET

CANCEL

CHECK

MODE

AIR SWING

• Breakdown self diagnosis function.

• Clear memory data.

Ion Mode Operation OFF / ON

OFF

∧

∨

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

Indoor Unit

Microcomputer-controlled Room

Temperature Control

Automatic and 5 Manual Vertical

Airflow Directions

Automatic and 5 Manual Horizontal

Airflow Directions

Automatic O

eration Butto

Press for < 5s to operate Automatic operation mode.

(Used when the remote control cannot be used.)

Press continuously for 5s or < 8s to operate Test

Run/Pump down. "Beep" sound will be heard.

(Used when test running or servicing.)

Press continuously for 8s or < 11s to operate Forced

Heating Operation. "Beep, beep" sound will be heard.

AUTO

OFF / ON

Operation Indication Lamps

(

LED

)

WER

(

Green

)

......... Lights up in operation,

blinks in Automatic

Operation Mode judging,

deice, ON Timer sampling

and Hot Start Operation.

Five Operation Modes

Heating, Cooling, Soft Dry, Fan and Automatic Mode.

Oxygen Operation

To supply oxygen enrich air.

Quiet Operation

To provide quiet operation.

Random Auto Restart

ontro

Operation is restarted randomly after power

failure at previous setting mode.

Delay ON Timer and OFF Timer

Press continuously for 11s or < 16s to change

different remote control setting (A ↔B mode),

or testify oxygen operation "Beep, beep, beep"

sound will be heard.

Press continuously for 16s or < 21s to omit or

resume the remote control signal receiving

sound or H14 Abnormality Detection mode.

QUIET (Orange)......... Lights up in Quiet Mode

Operation.

TIMER (Orange)......... Lights up in Timer

Setting. Blinks in Self

Diagnosis Control.

(

Green

)

....... Lights up in Oxygen

Mode Operation.

(

Green

)

............ Lights up in Ionizer

Mode Operation. Blinks

in Ionizer error.

Deodorizing Control

Indoor Power Relay Control

Anti-Dew Formation Control

Anti Freezing Control

Low Pressure Control

(Gas Leakeage Detection)

Breakdown Self Diagnosis

Function

Anti-Cold Draft Control

High Pressure Control

Hot Start

Intake Air Temperature Control

Deice Operation

Ionizer Control

Automatic and 5 Manual Indoor

Fan Speeds

Ionizer control for generate negative ion in

discharge air.

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

Outdoor Unit

30 seconds Forced Operation

Time Delay Safety Control

Overload Protection

Deice Operation

Compressor Overheating

Prevention Control

IPM (Power Transistor)

Overheating Protection Control

Total Running Current Control

Low Operation Frequency

Protection Control

Outdoor Air Temperature

Control

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

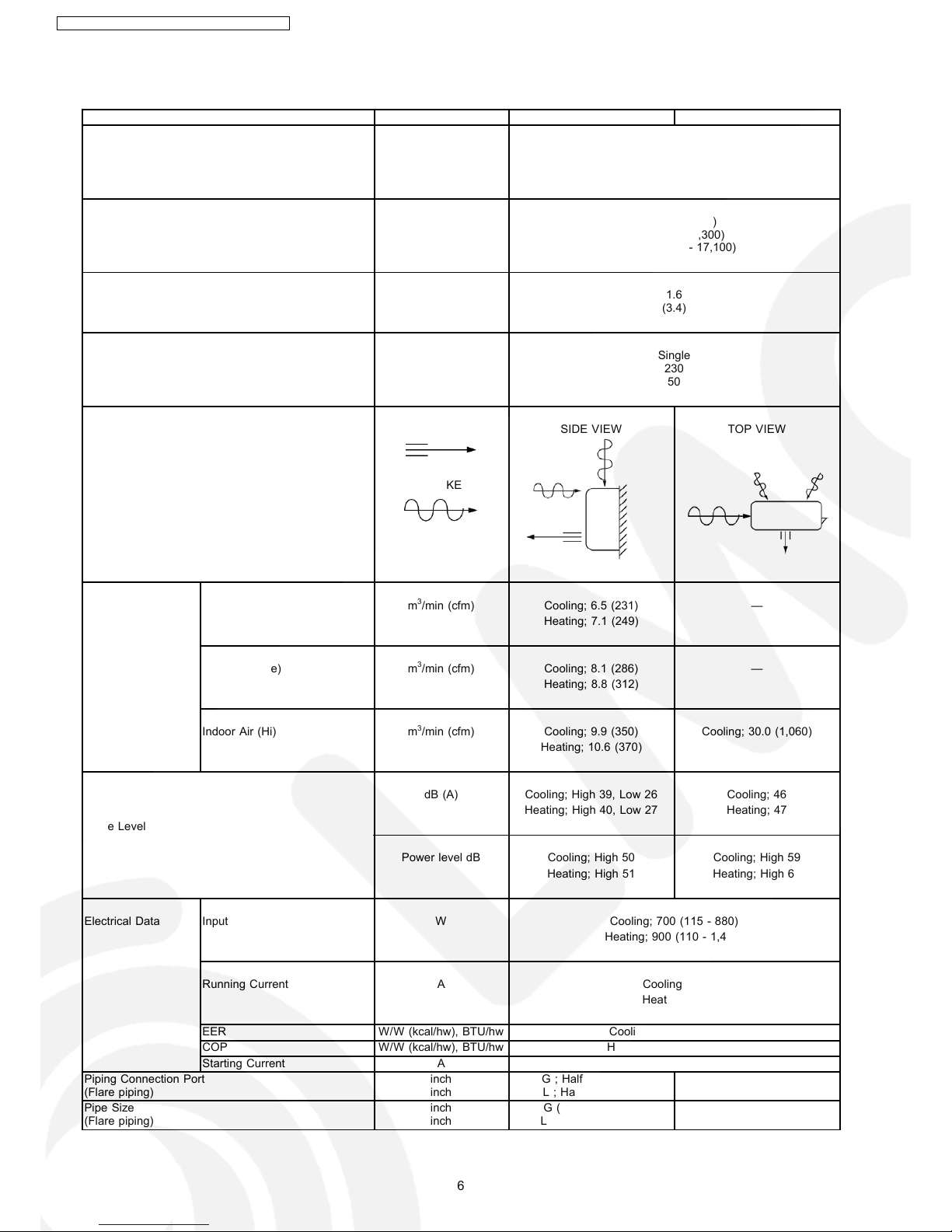

3 Product Specifications

Unit CS-XE9CKE CU-XE9CKE

Cooling Capacity kW

kcal/h

BTU/h

2.6 (0.60 - 3.00)

2,240 (520 - 2,580)

8,870 (2,050 - 10,200)

Heating Capacity kW

kcal/h

BTU/h

3.6 (0.60 - 5.00)

3,100 (520 - 4,300)

12,300 (2,050 - 17,100)

Moisture Removal l/h

Pint/h

1.6

(3.4)

Power Source Phase

Cycle

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 6.5 (231) —

Heating; 7.1 (249)

Indoor Air (Me) m3/min (cfm) Cooling; 8.1 (286) —

Heating; 8.8 (312)

Indoor Air (Hi) m3/min (cfm) Cooling; 9.9 (350) Cooling; 30.0 (1,060)

Heating; 10.6 (370)

dB (A) Cooling; High 39, Low 26 Cooling; 46

Heating; High 40, Low 27 Heating; 47

Noise Level

Power level dB Cooling; High 50 Cooling; High 59

Heating; High 51 Heating; High 60

Electrical Data Input W Cooling; 700 (115 - 880)

Heating; 900 (110 - 1,400)

Running Current ACooling; 3.3

Heating; 4.0

EER W/W (kcal/hw), BTU/hw Cooling; 3.71(3.20), 12.7

COP W/W (kcal/hw), BTU/hw Heating; 4.00 (3.44), 13.7

Starting Current A 4.00

Piping Connection Port

(Flare piping)

inch

G ; Half Union 3/8”

L ; Half Union 1/4”

G ; 3-way valve 3/8”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G (gas side) ; 3/8”

L (liquid side) ; 1/4”

G (gas side) ; 3/8”

L (liquid side) ; 1/4”

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

Unit CS-XE9CKE CU-XE9CKE

Drain

Hose

Inner diameter mm 12 —

Length m 0.65 —

Power Cord Length

Number of core-wire

2.1 m

3 core wires × 1.0 mm2

—

Dimensions Height inch (mm) 10 - 26/32 (275) 21 - 9/32 (540)

Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)

Depth inch (mm) 9 - 9/32 (236) 11 - 3/8 (289)

Net Weight lb (kg) 22 (10.0) 84 (38)

Compressor Type — Involute scroll

Motor Type —Brushless (4-pole)

Rated Output W — 700

Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% P.P

Motor Type Transistor (8-poles) Induction (6-poles)

Input W — 61.3

Rate Output W 30 25

Fan Speed Lo (Cool/Heat) rpm 800 / 840 —

Me (Cool/Heat) rpm 1,000 / 1,040 —

Hi (Cool/Heat) rpm 1,200 / 1,270 770

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium (Blue Coated)

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 1/20

FPI 21 19

Size (W × H × L) mm 610 × 315 × 25.4 732.1 × 508 × 22

Refrigerant Control Device — Capillary Tube

Refrigeration Oil (c.c) — RB68A (360)

Refrigerant (R410A) g (oz) — 840 (29.7)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

Length mm — C1, C2 ; 1,100, C3 ; 440

Capillary Tube Flow Rate l/min — C1, C2 ; 5.0, C3 ; 18.6

Inner Diameter mm — C1, C2 ; 1.2, C3 ; 1.7

Air Filter Material

Style

P.P.

Honeycomb

—

Fan Motor Capacitor µF, VAC — 1.8 µF, 400 VAC

•

• •

• Specifications are subject to change without notice for further improvement.

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

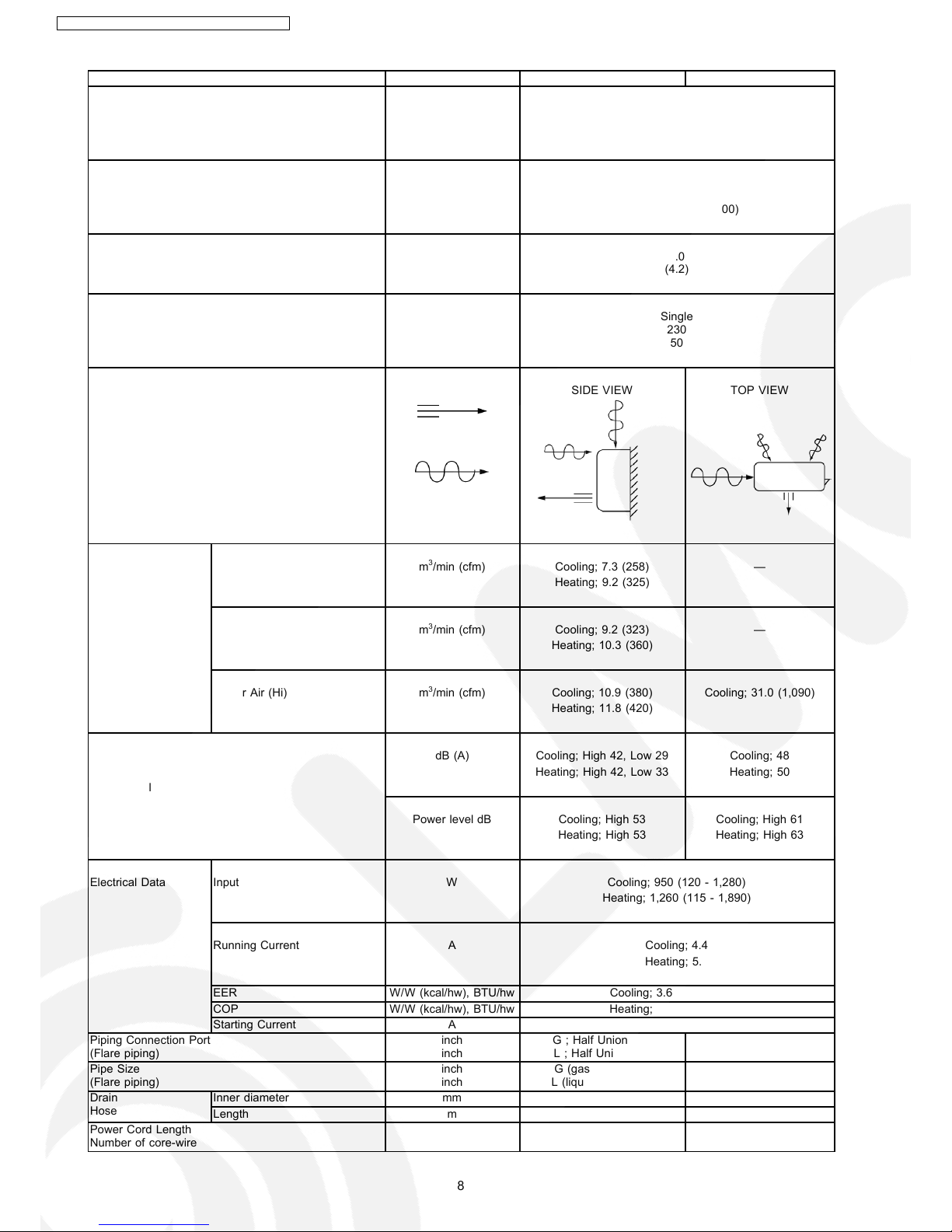

Unit CS-XE12CKE CU-XE12CKE

Cooling Capacity kW

kcal/h

BTU/h

3.45 (0.60 - 4.00)

2,970 (520 - 3,440)

11,800 (2,050 - 13,600)

Heating Capacity kW

kcal/h

BTU/h

4.80 (0.60 - 6.50)

4,130 (520 - 5,590)

16,400 (2,050 - 22,200)

Moisture Removal l/h

Pint/h

2.0

(4.2)

Power Source Phase

Cycle

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 7.3 (258) —

Heating; 9.2 (325)

Indoor Air (Me) m3/min (cfm) Cooling; 9.2 (323) —

Heating; 10.3 (360)

Indoor Air (Hi) m3/min (cfm) Cooling; 10.9 (380) Cooling; 31.0 (1,090)

Heating; 11.8 (420)

dB (A) Cooling; High 42, Low 29 Cooling; 48

Heating; High 42, Low 33 Heating; 50

Noise Level

Power level dB Cooling; High 53 Cooling; High 61

Heating; High 53 Heating; High 63

Electrical Data Input W Cooling; 950 (120 - 1,280)

Heating; 1,260 (115 - 1,890)

Running Current ACooling; 4.4

Heating; 5.6

EER W/W (kcal/hw), BTU/hw Cooling; 3.63 (3.13), 12.4

COP W/W (kcal/hw), BTU/hw Heating; 3.81 (3.28), 13.0

Starting Current A 5.60

Piping Connection Port

(Flare piping)

inch

G ; Half Union 1/2”

L ; Half Union 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

Drain

Hose

Inner diameter mm 12 —

Length m 0.65 —

Power Cord Length

Number of core-wire

2.1 m

3 core wires × 1.0 mm2

—

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

Unit CS-XE12CKE CU-XE12CKE

Dimensions Height inch (mm) 10 - 26/32 (275) 21 - 9/32 (540)

Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)

Depth inch (mm) 9 - 9/32 (236) 11 - 3/8 (289)

Net Weight lb (kg) 22 (10.0) 88 (40)

Compressor Type — Involute scroll

Motor Type —Brushless (4-pole)

Rated Output W — 700

Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% P.P

Motor Type Transistor (8-poles) Induction (6-poles)

Input W — 65.9

Rate Output W 30 29

Fan Speed Lo (Cool/Heat) rpm 880 / 1,100 —

Me (Cool/Heat) rpm 1,100 / 1,230 —

Hi (Cool/Heat) rpm 1,310 / 1,410 830

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium (Blue Coated)

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 2/24

FPI 21 17

Size (W × H × L) mm 610 × 315 × 25.4 703.8

735.0

× 504 × 36.4

Refrigerant Control Device — Capillary Tube

Refrigeration Oil (c.c) — RB68A (360)

Refrigerant (R410A) g (oz) — 1,020 (36.0)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

Length mm — C1, C2 ; 1,100, C3 ; 750

Capillary Tube Flow Rate l/min — C1, C2 ; 5.0, C3 ; 15.4

Inner Diameter mm — C1, C2 ; 1.2, C3 ; 1.7

Air Filter Material

Style

P.P.

Honeycomb

—

Fan Motor Capacitor µF, VAC — 2.0 µF, 400 VAC

•

• •

• Specifications are subject to change without notice for further improvement.

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

4 Dimensions

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE

Altri manuali per CS-XE9CKE

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Condizionatore d'aria

Panasonic

Panasonic CS-A18EKH Manuale utente

Panasonic

Panasonic CS-E9NKA Manuale utente

Panasonic

Panasonic CW-HZ70ZA/CW-HZ90ZA Manuale utente

Panasonic

Panasonic CS-XKU9WKT Manuale utente

Panasonic

Panasonic S-200PE2R5 Manuale utente

Panasonic

Panasonic CS-PW18GKX Manuale utente

Panasonic

Panasonic S-36PU1E5 Manuale utente

Panasonic

Panasonic U-72ME2U94 Manuale utente

Panasonic

Panasonic CS-TZ20WKEW Manuale utente

Panasonic

Panasonic CU-Z18SKE Manuale utente

Panasonic

Panasonic CS-ME7EB1E Manuale utente

Panasonic

Panasonic CS-LU12UKYRN Series Manuale utente

Panasonic

Panasonic S-15MF3E5B Manuale utente

Panasonic

Panasonic U-5MX3XPQ Manuale utente

Panasonic

Panasonic CS-E15EKEA Manuale utente

Panasonic

Panasonic CS-TE25TKEW Manuale utente

Panasonic

Panasonic CS-PS9QKH Manuale utente

Panasonic

Panasonic CS-YU18ZKA Manuale utente

Panasonic

Panasonic CW-XC145HU Manuale utente

Panasonic

Panasonic CS-S9NKR Manuale utente

Panasonic

Panasonic S-07MK2U6 Manuale utente

Panasonic

Panasonic CU-2E18SBU-5 Manuale utente

Panasonic

Panasonic CS-PZ25TKE Manuale utente

Panasonic

Panasonic CS-NE9NKE Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente

Webasto

Webasto Frigo Top 25 DS Manuale utente
