1 Features 2

2 Functions 3

3 Product Specifications 6

4 Dimensions 14

5 Refrigeration Cycle Diagram 16

6 Block Diagram 17

7 Wiring Diagram 18

8 Operation Details 19

9 Operating Instructions 29

10 Installation Instructions 34

and distribution is a violation of law.

CS-C18BKP CU-C18BKP5

CS-C18BKP CU-C18BKP6

CS-C24BKP CU-C24BKP5

CS-C24BKP CU-C24BKP6

11 3-way Valve 44

12 Servicing Information 57

13 Troubleshooting Guide 61

14 Technical Data 63

15 Exploded View 66

16 Replacement Parts List 67

17 Exploded View 69

18 Replacement Parts List 70

19 Electronic Circuit Diagram 73

Room Air Conditioner

CONTENTS

Page Page

Order No. MAC0111061C0

E25

• High Efficiency

• Compact Design

• Comfort Environment

− 8 hours of sleep mode operation

− Air filter with function to reduce dust and smoke

− Wider range of horizontal discharge air

− New Automatic air swing and manual adjusted by

remote control for horizontal airflow.

• Auto Restart

− Random auto restart after power failure for safety restart

operation

• Removable and Washable Front Panel

• Remote Control Self-illuminating Button

• Catechin Air Purifying Filter

− Trap dust, tobacco smoke and tiny particles

− Prevent the growth of bacteria and viruses trapped

• Solar Refreshing Deodorizing Filter

− Remove unpleasant odour from the air

• Quality Improvement

− Gas leakage protection

− Prevent compressor reverse cycle

− External OLP to protect compressor (C18BKP6 only)

other inner protector

− Noise prevention during soft dry operation

− Anti-dew Formation Control (Cooling & Soft Dry)

− Blue Coated Condenser (Gold Coated Condenser for

Panama only)

− High resistance to corrosion.

• Operation Improvement

− Economy mode to reduce electrical power consumption

− Powerful mode to reach the desired room temperature

quickly

• Long Installation Piping

− Long piping up to 25 meter

• 24-hour Timer Setting

1 Features

CS-C18BKP CU-C18BKP5 / CS-C18BKP CU-C18BKP6 / CS-C24BKP CU-C24BKP5 / CS-C24BKP CU-C24BKP6

2 Functions

Remote Control

Operation OFF / ON

OFF / ON IRoom Temperature Setting

TEMP.

Operation Mode Selection

•

AUTO

Automatic Operation Mode

•

COOL

Cooling Operation Mode

•

DRY

Soft Dry Operation Mode

•

FAN

Air Circulation Mode

MODE

TIME Time / Timer Setting

• Hours and minutes setting.

Clock Setting

• Current time setting.

Sleep Mode Operation OFF / ON

SLEEP

Indoor Fan Speed Selection

FAN SPEED

•

FAN

Low Fan Speed

•

FAN

Medium Fan Speed

•

FAN

High Fan Speed

•

AUTO

Automatic Fan Speed

FAN

Vertical Airflow Direction Control

• 24-hour, OFF / ON Real Timer Setting.

ON-TIMER

OFF-TIMER Timer Operation Selection

SET

CANCEL Timer Operation Set / Cancel

• ON Timer and OFF Timer setting and

cancellation.

CLOCK

AIR SWING

•Vertical Automatic Airflow

Direction Control and Manual

Airflow Direction Control (5

stages of adjustment).

•Horizontal Automatic Airflow

Direction Control and Manual

Airflow Direction Control (5

stages of adjustment).

Powerful Mode Operation OFF/ON

POWERFUL

Economy Mode Operation OFF/ON

ECONOMY

Cooling, Soft Dry, Air Circulation Operation.

• Temperature Setting (16°C to 30°C)

Automatic Operation

•Operation with 2°C higher than

standard temperature.

• Operation with standard temperature.

•Operation with 2°C lower than

standard temperature.

Self illuminating

button

CS-C18BKP CU-C18BKP5 / CS-C18BKP CU-C18BKP6 / CS-C24BKP CU-C24BKP5 / CS-C24BKP CU-C24BKP6

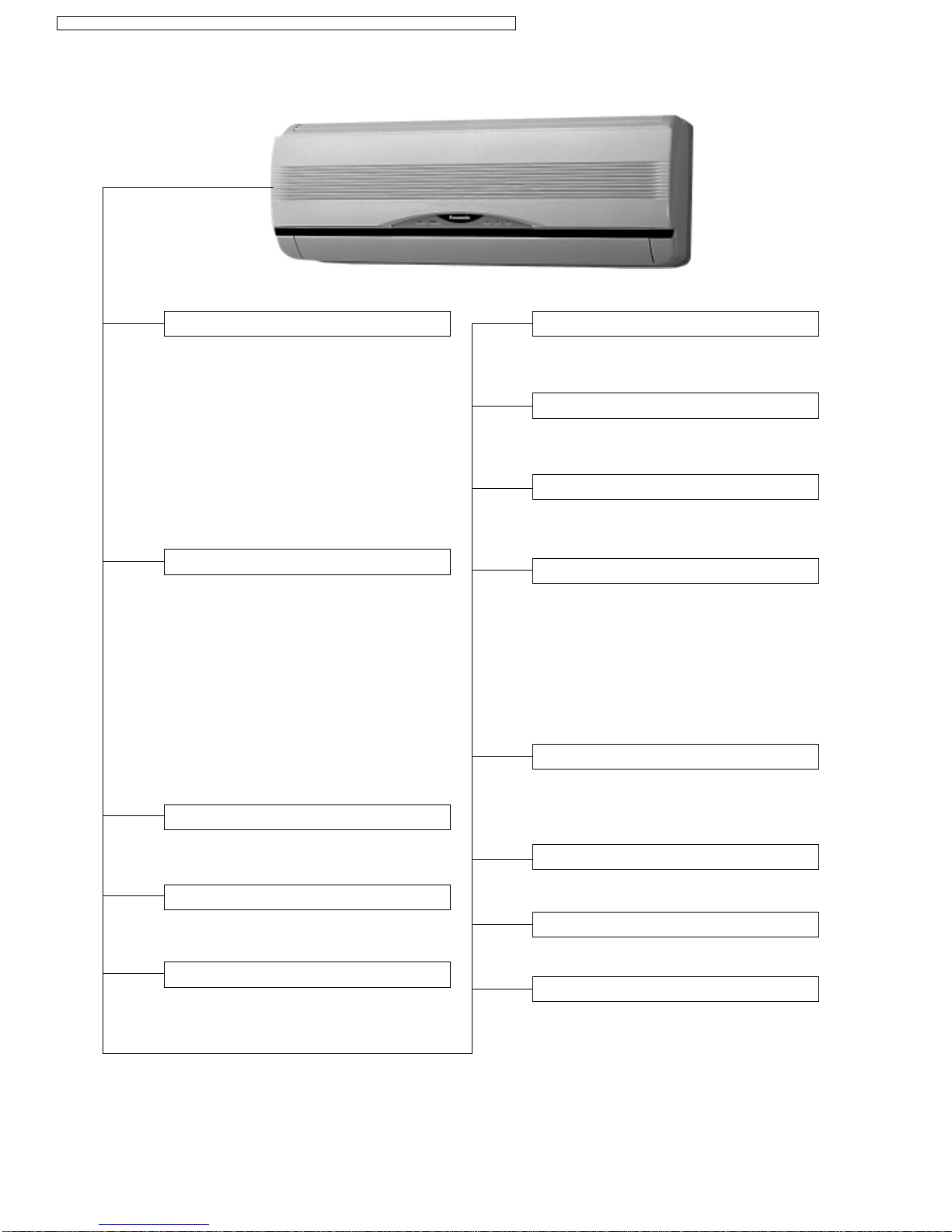

Indoor Unit

Random Auto Restart Control

•Operation is restarted randomly after

power failure at previous setting mode.

Anti-Freezing Control

•Anti-Freezing control for indoor heat

exchanger. (Cooling and Soft Dry)

Sleep Mode Auto Control

•Indoor Fan operates at Low speed.

•Operation stops after 8 hours.

Indoor Fan Speed Control

•High, Medium and Low.

•Automatic Fan Speed Mode

–Cooling : Fan rotates at Hi, Me and

SLo speed. Deodorizing

control is available.

–Soft Dry: Fan rotates at SLo speed.

Deodorizing control

is available.

•Automatic air swing and manual adjusted

by remote control for vertical and

horizontal airflow.

Airflow Direction Control

Automatic Operation Button

•Press for < 5s to operate Automatic

operation mode.

(Used when the remote control cannot be used.)

•Press continuously for 5s or < 10s to

operate Test Run/Pump down. “Beep”

sound will be heard at the 5th second.

(Used when test running or servicing.)

•Press continuously for 10s and above to

omit or resume the remote control signal

receiving sound. “Beep, beep”sound will

be heard at the 10th second.

AUTO

OFF / ON

Operation Indication Lamps (LED)

•

POWER

(Green) ........Lights up in operation,

blinks in Automatic

Operation Mode

judging.

•

SLEEP

(Orange)........Lights up in Sleep

Mode Operation.

•

TIMER

(Orange) .......Lights up in Timer

Setting.

•

POWERFUL

(Orange)..Lights up in Powerful

Mode Operation.

•

ECONOMY

(Green) .....Lights up in Economy

Mode Operation.

Operation Mode

•Cooling, Soft Dry, Air Circulation and

Automatic Mode.

Powerful Operation

•Reaches the desired room temperature

quickly.

Time Delay Safety Control

•

Restarting is inhibited for appro. 3 minutes.

Economy Operation

•To reduce electrical power consumption.

7 Minutes Time Save Control

•Cooling Operation only.

Anti-Dew Formation Control

•Anti-Dew Formation Control for indoor

unit discharge area.

CS-C18BKP CU-C18BKP5 / CS-C18BKP CU-C18BKP6 / CS-C24BKP CU-C24BKP5 / CS-C24BKP CU-C24BKP6

Outdoor Unit

•To protect compressor from reverse

rotation when there is a instantaneous

power failure.

60 Secs. Forced Operation Control

•Once the compressor is activated, it

does not stop within the first 60 secs.

However, it stops immediately with

remote control stop signal.

Overload Protector

•Inner protector.

Compressor Reverse Rotation

Protection Control

Outdoor Fan Operation Control

•6-pole induction motor (2 speed).

•For Cooling or Soft Dry operation

Hi-speed ............. When outdoor

temperature reaches to 31°C.

Lo-speed............. When outdoor

temperature reaches to 29°C.

CS-C18BKP CU-C18BKP5 / CS-C18BKP CU-C18BKP6 / CS-C24BKP CU-C24BKP5 / CS-C24BKP CU-C24BKP6

3 Product Specifications

Unit CS-C18BK CU-C18BK

Power Source Phase, Voltage, Cycle (1)

(7) Single, 230 - 220, 50 Hz

(2) Single, 220, 60 Hz

(3) Single, 240 - 230, 50 Hz

(4) Single, 220, 50 Hz

(5)

(6) Single, 230 - 208, 60 Hz

Cooling Capacity kW (BTU/h) (1)

(3)

(7)

5.30 - 5.30 (18,100 - 18,100)

(2)

(4) 5.30 (18,100)

(5)

(6) 5.20 - 5.20 (17,700 - 17,700)

Moisture Removal l/h (Pint/h) (1)

(2)

(3)

(7)

2.9 (6.1)

(5)

(6) 2.0 (4.2)

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) (1)

(3)

(7) 12.8 (450) - 12.8 (450) —

(2)

(4) 12.8 (450) —

(5)

(6) 11.4 (400) - 11.4 (400) —

Indoor Air (Me) m3/min (cfm) (1)

(3)

(7) 13.8 (490) - 13.8 (490) —

(2)

(4) 13.8 (490) —

(5)

(6) 12.3 (430) - 12.3 (430) —

Indoor Air (Hi) m3/min (cfm) (1)

(3)

(7) 14.9 (530) - 14.9 (530) —

(2)

(4) 14.9 (530) —

(5)

(6) 13.3 (470) - 13.3 (470) —

Indoor Air (SHi) m3/min (cfm) (1)

(3)

(7) 15.5 (550) - 15.5 (550) —

(2)

(4) 15.5 (550) —

(5)

(6) 13.8 (490) - 13.8 (490) —

Noise Level dB (A) (1)

(7) High 42 - 42, Low 37 - 37 High 55 - 54

(2)

(4) High 42, Low 37 High 54

(3) High 42 - 42, Low 37 - 37 High 56 - 55

(5)

(6) High 42 - 42, Low 37 - 37 High 56 - 54

CS-C18BKP CU-C18BKP5 / CS-C18BKP CU-C18BKP6 / CS-C24BKP CU-C24BKP5 / CS-C24BKP CU-C24BKP6

Unit CS-C18BK CU-C18BK

Power level dB (1) 54 - 54 70 - 70

(2)

(4)

(5)

(6)

(7)

— —

(3) 54 - 54 71 - 70

Electrical Data Input Power kW (1)

(7) 1.76 - 1.72

(2)

(4) 1.72

(3) 1.81 - 1.78

(5)

(6) 1.78 - 1.74

Running Current A(1)

(7) 7.8 - 8.0

(2)

(4) 8.0

(5)

(6) 7.9 - 8.5

EER W/W (BTU/hW) (1)

(7) 3.01 - 3.08 (10.28 - 10.52)

(2)

(4) 3.08 (10.52)

(3) 2.93 - 2.98 (10.00 - 10.17)

(5)

(6) 2.9 - 3.0 (9.9 - 10.1)

Starting Current A(1)

(7) 38.0

(2)

(5)

(6) 47.0

(4) 36.0

Piping Connection Port

(Flare piping) inch

inch G ; Half Union 1/2”

L ; Half Union 1/4”G ; 3-way valve 1/2”

L ; 3-way valve 1/4”

Pipe Size

(Flare piping) inch

inch G ; (gas side) 1/2”

L ; (liquid side) 1/4”G ; (gas side) 1/2”

L ; (liquid side) 1/4”

Drain

Hose Inner diameter mm 12 —

Length mm 650 —

Power Cord Length m1.9 —

Number of core-wire 3 (1.5 mm2)—

Dimensions Height inch (mm) 10 - 13/16 (275) 26 - 31/32 (685)

Width inch (mm) 39 - 9/32 (998) 31 - 1/2 (800)

Depth inch (mm) 8 - 9/32 (210) 11 - 13/16 (300)

Net Weight lb (kg) (1)

(3)

(4)

(7)

24 (11.0) 121 (55.0)

(2)

(5)

(6) 24 (11.0) 106 (48.0)

Compressor Type —Rotary (1 cylinder)

rolling piston type

Motor Type —Induction (2-poles)

Rated Output kW (1)

(3)

(4)

(7)

—1.5

(2)

(5)

(6) —1.2

CS-C18BKP CU-C18BKP5 / CS-C18BKP CU-C18BKP6 / CS-C24BKP CU-C24BKP5 / CS-C24BKP CU-C24BKP6

Unit CS-C18BK CU-C18BK

Air Circulation Type Cross-flow Fan Propeller Fan

Material ASHT-18 PC + AES + Glass Fiber 15%

Motor Type Transistor (8-poles) Induction (6-poles)

Input W44.8 - 53.5 151.2 - 135.7

Rated Output W(1)

(3)

(4)

(7)

30 72

(2)

(5)

(6) 30 52

Fan Speed Low rpm (1)

(3)

(5)

(6)

(7)

1,130 - 1,130 —

(2)

(4) 1,130 —

Medium rpm (1)

(3)

(5)

(6)

(7)

1,220 - 1,220 —

(2)

(4) 1,220 —

High rpm (1)

(3)

(5)

(6)

(7)

1,320 - 1,320 1,020 - 980

(2)

(4) 1,320 980

SuperHigh rpm (1)

(3)

(5)

(6)

(7)

1,370 - 1,370 —

(2)

(4) 1,370 —

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium (Blue/Gold Coat)

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2×15 2×31

FPI 21 18

Size (W × H × L) mm 810 × 315 × 25.4 775.2

754.5 × 651.0 × 25.4

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (cm3) — SUNISO 4GDID or ATMOS

M60 (700)

Refrigerant (R-22) g (oz) (1)

(3)

(4)

(7)

—1,160 (40.9)

(2)

(5)

(6) —1,240 (43.8)

Thermostat Electronic Control Mechanical Control

Protection Device —Inner Protector

Capillary Tube Length mm —611

Flow Rate l/min —27.0

Inner Diameter mm —2.1

Air Filter Material

Style P.P.

Honeycomb —

Capacity Control Capillary Tube

Compressor Capacitor µF, VAC —45 µF, 370VAC

Fan Motor Capacitor µF, VAC —3.5 µF, 450VAC

CS-C18BKP CU-C18BKP5 / CS-C18BKP CU-C18BKP6 / CS-C24BKP CU-C24BKP5 / CS-C24BKP CU-C24BKP6

Note:

• Specifications are subject to change without notice for further improvement.

• (1) —CS-C18BKP/CU-C18BKP5 (Europe).

• (2) —CS-C18BKP-1/CU-C18BKP6-1 (Panama).

• (3) —CS-C18BKP-2/CU-C18BKP5-2 (Oceania).

• (4) —CS-C18BKP-3/CU-C18BKP5-3 (Argentina).

• (5) —CS-C18BKP-4/CU-C18BKP6-4 (U.S.A).

• (6) —CS-C18BKP-5/CU-C18BKP6-5 (Canada).

• (7) —CS-C18BKP-6/CU-C18BKP5-6 (Turkey).

CS-C18BKP CU-C18BKP5 / CS-C18BKP CU-C18BKP6 / CS-C24BKP CU-C24BKP5 / CS-C24BKP CU-C24BKP6

Unit CS-C24BK CU-C24BK

Power Source Phase, Voltage, Cycle (1)

(7) Single, 230 - 220, 50 Hz

(2) Single, 220, 60 Hz

(3) Single, 240 - 230, 50 Hz

(4) Single, 220, 50 Hz

(5)

(6) Single, 230 - 208, 60 Hz

Cooling Capacity kW (BTU/h) (1)

(7) 7.03 - 7.03 (24,000 - 24,000)

(2)

(4) 7.03 (24,000)

(3) 6.85 - 6.85 (23,400 - 23,400)

(5)

(6) 6.82 - 6.82 (23,200 - 23,200)

Moisture Removal l/h (Pint/h) (1)

(4)

(7)

4.0 (8.5)

(3) 3.9 (8.2)

(5)

(6) 3.1 (6.6)

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) (1)

(3)

(7) 13.9 (490) - 13.9 (490) —

(2)

(4) 13.9 (490) —

(5)

(6) 12.4 (440) - 12.4 (440) —

Indoor Air (Me) m3/min (cfm) (1)

(3)

(7) 15.4 (540) - 15.4 (540) —

(2)

(4) 15.4 (540) —

(5)

(6) 13.8 (490) - 13.8 (490) —

Indoor Air (Hi) m3/min (cfm) (1)

(3)

(7) 16.9 (600) - 16.9 (600) —

(2)

(4) 16.9 (600) —

(5)

(6) 15.1 (530) - 15.1 (530) —

Indoor Air (SHi) m3/min (cfm) (1)

(3)

(7) 17.5 (620) - 17.5 (620) —

(2)

(4) 17.5 (620) —

(5)

(6) 15.6 (550) - 15.6 (550) —

Noise Level dB (A) (1)

(7) High 46 - 46, Low 40 - 40 High 60 - 59

(2)

(4) High 46, Low 40 High 59

(3) High 46 - 46, Low 40 - 40 High 61 - 60

(5)

(6) High 46 - 46, Low 40 - 40 High 61 - 59

Power level dB (1) 59 - 59 74 - 74

(2)

(4)

(5)

(6)

(7)

— —

(3) 59 - 59 75 - 74

CS-C18BKP CU-C18BKP5 / CS-C18BKP CU-C18BKP6 / CS-C24BKP CU-C24BKP5 / CS-C24BKP CU-C24BKP6

Altri manuali per CSC18BKP - SPLIT A/C SYSTEM

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Condizionatore d'aria

Panasonic

Panasonic CS-TZ20ZKE Series Manuale utente

Panasonic

Panasonic CU-3Z52TBE Manuale utente

Panasonic

Panasonic WH-ADF0309J3E5CM Manuale utente

Panasonic

Panasonic CS-TZ25ZKEW Manuale utente

Panasonic

Panasonic CS-F14DD3E5 Manuale utente

Panasonic

Panasonic CS-E9RKUAW Manuale utente

Panasonic

Panasonic U-8ME1E8E Manuale utente

Panasonic

Panasonic CS-NZ9SKE Manuale utente

Panasonic

Panasonic CS-PN18VKT Manuale utente

Panasonic

Panasonic CS-RE18GKE Manuale utente

Panasonic

Panasonic U-50PE2E5A Manuale utente

Panasonic

Panasonic CW-XC103HU Manuale utente

Panasonic

Panasonic CS-A24 Manuale utente

Panasonic

Panasonic CS-MKE9NB4U Manuale di installazione e d'uso

Panasonic

Panasonic CS-YC9MKV Manuale utente

Panasonic

Panasonic CS-NE9LKE Manuale utente

Panasonic

Panasonic CU-E18NKUA Manuale utente

Panasonic

Panasonic S-36PY1E5 Manuale utente

Panasonic

Panasonic CS- U12WKY Series Manuale utente

Panasonic

Panasonic S-22MY3E Manuale utente

Panasonic

Panasonic PE2 Series Manuale utente

Panasonic

Panasonic CW-XC243HU Manuale utente

Panasonic

Panasonic CS-VU9SKQ Manuale utente

Panasonic

Panasonic CS-YC9MKV-7 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente

Webasto

Webasto Frigo Top 25 DS Manuale utente
