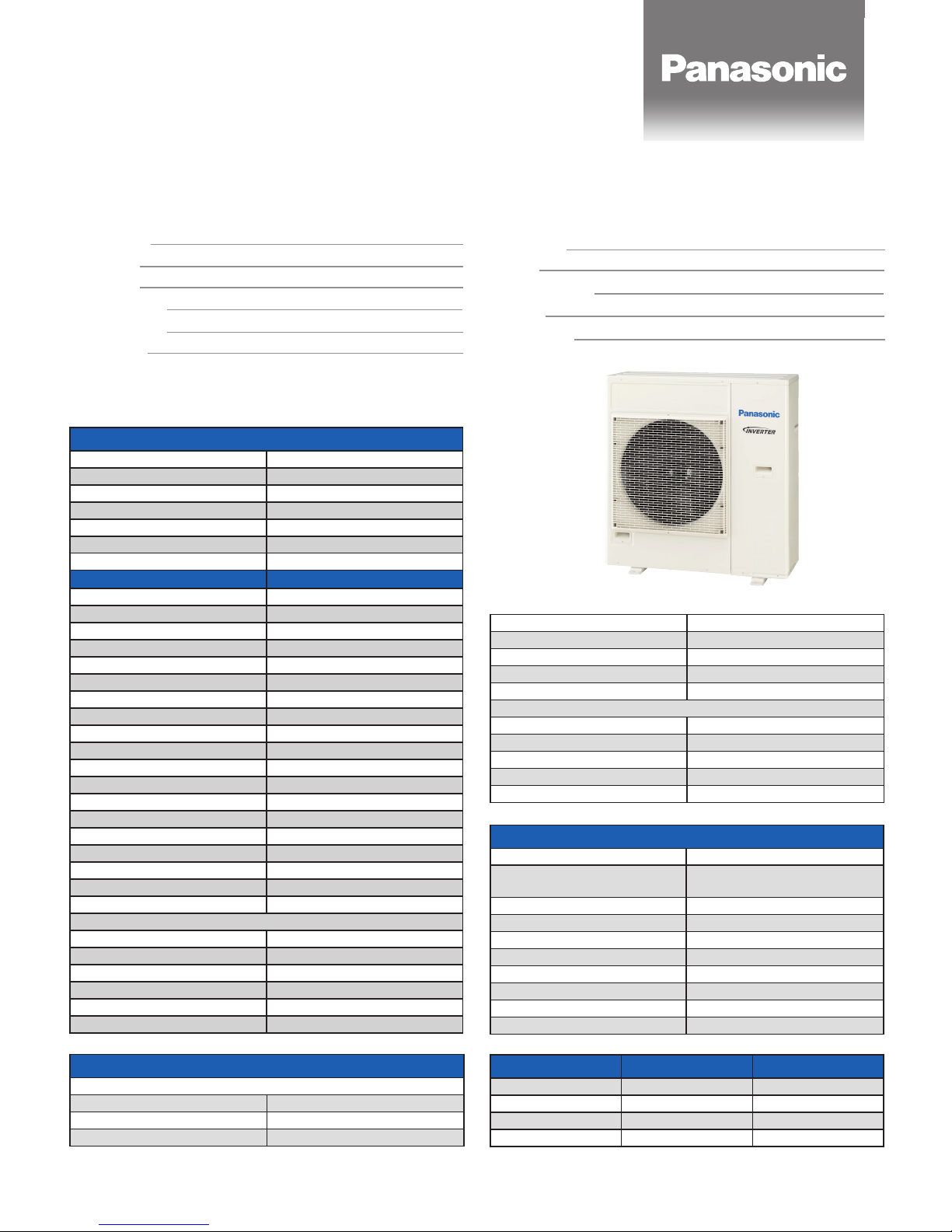

Panasonic CU-5E36QBU Manuale di installazione e d'uso

Split System Submittal Data

Indoor: CU-5E36QBU

Multi System Outdoor Units

Approval:

Date:

Construction:

Unit#:

Drawing#:

Job Name:

Location:

Engineer:

Submitted to:

Submitted by:

Reference:

General Data

Power (V/P/Hz) 230/208/1/60

Minimum Circuit Ampacity (A) 30

Maximum Overcurrent Protection (A)

Compressor DC Twin Rotary

No. Used 1

Output Power (W) 1.3K

Outdoor Unit Cool/Heat

Fan type Propeller

Motor Type DC Motor (8 poles)

Output Power (W) 90

Airflow (CFM) Cooling/Heating 750/740

Coil Type Aluminum (Blue Coated)

Fin Type - Pipe Type Corrugated Fin

Rows - F.P.I. 19

Face Area (sq.ft.) 9.41

Refrigerant R410A

Lbs. - R410a (outdoor unit) 7.5

Control Electronic Expansion Valve

Connection Flare

Line Length, Max (ft.) 82

Elevation Difference, Max (ft.) 49

Line Size (in. O.D. Discharge) 1/4" x 5

Line Size (in. O.D. Suction) 3/8" x 5

Dimensions (HxWxD)

Outdoor Unit (Crated) (in.) 44-3/4 x 42-5/16 x 19-29/32

Outdoor Unit (Uncrated) (in.) 39-11/32 x 37-1/32 x 13-13/32

Weight (lbs.) Indoor

Net 183

Shipping 201

Performance Data @ ARI Standard Conditions (230/208V)

Cooling

Total Capacity (BTU/H) 36,000 (9,900-39,000)

Sensible Capacity (BTU/H) 33,840

Latent Capacity (BTU/H) 2,160

Features

Wireless Remote Controller Standard

Wired Remote Controller

(CZ-RD516C)

Optional

Controls Microprocessor

Remote Controller LCD Wireless Type

Temperature Control IC Thermostat

Air Louver, Horizontal Manual

Air Louver, Vertical Automatic

Power Failure Autmoatic Restart Built-In

Self-Diagnosis Built-In

Air Filter Washable, One-touch

Operating Range

Indoor Air Intake Temp

Outdoor Air Intake Temp

Cooling (Max) 90F DB/74F WB 115F DB/79F WB

Cooling (Min) 60F DB/52F WB 14F DB/-F WB

Heating (Max) 86F DB/-F WB 75F DB/64F WB

Heating (Min) 60F DB/-F WB 5F DB/3.2F WB

SEER 18.5

Dehumidification (Pints/H) N/A

Amps (A) 17.2/19

Power Inputs (W) 3750 (Max 3860)

Outdoor Sound Rating (dB-A) 55

Heating

Total Capacity (BTU/H) 37,800 (11,600-49,500)

HSPF 10.0

Amps (A) 13.4/14.8

Power Inputs (W) 2,900

Outdoor Sound Rating (dB-A) 55

3. Dimensions

Panasonic North America

Air Conditioning Division

1690 Roberts Blvd., NW, Suite 110

Kennesaw, GA 30144

us.panasonic.com/aircon

Outdoor Dimensions
