Panasonic CU-S18NKUA Manuale utente

Split System Submittal Data

Indoor: CS-S18NKUA Outdoor: CU-S18NKUA

Wall Mounted Air Conditioner's Low Ambient Models

Job Name: Approval:

Location: Date:

Engineer: Construction:

Submitted to: Unit #:

Submitted by: Drawing #:

Reference:

Power

V

/PH/Hz 230/208/1/60 Refrigeran

t

Circuit Ampacity (A) 20 Lbs. - R410a (outdoor unit)

Fuse Size, Max. (A) 20 Control

Connection

Compresso

r

DC Rotary Inverter Line Length, Max (ft.)

No. used 1 Lift Difference, Max (ft.)

Output Power (W) Line Size (in. O.D. Discharge) 1/4"

Line Size (in. O.D. Suction) 1/2"

Outdoor Unit

Fan type Propeller Dimensions (in.) Height Width Depth

Motor Type DC Motor ( 8 poles ) Indoor Unit (Uncrated) 11-7/16" 42-5/32" 9-9/32"

Output Power (W) 40 (Crated)

Airflow CFM 1095 Outdoor Unit (Uncrated) 31-5/16" 34-15/32" 12-5/8"

(Crated)

Coil Type Aluminum ( Blue Coated )

Fin Type - Pipe Type Corrugated Fin Weight Indoor Outdoor

Rows - F.P.I 2 - 17 Net (lbs.) 26.0 115.0

Face Area (sq.ft) 3.8 Shipping (lbs.)

Indoor Unit

Fan type Cross Flow Cooling

No. Speeds 3 Total Capacity (BTU/H)

RPM (High) 1300 SEER 18

Motor Output (W) 40 Dehumidification (Pints/H)

CFM (Qlo,Lo,Me,Hi,Shi) 414/464/554/650/670 Amps (A) 5.95

Indoor Sound Rating (Hi) (dB-A) 40 Power Inputs (W) 1300

Coil Type Aluminum Fin & Copper Tube Outdoor Sound Rating (dB-A) 47

Fin Type - Pipe Type Slit Plate - Inner Rifled

Rows - F.P.I 2-21 Features

Face Area (sq.ft) 2.66 Controls Microprocessor

Drain Connection Size (in.) Remote ControllerLCD Wireless Type, Temp, Sensor Built In

Temperature Control IC Thermostat

Operating Range Air Louver (Horizontal) Manual

Cooling Indoor Air Intake Temp. Outdoor Air Intake Temp. (Vertical) Automatic

Maximum 90F DB/74F WB 115F DB Power Failure Automatic Restart Built-In

Minimum 60F DB/52F WB 0F DB Self-Diagnosis Built-In

Air Filter Washable, Anti-Mold

49

17100

Performance Data @ ARI Standard Conditions (230/208V)

131

R410A

Electronic Expansion Valve

Flare

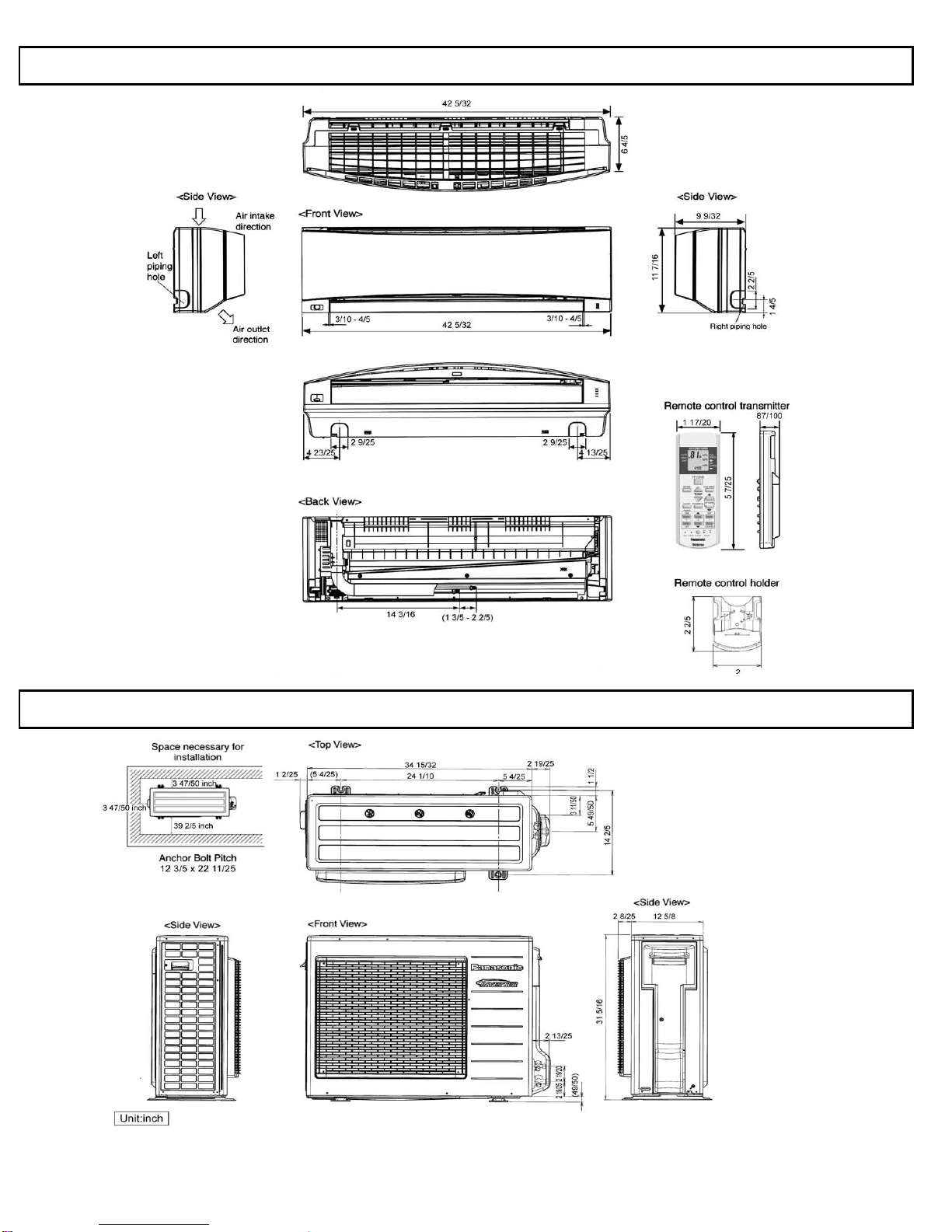

Outdoor Dimensions

Indoor Dimensions
