7.1. Main Unit

7.1.1. Vertical Airflow Direction Vane.

Airflow direction adjustment Up-and-Down.

•

• •

• The vertical airflow direction vane may

be positioned to deflect the air

upwards, downwards or straight on.

7.1.2. Ventilation Lever.

When the slide lever is in the:

•

• •

• “OPEN” position, the ventilation door is

opened to allow air, smoke and odors to

be expelled from the room.

•

• •

• “CLOSE” position, the ventilation door is

closed and the air inside the room is

circulated and conditioned.

7 Operating Instructions

7.1.3. Main Control Knob

CW-A90VR / CW-A120VR

7.1.4. Operating Conditions.

Use the air conditioner under the following conditions:

•

• •

• Operating temperature range.

Indoor side Outdoor side

D.B.T. W.B.T. D.B.T. W.B.T.

Cooling Maximum Temperature 32°C 23°C 43°C 26°C

Minimum Temperature 21°C 15°C 21°C 15°C

Heating Maximum Temperature 27°C ---- 21°C 15°C

Minimum Temperature 20°C ---- -5°C -6°C

D.B.T.: Dry Bulb Temperature

W.B.T.: Wet Bulb Temperature

Note: Humidity may exceed 90%.

−

− −

− Continuous operation at humidity may create

condensation and result in waterdrops on the intake and

outlet vanes

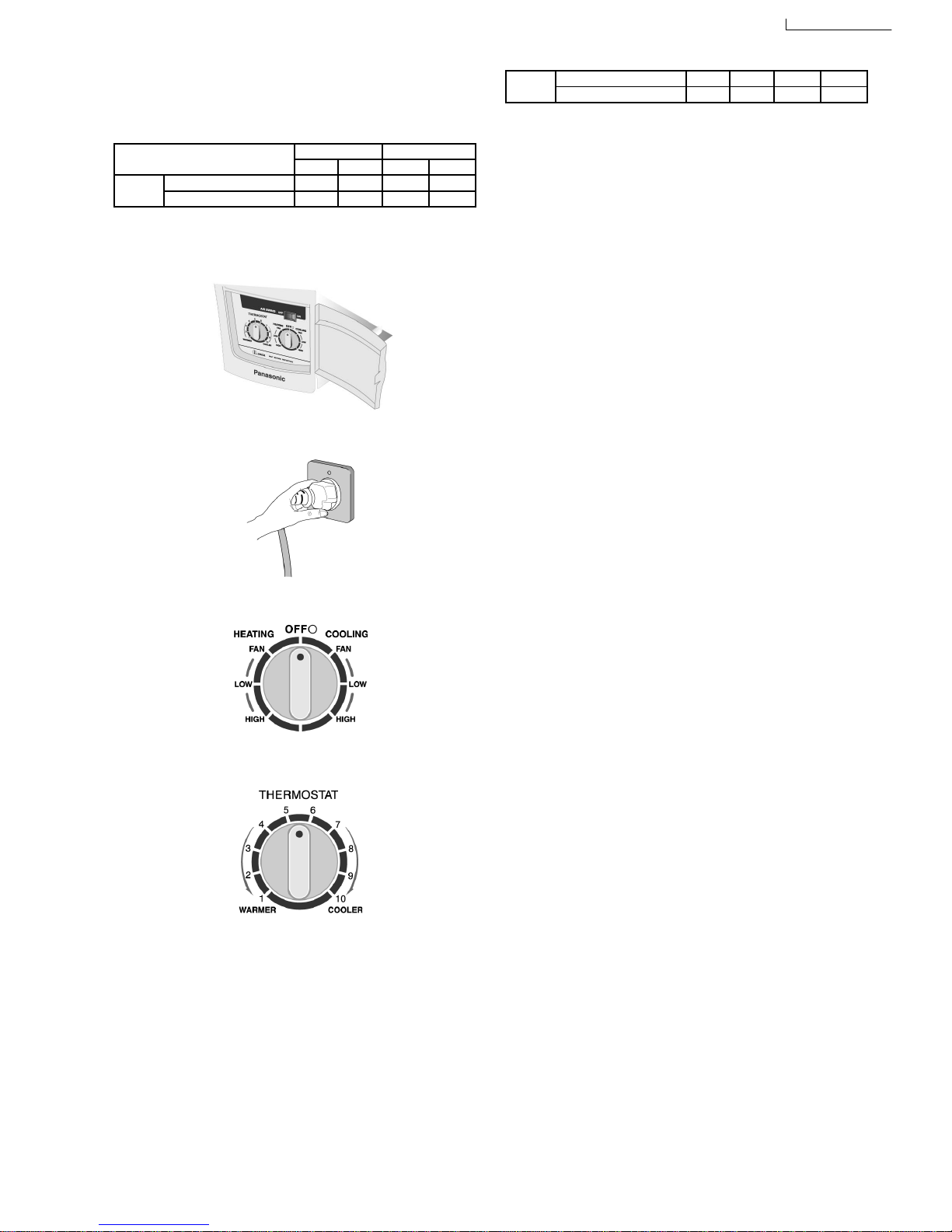

7.2. How to Operate.

Fig. 1

(1) Open the Control Panel Cover.

Fig. 2

(2) Power Supply

Switch off the breaker and set the Main Control Knob to the

OFF position before plugging the power plug into an

electrical outlet.

Fig. 3

(3) Main Control Knob

Set to LOW COOLING or HIGH COOLING and LOW

HEATING or HIGH HEATING as desired. (FAN setting

operates the fan only.)

Caution: If the Main Control Knob is turned off or

changed to a fan setting from a cooling operation

setting, WAIT at least 3 minutes before resetting to

cooling operation.

Fig.4

(4) Thermostat Control Knob.

•

• •

• If the room temperature is not as desired after

areasonble period, turn the thermostat control knob

clockwise to make the room cooler or counter clockwise

to make the roomwarmer.

•

• •

• When the thermostat control knob is set to 10, moisture

may freeze onto the evaporator fins and prevent

effective cooling. If this happens, turn the main control

knob to FAN and the thermostat control knob counter

clockwise. This will quickly defrost the evaporator fins so

that normal cooling can be resumed.

NOTE: Usually 4-5 is the recommended setting for heating

and 6-7 is the recommended setting for cooling.

CW-A90VR / CW-A120V
