Chapter 1 Before Starting

1Before Starting

Function Setup Outline

Use the function setting mode to change the standard settings of the machine. This section contains

the menu and basic function setup operations.

Function Setup Menu Configuration

• The function setup operations are divided into the General User Mode and Key Operator Mode.

For Fax/Email Settings, the Address Book and Program Keys menus are also provided.

• The Key Operator Password is required before any change can be made in the Key Operator Mode.

For security, the Key Operator is advised to setup and manage the 8-digit password. To set the

password, consult with the authorised Panasonic dealer. (The default password is 00000000.)

Function Setting

General Settings General User Mode Key Operator Mode

Copier Settings General User Mode Key Operator Mode

Fax/Email Settings Address Book

Program Keys

Key Operator Mode User Parameters

Fax Parameters

Scanner Settings General User Mode Key Operator Mode

Printer Settings General User Mode Key Operator Mode

Network Settings Key Operator Mode

Counter View

Key Operator Mode Requires the Key Operator Password (8 digits).

Chapter 1 Before Starting

Using the Keyboard

Entering Uppercase / Lowercase

Letters

Select “Caps” to shift the characters

between uppercase/lowercase.

Ex: When setting “04 LDAP (00 LDAP

Server)” in Network Settings (see pages

91 and 92).

zIn the standard setting, lowercase is

selected.

Enter characters, and then select

“OK”.

Entering Numeric Characters and

Symbols

Select “Numeric/Symbols” to shift

numbers/symbols.

Ex: When setting “03 EMAIL (00 Email

Address)” in Network Settings (See page

90).

Enter numbers or symbols, and then

select “Close”.

To move the cursor ( | ) to the

left or right side

To erase the character before

the cursors

To input a space between

characters

To change the entry screen

between numbers/symbols

To erase the character before

the cursors

Chapter 1 Before Starting

Basic Operations for Function Setup

The following procedure is an example of setting up function(s). To select a function, refer to the list of

Function Parameters described later.

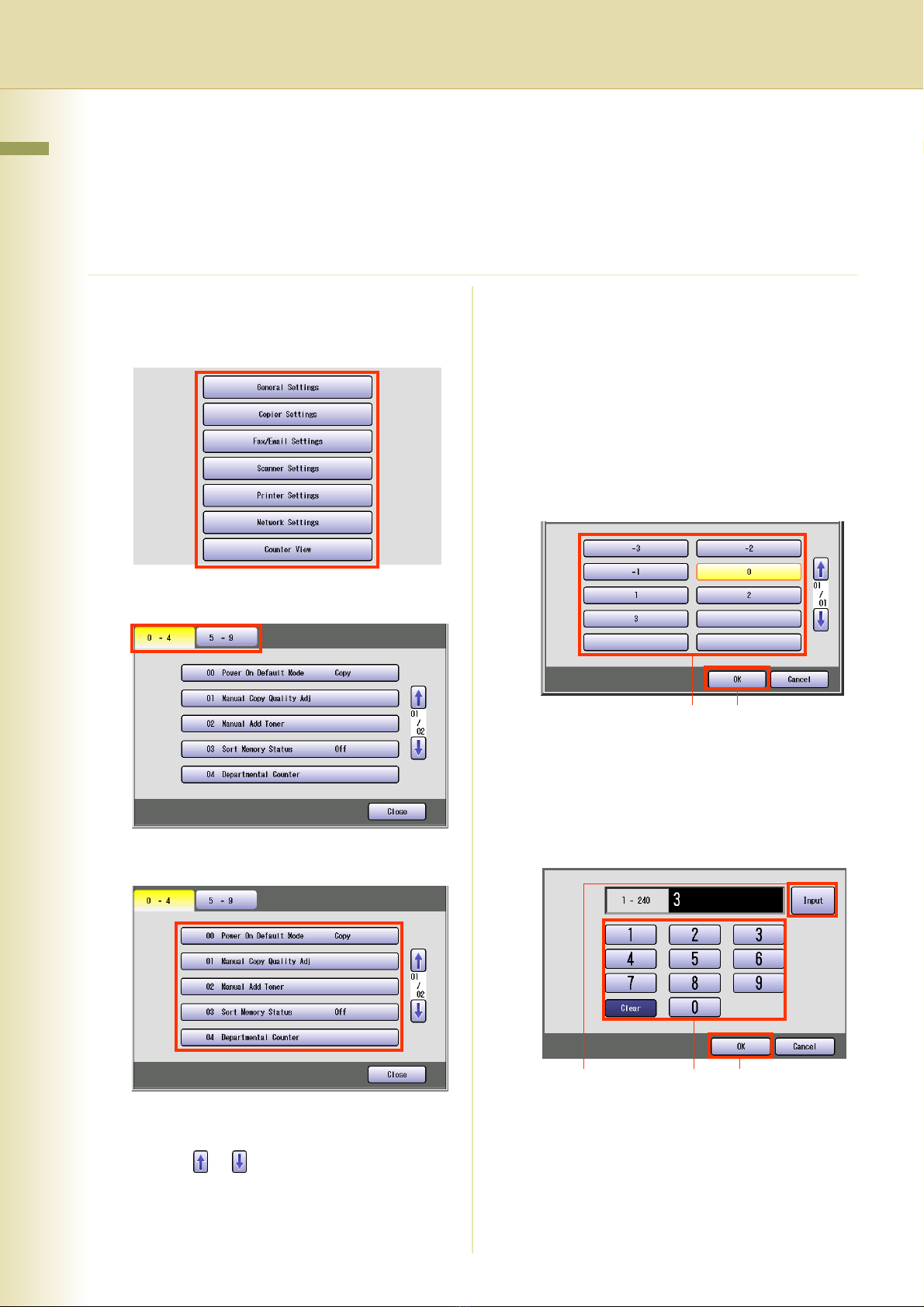

Press the Function key.

Select the desired setting.

Select the desired tab.

Select an item.

zIf a single tab has six or more items, a block

number is displayed as “01/02”.

zSelect or to scroll items up or down on

the screen.

zWhen setting the parameters in the Key

Operator Mode, enter the password (8

digits), and then select “OK”.

Change the settings using the

following operations.

Selecting an item

Select a desired item, and then select “OK”.

Ex: When setting “01 Density (HOME)” in

the Key Operator mode of the Fax/Email

Settings (See page 45)

Entering numbers

Select “Input”, and enter the number, and

then select “OK”.

Ex: When setting “27 Power Save Mode

Timer” in the Key Operator mode of the

General Settings (See page 14)

231

Chapter 1 Before Starting

Entering numbers using or

Select or , and then select “OK”.

Ex: When setting “15 Fold Position (A3/

LDR)” in the General Settings (See page

12)

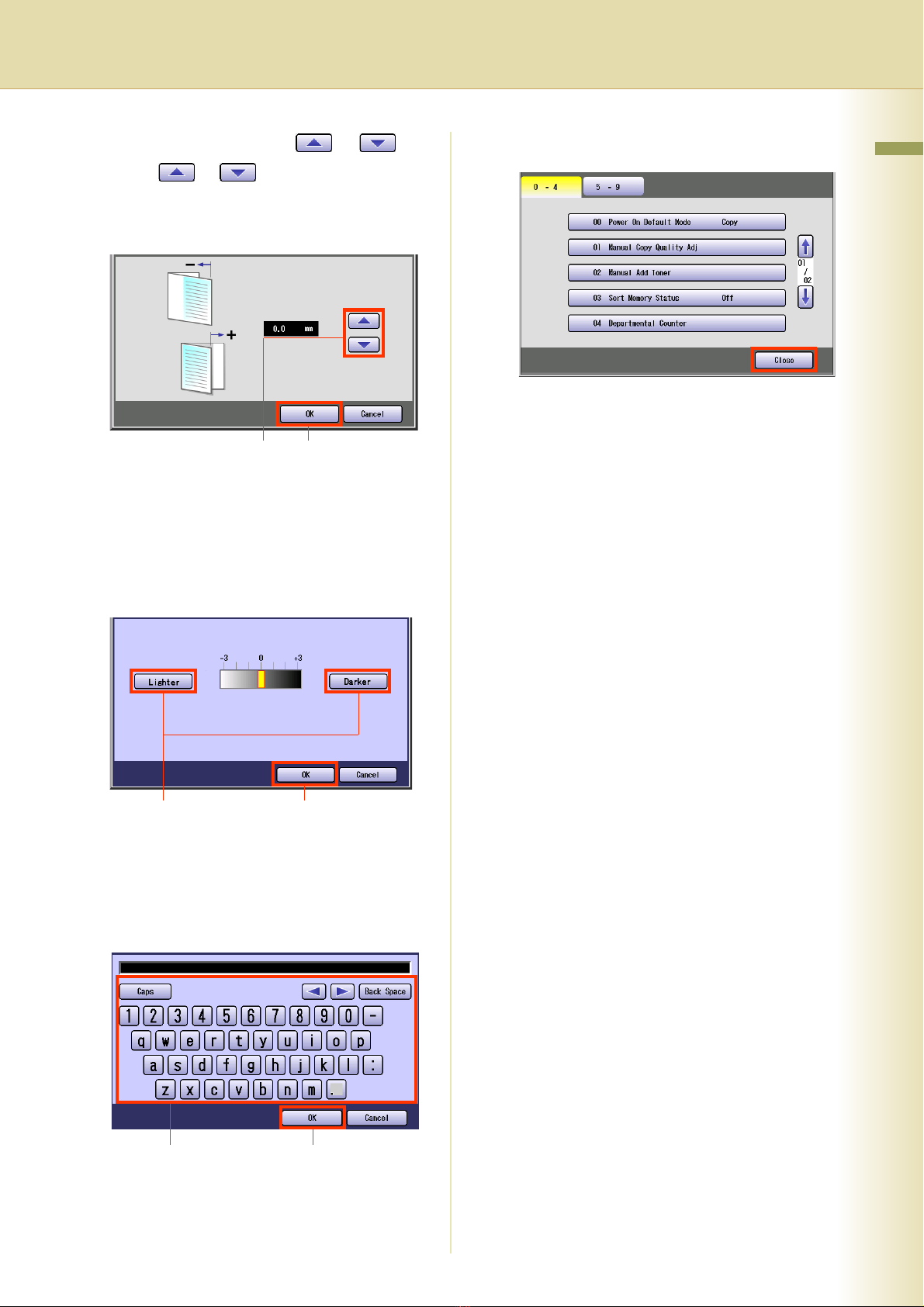

Selecting a value using “Lighter” or

“Darker”

Select “Lighter” or “Darker”, and then select

“OK”.

Ex: When setting “04 Text Density” in the

Copier Settings (See page 35)

Entering characters

Enter characters, and then select “OK”.

Ex: When setting “04 LDAP (00 LDAP

Server)” in the Network Settings (See

pages 91 and 92)

Select “Close”.

zPress the Reset key to return the machine

to the initial screen of the current active

mode.

Chapter 2 General Settings

2General Settings

General Settings

In the General Settings, the following items can be changed.

General User Mode

No. 0 - 4

No. 5 - 9

No. Parameter Comments Selective Item Standard

Setting

00 Power On Default

Mode

Set the initial function screen when turning on

the machine.

Copy, Fax, Print, Scan Copy

01 Manual Copy Quality

Adj

Set whether to adjust the copy density manually. Off, On Off

02 Manual Add Toner Set whether to darken the printing manually by

using more toner.

Off, On Off

03 Sort Memory Status Set whether to display the percentage (%) of

sorting memory used.

Off, On Off

04 Departmental Counter Set whether to display departmental counters,

limit counters, and total counters.

zConsult with the authorised Panasonic

dealer on how to use this item.

No. Parameter Comments Selective Item Standard

Setting

05 Manual STR Cleaning Set whether to clean the transfer roller

manually.

Off, On Off

09 Key Operator Mode Enter the Key Operator Password to display the

Key Operator Mode (see page 11).

00000000

Altri manuali per DP-C406

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Stampante tutto in uno

Panasonic

Panasonic DP-4530 Manuale utente

Panasonic

Panasonic KX-MC6020CX Manuale utente

Panasonic

Panasonic Workio DP-C322 Manuale utente

Panasonic

Panasonic DP-2010E Manuale utente

Panasonic

Panasonic DP-2330 Manuale utente

Panasonic

Panasonic KX-PS8000 Manuale utente

Panasonic

Panasonic DP-C406 Manuale utente

Panasonic

Panasonic Workio DP-C262 Manuale di istruzioni e di sicurezza

Panasonic

Panasonic WORKIO DP-C354 Manuale utente

Panasonic

Panasonic WORKIO DP-C106 Manuale utente

Panasonic

Panasonic DP-6030 Manuale utente

Panasonic

Panasonic KXMB271 - B/W Laser - All-in-One Manuale utente

Panasonic

Panasonic DP-180 Manuale utente

Panasonic

Panasonic WORKIO DP-C106 Manuale dell'operatore

Panasonic

Panasonic KXFLB881 - Network Multifunction Laser... Manuale di istruzioni

Panasonic

Panasonic WORKIO DP-8060 Manuale utente

Panasonic

Panasonic KX-MB2060C Manuale operativo

Panasonic

Panasonic WORKIO DP-150PA Guida all'installazione

Panasonic

Panasonic DA-PC700 Manuale utente

Panasonic

Panasonic KX-FLM651 - Laser Fax, PC-Printer Manuale utente

Panasonic

Panasonic KX-FLB851 - All-in-One Flatbed Laser Fax Manuale elenco delle parti

Panasonic

Panasonic DP-8025 Manuale utente

Panasonic

Panasonic Workio DP-6010 Manuale utente

Panasonic

Panasonic WORKIO DP-8060 Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente
