Panasonic Workio DP-C262 Manuale utente

Digital Color Imaging Systems

Operating Instructions

Model No.

DP-C262/C322

Before operating this machine, please read this manual completely

and keep this manual for future reference.

(Illustration shows optional accessories that may not be installed on your machine.) English

(For Copier)

Operating Instructions

The following Operating Instruction manuals are included with this machine. Please refer to the appropriate manual

and keep all manuals for future reference. If you lose the manual, contact the authorized Panasonic dealer.

Operating Instructions CD Document Management System CD

Copy Function

Describes how to make a Color Copy with

creative features.

Print Function

Describes how to print with color, change

default printer settings, or describes the

course of action to take when a problem

message appears, etc.

Facsimile and Internet Fax Function

(When the optional G3 Fax Board/ Internet

Fax Module is installed.)

Describes how to send/receive a Facsimile/

Internet Fax, or describes the course of

action to take when a trouble message

appears, etc.

Application Software

Describes how to use the application

software.

Ex:Web Device Monitor, Panafax Desktop,

Document Manager/ Viewer, Client

Device Monitor, Network Config/Add

Editor, Network Setup Tool, Embedded

Web Launcher

Scan and Email Function

(When the optional Network Scanner/

Email Module, Hard Disk Drive, Main

Memory and Image Memory are installed.)

Describes how to scan, send an Email.

Function Parameters

Describes how to change the default

settings of each function using the Control

Panel of the machine.

User Authentication

Describes how to enable and use the user

authentication function.

Accessories

Operating Instructions (For Setting Up)

This manual contains essential information for setting

up the machine.

Operating Instructions (For Basic Operations)

This manual contains essential information for proper

operation of the machine.

It describes basic Copy, Print, Facsimile/Internet Fax,

Scan/Email, and other functions.

For a more detailed explanation of each function, please

refer to the Operating Instruction manuals included on

two CD-ROM as illustrated below.

Operating Instructions CD

Contains manuals with detailed information for Copy,

Facsimile/Internet Fax, Scan/Email Functions, Function

Parameters and User Authentication.

Document Management System CD

Contains the PDMS Application Software, and manuals

with detailed information for the Print function, and

PDMS Application software.

Conventions

Icons

The following icons are used in this manual.

Notation

The following notations are used in this manual.

Icon Description

Indicated important information that must be read in detail.

Indicates reference Information.

Notation Description

For Keys and Buttons Hard buttons on the Control Panel are depicted as **** key, soft buttons on the Touch Panel are

depicted as "xxx".

Ex:

Press the Start key and select "More Menus".

Table of Contents

Chapter 1 Basic Menu Features

Basic Operation Procedure ..................................................................................................... 6

Selecting the Color Mode ........................................................................................................ 8

Full Color Mode................................................................................................ “Full Color” 9

Black Mode ............................................................................................................. “Black” 9

2 Color Mode...................................................................................................... “2 Color” 10

1 Color Mode...................................................................................................... “1 Color” 12

New Color Registration ..............................................................................“Add Custom” 14

Selecting Original Type and Adjusting the Density................................................................ 16

Registering Quality Preset.......................................................................................... “Save” 18

Using Quality Preset................................................................................................. “Recall” 20

Quality Adjusting.................................................................................................................... 22

Background ................................................................................“Background Removal” 24

BleedThrough......................................................................“BleedThrough Prevention” 25

Color Tone ............................................................................................................... “Tint” 26

Contrast............................................................................................................ “Contrast” 27

Image Sharpness ......................................................................................... “Sharpness” 28

Saturation...................................................................................................... “Saturation” 29

Color Balance..........................................................................................“Color Balance” 30

Proof Copying......................................................................................................“Proof Set” 31

Confirming the Selected Copy Features................................................. “Confirm Settings” 32

Storing a Job in Memory................................................................................. “Preset Jobs” 33

Recalling a Preset Job Stored in Memory ............................................................................. 34

Checking the Waiting to Copy Job .............................................................. “Output Queue” 35

Displaying a List of All Jobs .............................................................................................. 35

Displaying a List of Copy Jobs .......................................................................................... 35

Deleting Copy Jobs ........................................................................................................... 36

Completion Notice ............................................................................... “Completion Notice” 37

Chapter 2 More Menus Features

2-Sided Copy Mode................................................................... “2-Sided / Original->Copy” 38

Basic Operation for the 2-Sided Copy Mode..................................................................... 38

Copying 2-Sided original(s) Onto two separate sheets.........................................“2 -> 1” 39

Copying Facing Page Original to Two Separate Sheets..................................... “2 Page” 40

From 1-Sided Originals to 2-Sided Copies using Saddle Stitch (Booklet) .........“Booklet” 41

Copying Mixed Size Originals from the ADF.........................................“Multi-Size Feed” 43

Copying Special Originals (Thin Paper, etc.) from the ADF......... “Job Build and SADF” 45

Sort Mode....................................................................................................... “Sort / Finish” 47

Zoom Mode ................................................................................................ “Zoom / Effects” 49

Variable Ratios ......................................................................................................“Zoom” 49

Auto-Zoom....................................................................................................“Auto Zoom” 51

Effect Modes.......................................................................................................................... 53

Setting a Blank Edge..............................................................................................“Edge” 53

Eliminate Dark Inner Binding Shadows ..................................................................“Book” 55

Shift Image to Right, Left, Up or Down................................................................“Margin” 56

Copying with Stamping................................................................................... “Stamping” 58

Centering........................................................................................................“Centering” 68

Image Repeat.......................................................................................... “Image Repeat” 69

Insertion Modes ................................................................................... “Insertion / Overlay” 70

Add a Cover Page to Copies................................................................................ “Cover” 70

Inserts Blank/Copied Pages Between Copies ........................................“Page Insertion” 72

Inserts Blank Pages Between Transparency Film.............. “Transparency Interleaving” 74

Overlay Modes....................................................................................................................... 76

Overlaying an Image Onto the Copies .............................................................. “Overlay” 76

Overlay Copying with Registered Image ................................................. “Form Overlay” 80

File Edit..............................................................................................................“File Edit” 82

Chapter 3 Other Features

Making Copies with the ADF Opened.................................................................................... 86

Skyshot Mode.................................................................................................................... 86

Manual Skyshot Mode....................................................................................................... 87

Reserving the Next Copy Job While the Current Copy Job is Progressing ........................... 88

Interrupt the Current Copy Jobs to Make an Urgent Copy .................................................... 89

Chapter 4 Appendix

Combined Copy Functions .................................................................................................... 90

Glossary................................................................................................................................. 92

Chapter 1 Basic Menu Features

Chapter 1

Basic Menu Features

Basic Operation Procedure

The machine automatically detects the original(s), and decides on which Copy Size, Black & White or

Color Copy Mode to use. If the detection fails, manually set the settings.

Place original(s).

zIf Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

Press the Copy key if set in other

function mode.

Select the required settings if

necessary.

zOriginal Size and Copy Size are

automatically selected as original.

zIf the orientation of the original and the copy

paper are different, the original is copied

automatically rotating the image.

zFor more details of Basic Menu screen, refer

to the Basic Menu Features (see page 6).

zWhen setting the more features, refer to the

More Menus Features (see page 38).

Ex: 2-Sided Copy, Sort/Finish, Zoom/

Effects, etc.

Enter the desired number of copies.

(Up to 999)

zWhen you input 4 to 8 digits number with the

optional Fax Communication Board

installed, the machine will interpret this as a

telephone number and the display changes

to Fax screen.

Face Up. Up to 70 sheets (20 lb).

Face Down. Align with top left

corner. Close ADF.

Chapter 1 Basic Menu Features

Press the Start key.

zWhen copying from the Platen Glass, place

the next original and follow the instructions

described on the touch panel display.

zAfter finishing copying, press the Reset key

to return to the initial screen of the current

active mode.

Chapter 1 Basic Menu Features

Selecting the Color Mode

You can either copy in the machine selected color mode, or you can change to the color mode manually.

zThe default color mode can be changed. Refer to Copier Settings (For Key Operator) in the Operating

Instructions (For Function Parameters) on the provided CD-ROM.

zThe color mode settings will return to standard settings under the following conditions.

-If the power is turned OFF.

-If the Reset key is pressed.

Place original(s).

zRefer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

Press the Copy key if set in other

function mode.

Select “Quality Adj.”.

Select the desired Color Mode, and

then select “OK”.

Enter the desired number of copies.

Press the Start key.

zAfter finishing copying, press the Reset key

to return to the initial screen of the current

active mode.

Full color Monochrome

•Auto:

The color original is copied in Full

Color, and the monochrome

original is copied in Black & White

by automatically detecting the

original's color.

•Black (Monochrome) (see page 9)

•Full Color (see page 9)

•2 Color (see page 10)

•1 Color (see page 12)

Chapter 1 Basic Menu Features

Full Color Mode

Color original can be copied in Full Color.

Select “Full Color”, and then select

“OK”.

zTo display this screen, refer to steps 1 to 3 of

Selecting the Color Mode (see page 8).

zFor the following procedure, refer to steps 5

to 6 of Selecting the Color Mode (see page

8).

Black Mode

Color and Monochrome originals can be copied

in Black & White.

Select “Black”, and then select “OK”.

zTo display this screen, refer to steps 1 to 3 of

Selecting the Color Mode (see page 8).

zFor the following procedure, refer to steps 5

to 6 of Selecting the Color Mode (see page

8).

Full Color

Black & White

Chapter 1 Basic Menu Features

2 Color Mode

Color original can be copied in 2 Colors, which can be achieved by using Black & another specified

color.

The specified color can be selected from the basic colors (Red, Green, Blue, Yellow, Magenta, Cyan),

and registered colors.

When 2 Color Mode is selected, Original Type setting is not available.

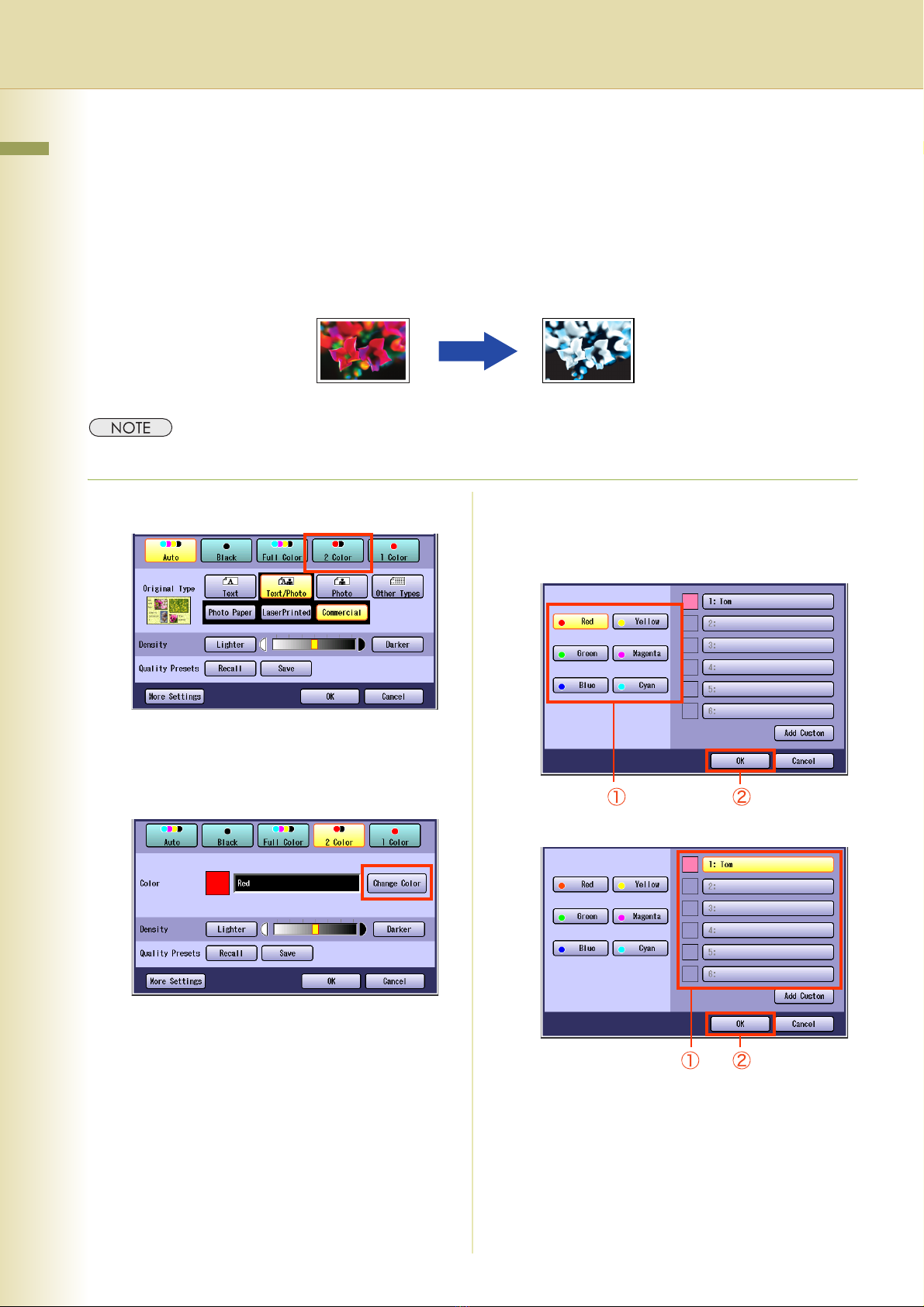

Select “2 Color”.

zTo display this screen, refer to steps 1 to 3 of

Selecting the Color Mode (see page 8).

Select “Change Color”.

zThe color and the specified name are

displayed.

Select a color from the basic colors or

custom colors, and then select “OK”.



When selecting a color from the basic colors.



When selecting a color from the custom colors.

When registering the custom color, refer to

New Color Registration (see page 14)

Ex: When copying a Full Color original in

Cyan and Black.

Altri manuali per Workio DP-C262

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Stampante tutto in uno

Panasonic

Panasonic KX-FLB851 - All-in-One Flatbed Laser Fax Manuale elenco delle parti

Panasonic

Panasonic KX-MB2000C Manuale operativo

Panasonic

Panasonic WORKIO DP-8060 Manuale utente

Panasonic

Panasonic KX-FLB801E Manuale utente

Panasonic

Panasonic DA-PC700 Manuale utente

Panasonic

Panasonic KX-MC6260E Manuale utente

Panasonic

Panasonic FP-7818 Guida alla risoluzione dei problemi

Panasonic

Panasonic DP-1810P Manuale utente

Panasonic

Panasonic Workio DP-C262 Manuale di istruzioni e di sicurezza

Panasonic

Panasonic DP-190 Manuale utente

Panasonic

Panasonic KX-MC6020HX KX-FAP317E Manuale utente

Panasonic

Panasonic DP-MB311EU Manuale utente

Panasonic

Panasonic KX-MC6040 - Color Laser Multi-Function... Manuale utente

Panasonic

Panasonic DP-MB340 Manuale utente

Panasonic

Panasonic Workio DP-4510 Manuale utente

Panasonic

Panasonic KX-PS8000 Manuale utente

Panasonic

Panasonic DP-8032 Manuale utente

Panasonic

Panasonic DP-MC210 Manuale utente

Panasonic

Panasonic DP-C406 Manuale di istruzioni e di sicurezza

Panasonic

Panasonic Workio DP-C262 Manuale utente

Panasonic

Panasonic DP-180 Manuale utente

Panasonic

Panasonic DP-2330 Manuale utente

Panasonic

Panasonic KX-MC6040 - Color Laser Multi-Function... Manuale di istruzioni

Panasonic

Panasonic KX-MB263HX Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente
