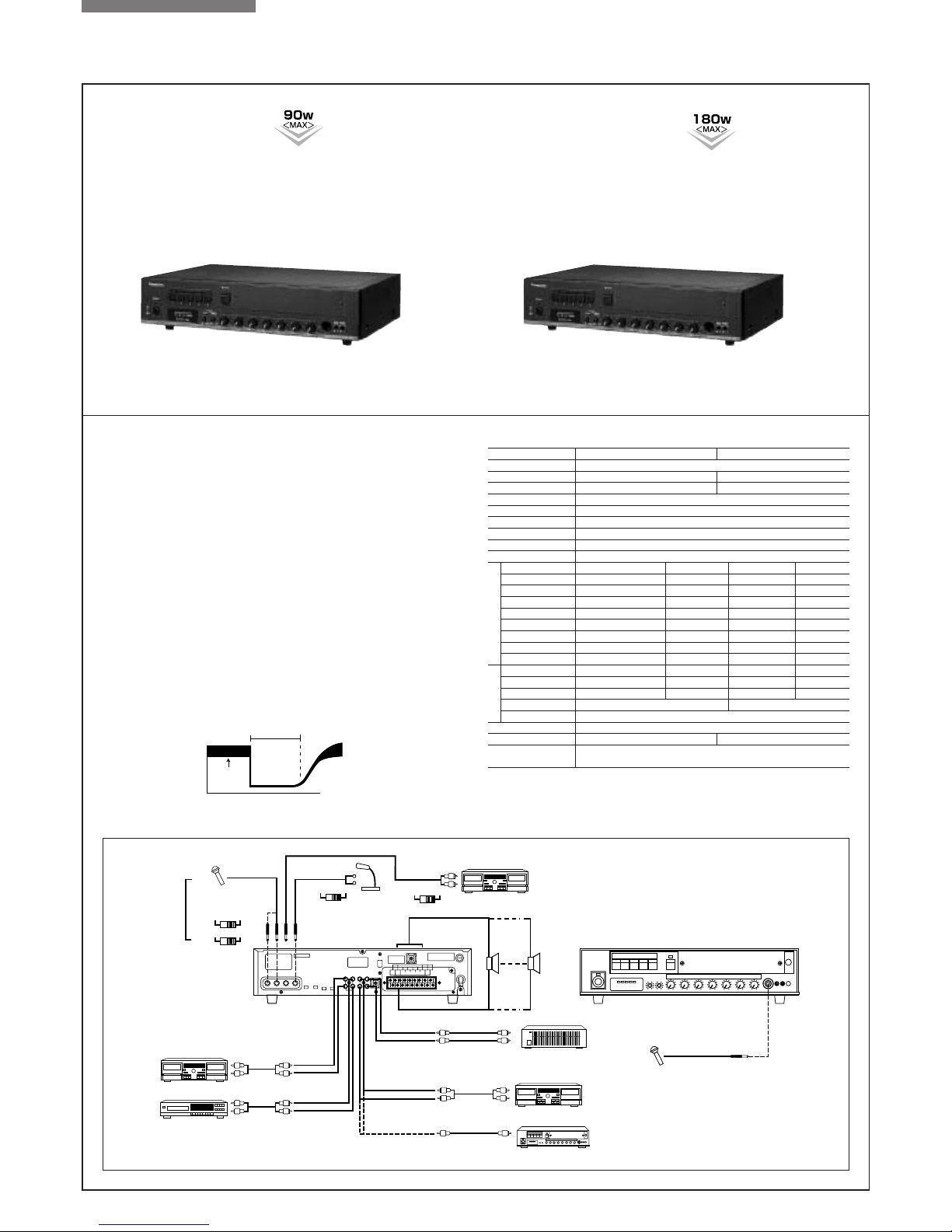

Panasonic WA-H120N Manuale utente

•There area lot of inputjacks: 3 for microphones, 6 forlines,

paging and chime

•5-stationspeakerselector: selectableup to5 announcement

locations. All announcement is possiblewith the ALL switch,

whether the speaker selector is ON/OFF.

•5-point LED level meter makes to check the sound

level easy.

•Smooth and clear announcement call is possible, since the

FRONT MICinputand LINE4/CHIME and LINE3/PAGING

input are incorporated a priority circuit.

MIXING AMPLIFIER

WA-H60N

90W (

MAX

), 60W (

RMS

)

MIXING AMPLIFIER

WA-H120N

180W (

MAX

), 120W (

RMS

)

SPECIFICATIONS

Model No. WA-H60N WA-H120N

Power Supply AC 110 V - 120 V/AC 220 V - 240 V (50/60 Hz)

Power Consumption Rated Output

123 W 248 W

Rated Output

60 W (100 V/170 ΩLoad), 90 W (MAX)

120 W (100 V/83 ΩLoad), 180 W (MAX)

Frequency Response

50 - 20,000 Hz ±3 dB (LINE 2:1/3 rated output)

Distortion Rate less than 0.5 % (LINE 2:1 kHz rated output)

Tone Response more than 100, 10,000 Hz ±10 dB (1kHz standard)

S/N Ratio more than 75 dB (on JIS A-Curve)

Speaker Switch 5 Station +ALL

Muting Level 0 - 35 dB

Input Circuit Input Impedance Input Level S/N Jack

Front MIC

10 kΩElectronically balanced

–66 dBV

more than 55 dB Large, multiple

*1LINE 5/MIC 1

50 kΩElectronically balanced

–

20 dBV/

–

66 dBV

more than 60 dB Large, multiple

*1LINE 6/MIC 2

100 kΩElectronically balanced

–

20 dBV/

–

66 dBV

more than 60 dB Large, multiple

*1LINE 3/PAGIMG 20 k

Ω

–

20 dBV/0 dBV

more than 60 dB Large, multiple

*1LINE 4/CHIME 200 k

Ω

0 dBV/

–

30 dBV

more than 60 dB Large, multiple

LINE 1 20 k

Ω

–20 dBV

more than 60 dB Pin (2)

LINE 2 20 k

Ω

–20 dBV

more than 60 dB Pin (2)

PA INPUT 20 k

Ω

0 dBV

more than 75 dB Pin

Output Circuit

Load Impedance Output Level Load Impedance Output Level

LINE OUT more than 10 k

Ω

0 dB more than 10 k

Ω

0 dBV

REC OUT more than 10 k

Ω

0 dB more than 10 k

Ω

0 dBV

Speaker Out

170 Ω/83 Ω/41 Ω/4 Ω

100 V/70 V/50 V

Ω

/41

Ω

/21

Ω

100 V/70 V/50 V

Speaker Out Terminals

Screw jack

Dimensions (W x H x D)

420 x 88 x 300 mm

Weight approx. 8.4 kg approx. 9.8 kg

Finish Panel: Gun Metallic (ABS Resin)

Case: Munsell N2.5 (Colored Steel Plate)

Output Section*2

Input Circuit

*1 Factory preset LINE IN

*2Speaker selector: 5 station +ALL (100 V LINE)

AMPLIFIERS

Radio

BGM

Volume

Announcement through

FRONT MIC, LINE4/CHIME

or LINE3/PAGING

Time

MUTING FUNCTION: effects to the audio signal supplied from

FRONT MIC, LINE 4/CHIME and LINE 3 PAGING Jacks.

System Diagram

LINE4

0dB, 200ΩPlay

Unbalaced

Tape Deck

LINE 4 CHNE

LINE 3 PAGING

LINE4

Input Terminal

(-20dB,10kΩBalaced)

SP HOT(N)

1-5

1/4-type Phone Plug

MIC1,MIC2

Input terminal

(-66dB,10kΩBalaced)

LINE 5 MIC1

LINE 6 MIC2

Tape Deck

CD Player

Play

LINE 2

-20dB,10kΩ

Unbalanced

LINE 1

-20dB,10kΩ

Unbalanced

Line Out Input

Output

PA Input Graphic Equalizer

Tape Deck

Mixing Amplifier

REC Out REC

PA Input

for Parallel operation

Front MIC Input Terminal

(-66dB,10kΩBalaced)
