Panasonic KX-TCD735AXM Manuale utente

ORDERNO. KM40209968C3

Telephone Equipment

KX-TCD735AXM

Digital Cordless Answering System

MetallicGreyVersion

(for Eastern Asia)

SPECIFICATIONS

2002 Kyushu Matsushita ElectricCo., Ltd. All rights reserved.

Unauthorized copying and distribution isaviolation of law.

1

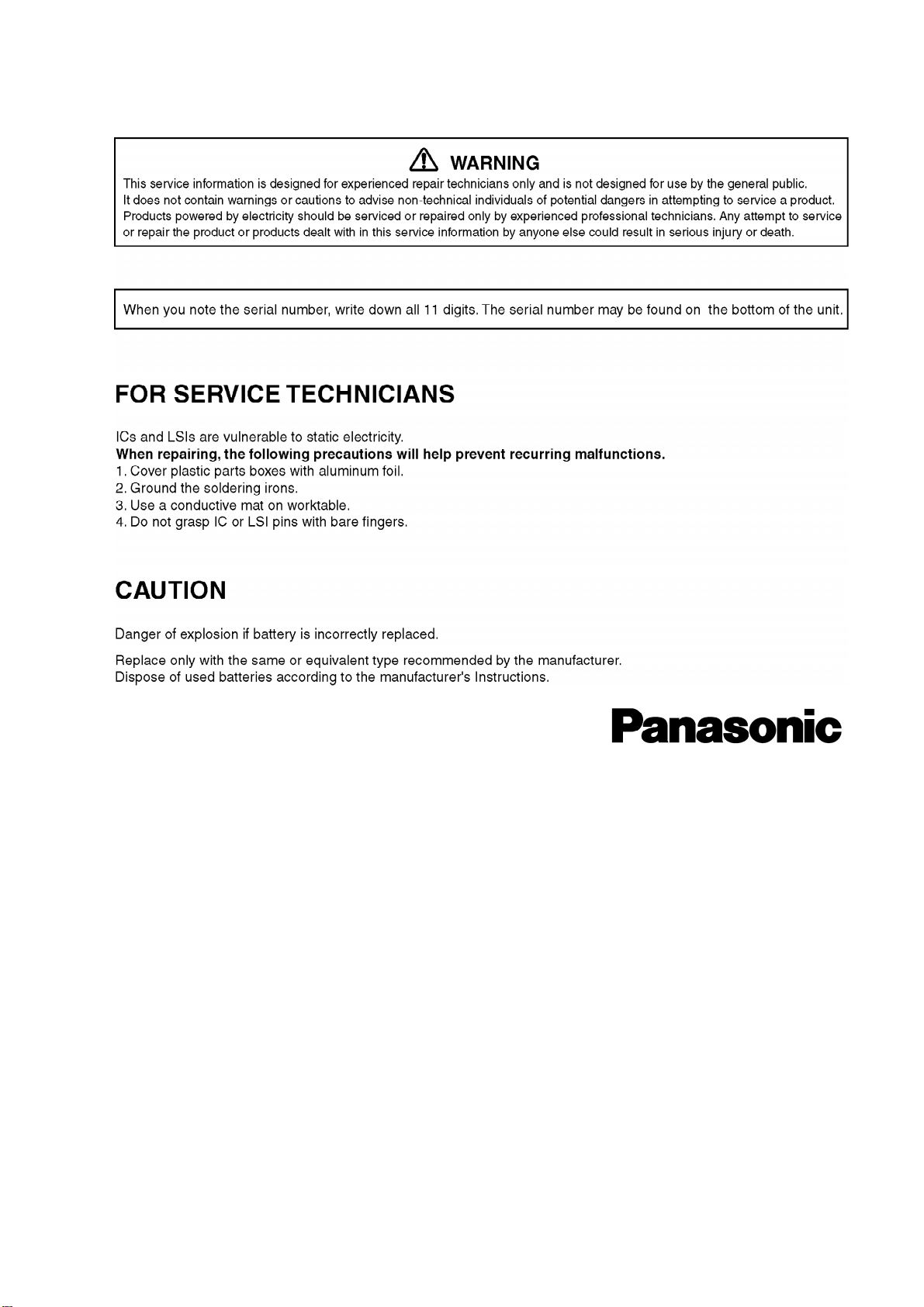

1. LOCATION OF CONTROLS

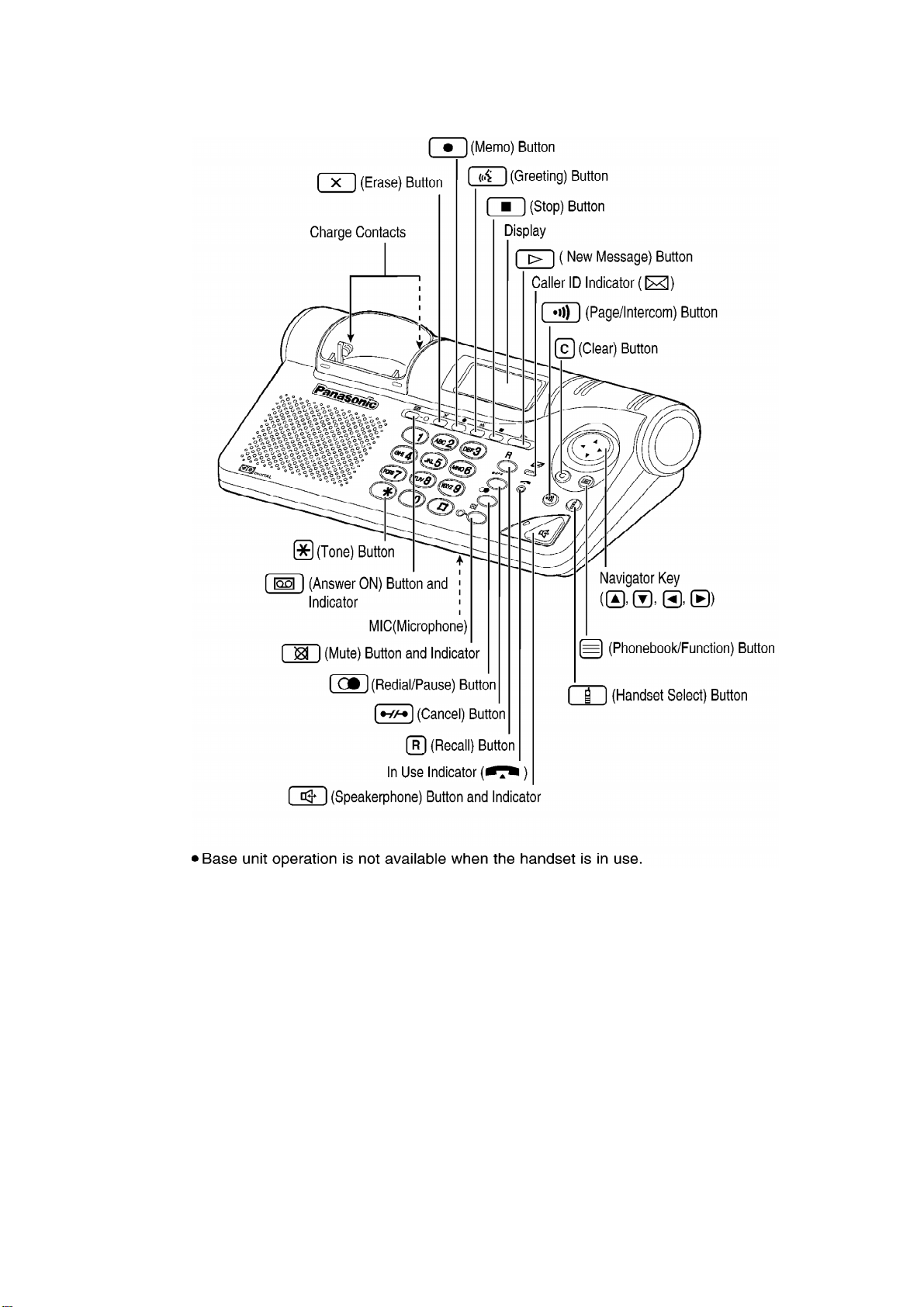

1.1. Base Unit

2

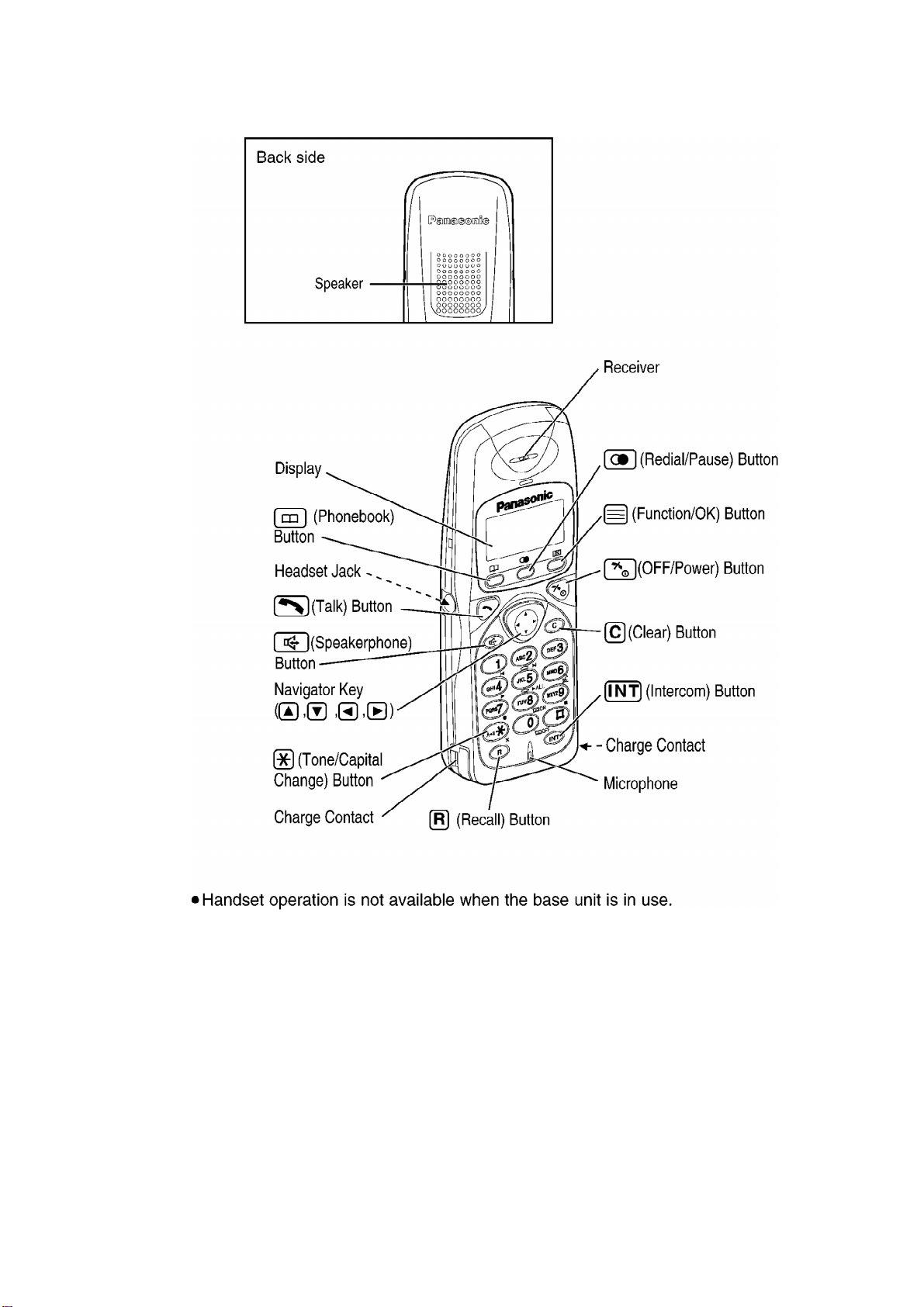

1.2. Handset

3

2. DISPLAYS

4

3. DISASSEMBLY INSTRUCUTIONS

5

ShowninFig. To Remove Remove

1LowerCabinet Screws (2.6 × 14).................(A) × 4

2 MainP.C.B of base Remove solderand tapes

3 MainP.C.B of base FFC

4RearCabinet of handset Screws (2 × 8)......................(B) × 2

5 MainP.C.B of handset Screws (2 × 6)......................(C) × 2

3.1. Assemblythe LCD to P.C. Board (Handset)

6

4. SETTINGS

4.1. Connections

Plug inthe AC Adaptorand the telephone line cordtothe bottomof the unit. Thenconnect the

cords as shown.

7

-USE ONLY WITHPanasonicAC ADAPTORPQLV1CEZ.

-The AC Adaptor must remainconnected at all times. (Itisnormal

for the adaptor to feel warm during use.)

-Thistelephone has asingleterminal which must be connected to

an analog telephone line with aRJ11 connector.

-Ifyour unitisconnected to aPBXwhich does not support Caller ID

services, you cannot access those services.

-The telephone will not work during apower failure. We therefore

recommend you use astandard telephone and automaticchange-

over switch to connect thisDigital Cordless Phone to the line.

Your Panasonicsales shop can offer you more information about

connection possibilities.

4.2. Using the BeltClip

You canhang the handset on yourbelt orpocket using the belt clip.

4.3. Batteries

4.3.1. Installing the Batteries inthe Handset

8

4.3.2. BatteryCharge

4.3.3. Recharge (Handset displayonly)

4.3.4. BatteryInformation

5. OPERATIONS

This section is intendedtoprovide a basic overviewforKX-TCD735AXM.

9

Fora full explanation, refertothe Operating Instructions.

5.1. Turning the Power ON/OFF

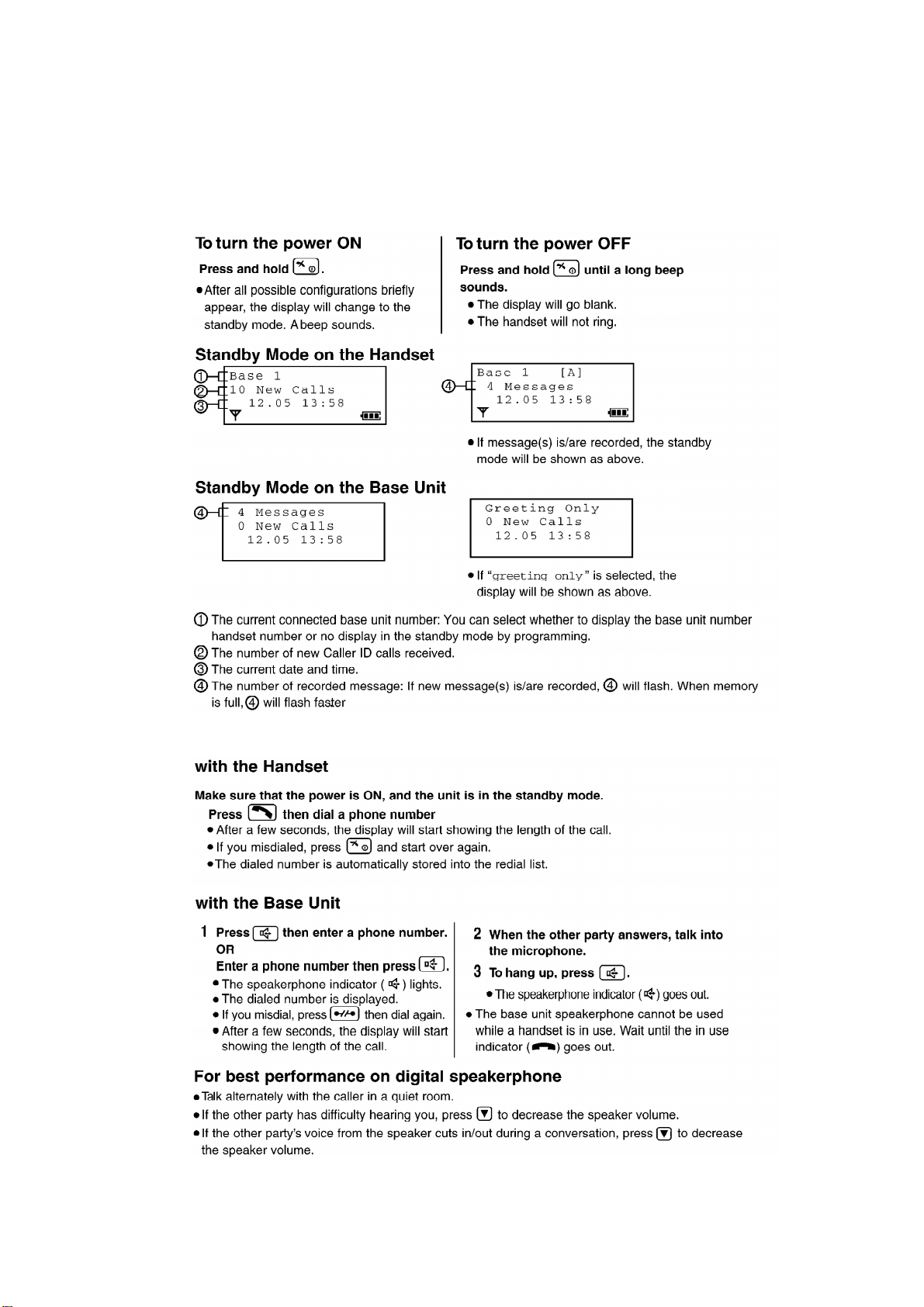

5.2. Making aCall

10
