Panasonic KX-TG9120E Manuale utente

PQQW15348ZA DC0706DH0

Digital Cordless Answering System

Model No. KX-TG9120E/KX-TG9140E

KX-TG9150E

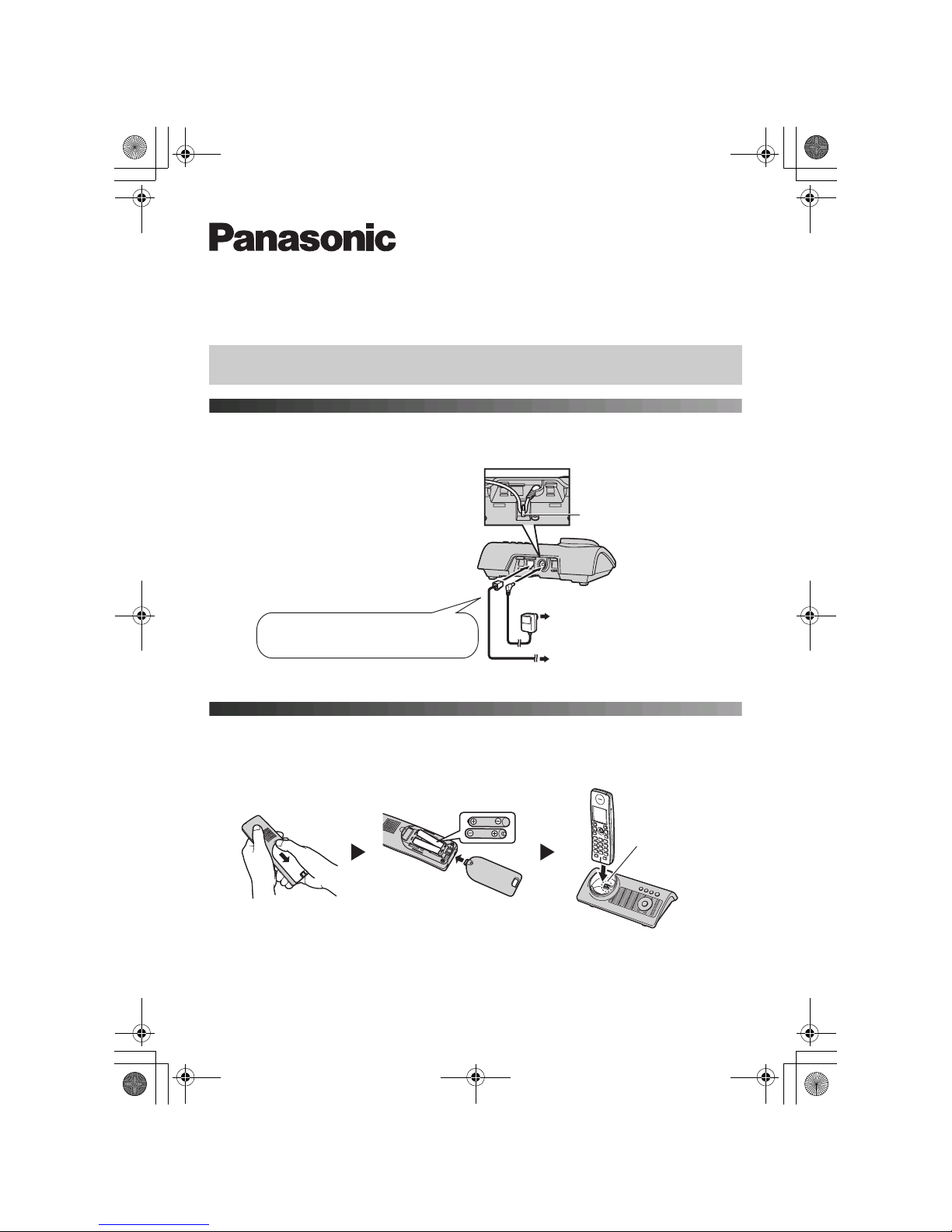

1Connections

2Battery installation/

Battery charge (Initial charge: 7 hours)

Note:

LUse only the included rechargeable batteries.

Quick Guide

(220–240 V, 50 Hz)

To telephone network

Hook

Use only the included AC adaptor

and telephone line cord.

Charge contact

TG9120_40_50E(e)_QG.fm Page 1 Friday, July 21, 2006 10:45 AM

–2 –

3Screen saver mode

The backlight will turn off completely after 1 minute of inactivity if the handset is not on

the base unit.

To use the handset when it is in screen saver mode, first press {ih} to turn the display on

again.

4Symbols used in these operating instructions

*1 USB adaptor KX-TGA915EX users only

Date and time

1J(centre of joystick)

2Select mby pushing the joystick in any direction. iL(centre of joystick)

3Push the joystick up or down to select “Time Settings”. iL

4Push the joystick up or down to select “Set Date & Time”. iL

5Enter the current day, month, and year.

6Enter the current hour and minute.

7Li{ih}

Symbol Meaning

JPress J(centre of joystick).

iProceed to the next operation.

LPress L(centre of joystick).

j(“Caller List”)

X(“SMS”)

I(“Answer System”)

M(“Display Setup”)

3(“Ph.Book Setup”)*1

m(“Handset Setup”)

L(“Base Unit Setup”)

Select the mentioned handset menu icon.

Example: m(handset setup menu icon)

Select mby pushing the joystick in any direction.

“” Select the words in quotations shown on the display (e.g.,

“Time Settings”) by pushing the joystick up or down.

TG9120_40_50E(e)_QG.fm Page 2 Friday, July 21, 2006 10:45 AM

–3 –

5Basic operations

Feature Operation

Making a call Dial the phone number. i{C}/{s}

Answering a call {C}

Hanging up {ih}

Receiver/speaker volume Push the joystick up or down while on a call.

Last number redial j(right soft key) i{C}

Making a call with redial list j(right soft key) iPush the joystick up or down to

select the desired number. i{C}

Handset phonebook: adding

entries (name and phone

numbers)

1■KX-TG9120/KX-TG9140 (no USB adaptor

registered):

n(left soft key) iJ

■KX-TG9150 or USB adaptor registered model:

J(centre of joystick) i3iLiJ

2“New Entry”iLi“Name”iLi

Enter the party’s name (16 characters max.). iL

3“Phone No. 1”iLiEnter the party’s phone

number (24 digits max.). iL

4“Category 1”iLiSelect the desired

category. iLi“<Save>”iLi{ih}

LYou can store up to 3 phone numbers for each entry.

LTo enter a name, see the character table in the

operating instructions.

Handset phonebook:

making a call

1■KX-TG9120/KX-TG9140 (no USB adaptor

registered):

n(left soft key)

■KX-TG9150 or USB adaptor registered model:

J(centre of joystick) i3iL

2Push the joystick up or down to display the desired

entry. i{C}

LIf more than 1 phone number is assigned to the entry,

press {C} / V. iSelect the desired phone

number. i{C}

Handset ringer volume J(centre of joystick) imiLi“Ringer

Setup”iLi“Ringer Volume”iLi

Push the joystick up or down to select the desired volume.

iLi{ih}

Changing ringtone

(outside calls)

J(centre of joystick) imiLi“Ringer

Setup”iLi“Ext. Ringtone”iLi

“Preset Ringtones”or “User Ringtones”iL

iSelect the desired ringtone. iLi{ih}

TG9120_40_50E(e)_QG.fm Page 3 Friday, July 21, 2006 10:45 AM

–4 –

Answering system

6Frequently asked questions

Feature Operation

Answering on/off J(centre of joystick) iIiLiei

{ih}

Listening to messages J(centre of joystick) iIiLi“Play New

Msg.”or “Play All Msg.”iL

Question Cause & solution

What kind of power outlet

should I connect the AC

adaptor to?

LConnect the AC adaptor to a 220–240 V outlet.

Why is wflashing? LThe handset is too far from the base unit. Move closer.

LThe AC adaptor is not connected. Check the

connections.

LYou are using the handset or base unit in an area with

high electrical interference. Place the handset and base

unit away from interference sources, such as antennas

and mobile phones.

LThe handset is not registered to the base unit. Register it.

J(centre of joystick) imiLi

“Registration”iLi“Register H.set”i

LiSelect a base unit number. iLiPress

and hold {x} on the base unit for about 3 seconds, until the

registration tone sounds. iWait until “Enter Base

PIN”is displayed. iEnter the base unit PIN (default:

“0000”). iL

Why is the handset display

blank?

LThe handset is in screen saver mode. Press {ih} to

activate the handset display again.

LThe handset is not turned on. To turn the power on, press

{ih} until a short beep sounds.

What should I do when the

handset does not turn on?

LMake sure that the batteries are installed correctly.

LFully charge the batteries.

LClean the charge contacts and charge again.

How long should I charge new

batteries?

LCharge the batteries for about 7 hours.

TG9120_40_50E(e)_QG.fm Page 4 Friday, July 21, 2006 10:45 AM

–5 –

How long is the battery

operating time?

LWhen you are using fully-charged Ni-MH batteries

(included batteries);

In continuous use: 15 hours max.

In continuous standby mode: 240 hours max.

– It is normal for batteries not to reach full capacity at the

initial charge. Maximum battery performance is

reached after a few complete cycles of charge/

discharge (use).

– Actual battery performance depends on a combination

of how often the handset is in use and how often it is

not in use (standby).

Can I keep the handset on the

base unit when I am not using

it?

LEven after the handset is fully charged, the handset can

be left on the base unit without any ill effect on the

batteries.

When should I replace the

batteries?

LIf the batteries are fully charged until @is displayed, but

/is displayed after a few calls, replace the batteries with

new ones.

What is a PIN? LThe PIN is a 4-digit number that must be entered in order

to change certain base unit settings. The default PIN is

“0000”.

What do I need to do to

display caller information?

LYou need to subscribe to Caller ID service. Consult your

service provider/telephone company for details.

LThe message “You must first subscribe to

Caller ID.” will be displayed until you receive caller

information after subscribing to Caller ID service.

Question Cause & solution

TG9120_40_50E(e)_QG.fm Page 5 Friday, July 21, 2006 10:45 AM

–6 –

7Optional services (Caller ID and SMS)

If you subscribe to Caller ID service, you can:

8Sales and support information

– display caller information

– identify who is calling by using different display colours and ringtones

(handset phonebook category)

– identify who is calling without looking at the display (audible call)

To use SMS, you must subscribe to Caller ID and/or appropriate service.

SMS (Short Message Service)

Customer Care Helpline Tel. No.: U.K. 08700 100 076 / R.O.I. 01289 8333

Tom

012345

Tom

012345

Tom

Customer Care Centre

LFor customers within the UK: 08700 100 076

LFor customers within the Republic of Ireland: 01289 8333

LVisit our website for product information: www.panasonic.co.uk

LE-mail: customer.care@panasonic.co.uk

Direct Sales at Panasonic UK

LOrder accessory and consumable items for your product with ease and confidence by

phoning our Customer Care Centre Monday - Thursday 9:00am - 5:30pm, Friday 9:30am

- 5:30pm (Excluding public holidays).

Or go on line through our Internet Accessory ordering application at

www.panasonic.co.uk

Most major credit and debit cards accepted.

All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.

It couldn t be simpler!

Also available through our Internet is direct shopping for a wide range of finished products,

take a browse on our website for further details.

TG9120_40_50E(e)_QG.fm Page 6 Friday, July 21, 2006 10:45 AM

–7 –

TG9120_40_50E(e)_QG.fm Page 7 Friday, July 21, 2006 10:45 AM

IMPORTANT

If you have problems setting up or

operating this product please call

the Panasonic DECT Helpline

08700 100 076 (UK)

01289 8333 (Repl of Ireland)

TG9120_40_50E(e)_QG.fm Page 8 Friday, July 21, 2006 10:45 AM
