Panasonic AG-HPX500MC Manuale utente

Panasonic Broadcast

Mechanical Parts List

Model No. : AG-HPX500P/E/MC, AG-HPX502EN

CONTENTS

CASING & FRAME PARTS ASSEMBLY (1) ...................................................................................MPL-1

CASING & FRAME PARTS ASSEMBLY (2) ...................................................................................MPL-3

SIDE CASE (R) PARTS ASSEMBLY...............................................................................................MPL-5

CAMERA PARTS ASSEMBLY (1)...................................................................................................MPL-7

CAMERA PARTS ASSEMBLY (2)...................................................................................................MPL-9

TOP CASE & HANDLE PARTS ASSEMBLY ..................................................................................MPL-11

REAR JACK PARTS ASSEMBLY....................................................................................................MPL-13

BACK CASE PARTS ASSEMBLY...................................................................................................MPL-15

LCD PARTS ASSEMBLY.................................................................................................................MPL-17

VF PARTS ASSEMBLY ...................................................................................................................MPL-19

PACKING PARTS ASSEMBLY........................................................................................................MPL-21

107

101

107

101

107

109

106

101

105

101

102

107

104 107

107

101 101

110

108

108 108

108

107

14 18

E27

E17

E8 E7

MPL-1

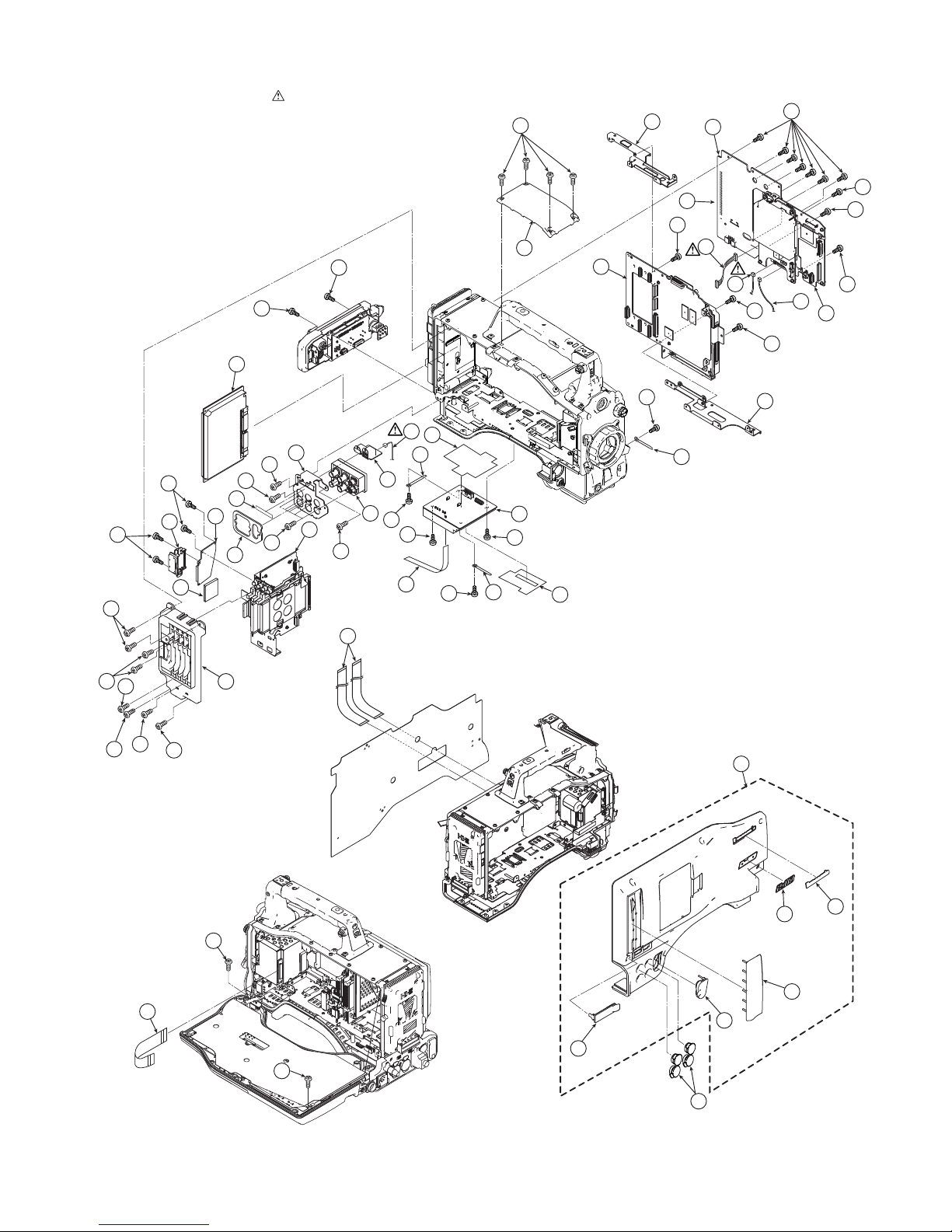

CASING & FRAME PARTS ASSEMBLY (1)

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VMP8838 INNNDER FRAME TOP 1

2 VMP8839 INNER FRAME BOTTOM 1

3 VEE1D61 L SIDE JACK CABLE 1

4 VGQ9428 SD CARD GUIDE 1

5 VYK2D61 CARD GUIDE U 1

6 K1TYYYY00040 COAXIAL CABLE 1

7 VMP8842 SIDE BNC ANGLE 1

8 VMT1820 SIDE BNC CUSHION 1

9 VMT1858 SOFT HIGH SHIELD GASKET 1

10 VEE1D76 USB CABLE 1

11 VWJ40H2210L0 FFC 2

12 VWJ30G6060L0 FFC 1

13 VWJ00H9 FFC 1

14 VJF1535 COATING CLIP 3

16 VEE1D60 REAR JACK CABLE 1

17 VMZ3735 POWER SUB COVER 1 1

18 VMZ3736 POWER SUB COVER 2 1

19 VYP9230 SIDE CASE L U 1

20 VMG1793 USB CAP 1

21 VMG1796 GUARD 1

22 VMG1802 RCA CAP 1

23 VGB0677 P2HD BADGE 1

24 VGB0625 PANA BADGE 1

25 VGF1076 TOP COVER 1

26 VMG1794 BNC CAP 2

101 XYN26+J6FJ SCREW 8

102 XYN2+J6FJ SCREW 2

104 XTB3+12GFJK SCREW 5

105 XSB3+6FJK SCREW 1

106 XSB3+16FJK SCREW 2

107 XYN26+J6FJ SCREW 18

108 XYN2+J6FJK SCREW 5

109 XSB3+8FJK SCREW 4

110 VHD1774 SCREW 1

E1 VEP23669A CAMERA P.C.BOARD 1

E2 VEP01989A CAMERA POWER P.C.BOARD 1

E3 VEP01988A POWER MAIN P.C.BOARD 1

E4 VEP01990A POWER SUB P.C.BOARD 1

E5 VEP03H11A CODEC MOTHER P.C.BOARD 1

E6 VEP04919A AUDIO MOTHER P.C.BOARD 1

E7 VEP03H12A P2 CARD A P.C.BOARD 1

E8 VEP03H12B P2 CARD B P.C.BOARD 1

E9 VEP001S3A SD CARD P.C.BOARD 1

E17 VEP04920A L SIDE JACK P.C.BOARD 1

E27 VEP001S2A USB CN P.C.BOARD 1

CASING & FRAME PARTS ASSEMBLY (1)

MPL-2

104

112

104

112

107

111

109

107

108

112

109

110

105

101

102

103

106

12 21

E22

E23

MPL-3

CASING & FRAME PARTS ASSEMBLY (2)

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VGM2239 BOTTOM CASE 1

2 VMP8835 BOTTOM FRAME 1

3 VYQ2306 FOOT BASE U 1

4 VMP4853 LENS CONNECTOR PLATE 1

5 VKC0560 HINGE 1

6 J0KG00000083 FILTER 1

7 VEE1D67 LENS CABLE 1

8 VLP0123 FERRITE CORE 1 J0KG00000001

9 VSC5989 MIC SHIELD 1 1

10 VSC5969 FRONT FRAME 1

11 VGP6217 SIDE L MIC PLATE 1

12 VJF1564 LOCKING CLAMP 1

13 VEE1D79 FRONT MIC CABLE 1

14 VMT1845 SOFT HIGHT SHIELD GASKET 1

15 VLP0123 FERRITE CORE 1 J0KG00000001

16 VJF1559 CLAMPER 1

17 VWJ10H2065L0 10PIN 65MM FFC 1

18 J0ZZZ0000053 FILTER 2

19 VSC5988 MIC SHIELD 1 1

20 VMT1861 SOFT HIGH SHIELD GASKET 1

21 J0KD00000104 FILTER CORE 1

22 VJF1562 LOCKING CLAMP 1

23 VQL1P53 FCC/DOC LABEL 1 FOR AJ-HPX500P

24 VMZ3356 FPC PROTECT SHEET 2

101 XWE26FJK WASHER 2

102 XYN26+A8FJK SCREW 2

103 XSS3+8FJK SCREW 4

104 XYN26+J6FJ SCREW 6

105 XTN26+8JFJK SCREW 2

106 VHD1774 SCREW 1

107 XYN26+J8FJ SCREW 4

108 XTN26+8JFJK SCREW 2

109 XWE26FJK SCREW 2

110 XSB3+6FJK SCREW 2

111 XSB3+8FJK SCREW 8

112 VHD1952 SCREW 4

E22 VEP04921A F MIC CH1 P.C.BOARD 1

E23 VEP04924A F MIC CH2 P.C.BOARD 1

CASING & FRAME PARTS ASSEMBLY (2)

MPL-4

54 4

E28

107

112

108

111

108

112

101

106

108

104

110

104

113

35 34 31 37

109

103

104

E20

E21

E20

102

E15

112

108

E16

103

111

112

105

MPL-5

SIDE CASE (R) PARTS ASSEMBLY Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

E16 VEP001R4A R SIDE 2 P.C.BOARD 1

1 VEE1D62 HEADPHONE CABLE 1 E20 VEP001R5A POWER SW P.C.BOARD 1

2 VEE1D63 R SIDE1 CABLE 1 E21 VEP001R6A TOGGLE SW P.C.BOARD 1

3 VWJ50G6045L0 PREPRO OUT DAT 1 E28 VEP04923A PHONE CN P.C.BOARD 1

4 VYP9233 SIDE CASE R 1 U 1

5 VYF3154 CONTROL DOOR U 1

6 VGH4949 CONTROL PANEL 1

7 VGH4951 INDICATER PLATE A 1

8 VMS7832 SHAFT 1

9 VGH4952 INDICATER PLATE B 1

10 VGH4953 INDICATER PLATE C 1

11 VKN0185 SPEAKER NET 1

12 VMG1638 PHONE JACK COVER 1

13 VGU9660 USER RUBBER BUTTON 2

14 VGP6075 CONTROL PANEL 1

15 VKF3918 SLIDE DOOR 1

16 VGU0B46 MENU BUTTON 1

17 VMG1506 DOOR CUSHION 1

18 VGK3031 TOGGLE SW PLATE 1

19 VGU9695 RUBBER BUTTON (B) 1

20 VMG1096 VR RAIN COVER PACKING 3

21 VMZ0624 BONDING TAPE A 1

22 VZT0625 BONDING TAPE B 1

23 VMS7187 LCD LOCK SHAFT 1

24 VMB3659 MONITOR OPENER SPRING 1

25 VYF2895 OPERATION PANEL (B)U 1

26 VGU9675 MONITOR LOCK KNOB 1

27 VMC1837 SLIDE PLATE SPRING 1

28 VMP8366 GUIDE PLATE 1

29 VMG1804 LCD RUBBER 2

31 VGQ8202 MONITOR POP UP 1

32 VMP8096 DOOR STAND ANGLE 1

33 VMP7331 OPENER HOLDER ANGLE 1

34 VMS7294 POP UP PIN 1

35 VMB3996 POP UP SPRING 1

36 VGU0B30 MODE SW KNOB 1

37 VGQ9489 PANEL LIGHT B 3

38 VGU0B26 RUBBER BUTTON A 1

39 VGU0B27 RUBBER BUTTON B 1

40 VGU9301 VR KNOB FRONT 1

41 VGU9303 VR KNOB 1

42 VGU9304 OPERATION RUBBER BUTTON 1

43 VGU8993 OPERATION BUTTON 1

44 VGH4633 MODE SELECT NAME PLATE 1

45 VMG0646 WATERPROOF SW INSULATION S

46 VGH4680 VR NAME PLATE 1

47 VGH4948 VF LABEL 1

48 VMT1494 WATERPROOF CUSHION 4

49 VEK0L21 SPEAKER U 1

50 VMP7351 SPEAKER HOLD ANGLE 1

51 VMX0531 CLATCH SPACER 1

52 VGL1228 LED PANEL LIGHT 2

53 VYQ4079 FACE PAD U 1

54 VMZ3704 SIDE R BARRIER 1

55 VMZ3692 LCD FFC SHEET 1

101 XTN3+6GFJ SCREW 1

102 XQN2+BJ4FJK SCREW 1

103 XYN2+C4FJ SCREW 4

104 XSB3+10FJK SCREW 5

105 VMX3348 WASHER 5

106 VMX1312 POLY WASHER 4

107 XYN3+C5FJ SCREW 2

108 XYN2+J6FJ SCREW 15

109 VHN0382 NYLON NUT 1

110 XQN2+A2FJK SCREW 1

111 XYN2+J6FJ SCREW 5

112 XTB26+6GFJK SCREW 7

113 XYN2+F5FJ SCREW 8

E15 VEP001T0A R SIDE 1 P.C.BOARD 1

SIDE CASE (R) PARTS ASSEMBLY

MPL-6

MPL-7

CAMERA PARTS ASSEMBLY(1) Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

104

101

102

103

101

104

E24

E10

103

102

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VYQ4076 HEAD OPTICAL U 1

2 VMA0V43 HEAT SINK R 1

3 VMA0V44 HEAT SINK G 1

4 VMA0V45 HEAT SINK B 1

5 VMA0V41 HEAT SINK BASE 1

6 VXQ1523 L.P.FILTER U 1

7 VDW1228 LENS MOUNT RING 1

8 VKF2997 CAP 1

9 VSC5996 OPTICAL SHIELD 1

10 VMT1861 SOFT HIGH SHIELD GASKET 2

11 VEE1D66 CABLE 1

101 XQS2+A4FJK SCREW 3

102 XYN26+F6FJ SCREW 6

103 XYN2+J5FJ SCREW 7

104 XSB3+6FJK SCREW 4

E10 VEP22379A CCD FLEX P.C.BOARD 1

E24 VEP80D27A POSITION SENSOR P.C.BOARD 1

CAMERA PARTS ASSEMBLY (1)

MPL-8

MPL-9

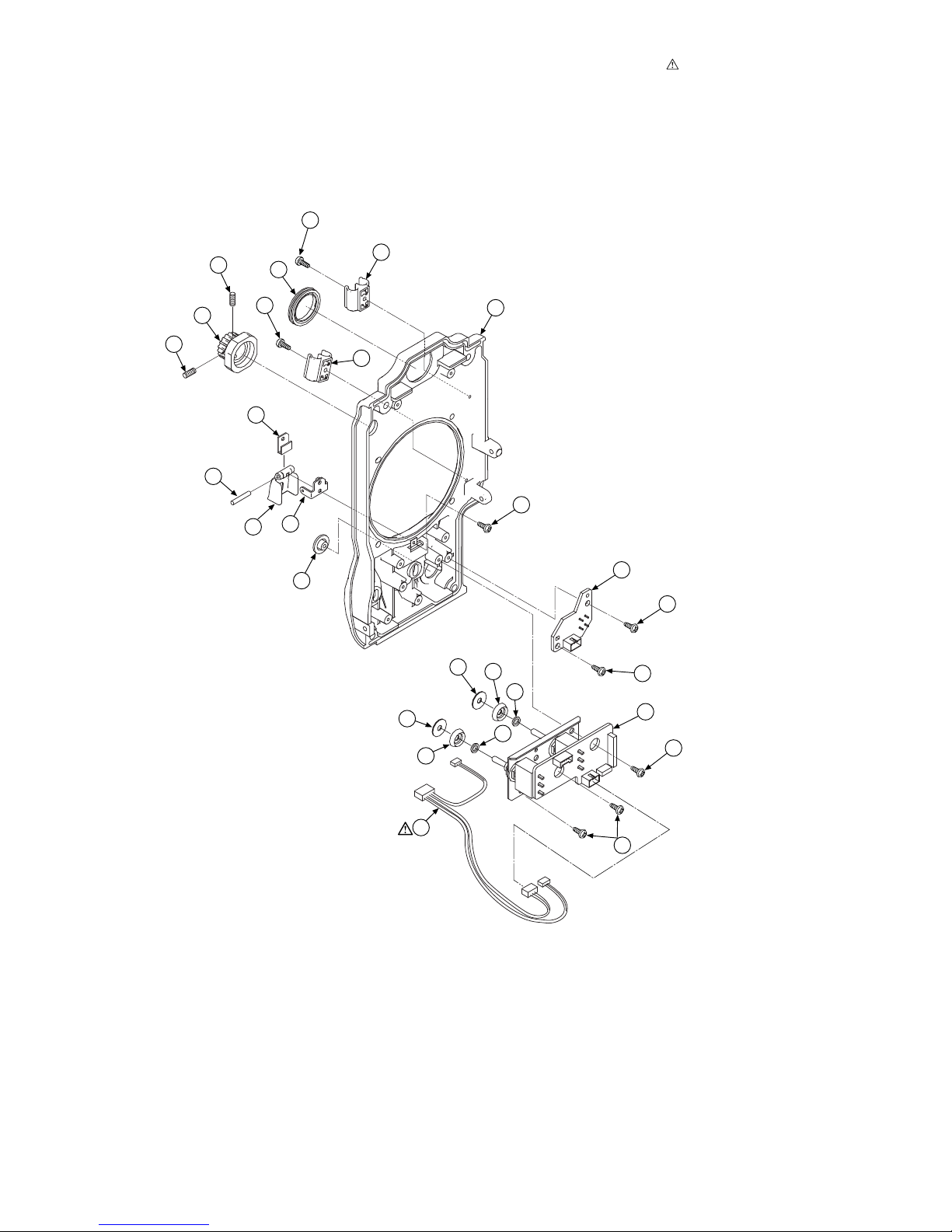

CAMERA PARTS ASSEMBLY (2) Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

102

104 2

101

103

104

E25

E18
