Panasonic AJ-HPX2000P Manuale utente

Panasonic Broadcast

Mechanical Parts List

MODEL No.: AJ-HPX2000P, AJ-HPX2100E/MC, AJ-YA350G

CONTENTS

CASING & FRAME PARTS ASSEMBLY OVERALL SECTION (1).................................................MPL-1

OVERALL SECTION (2) ..................................................................................................................MPL-3

CAMERA PARTS ASSEMBLY(1) ....................................................................................................MPL-5

CAMERA PARTS ASSEMBLY(2) ....................................................................................................MPL-7

CAMERA PARTS ASSEMBLY(3) ....................................................................................................MPL-7

TOP CASE & HANDLE PARTS ASSEMBLY ..................................................................................MPL-11

SIDE CASE (R) PARTS ASSEMBLY...............................................................................................MPL-13

CARD GUIDE PARTS ASSEMBLY .................................................................................................MPL-15

REAR JACK PARTS ASSEMBLY....................................................................................................MPL-17

BACK CASE PARTS ASSEMBLY ...................................................................................................MPL-19

LCD PARTS ASSEMBLY.................................................................................................................MPL-21

PACKING PARTS ASSEMBLY........................................................................................................MPL-23

13 14

E16

102

104

107

105

106

105

103

E17

107

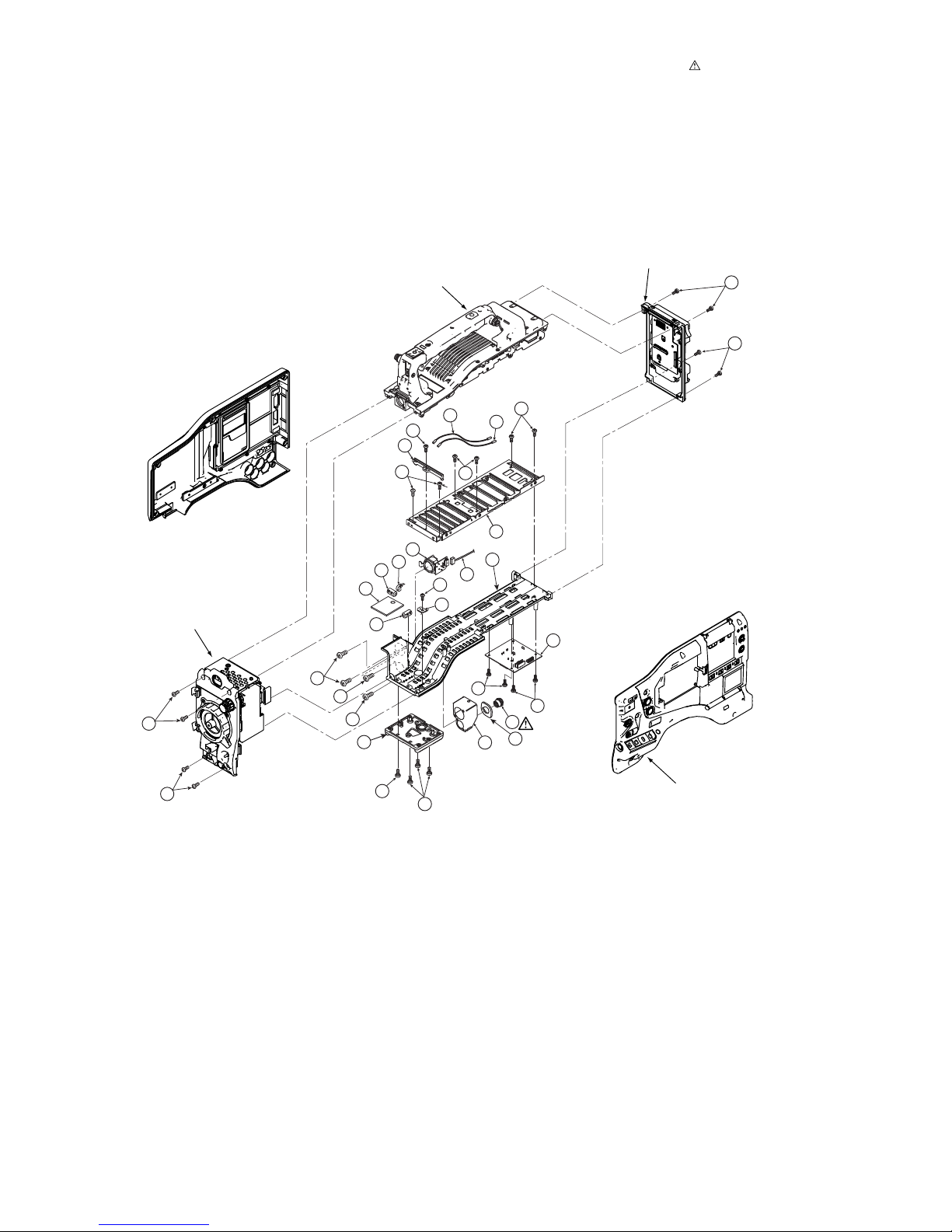

CASING & FRAME PARTS ASSEMBLY

OVERALL SECTION (1)

MPL-1

(Page MPL-11)

TOP CASE & HANDLE ASS'Y (Page MPL-19)

(BACK CASE ASS'Y)

SIDE CASE (R) ASS'Y

(Page MPL-13)

LCD ASS'Y

(Page MPL-21)

(Page MPL-5,7,9)

CAMERA ASS'Y

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VYK2B02 BOTTOM CASE U 1

2 VMP4853 LENS CONNECTOR PLATE 1

3 VYQ2306 FOOT BASE U 1

4 VKC0560 HINGE 1

5 VJF1158 CLAMPER 1

6 VEE1C95 LENS CABLE 1

7 VSC5875 MIC SHEILD CASE 1

8 VMP8764 PB GUIDE ANGLE BOTTOM 1

9 VGQ8103 PB GUIDE 2 1

10 VEE0Z86 FRONT MIC CABLE 1

11 VMT0779 GASKET 1

12 VLP0123 FERRITE CORE 2 J0KG00000001

13 K1TZB9A00031 COAXIAL CABLE (BLACK) 1

14 K1TZB9A00052 COAXIAL CABLE (RED) 1

102 XYN26+A8FJK SCREW 2

103 XSS3+8FJK SCREW 4

104 XTN3+10JFJK SCREW 2

105 XYN26+J6FJ SCREW 11

106 VHD1774 SCREW 1

107 XSB3+8FJK SCREW 3

E16 VEP84406A REAR AUDIO P.C.BOARD 1

E17 VEP80C55B STEREO MIC P.C.BOARD 1

OVERALL SECTION (1)

MPL-2

E8-1

E10

E18

E19

E21

106

101

103

102

107

105

106

108

106

109

104

106

OVERALL SECTION (2)

MPL-3

* The part number of card holder is written in

Electric Parts List of each P.C.Board.

(Page MPL-17)

REAR JACK ASS'Y

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VMP8767 RECEIVER BOX 1

2 VYF3042 RECEIVER COVER U 1

3 VEE1B91 RECEIVER CABLE 1

4 VWJ16G8100L0 FFC 1

5 VWJ40G7145L0 FFC 1

6 VWJ30G7125L0 FFC 1

7 VEE0Z89 L SIDE CABLE 1

8 VWJ40H2210L0 FFC 2

9 VWJ30G6060L0 FFC 1

10 VEE1A00 L SIDE LED CABLE 1

11 VEE1C61 USB CABLE 1

12 VEE1D52 USB WIRE CABLE U 1

13 VGK3027 LAN CARD BASE 1

14 VJF1535 COATING CLIP 2

15 VJF1557 CLAMPER 1

16 VWJ50G6060L0 FFC 1

17 VGQ9384 CONDUCTIVE TAPE 1

18 VYP9208 SIDE L U 1

19 VMG1642 GUARD 1

20 VMG1767 USB CAP 1

21 VMG1768 BNC CAP(A) 1

22 VGB0677 P2HD BADGE 1

23 VGB0625 PANA BADGE 1

24 VQL1N04 FCC/DOC LABEL 1

25 VYF3041 LAN COVER U TW 1

101 XYN2+F6FJ SCREW 3

102 XYN2+J6FJ SCREW 6

103 VHD1774 SCREW 1

104 XSB3+4FJKT SCREW 2

105 XSB2+6FJK SCREW 2

106 XYN26+J6FJ SCREW 14

107 XSB3+16FJK SCREW 2

108 XYN3+J6FJ SCREW 1

109 VHD1462 SCREW 2

E1 VEP81255A CAMERA POWER P.C.BOARD 1

E2 VEP23660A CAMERA SYSCON P.C.BOARD 1

E3 VEP23658A CAMERA DSP 1 P.C.BOARD 1

E4 VEP23659A CAMERA DSP 2 P.C.BOARD 1

E5 VEP83673A SPD SYS MSC P.C.BOARD 1

E6 VEP86359A SPD CPU P.C.BOARD 1

E7 VEP80C82A SPD CARD 1 P.C.BOARD 2

E8 VEP80C83C SPD CARD 2 P.C.BOARD 1

E8-1 VEP80C91A SD CARD SUB P.C.BOARD 1 FOR VEP80V83C

E9 VEP84400B SPD AUDIO P.C.BOARD 1

E10 VEP81254A SPD POWER P.C.BOARD 1

E18 VEP80D81A SPD P.C.BOARD 1

E19 VEP80D83A USB A CN P.C.BOARD 1

E21 VEP80E05A L SIDE BNC P.C.BOARD 1

OVERALL SECTION (2)

MPL-4

E/MC only

107

101

111

109

111

E14

111

E12

E13

109

CAMERA PARTS ASSEMBLY(1)

MPL-5

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VEQ4539 CAMERA U 1 FOR AJ-HPX2000P

1 VEQ4540 CAMERA U 1 FOR AJ-HPX2100E/MC

2 VWJ14G8065L0 FRONT-PULSE FCC 1

3 VMP8675 OPTICAL BLOCK ANGLE 1

4 VWJ10G8037L1 SENSOR FFC 1

5 VSC5864 SHIELD CASE DRIVE 1

6 VSC5865 SHIELD CASE PULSE 1

7 VSC5866 SHIELD CASE PREAMP 1

8 VGU9860 FILTER KNOB (ND/CC) 1 FOR AJ-HPX2000P

8 VGU0B21 FILTER KNOB (ND) 1 FOR AJ-HPX2100E/MC

9 VEE0X28 CABLE U 1

10 VEE1C32 FILTER CABLE U 1

11 J0KD00000070 FERRITE CORE 2

12 VLP0123 FERRITE CORE 1 J0KG00000001

13 VEE1C94 PREAMP CABLE U 1

14 J0KD00000101 FERRITE CORE 1

15 VMT1815 GASKET 2

16 VMT1821 GASKET 1

17 VJF1158 CLAMPER 1

18 VGU0B22 FILTER KNOB (CC) 1 FOR AJ-HYPX2100E/MC

101 XQN2+B25FJ SCREW 2

107 XQN2+C4FJ SCREW 2

109 XXE26W3FP HEX SCREW 2 E/MC: 4PCS

111 XYN26+J5FJ SCREW 22

113 XYN3+J6FJ SCREW 1

E12 VEP23650A DRIVE P.C.BOARD 1

E13 VEP23653A PULSE P.C.BOARD 1

E14 VEP23652A PRE AMP P.C.BOARD 1

CAMERA PARTS ASSEMBLY(1)

MPL-6

E15

105

106

108

106

105

104

101

105

E11

MPL-7

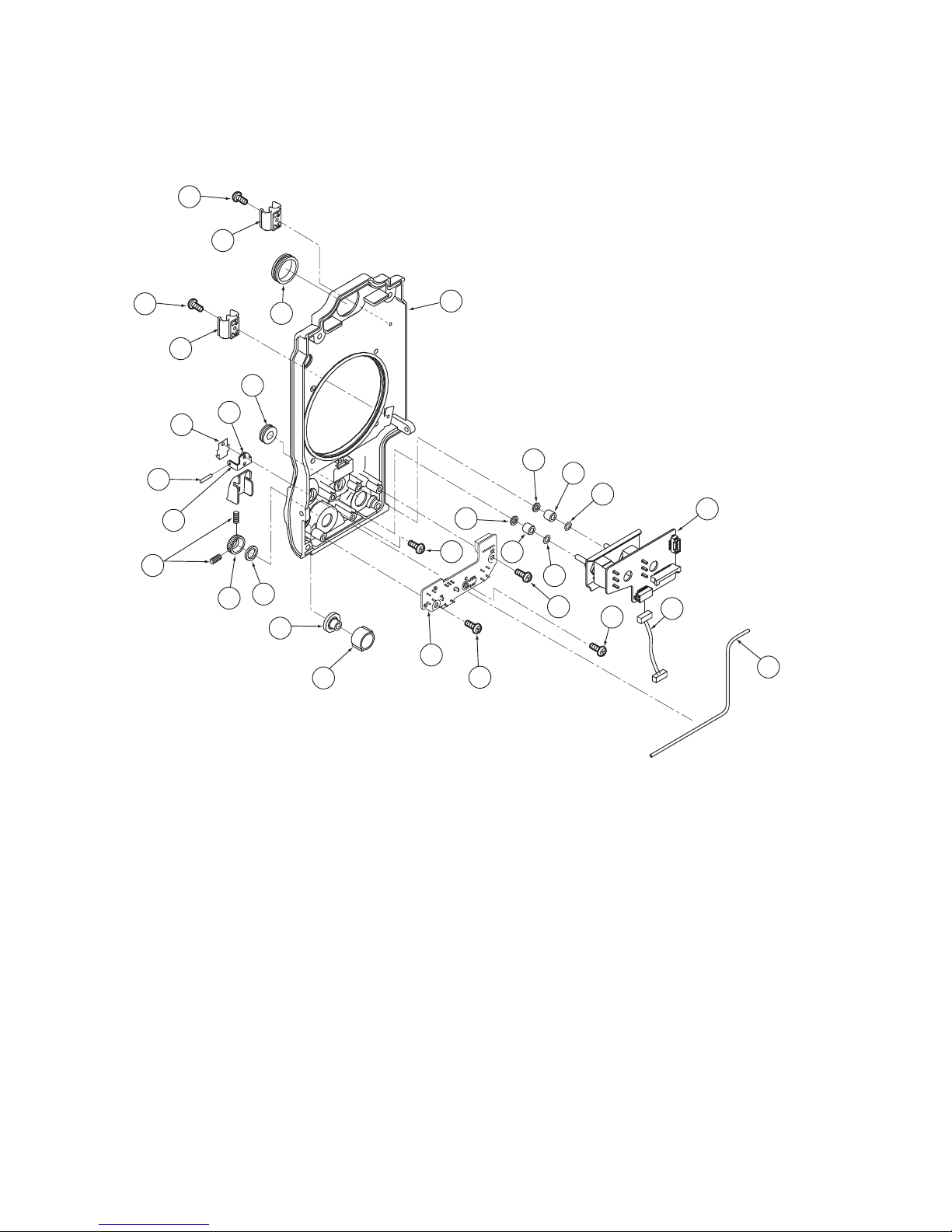

CAMERA PARTS ASSEMBLY(2)

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VYQ3933 OPTICAL U 1 FOR AJ-HPX2000P

1 VYQ3863 OPTICAL U 1 FOR AJ-HPX2100E/MC

2 VMA0T71 HEAT SINK (R) 1

3 VMA0T72 HEAT SINK (G) 1

4 VMA0T73 HEAT SINK B 1

5 VMA0V41 HEAT SINK BASE 1

6 VXQ1446 O.LPF U 1

7 VDW1228 LENS MOUNT RING 1

8 VDS0169 MOUNT CAP 1

9 VEE2804 EARTH CABLE 2

101 XQN2+C4FJ SCREW 3

104 XYN3+C6FJ SCREW 2

105 XYN26+F6FJ SCREW 6

106 XQS2+A4FJK SCREW 3

108 XSB3+6FJK SCREW 4

E11 VEP20B25C CCD P.C.BOARD 1

E15 VEP80D27A POSITION SENSOR P.C.BOARD 1 FOR AJ-HPX2000P

E15 VEP80D28A POSITION SENSOR P.C.BOARD 1 FOR AJ-HPX2100E/MC

CAMERA PARTS ASSEMBLY(2)

MPL-8

105

103

102

101

E23

E22

112

MPL-9

CAMERA PARTS ASSEMBLY(3)
