Panasonic Broadcast

AJ-SPX800

Mechanical Parts List

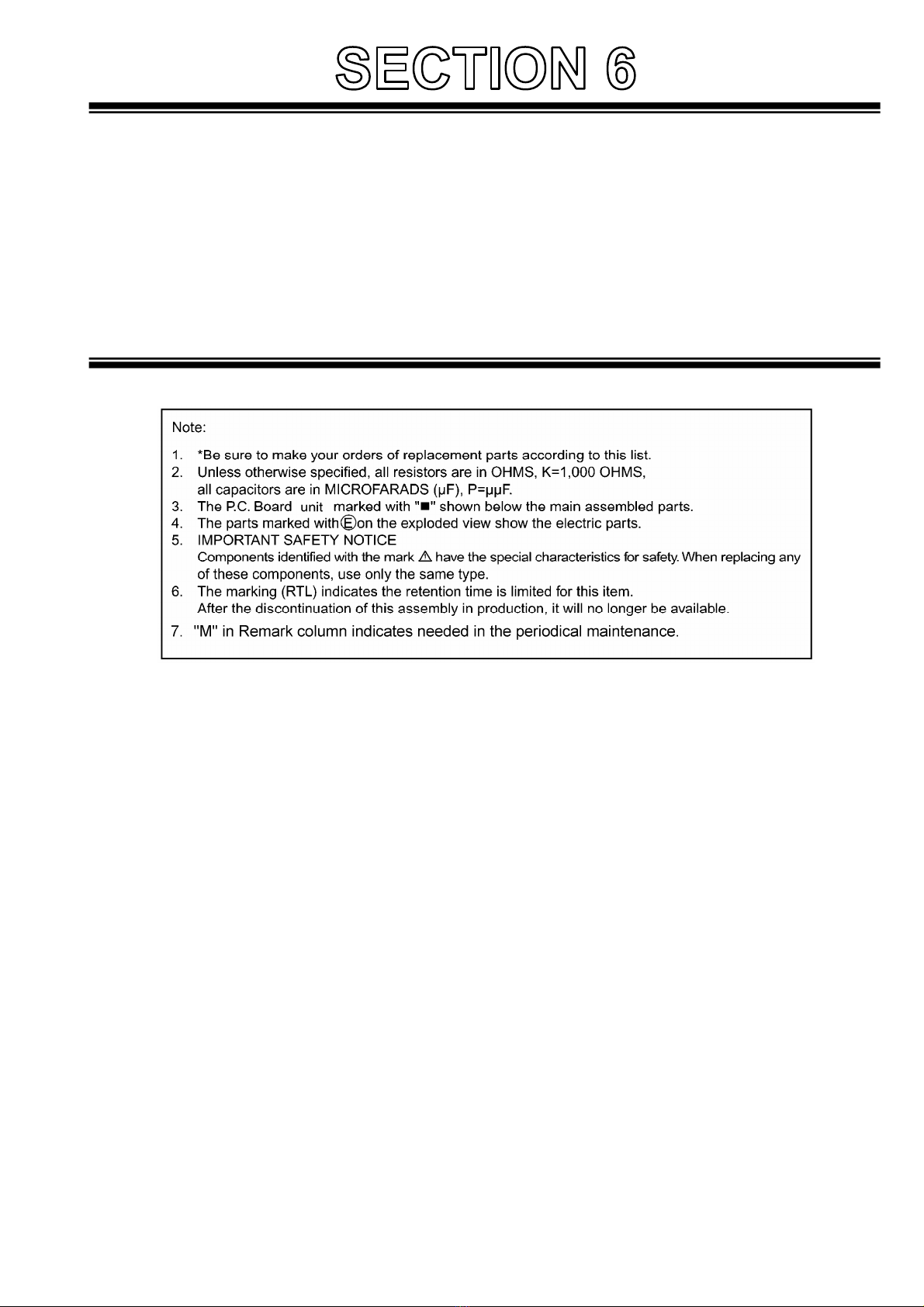

EXPLODED VIEWS &

REPLACEMENT PARTS LIST

MODEL:

AJ-SPX800P/AJ-SPX800E/AJ-SPX900E/AJ-SPX900MC

CONTENTS

CABLE PARTS ASSEMBLY ............................................................................................................MPL-1

CASING & FRAME PARTS ASSEMBLY

OVERALL SECTION (1) ..................................................................................................................MPL-3

OVERALL SECTION (2) ..................................................................................................................MPL-5

CAMERA PARTS ASSEMBLY ........................................................................................................MPL-7

TOP CASE & HANDLE PARTS ASSEMBLY ..................................................................................MPL-9

SIDE CASE (R) PARTS ASSEMBLY (1) .........................................................................................MPL-11

SIDE CASE (R) PARTS ASSEMBLY (2) .........................................................................................MPL-13

CARD G IDE PARTS ASSEMBLY .................................................................................................MPL-15

REAR JACK PARTS ASSEMBLY....................................................................................................MPL-16

BACK CASE PARTS ASSEMBLY ...................................................................................................MPL-17

LCD PARTS ASSEMBLY.................................................................................................................MPL-18

PACKING PARTS ASSEMBLY........................................................................................................MPL-19

ELECTRICAL REPLACEMENT PARTS LIST (AJ-SPX800P).........................................................EPL-1

ELECTRICAL REPLACEMENT PARTS LIST (AJ-SPX800E).........................................................EPL-35

ELECTRICAL REPLACEMENT PARTS LIST (AJ-SPX900E/MC) ..................................................EPL-69

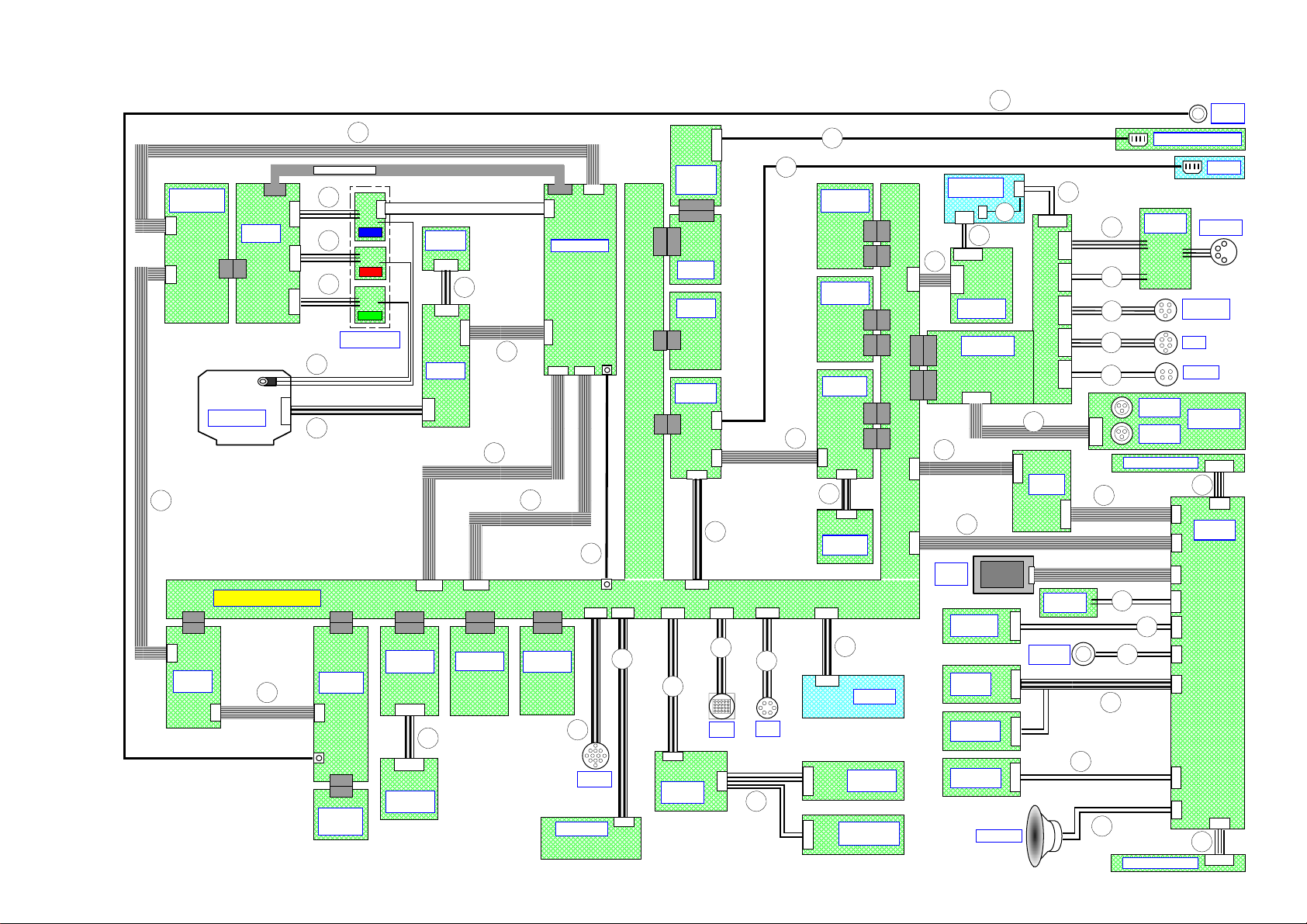

CABLE PARTS ASSEMBLY

MPL-1

PREPROCESS

Board

PREAMP

Board

P101P301 P201

R ch

CCD_SENSOR

Board

B ch

G ch

PULSE Board

FRONT

SW Board

Board to Board

P1 P2

CAM DSP

Board CAM SYS

Board

SPD AUDIO

Board

SPDSYS

Board

SPD CPU

Board

SPDPOWER

Board

SPDCARD2

Board

SPDCARD1

Board

L_SIDE Board

OPERATE

Board

HANDLE SW

Board

HANDLE TALLY

Board

UNISLOT

INTERFACE

Board

1394CN Board (OPTION)

EXT DC IN

Board

AUDIO OUT

ECU

DC OUT

AUDIO IN

CH1 REAR JACK

Board

SPDLCD

Board

HP Board (FRONT)

SPDSSW

Board

SHOT M SW

Board

V MEMO SW

Board

TOGGLE

Board

POWER SW

Board

OPTICAL UNIT

SDI

Board

(OPTION)

P18

CAMPOWER

Board

FRONT MIC

Board

P10101

1394

Board

(OPTION)

SPD MSC

Board

P31

SPDCARD1

Board

L SIDE LED

Board

P10302

P9801

BATTERY

MOUNT UNIT

P9803

REAR AUDIO

Board

VIDEO

OUT

EXT DC IN

AUDIO IN

CH2

P9001

P6301

LCD

PANEL

V. MEMO

MIC

P4 P9 P10 P5

SPEAKER

P1 P3

P19 U1

P6500

P6600 P1 P1

USBCN

P4254

P4255 P4252 P4259 P4251 P4256

P4258 P4257

P4201

P4101

P6401

LCD OPEN

SW Board

P9501

P11 P12

P9401 P9001 P9401

HP Board (REAR) P9001

J800

P1 P1

P1302

P4500

P9001

P13

P4951 P14

P103

P21 P22 P15 P17 P16 P16

P9001 P9100

SPD MOTHER Board

GPS

EVF

LENZ

P4 P5 P6

P25 P24

P10

P12

P11

P26 P29 P23

39 4

17 15

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VWJ14SW065L0 FFC 1

2 VEE0X28 CABLE U 1

3 VEE0Z85 ND/CC FILTER WIRE U 1 AJ-SPX800P/E

3 VEE0W37 ND/CC FILTER WIRE U 1 AJ-SPX900E/MC

4 VEE0W38 MENU SW CABLE 1

5 VWJ28E5090L0 FFC 1

6 VEE0Z88 LENS CABLE 1

7 VEE0Z86 FRONT MIC CABLE 1

8 VEE0W43 EVF CONNECTOR ASS'Y 1

9 VEE0Z97 GPS WIRE U 1

10 VEE0Z90 OPERATE CABLE 1

11 VEE0Z91 HANDLE SW CABLE 1

12 VEE0W32 ANTON LIGHT CABLE 1

13 VEE0W31 BATT CABLE 1

14 VEE0W44 BATT2 CABLE 1

15 VEE0W25 HP1 (FRONT) 1

16 VEE0W26 HP2 (REAR) 1

17 VWJ30E5070L0 LCD IF FFC 1

18 VEE0Z93 TOGGLE CABLE 1

19 VEE0Z94 V MEMO MIC CABLE 1

20 VEE0Z96 SHOT M SW CABLE 2

21 VEE0Z98 SPEAKER CABLE 1

22 VEE0W33 AUDIO OUT CONNECTOR ASS'Y 1

23 VEE1A41 ECU HARNESS 1

24 VEE0W29 DC OUT CONNECTOR ASS'Y 1

25 VEE0Z92 UNISLOT WIRE U 1

26 VWJ16D1090TT FFC 1

27 VWJ50E5090L0 PREPRO OUT DAT FFC 2

28 VWJ40E5090L0 HEAD CNT FLAT CABLE 1

29 VWJ30E5105L0 ZV BUS FFC 1

30 VEE0Z87 LCD OUT CABLE 1

31 VEE0Z89 L SIDE CABLE 1

32 VWJ50E5045L0 PREPRO OUT DAT FFC 1

33 VWJ40E5210L0 FLEX. CABLE 2

34 VWJ30E5060L0 FFC 1

35 VEE0E12300A SDI COAXIAL CABLE 1

36 VEE0Z99 1394 CABLE 1

37 VEE1A00 L SIDE LED CABLE 1

38 VEE1A38 USB CABLE 1

39 VEE0W39 CCD SENSOR (B) CABLE 3

40 VEE0R31 GND CABLE 1

41 VEE0L74 EXT DC CABLE 1

42 VEE0K14 EXT DC INF CABLE 1

43 VEE0Z94 V MEMO MIC CABLE 1

CABLE PARTS ASSEMBLY

MPL-2

109

115

109 109

E16

109

NOTE

105

103

110

103

102 102

106

E22 E17

109 109

108

112

101

107 107

104 104

110

114

111

114

113

(Page MPL-9)

TOP CASE & HANDLE ASS'Y

(Page MPL-5)

(Page MPL-17)

(BACK CASE ASS'Y)

(Page MPL-16)

REAR JACK ASS'Y

(Page MPL-11)

SIDE CASE (R) ASS'Y

LCD ASS'Y

(Page MPL-18)

MPL-3

(Page MPL-7)

CAMERA ASS'Y

SIDE (L) U

NOTE:

This connector is the connector ASS'y.

Refer to CABLE PARTS ASSEMBLY with part number.

CASING & FRAME PARTS ASSEMBLY

OVERALL SECTION (1)

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VYK1J07 BOTTOM CASE 1 U 1

2 VMP4853 LENS CONNECTOR PLATE 1

3 VGM1826 FRONT V EDGE 1

4 VGM1824 FRONT FOOT BASE 1

5 VKA0299 FRONT FOOK 2

6 VKC0560 HINGE 1

7 VYK1P21 BOTTOM COVER U 1

8 VMT1591 SHOULDER PAD 1

9 SHR330 CLAMPER 6

101 XSB4+6FC SCREW 3

102 XTS26+6J SCREW 6

103 XSN26+8FCK SCREW 2

104 XSS3+8FZ SCREW 4

105 XTN26+8JFZ SCREW 2

106 VHD0325 SCREW 1

107 XSB3+6FZ SCREW 6

108 XSB3+16FCK SCREW 2

109 XYN26+J6 SCREW 12

110 XSB3+8FZ SCREW 8

111 XYN2+F6 SCREW 1

112 XSB3+4FZ SCREW 2

113 VHD1774 SCREW 1

114 XYN2+J6 SCREW 6

115 XYN3+K6 SCREW 1

E16 VEP89143A SPD MOTHER P.C.BOARD 1

E17 VEP84396A REAR AUDIO P.C.BOARD 1

E22 VEP80C54A FRONT MIC P.C.BOARD 1

OVERALL SECTION (1)

MPL-4

101

102

E15

E12

E11 E10

E7 E8

E9 E6 E5

E14

E19

103 101

101

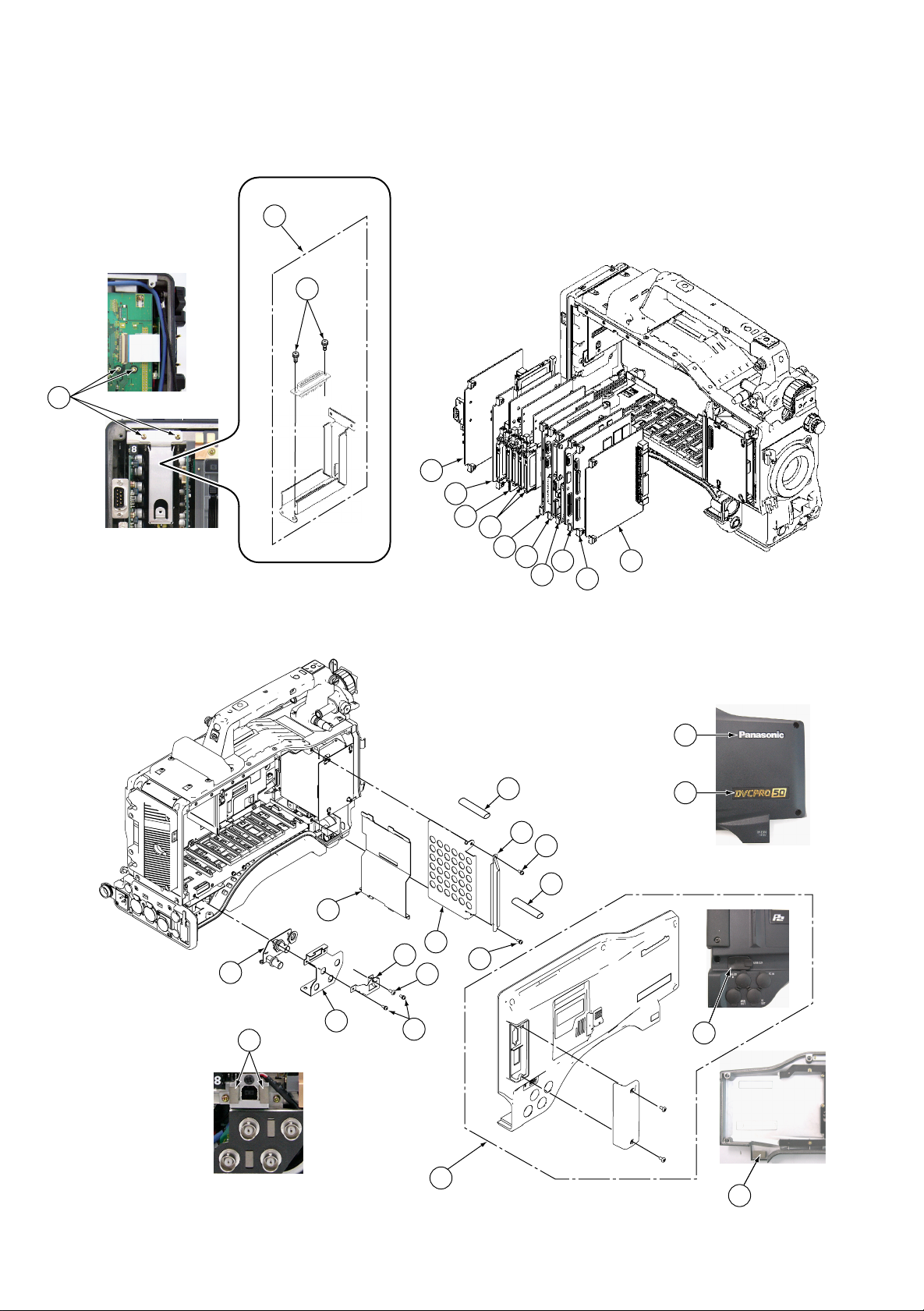

OVERALL SECTION (2)

MPL-5

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VSC5632 CCD SHIELD PLATE 1

2 VMP8068 USB PB ANGLE 1

3 VXA7866 RECEIVER BOX U 1

4 VMT1618 SOFT HIGH SHIELD GASKET 2

5 VEK0G98 USB CN 1

6 VMT1549 GASKET 2

7 VSC5655 MIC CABLE SHIELD CASE 1

8 VMZ3479 SDI-1394 BARRIER 1

9 VYP9066 SIDE (L) U 1

11 VMG1643 USB CAP 1

12 VGB0601 DVCPRO50 BADGE 1

13 VGB0625 PANA BADGE 1

14 VMT1570 GASKET 1

101 XYN26+J6 SCREW 8

102 VHD1462 SCREW 2

103 XSB3+6FZ SCREW 1

E5 VEP23603A CAM DSP P.C.BOARD 1 AJ-SPX800P

E5 VEP23603B CAM DSP P.C.BOARD 1 AJ-SPX800E/900E/MC

E6 VEP23604A CAM SYSCON P.C.BOARD 1 AJ-SPX800P

E6 VEP23604B CAM SYS P.C.BOARD 1 AJ-SPX800E

E6 VEP23604C CAM SYS P.C.BOARD 1 AJ-SPX900E/MC

E7 VEP83638A SPD MSC P.C.BOARD 1

E8 VEP86339A SPD SPU P.C.BOARD 1 AJ-SPX800P

E8 VEP86339C SPD CPU P.C.BOARD 1 AJ-SPX800E/900E

E8 VEP86339D SPD CPU P.C.BOARD 1 AJ-SPX900MC

E9 VEP86338A SPD SYSCON P.C.BOARD 1

E10 VEP80C82A SPD CARD 1 P.C.BOARD 2

E11 VEP80C83A SPD CARD 2 P.C.BOARD 1

E12 VEP84395A SPD AUDIO P.C.BOARD 1

E14 VEP21290A CAM POWER P.C.BOARD 1

E15 VEP81234A SPD POWER P.C.BOARD 1

E19 VEP80D05A L SIDE P.C.BOARD 1

OVERALL SECTION (2)

MPL-6

102

101

103

103 105

E21

18 15 16

20 17

E20

106

104

107

108

114

105

115

114

111

110

105

116

113

112

113

112

107

23 22

109

105

113

only

CAMERA PARTS ASSEMBLY

MPL-7

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VEQ4479 CAMERA U 1 AJ-SPX800P

1 VEQ4487 CAMERA U 1 AJ-SPX800E

1 VEQ4488 CAMERA U 1 AJ-SPX900E/MC

2 VMP7585 P.C.B. MOUNT ANGLE 1

3 VSC5661 OPTICAL SHIELD PLATE RIGH 1

4 VSC5634 SHIELD CASE (PULSE) 1

5 K9ZZ00001016 POST 4

6 VGU8128 FILTER KNOB 1

6 VGU8686 FILTER KNOB (ND) 1

7 VYK1H99 FRONT CASE 1U 1

8 VJF1256 CABLE CLAMPER 2

9 VMG0948 EVF RUBBER SHIELD 1

10 VMC1210 FRONT DOOR SPRING 1

11 VMP4850 FRONT DOOR ANGLE 1

12 VMS4088 FRONT DOOR ANGLE PIN 1

13 VKF2485 FRONT DOOR 1

14 VXU1620 RUBBER BUTTON ASS'Y 1

15 VGU9299 MENU BUTTON 1

16 VGQ7131 BUTTON HOLDER PLATE 1

17 VMT1432 WATERPROOF CUSHION 2

18 VGU8541 MENU KNOB 1

19 VMG1317 MENU WATERPROOF RUBBER 1

20 VMG1140 RAIN COVER SPONGE 2

21 VYQ3164 OPTICAL U 1 AJ-SPX800P

21 VYQ3203 OPTICAL U 1 AJ-SPX800E

21 VYQ3204 OPTICAL U 1 AJ-SPX900E/MC

22 VMA0E35 HEAT SINK (R) 1

23 VMA0E36 HEAT SINK (G) 1

24 VMA0E37 HEAT SINK (B) 1

25 VXQ1145 OPF U 1

26 507A54506Q1 FILTER HOUSING U 1 AJ-SPX800P/E

26 507A54506N1 FILTER HOUSING U 1 AJ-SPX900E/MC

27 VDW0582 MOUNT RING 1

28 VGU8016 MOUNT RING KNOB 1

29 VKF2997 CAP 1

30 VMA9630 LENS SUPPORT ANGLE 1

31 VEP20811 ND/CC FILTER POSITION 1 AJ-SPX800P/E

32 VEP20812 ND/CC FILTER POSITION 1 AJ-SPX900E/MC

33 VSR0247 DETECT ROTALY 1

33 VSR0247 DETECT ROTALY 2 AJ-SPX900E/MC

34 VGU8687 FILTER KNOB (CC) 1 AJ-SPX900E/MC

101 XYN2+C4 SCREW 1

102 XSB2+4FZ SCREW 2

103 XXEV2W4FP SCREW 2

104 XYN3+C6 SCREW 2

105 XYN26+J6 SCREW 11

106 VMX1312 POLY WASHER 2

107 XQS2+A4FZ SCREW 3

108 XSB26+4FX SCREW 2

109 XYN26+F6FX SCREW 1

110 XQN2+B25 SCREW 2

111 XQN2+C4 SCREW 2

112 XSB3+6FZ SCREW 4

113 XXE26W3FP HEX SCREW 2

113 XXE26W3FP HEX SCREW 2 AJ-SPX900E/MC

114 XYN26+C4 SCREW 8

115 XYN3+K6 SCREW 1

116 110M230601Z SCREW 1

E1 VEP20A88A CCD SENSOR P.C.BOARD 1

E2 VEP20A89A PULSE P.C.BOARD 1 AJ-SPX800P

E2 VEP20A89C PULSE P.C.BOARD 1 AJ-SPX800E/900E/MC

E3 VEP23605A PRE AMP P.C.BOARD 1

E4 VEP25124A PRE PROCESS P.C.BOARD 1

E20 VEP80C57A FRONT SW P.C.BOARD 1 AJ-SPX900E/MC

E20 VEP80C57C FRONT SW P.C.BOARD 1 AJ-SPX800P/E

E21 VEP80C58A MENU SW P.C.BOARD 1

CAMERA PARTS ASSEMBLY

MPL-8

Altri manuali per AJ-SPX900E

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Videocamera

Panasonic

Panasonic AG-DVC80P Manuale utente

Panasonic

Panasonic PVL750 - VHS-C PALMCORDER Manuale utente

Panasonic

Panasonic NVVS50EN/A Manuale tecnico

Panasonic

Panasonic AGHMC70P - MEMORY CARD CAMERA RECORDER Manuale utente

Panasonic

Panasonic AG-DVC10P Manuale utente

Panasonic

Panasonic HDC-SDT750 Manuale utente

Panasonic

Panasonic HDC-SD5 Manuale utente

Panasonic

Panasonic VDR-M30 Manuale utente

Panasonic

Panasonic NV-R33E Manuale utente

Panasonic

Panasonic NV-MD9000EN Manuale utente

Panasonic

Panasonic NV-GS188GK Manuale utente

Panasonic

Panasonic Plamcorder PV-DV901 Manuale utente

Panasonic

Panasonic HX-DC3 Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic Palmcorder Multicam PV-DV73 Manuale utente

Panasonic

Panasonic Palmcorder PV-DV92 Manuale utente

Panasonic

Panasonic AGHVX200APS Manuale utente

Panasonic

Panasonic Palmcorder MultiCam PV-L453 Manuale utente

Panasonic

Panasonic Palmcorder MultiCam PV-GS32 Manuale utente

Panasonic

Panasonic AG AG-HPX170 Manuale utente

Panasonic

Panasonic AJ-SPX900E Manuale utente

Panasonic

Panasonic Palmcorder PV-L352-K Manuale utente

Panasonic

Panasonic HC-W570 Manuale utente

Panasonic

Panasonic HC-V520P Manuale utente

Panasonic

Panasonic HC-X900K Manuale utente

Manuali Videocamera popolari di altre marche

Toshiba

Toshiba CAMILEO Z100 Manuale utente

Canon

Canon RC 260 Manuale utente

Sony

Sony Handycam DCR-DVD7E Manuale utente

Brinno

Brinno TimeLapse TLC200 Manuale utente

JVC

JVC GR-SXM68AC Guida rapida

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuale utente

MYDLINK

MYDLINK DCS-6100LH Manuale utente

Sony

Sony video Hi8 Handycam CCD-TR555 Manuale utente

SECURECOM

SECURECOM V-5014B Manuale utente

Sharper Image

Sharper Image U-VIDEO Manuale utente

JVC

JVC AA-V15EG Manuale utente

Canon

Canon LEGRIA HV40 Manuale utente

Sony

Sony Handycam DCR-VX2000 Manuale utente

RCA

RCA CC616 Manuale utente

ATIK Cameras

ATIK Cameras Horizon Manuale utente

Sony

Sony Handycam HDR-CX580V Manuale utente

Sharp

Sharp ViewcamZ VL-Z8H Manuale utente

Philips

Philips M620/21 Manuale utente
