Panasonic AVCCAM AG-AC90P Manuale utente

● ●

AG-AC90P CAMERA MANUAL

2 3 4 5 6

12 13

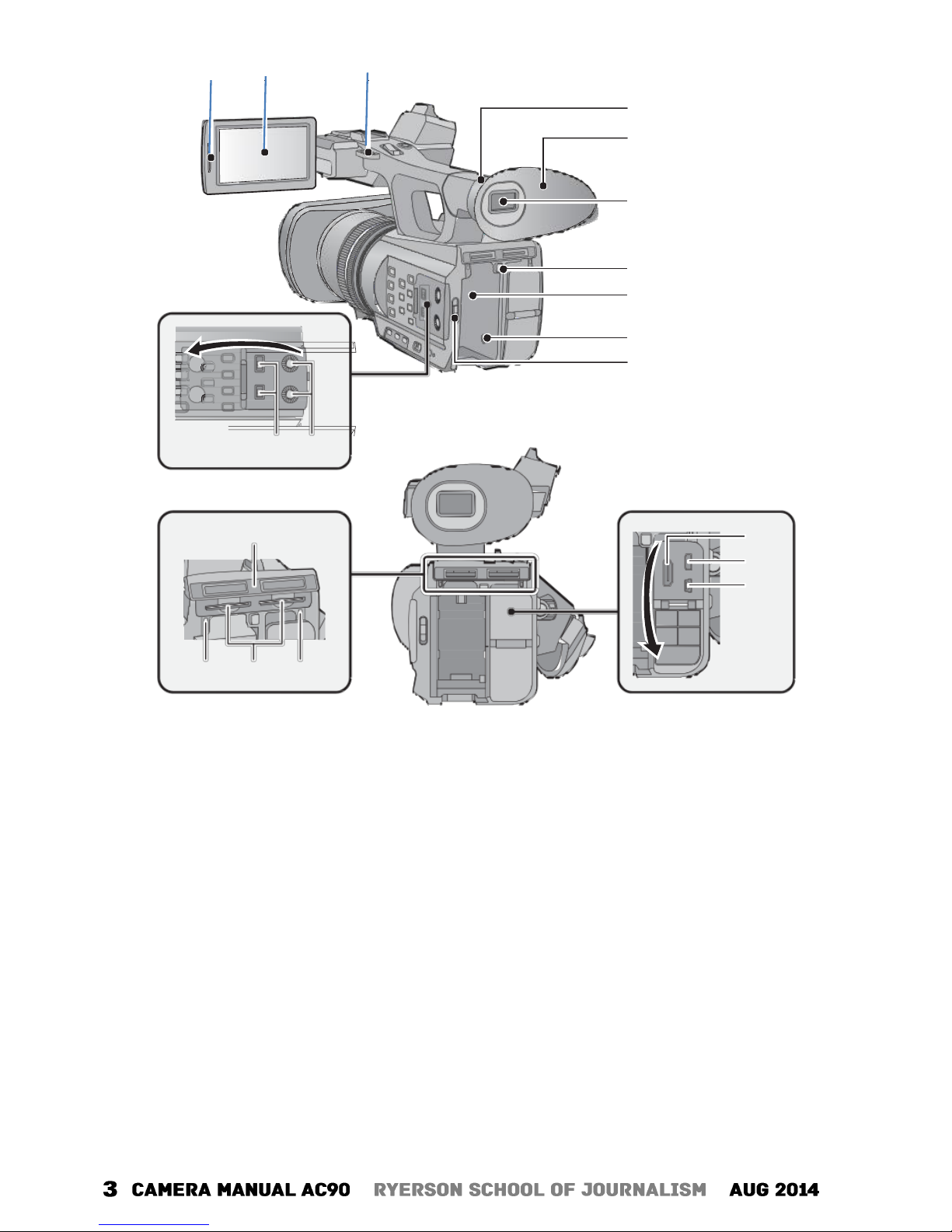

1 Shoulder strap fixture

2 Handle

3 Sub zoom lever

●This lever functions in the same manner as

the zoom lever.

4 Sub recording start/stop button

●This button functions in the same manner as

the recording start/stop button.

5 Accessory shoe

6 Microphone holder attachment part

7 Audio input terminals 1, 2 (XLR 3 pin)

[AUDIO INPUT1, 2]

8 Zoom lever [T/W] (In Recording Mode)

Volume lever

Thumbnail

display switch [ / ] (In Playback

Mode)

9 Photoshot button [ ]

10 Status indicator

11 Power switch

12 Recording start/stop button

13 Grip belt

14 Headphone terminal

15 Camera remote jack [CAM REMOTE]

[CAM REMOTE] (3.5 mm mini jack) It is

possible to adjust the focus or iris connecting

with the remote control (optional).

●It is not possible to use the remote control

(optional) in the Intelligent Auto Mode.

[ZOOM S/S] (2.5 mm super mini

jack)

possible to operate zoom operation or

recording start/stop connecting with the remote

control (optional).

●Do not connect any equipment except the

remote control (optional) to the camera

remote jack. Brightness of the image may

change or it may not focus when an

equipment other than the remote control

(optional) is connected.

16 Eyepiece corrector lever

17 Tripod receptacle

18 Inlet (cooling fan)

2● ●

25 26

24 27 28

31 32 33

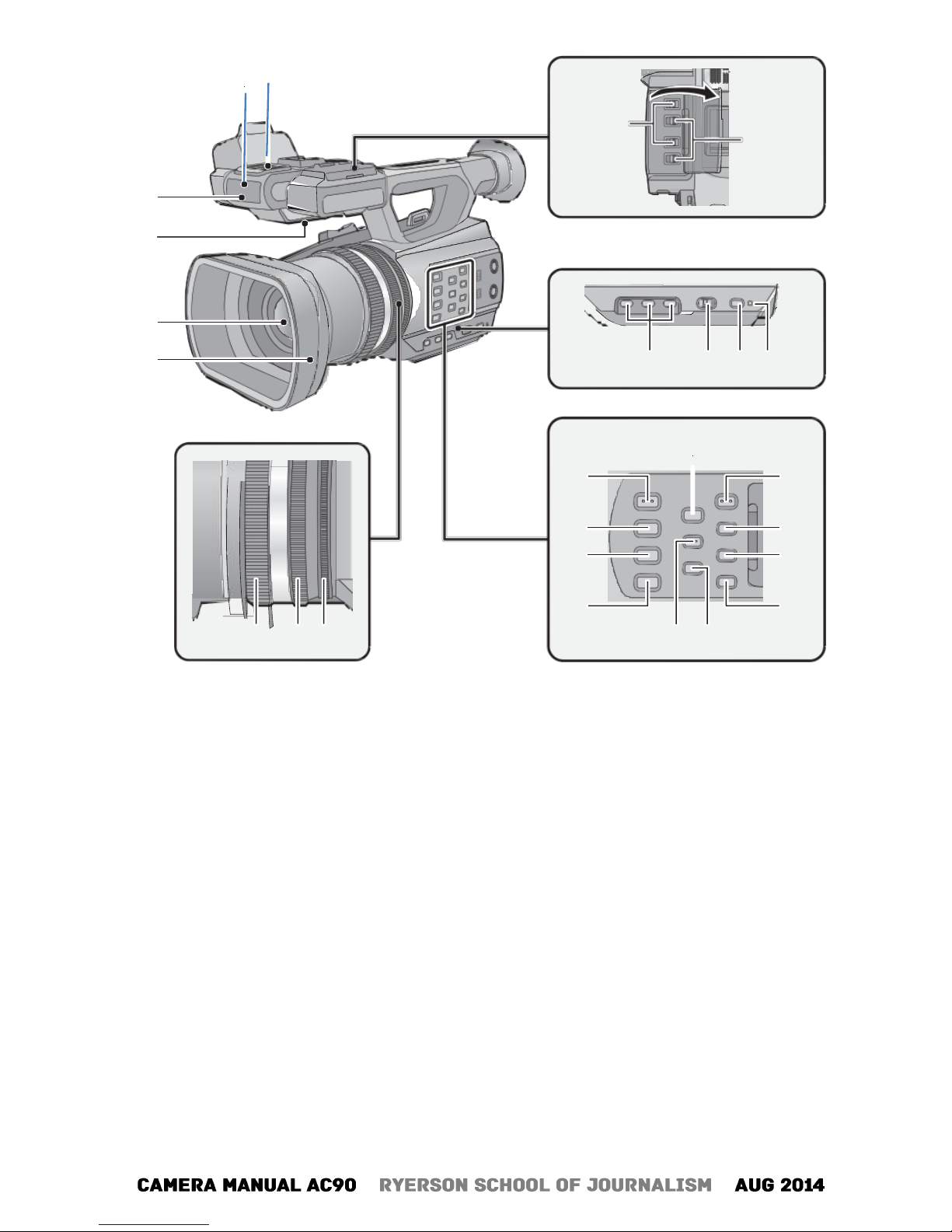

19 Wireless remote control sensor

20 Internal microphones

21 Recording lamp

22 Speaker

23 Lens

24 Lens hood

25 INPUT 1, 2 (LINE/MIC) switches

26 INPUT 1, 2 (+48V) switches

27 User 1, 2, 3 buttons [USER1, USER2,

USER3]

28 Intelligent auto/Manual switch

[iA/MANU]

29 Quick start button [QUICK START]

30 Quick start lamp

31 Focus ring

32 Zoom ring

33 Iris ring

34 Focus assist button [FOCUS ASSIST]

35 Iris auto/Manual button [IRIS A/M]

36 Focus

auto/Manual/

button

[FOCUS

A/M/]

37 Optical image stabilizer button [O.I.S.]

38 White balance button [W.B.]

39 Zebra button [ZEBRA]

40 Color Bar Screen button [BARS]

41 Menu button [MENU]

42 Display/Mode check button [DISP/

MODE CHK]

43 Counter button [COUNTER]

44 Counter reset button [RESET]

● ●

45 46 47

55 56

58 59 60

45 LCD monitor extract part [PULL]

46 LCD monitor (Touch screen)

47 Shoulder strap fixture

48 Eye cup attachment part

49 Eye cup

50 Viewfinder

51 Battery release button [PUSH]

52 Battery holder

53 DC input terminal [DC IN]

●Do not use anyother AC adaptors except the

supplied one.

54 Mode switch

55 CH1, CH2 switches [CH1, CH2]

56 Audio control knobs [CH1, CH2]

57 SD Card slot cover

58 Access lamp (card 1)

59 Card slot 1 (left)/

Card slot 2 (right)

60 Access lamp (card 2)

61 HDMI connector [HDMI]

62 AV multi connector [AV MULTI]

●Use the AV multi cable (onlythe supplied

cable).

63 USB terminal [USB 2.0]

4● ●

Preparation of SD cards

Cards that you can use with this unit

Use SD cards that are Class 4 or higher although Class 10 SD cards are recommended.

This unit (an SDXC compatible device) is compatible with SD Memory Cards, SDHC Memory

Cards and SDXC Memory Cards.When using an SDHC MemoryCard/SDXCMemoryCard with

other equipment, check the equipment is compatible with these Memory Cards.

SD Memory Card, SDHC Memory Card and SDXC Memory Card

●4 GB ormore MemoryCards that do not have the SDHC logo or 48 GB or more Memory Cards that

do not have the SDXC logo are not based on SD Memory Card Specifications.

●Please check the latest information on the support website below.

http://pro-av.panasonic.net

Inserting/removing an SD card

When using a non Panasonic SD card for the first time, or one which was previously used on

another equipment,it is necessarytoformatthe SD card. When the SD card is formatted, all of

the recorded data is deleted. Once the data is deleted, it cannot be restored.

Caution:

Check that the access lamp has gone off.

Access lamp

●When this unit is accessing the SD card,

the access lamp lights up.

1 Open the SD card slot cover and

insert (remove) the SD card into

(from) the card slot

● One SD card can be inserted into each of the

card slot 1 and the card slot 2.

●Face the label side

in the direction shown

in the illustration and press it straight in as far

as it will go.

●Press the center of the SD card and then pull

it straight out.

2 Securelyclose the SD card slot

cover.

●Securely close it until it clicks.

● ●

Turning the unit on/off

Set the power switch to ON while pressing the lock release button

to turn on

the unit.

To turn off the unit

Set the power switch to OFF while

pressing the lock release button.

The status indicator goes off.

The status indicator lights on.

●To turn on the unit again after the [ECONOMY (BATT)] or [ECONOMY (AC)] is activated, set the

power switch to OFF once, and then to ON again.

Preparation

Selecting a mode

Operate the mode switch to change the mode to or .

Mode switch

Recording Mode

Playback Mode

6● ●

Using the LCD monitor/Viewfinder

The viewfinder is turned off and the LCD monitor is turned on when the LCD monitor is extracted.

The viewfinder is turned on when the LCD monitor is retracted.

Using the LCD monitor

1 Extract the LCD monitorin the

direction as indicated in the figure.

●Hold the LCD monitor when pulling out.

2 Rotate to the position that is easy to

view.

To retract the LCD monitor

Retract as shown in the figure with the LCD facing

downward.

Range of rotation of the LCD monitor:

It can rotate up to 270 degrees towards the lens

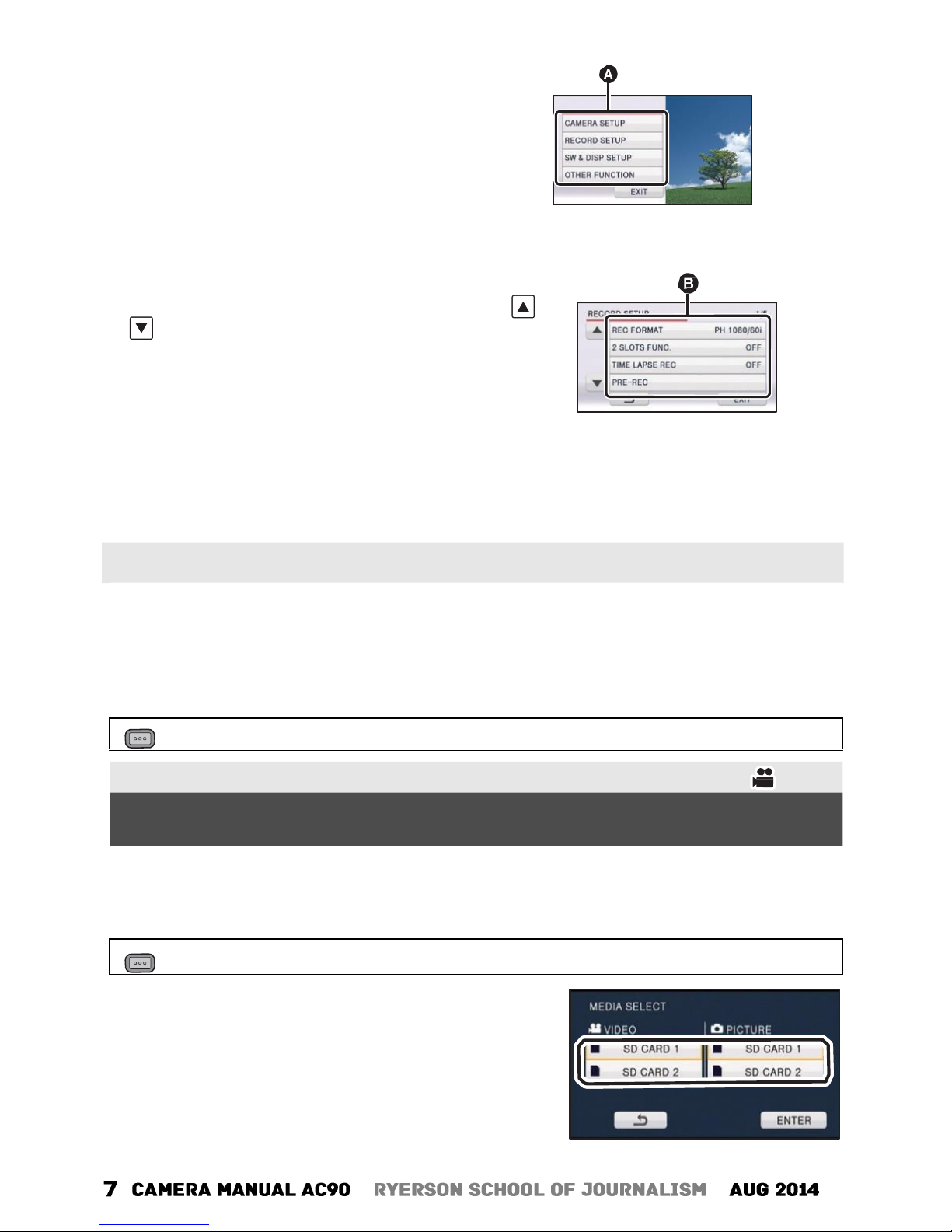

Using the menu screen

1 Press the MENU button MENU .

● ●

2 Touch the top menu

3 Touch the submenu

●Next (Previous) page can be displayed bytouching /

4 Touch the desired item to enter the setting.

5 Touch [EXIT] to exit the menu setting.

Formatting cards

If you use the SD cards for the first time for recording with this unit, format the cards.

Please be aware that if a medium is formatted, then all the data recorded on the medium will be

erased and cannot be restored. Back up important data on a PC, disc etc.

●When using two SD cards, format both SD cards.

Select the menu.

: [OTHER FUNCTION]

[FORMAT CARD]

[SD CARD 1] or [SD CARD 2]

Selecting a media to record

[SD CARD 1] and [SD CARD 2] can be selected separately to record motion pictures or still

pictures.

1 Select the menu.

: [SW & DISP SETUP]

[MEDIA SELECT]

2 Touchthe media to recordmotion

pictures

still pictures.

●The media is selected separatelyfor motion pictures or

still pictures and is then highlighted in yellow.

3 Touch [ENTER].

8● ●

Recording motion pictures

1 Change the mode to .

●Extract the LCD monitor.

Press

the

recording

start/stop

button

to start

recording.

●Recordingwillstop whenyou press the

recording start/stop button again.

When you begin recording

changes to ●

Mode

switch

Recording still pictures

1 Change the mode to .

●Extract the LCD monitor.

2 Press the button.

●When photos are being recorded, the

remaining recordable number of photos and the

photo operation display are displayed.

Mode switch

Intelligent Auto Mode/Manual Mode

MANU

iA/MANU switch

Slide the switch to change the Intelligent Auto

Mode/Manual Mode.

● ●

Manual Recording

A/M

FOCUS

A/M/

IRIS A/M button

FOCUS

A/M/

button

W.B. button

Focus ring

Iris ring

Focus

W.B.

●Switch to Manual Mode.

1 Press the FOCUS

A/M/

button to switch to Manual Focus.

●It will switch to MF from AF.

2 Adjust the focus by rotating the focus ring.

White Balance

● Switch the modes of White Balance by pressing the W.B. button.

Iris adjustment

●Switch to Manual Mode.

1 Press the IRIS A/M button to switch to

Manual Iris

Mode.

●disappears.

●The gain is displayed in dB.

2 Adjust the iris by rotating the iris ring.

MNL

F4.0

Gain value

Iris value

Auto iris icon*

* It is displayed in Auto Iris Mode.

Manual shutter speed

●Switch to Manual Mode.

1 Touch the LCD monitor to display the operationicons and touch SHTR.

2 Touch / to adjust settings.

●When [AUTO] is touched, the shutter speed is set automatically.

●Touch SHTR to complete the adjustment.

10 ● ●

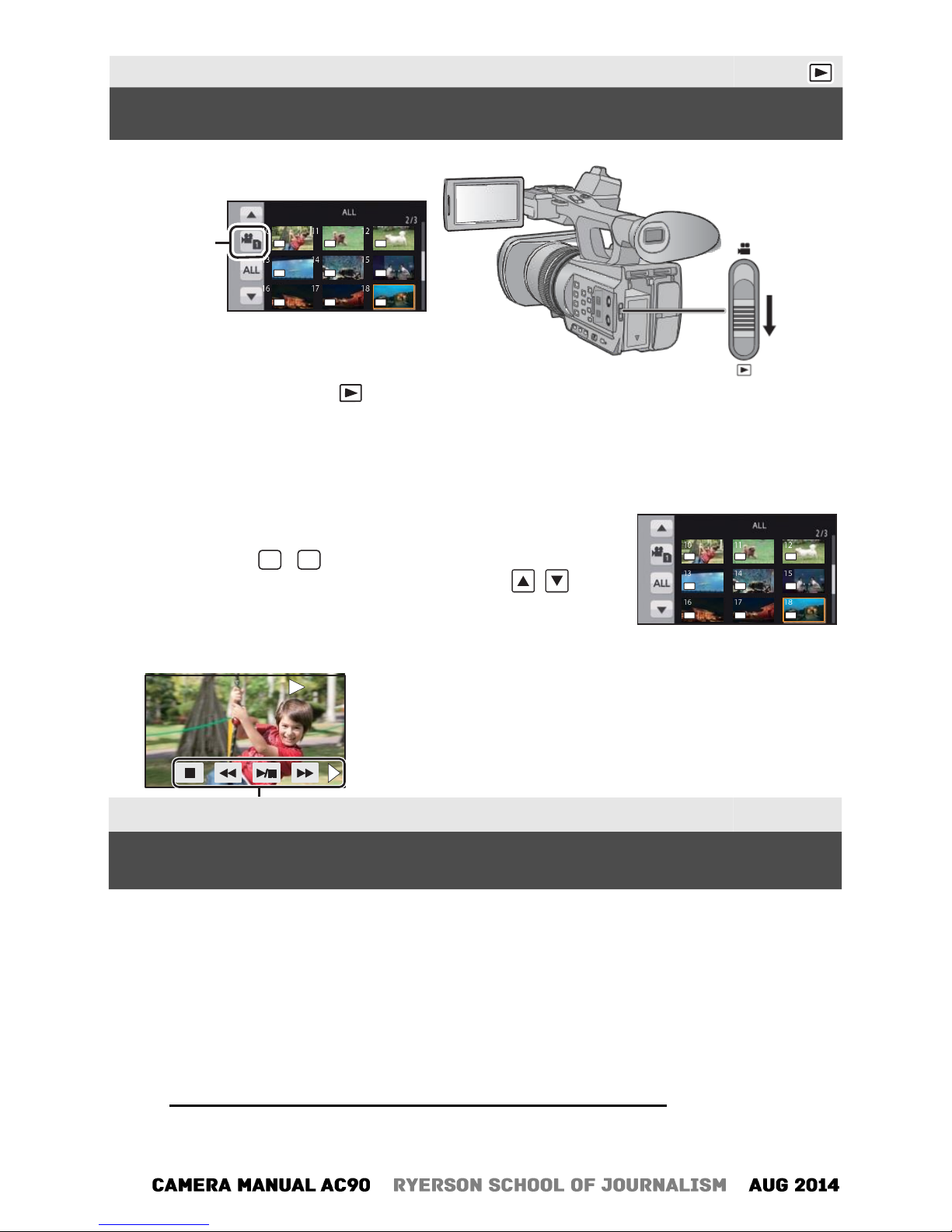

Playback

Motion picture/Still picture playback

PH PH PH

PS PS HA

HE SA SA

1 Change the mode to .

2 Touch the play mode select icon

3 Select the [MEDIA] and

[VIDEO/PICTURE]

you wish to play back.

●Touch [ENTER].

4 Touch the scene or the still picture to be played back.

●The recording format is displayed in the thumbnail display of the

motion pictures. ( PH , PS , etc.)

●Next (Previous) page can be displayed bytouching / .

5 Select the playback operation by touching the

operationicon.

PH PH PH

PS PS HA

HE SA SA

00:00:00:00

Operation icon

●To play or pause a video, touch

►

●If you touch the screen while an operation icon is being

displayed or do not touch the icon for a certain period, it will

disappear. To display again, touch the screen.

Record Modes –Important!

Recording mode and transfer rate:

[PS 1080/60p]; Approx. 25 Mbps

[PH 1080/60i]; Approx. 21 Mbps

[PH 1080/30p]; Approx. 21 Mbps

[PH 1080/24p]; Approx. 21 Mbps

[HA 1080/60i]; Approx. 17 Mbps

►[HE 1080/60i]; Approx. 6 Mbps ◄USE THIS MODE

[SA 480/60i]; Approx. 9 Mbps (VBR)

Altri manuali per AVCCAM AG-AC90P

Indice

Altri manuali Panasonic Videocamera

Panasonic

Panasonic HDC-TM55P Manuale utente

Panasonic

Panasonic AG HVX200 - Camcorder Manuale utente

Panasonic

Panasonic AJ-HPX2700MC Manuale utente

Panasonic

Panasonic HPX3000 Manuale utente

Panasonic

Panasonic NV-GS80EB Manuale utente

Panasonic

Panasonic Digital Paimcorder MultiCam PV-GS19 Manuale utente

Panasonic

Panasonic HDCSD100P - HD VIDEO CAMERA Manuale utente

Panasonic

Panasonic HDC-HS700P Manuale utente

Panasonic

Panasonic Palmcorder PV-A226 Manuale utente

Panasonic

Panasonic AVCCAM AG-AC130 Manuale utente

Panasonic

Panasonic MEMORY CARD CAMERA-RECORDER AG-AF100P Manuale utente

Panasonic

Panasonic AG AG-HVX200A Manuale utente

Panasonic

Panasonic HDC-TM10 Manuale utente

Panasonic

Panasonic Palmcorder PV-DV53 Manuale utente

Panasonic

Panasonic HC-X920 Manuale utente

Panasonic

Panasonic HC-V550 Manuale utente

Panasonic

Panasonic HC-V180K Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic NV-GS200GN Manuale utente

Panasonic

Panasonic NV-RX14B Manuale utente

Panasonic

Panasonic Palmcoder PV-A16 Manuale utente

Panasonic

Panasonic NV-GS75EP Manuale utente

Panasonic

Panasonic AVCCAM AG-HMC80 Series Manuale utente

Panasonic

Panasonic AG-456 Manuale utente

Panasonic

Panasonic AP-HPX250 Series Manuale utente

Manuali Videocamera popolari di altre marche

Toshiba

Toshiba CAMILEO Z100 Manuale utente

Canon

Canon RC 260 Manuale utente

Sony

Sony Handycam DCR-DVD7E Manuale utente

Brinno

Brinno TimeLapse TLC200 Manuale utente

JVC

JVC GR-SXM68AC Guida rapida

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuale utente

MYDLINK

MYDLINK DCS-6100LH Manuale utente

Sony

Sony video Hi8 Handycam CCD-TR555 Manuale utente

SECURECOM

SECURECOM V-5014B Manuale utente

Sharper Image

Sharper Image U-VIDEO Manuale utente

JVC

JVC AA-V15EG Manuale utente

Canon

Canon LEGRIA HV40 Manuale utente

Sony

Sony Handycam DCR-VX2000 Manuale utente

RCA

RCA CC616 Manuale utente

ATIK Cameras

ATIK Cameras Horizon Manuale utente

Sony

Sony Handycam HDR-CX580V Manuale utente

Sharp

Sharp ViewcamZ VL-Z8H Manuale utente

Philips

Philips M620/21 Manuale utente
