Basic Operating Instructions

High Definition Video Camera

Model No. HC-V130

Please read these instructions carefully before using this product, and save this manual for future

use.

This document explains basic operations of the unit. For more detailed

explanation, please refer to “Operating Instructions (PDF format)” which

is recorded in the enclosed CD-ROM.

SQT0042

until

2014/2/1

HC-V130_GC_GA_GW_GN_SQT0042_mst.book 1 ページ２０１３年１２月１１日　水曜日　午前９時３５分

SQT0042

∫Concerning the battery

∫Product identification marking

Information for Your Safety

WARNING:

To reduce the risk of fire, electric shock or

product damage,

≥Do not expose this unit to rain, moisture,

dripping or splashing.

≥Do not place objects filled with liquids,

such as vases, on this unit.

≥Use only the recommended accessories.

≥Do not remove covers.

≥Do not repair this unit by yourself. Refer

servicing to qualified service personnel.

CAUTION!

To reduce the risk of fire, electric shock or

product damage,

≥Do not install or place this unit in a

bookcase, built-in cabinet or in another

confined space. Ensure this unit is well

ventilated.

≥Do not obstruct this unit’s ventilation

openings with newspapers, tablecloths,

curtains, and similar items.

≥Do not place sources of naked flames,

such as lighted candles, on this unit.

The mains plug is the disconnecting device.

Install this unit so that the mains plug can be

unplugged from the socket outlet

immediately.

Warning

Risk of fire, explosion and burns. Do not

disassemble, heat above 60 oC or

incinerate.

CAUTION

≥Danger of explosion if battery is

incorrectly replaced. Replace only with the

type recommended by the manufacturer.

≥When disposing of the batteries, please

contact your local authorities or dealer

and ask for the correct method of

disposal.

Product Location

High Definition Video

Camera

Battery holder

AC adaptor Bottom

HC-V130_GC_GA_GW_GN_SQT0042_mst.book 2 ページ２０１３年１２月１１日　水曜日　午前９時３５分

SQT0042

-If you see this symbol-

∫Cautions for use

Keep this unit as far away as possible from

electromagnetic equipment (such as

microwave ovens, TVs, video games etc.).

≥

If you use this unit on top of or near a TV, the

pictures and/or sound on this unit may be

disrupted by electromagnetic wave radiation.

≥Do not use this unit near cell phones because

doing so may result in noise adversely

affecting the pictures and/or sound.

≥Recorded data may be damaged, or pictures

may be distorted, by strong magnetic fields

created by speakers or large motors.

≥

Electromagnetic wave radiation generated by

microprocessors may adversely affect this unit,

disturbing the pictures and/or sound.

≥

If this unit is adversely affected by

electromagnetic equipment and stops

functioning properly, turn this unit off and

remove the battery or disconnect AC adaptor.

Then reinsert the battery or reconnect AC

adaptor and turn this unit on.

Do not use this unit near radio transmitters

or high-voltage lines.

≥If you record near radio transmitters or

high-voltage lines, the recorded pictures and/

or sound may be adversely affected.

About connecting to a TV

≥Always use the supplied HDMI mini cable or

a genuine Panasonic HDMI mini cable

(RP-CDHM15, RP-CDHM30: optional).

About connecting to a PC

≥Do not use any other USB cables except the

supplied one.

∫About the recording format for

recording motion pictures

You can select from AVCHD, iFrame or MP4

recording formats to record motion pictures

using this unit.

AVCHD:

It is suitable for viewing on a high-definition TV

or for saving to disc.

iFrame:

This is a recording format suitable for playing

back or editing on Mac (iMovie etc.).

≥It is not compatible with motion pictures

recorded in AVCHD format.

MP4:

This is a recording format suitable for playing

back or editing on a PC.

≥It is not compatible with motion pictures

recorded in AVCHD format.

Information on Disposal in other

Countries outside the European

Union

This symbol is only valid

in the European Union.

If you wish to discard

this product, please

contact your local

authorities or dealer and

ask for the correct

method of disposal.

HC-V130_GC_GA_GW_GN_SQT0042_mst.book 3 ページ２０１３年１２月１１日　水曜日　午前９時３５分

SQT0042

∫Indemnity about recorded

content

Panasonic does not accept any responsibility

for damages directly or indirectly due to any

type of problems that result in loss of recording

or edited content, and does not guarantee any

content if recording or editing does not work

properly. Likewise, the above also applies in a

case where any type of repair is made to the

unit.

∫About Condensation (When

the lens or the LCD monitor is

fogged up)

Condensation occurs when there is a change in

temperature or humidity, such as when the unit

is taken from outside or a cold room to a warm

room. Please be careful, as it may cause the

lens or LCD monitor to become soiled, moldy,

or damaged.

When taking the unit to a place which has a

different temperature, if the unit is accustomed

to the room temperature of the destination for

about one hour, condensation can be

prevented. (When the difference in temperature

is severe, place the unit in a plastic bag or the

like, remove air from the bag, and seal the bag.)

When condensation has occurred, remove the

battery and/or the AC adapter and leave the

unit like that for about one hour. When the unit

becomes accustomed to the surrounding

temperature, fogginess will disappear naturally.

∫Cards that you can use with

this unit

SD Memory Card, SDHC Memory Card and

SDXC Memory Card

≥4 GB or more Memory Cards that do not have

the SDHC logo or 48 GB or more Memory

Cards that do not have the SDXC logo are

not based on SD Memory Card

Specifications.

≥Refer to page 11 for more details on SD

cards.

∫For the purposes of these

operating instructions

≥SD Memory Card, SDHC Memory Card and

SDXC Memory Card are referred to as the

“SD card”.

≥Functions that can be used for motion picture

recording/motion picture playback are

indicated by in these operating

instructions.

≥Functions that can be used for still picture

recording/still picture playback are indicated

by in these operating instructions.

≥Scene(s) recorded in 1080/50i: “AVCHD

scene(s)”

≥Pages for reference are indicated by an

arrow, for example: l00

HC-V130_GC_GA_GW_GN_SQT0042_mst.book 4 ページ２０１３年１２月１１日　水曜日　午前９時３５分

SQT0042

Information for Your Safety........................... 2

Accessories.................................................... 6

Preparation

Power supply.................................................. 7

Inserting/removing the battery ................. 7

Charging the battery ................................ 8

Charging and recording time ................. 10

Recording to a card ..................................... 11

Cards that you can use with this unit..... 11

Inserting/removing an SD card .............. 11

Turning the unit on/off................................. 12

Setting date and time................................... 12

Basic

Intelligent Auto Mode .................................. 13

Recording motion pictures ......................... 13

Recording still pictures ............................... 14

Using the Zoom............................................ 14

Motion picture/Still picture playback ......... 15

Watching Video/Pictures on your TV ..... 16

Using the menu screen ............................... 17

Language selection ............................... 17

Formatting ............................................. 17

Others

Specifications............................................... 18

About copyright ........................................... 20

Limited Warranty

(ONLY FOR AUSTRALIA) ............................ 21

Contents

∫How to open the Operating Instructions (PDF format)

When you insert the CD-ROM and open the [INDEX.pdf] in the CD-ROM, the Operating

Instructions list will be displayed. Click the document name of the Operating Instructions you

would like to open.

≥Adobe Reader is required to view the PDF file. Please download it from the homepage of

Adobe Systems Incorporated.

HC-V130_GC_GA_GW_GN_SQT0042_mst.book 5 ページ２０１３年１２月１１日　水曜日　午前９時３５分

SQT0042

Check the accessories before using this unit.

Keep the accessories out of reach of children to prevent swallowing.

Product numbers correct as of Dec. 2013. These may be subject to change.

Some optional accessories may not be

available in some countries.

* To use the LED Video Light/VW-LED1E,

the Shoe adaptor/VW-SK12E is required.

Accessories

Battery pack

VW-VBY100

AC adaptor

VSK0784

(GC) A

(GA/GW) B

(GN) C

HDMI mini cable

K1HY19YY0021

USB cable

K2KYYYY00225

CD-ROM

Software

CD-ROM

Operating Instructions

SFM0007

Optional accessories

(GC)

Battery charger (VW-BC10EB)

(GA/GW)

Battery charger (VW-BC10E)

(GN)

Battery charger (VW-BC10GN)

Battery pack (lithium/VW-VBY100)

Battery pack (lithium/VW-VBT190)

Battery pack (lithium/VW-VBT380)

HDMI mini cable (RP-CDHM15,

RP-CDHM30)

Shoe adaptor (VW-SK12E)

(GC)

Accessory kit (VW-ACT190EB)

(GA/GW)

Accessory kit (VW-ACT190E)

(GN)

Accessory kit (VW-ACT190GN)

LED Video Light (VW-LED1E)*

Suction Cup Mount (VW-SCA100)

Video Camera Mount (For Handlebar)

(RP-CMC10E)

HC-V130_GC_GA_GW_GN_SQT0042_mst.book 6 ページ２０１３年１２月１１日　水曜日　午前９時３５分

SQT0042

∫About batteries that you can use with this unit

The battery that can be used with this unit is VW-VBY100/VW-VBT190/VW-VBT380.

Inserting/removing the battery

≥Press the power button to turn off the unit. (l12)

Install the battery by inserting it in the direction shown in the figure.

Preparation

Power supply

It has been found that counterfeit battery packs which look very similar to the genuine

product are made available to purchase in some markets. Some of these battery packs

are not adequately protected with internal protection to meet the requirements of

appropriate safety standards. There is a possibility that these battery packs may lead to

fire or explosion. Please be advised that we are not liable for any accident or failure

occurring as a result of use of a counterfeit battery pack. To ensure that safe products are

used we would recommend that a genuine Panasonic battery pack is used.



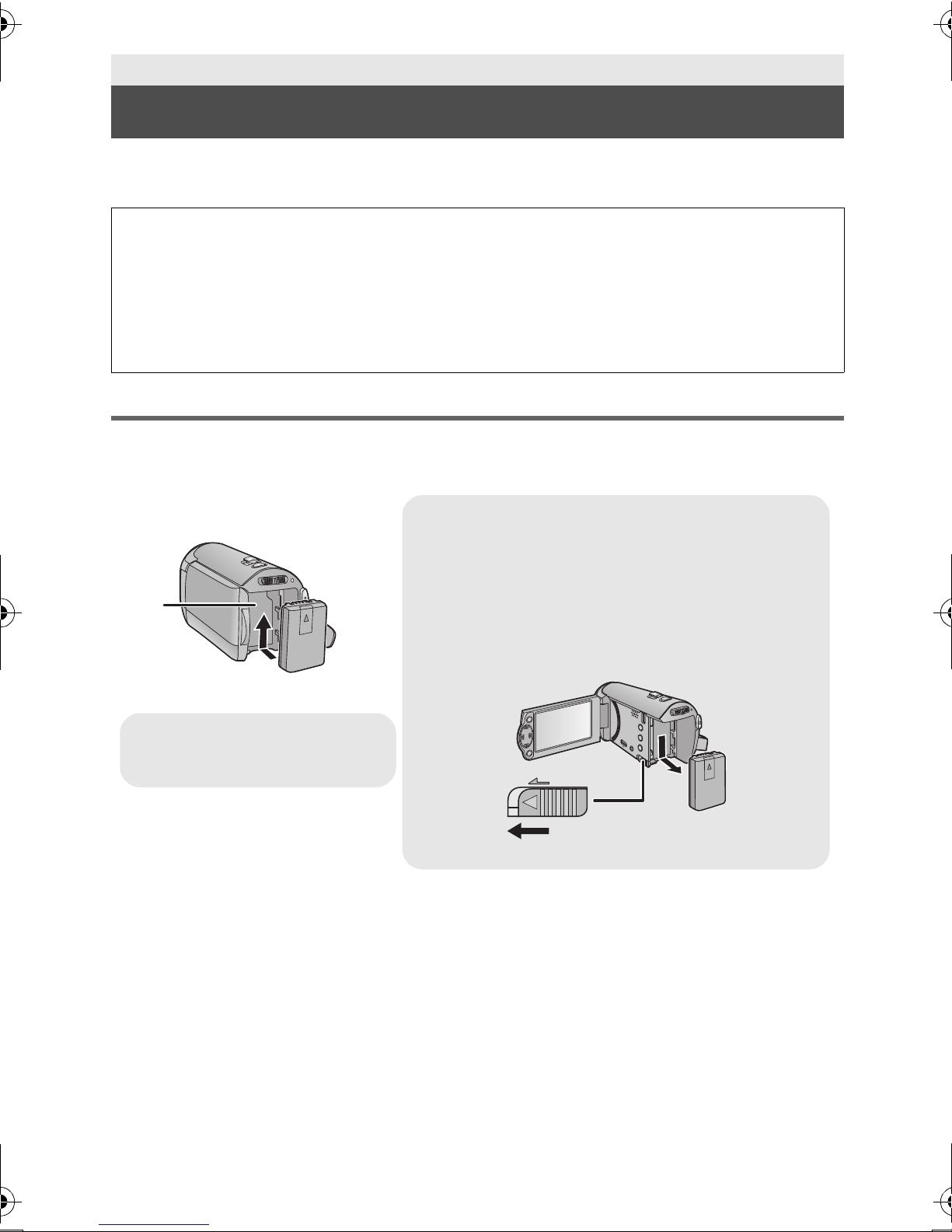

Removing the battery

Be sure to hold down the power button until the status

indicator goes off. Then remove the battery while

supporting the unit to prevent it from dropping.

Move the battery release lever in the direction

indicated by the arrow and remove the battery

when unlocked.

ャモヵヵ

ABattery holder

Insert the battery until it clicks and

locks.

HC-V130_GC_GA_GW_GN_SQT0042_mst.book 7 ページ２０１３年１２月１１日　水曜日　午前９時３５分

SQT0042

Charging the battery

∫Charging with an AC adaptor.

The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always

“live” as long as the AC adaptor is connected to an electrical outlet.

Important:

≥The AC adaptor and USB cable are for use with this unit only. Do not use them with other

equipment. Similarly, do not use AC adaptors and USB cables from other equipment with

this unit.

≥The battery cannot be charged when the power is on. Press the power button to turn off

the power. (l12)

≥It is recommended to charge the battery in a temperature between 10 oC and 30 oC. (The

battery temperature should also be the same.)

∫Connecting to the AC outlet

If you turn on the unit while connecting with the AC adaptor, you can use the unit with power

supplied from the outlet.

When recording for a long time, keep the AC adaptor connected and use it together with the battery.

This allows you to continue the recording even if a power failure occurs or the AC adaptor is

unplugged from the AC outlet by accident.

When this unit is purchased, the battery is not charged. Charge the battery fully before

using this unit for the first time.













AUSB terminal

BTo the AC outlet

≥Insert the plugs as far as they will go.

1Open the LCD monitor.

2Connect the USB cable to the AC

adaptor.

≥Check that the plug portion of the AC

adaptor is not loose or misaligned.

3Plug the AC adaptor into the AC

outlet.

4Connect the USB cable to the

unit.

≥The status indicator Cwill flash red

with

approx. 2 seconds period (off for approx. 1

second, on for approx. 1 second),

indicating

that charging has begun.

It will turn off when the charging is

completed.

HC-V130_GC_GA_GW_GN_SQT0042_mst.book 8 ページ２０１３年１２月１１日　水曜日　午前９時３５分

SQT0042

∫Connecting to a PC and charging.

Charge the unit if you do not have the AC adaptor handy.

AUSB cable (supplied)

≥Insert the plugs as far as they will go.

≥Press the power button and turn the unit off.

(l12)

≥Do not use any other AC adaptors except the supplied one.

≥We recommend using Panasonic batteries (l7).

≥If you use other batteries, we cannot guarantee the quality of this product.

≥Do not heat or expose to flame.

≥Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with

doors and windows closed.

≥If you do not intend to use the unit for an extended period, disconnect the USB cable from the unit

for safety.

≥Charging may not be possible depending on the operating environment of the PC being used

(such as custom-made PC).

≥Charging will stop when turning the power of the PC off or forcing it into sleep mode. Charging will

start again when turning the power of the PC on again, or waking from sleep mode.

≥The unit will be charged if it is connected to a Panasonic Blu-ray disc recorder or DVD recorder

with a USB cable, even if the unit is turned off.





1Turn the power of the PC on.

2Connect the USB cable

≥The status indicator Bwill flash red

with

approx. 2 seconds period (off for approx. 1

second, on for approx. 1 second),

indicating

that charging has begun.

It will turn off when the charging is

completed.

≥Do not use any other USB cables except the

supplied one. (Operation is not guaranteed

with any other USB cables.)

≥Always connect directly to a PC.

≥You cannot charge when the status indicator

flashes rapidly, or when it does not light at

all. Charge using the AC adaptor. (l8)

≥It will take 2 or 3 times longer to charge

compared to when using the AC adaptor.

HC-V130_GC_GA_GW_GN_SQT0042_mst.book 9 ページ２０１３年１２月１１日　水曜日　午前９時３５分

SQT0042

Charging and recording time

∫Charging/Recording time

≥Temperature: 25 oC/humidity: 60%RH

≥Time in the parenthesis is charging time when this unit is connected to a PC, Panasonic Blu-ray

disc recorder, or DVD recorder.

≥These times are approximations.

≥The indicated charging time is for when the battery has been discharged completely.

Charging time and recordable time vary depending on the usage conditions such as high/

low temperature.

≥The actual recordable time refers to the recordable time when repeatedly starting/stopping

recording, turning the unit on/off, moving the zoom lever etc.

∫Battery capacity indication

The battery capacity indication is displayed on the LCD monitor.

≥The display changes as the battery capacity reduces. ####

If the battery discharges, then will flashes red. Recharge the battery or replace it with a

fully charged battery.

Battery model number

[Voltage/Capacity

(minimum)]

Charging

time

Recording

format

Recording

mode

Maximum

continuously

recordable

time

Actual

recordable

time

Supplied battery/VW-

VBY100 (optional)

[3.6 V/970 mAh]

2h20min

(3h10min)

AVCHD [HA], [HG],

[HE] 1h15min 40min

iFrame - 1 h 25 min 50 min

MP4 - 1 h 30 min

HC-V130_GC_GA_GW_GN_SQT0042_mst.book 10 ページ２０１３年１２月１１日　水曜日　午前９時３５分

Altri manuali per HC-V130

Indice

Altri manuali Panasonic Videocamera

Panasonic

Panasonic HC-V727 Manuale utente

Panasonic

Panasonic HDC-TM700K Manuale utente

Panasonic

Panasonic NV-S20E Manuale utente

Panasonic

Panasonic HX-DC2 Manuale utente

Panasonic

Panasonic Palmcorder PV-GS85 Manuale di istruzioni

Panasonic

Panasonic HC-V720P Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic AJD215 - DVCPRO CAMCORDER Manuale utente

Panasonic

Panasonic Palmcorder PV-DV951 Manuale utente

Panasonic

Panasonic AG-DVC7P Manuale utente

Panasonic

Panasonic AJ-D910 Manuale utente

Panasonic

Panasonic AJD200 - DVC PRO Manuale utente

Panasonic

Panasonic Palmcorder Palmsight PV-L958 Manuale utente

Panasonic

Panasonic Hd camcorder Manuale utente

Panasonic

Panasonic HC-V210K Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic Plamcorder PV-DV901 Manuale utente

Panasonic

Panasonic PV-DV52 Manuale utente

Panasonic

Panasonic P2HD AJ-HPX3100 Manuale utente

Panasonic

Panasonic HC-V800 Specifiche tecniche

Panasonic

Panasonic Digital Palmcorder PV-DV101 Manuale utente

Panasonic

Panasonic HDC-TM55P Manuale utente

Panasonic

Panasonic NV-GS230EG Manuale utente

Panasonic

Panasonic Lumix DMC-TZ18 Manuale utente

Panasonic

Panasonic AJHDC20A - CAMERA VTR Manuale utente

Panasonic

Panasonic HMC-70 Manuale utente

Manuali Videocamera popolari di altre marche

Toshiba

Toshiba CAMILEO Z100 Manuale utente

Canon

Canon RC 260 Manuale utente

Sony

Sony Handycam DCR-DVD7E Manuale utente

Brinno

Brinno TimeLapse TLC200 Manuale utente

JVC

JVC GR-SXM68AC Guida rapida

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuale utente

MYDLINK

MYDLINK DCS-6100LH Manuale utente

Sony

Sony video Hi8 Handycam CCD-TR555 Manuale utente

SECURECOM

SECURECOM V-5014B Manuale utente

Sharper Image

Sharper Image U-VIDEO Manuale utente

JVC

JVC AA-V15EG Manuale utente

Canon

Canon LEGRIA HV40 Manuale utente

Sony

Sony Handycam DCR-VX2000 Manuale utente

RCA

RCA CC616 Manuale utente

ATIK Cameras

ATIK Cameras Horizon Manuale utente

Sony

Sony Handycam HDR-CX580V Manuale utente

Sharp

Sharp ViewcamZ VL-Z8H Manuale utente

Philips

Philips M620/21 Manuale utente
