Panasonic HDC-SD700 Manuale utente

Operating Instructions

High Definition Video Camera

Model No. HDC-SD700

HDC-TM700

HDC-HS700

Before use, please read these instructions completely.

Please also refer to Operating Instructions (PDF format) recorded

on the CD-ROM containing the Operating Instructions (supplied).

You can learn about advanced operation methods and check the

Troubleshooting.

until

2010/3/1

VQT2M91

HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 1 ページ２０１０年２月１２日　金曜日　午後２時９分

VQT2M91 (ENG)

Information for Your Safety

∫Concerning the battery

Button-type battery: CR2025

WARNING:

TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR PRODUCT

DAMAGE,

≥DO NOT EXPOSE THIS APPARATUS

TO RAIN, MOISTURE, DRIPPING OR

SPLASHING AND THAT NO

OBJECTS FILLED WITH LIQUIDS,

SUCH AS VASES, SHALL BE

PLACED ON THE APPARATUS.

≥USE ONLY THE RECOMMENDED

ACCESSORIES.

≥DO NOT REMOVE THE COVER (OR

BACK); THERE ARE NO USER

SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION!

≥DO NOT INSTALL OR PLACE THIS

UNIT IN A BOOKCASE, BUILT-IN

CABINET OR IN ANOTHER

CONFINED SPACE. ENSURE THE

UNIT IS WELL VENTILATED. TO

PREVENT RISK OF ELECTRIC

SHOCK OR FIRE HAZARD DUE TO

OVERHEATING, ENSURE THAT

CURTAINS AND ANY OTHER

MATERIALS DO NOT OBSTRUCT

THE VENTILATION VENTS.

≥DO NOT OBSTRUCT THE UNIT’S

VENTILATION OPENINGS WITH

NEWSPAPERS, TABLECLOTHS,

CURTAINS, AND SIMILAR ITEMS.

≥DO NOT PLACE SOURCES OF

NAKED FLAMES, SUCH AS

LIGHTED CANDLES, ON THE UNIT.

≥DISPOSE OF BATTERIES IN AN

ENVIRONMENTALLY FRIENDLY

MANNER.

The socket outlet shall be installed near

the equipment and easily accessible.

The mains plug of the power supply cord

shall remain readily operable.

To completely disconnect this apparatus

from the AC Mains, disconnect the power

supply cord plug from AC receptacle.

Warning

Risk of fire, explosion and burns. Do not

disassemble.

Do not heat the batteries above the

following temperatures or incinerate.

Button-type battery 60 oC

Battery pack 60 oC

CAUTION

Danger of explosion if battery is

incorrectly replaced. Replace only with

the same or equivalent type

recommended by the manufacturer.

Dispose of used batteries according to

the manufacturer’s instructions.

Warning

Keep the Button-Type battery out of the

reach of children. Never put Button-Type

battery in mouth. If swallowed call your

doctor.

HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 2 ページ２０１０年２月１２日　金曜日　午後２時９分

(ENG) VQT2M91

Use only the recommended accessories.

≥Do not use any other AV multi cables and

USB cables except the supplied one.

≥When you use the cable which are sold

separately, please make sure to use the

one whose length is less than 3 metres.

≥Keep the Memory Card out of reach of

children to prevent swallowing.

∫Concerning the AC adaptor

-If you see this symbol-

∫Cautions for use

Keep the High Definition Video Camera as

far away as possible from electromagnetic

equipment (such as microwave ovens,

TVs, video games etc.).

≥If you use the High Definition Video

Camera on top of or near a TV, the

pictures and sound on the High Definition

Video Camera may be disrupted by

electromagnetic wave radiation.

≥Do not use the High Definition Video

Camera near cell phones because doing

so may result in noise adversely affecting

the pictures and sound.

≥Recorded data may be damaged, or

pictures may be distorted, by strong

magnetic fields created by speakers or

large motors.

≥Electromagnetic wave radiation generated

by microprocessors may adversely affect

the High Definition Video Camera,

disturbing the pictures and sound.

≥If the High Definition Video Camera is

adversely affected by electromagnetic

equipment and stops functioning properly,

turn the High Definition Video Camera off

and remove the battery or disconnect AC

adaptor. Then reinsert the battery or

reconnect AC adaptor and turn the High

Definition Video Camera on.

Product Identification Marking is

located on the bottom of unit.

How to replace the fuse

The location of the fuse differ according

to the type of AC mains plug (figures A

and B).

Confirm the AC mains plug fitted and

follow the instructions below.

Illustrations may differ from actual AC

mains plug.

1) Open the fuse cover with a

screwdriver.

2) Replace the fuse and close or attach

the fuse cover.

Information on Disposal in other

Countries outside the European

Union

This symbol is only valid

in the European Union.

If you wish to discard

this product, please

contact your local

authorities or dealer

and ask for the correct

method of disposal.

HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 3 ページ２０１０年２月１２日　金曜日　午後２時９分

VQT2M91 (ENG)

Do not use the High Definition Video

Camera near radio transmitters or high-

voltage lines.

≥If you record near radio transmitters or

high-voltage lines, the recorded pictures

and sound may be adversely affected.

About connecting to a PC

≥Do not use any other USB cables except

the supplied one.

∫Indemnity about recorded

content

Panasonic does not accept any

responsibility for damages directly or

indirectly due to any type of problems that

result in loss of recording or edited content,

and does not guarantee any content if

recording or editing does not work properly.

Likewise, the above also applies in a case

where any type of repair is made to the unit

(including any other non-built-in memory/

HDD related component).

∫Cards that you can use with

this unit

SD Memory Card, SDHC Memory Card

and SDXC Memory Card

≥4 GB or more Memory Cards that do not

have the SDHC logo or 48 GB or more

Memory Cards that do not have the SDXC

logo are not based on SD Memory Card

Specifications.

≥Refer to page 18 for more details on SD

cards.

∫For the purposes of these

operating instructions

≥SD Memory Card, SDHC Memory Card

and SDXC Memory Card are referred to

as the “SD card”.

≥Functions that can be used for motion

picture recording/motion picture playback

are indicated by in these

operating instructions.

≥Functions that can be used for still picture

recording/still picture playback are

indicated by in these operating

instructions.

≥Pages for reference are indicated by an

arrow, for example: l00

These operating instructions are designed

for use with models ,

and . Pictures

may be slightly different from the original.

≥The illustrations used in these operating

instructions show model ,

however, parts of the explanation refer to

different models.

≥Depending on the model, some functions

are not available.

≥Features may vary, so please read

carefully.

≥Not all models may be available

depending on the region of purchase.

HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 4 ページ２０１０年２月１２日　金曜日　午後２時９分

(ENG) VQT2M91

PreparationBasicAdvancedOthers

Information for Your Safety.....................2

Accessories..............................................6

Preparation

Before using

[1] Parts identification and

handling ........................................ 7

[HDC-SD700]/[HDC-TM700].......... 7

[HDC-HS700] ............................... 10

Setup

[1] Power supply.............................. 13

Charging the battery .................... 13

Inserting/removing the battery ..... 14

Charging and recording time........ 15

Connecting to the AC outlet ......... 17

[2] Recording to a card ................... 18

Cards that you can use with

this unit......................................... 18

Inserting/removing an SD card .... 19

[3] Turning the unit on/off ............... 20

Turning the power on and off with

the power button .......................... 20

Turning the power on and off with

the LCD monitor/viewfinder.......... 20

[4] Selecting a mode ....................... 21

[5] Adjusting LCD monitor/

viewfinder ................................... 22

How to use the touch screen ....... 22

Viewfinder adjustment.................. 22

[6] Setting date and time................. 23

Basic

Recording/Playback

[1] Selecting a media to record

[HDC-TM700/HDC-HS700] ......... 24

[2] Recording motion pictures ....... 25

[3] Recording still pictures ............. 26

[4] Intelligent auto mode................. 27

[5] Motion picture/

Still picture playback ................. 28

Setup

[1] Using the menu screen ............. 30

Language selection...................... 30

Advanced

Recording (Advanced)

[1] Zoom in/out function ................. 31

Zoom mode.................................. 31

Ring zoom.................................... 32

Extra optical zoom ....................... 32

[2] Optical image stabilizer

function....................................... 33

Editing

[1] Deleting scenes/

still pictures................................ 34

[2] Formatting .................................. 35

With a TV

[1] Watching Video/

Pictures on your TV................... 36

Others

Specifications ........................................38

About copyright.....................................42

Reading the Operating Instructions

(PDF format) ...........................................43

Contents

HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 5 ページ２０１０年２月１２日　金曜日　午後２時９分

VQT2M91 (ENG)

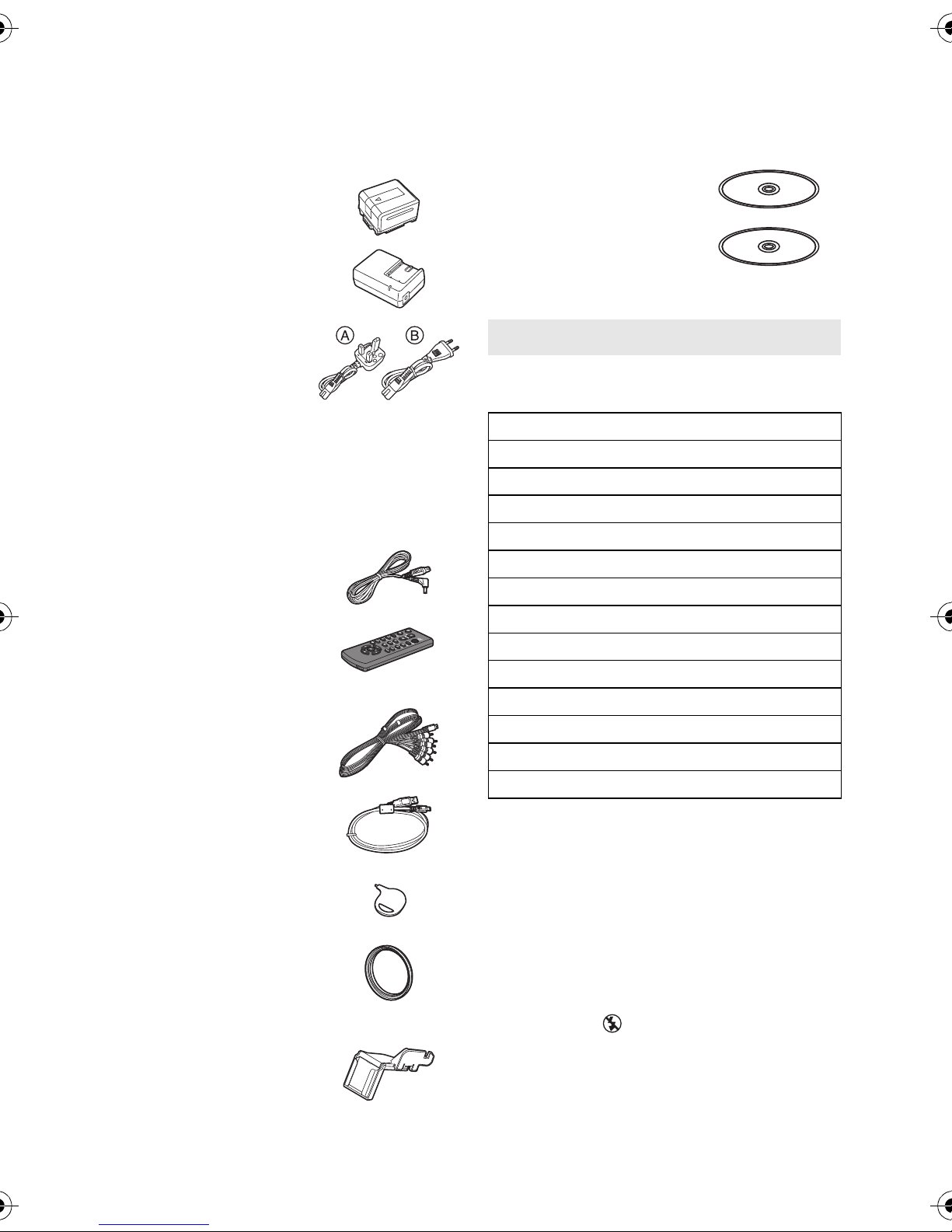

Accessories

Check the accessories before using this unit.

Product numbers correct as of Feb. 2010. These may be subject to change.

Some optional accessories may not be

available in some countries.

Battery pack

VW-VBG130

AC adaptor

VSK0698

AC cable

AK2CT39A00002

BK2CQ29A00002

AHong Kong Special Administrative

Region of China and Saudi Arabia

BAreas Other than Hong Kong Special

Administrative Region of China and

Saudi Arabia

DC cable

K2GJYDC00004

Remote control

(Battery built-in)

N2QAEC000024

AV multi cable

K1HY12YY0004

USB cable

K1HY04YY0032

Stylus pen

VGQ0C14

Lens hood

VDW2053

Shoe adaptor

(supplied for HDC-SD700/

HDC-TM700; not supplied

for HDC-HS700)

VYC0996

CD-ROM

Software

CD-ROM

Operating Instructions

VFF0613

Optional accessories

AC adaptor (VW-AD21E/EB-K)*1

Battery pack (lithium/VW-VBG130)

Battery pack (lithium/VW-VBG260)

Battery pack (lithium/VW-VBG6)*2

Battery pack holder kit (VW-VH04)

HDMI mini cable (RP-CDHM15, RP-CDHM30)

Wide conversion lens (VW-W4607H)

Wide end conversion lens (VW-WE08H)*3

Filter kit (VW-LF46NE)*4

Video DC light (VW-LDC103E)

Light bulb for video DC light (VZ-LL10E)

Stereo microphone (VW-VMS2E)*5

Shoe adaptor (VW-SK12E)

DVD burner (VW-BN2)

*1 The supplied DC cables cannot be used

on this unit.

*2 The battery pack holder kit/VW-VH04

(optional) is necessary.

*3 When using the VW-WE08H, set the zoom

to W (wide) side. The focus will be slightly

out when it is set to T (tele) side, so

remove the VW-WE08H when recording

set to T (tele) side.

*4 When using the VW-LF46NE, remove the

lens hood (supplied) and set to the flash

setting to

(OFF).

*5 External microphone may intrude into the

frame when recording. Set the zoom to

wide angle, and tilt the external

microphone upward so it will not intrude

into the frame. This will not affect the audio

being recorded.

HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 6 ページ２０１０年２月１２日　金曜日　午後２時９分

(ENG) VQT2M91

Preparation

Before using 1Parts identification and

handling

1 Speaker

2 Power button [ ] (l20)

3 Inlet (cooling fan)

4 Intelligent auto/Manual button

[iA/MANUAL] (l27)

5 Optical image stabilizer button

[ /O.I.S.] (l33)

6 Eyepiece corrector dial

7 1080/50p button [1080/50p]

8 Battery release lever [BATT] (l14)

9 Battery holder (l14)

10 DC input terminal [DC IN] (l17)

≥Always use the supplied AC adaptor or a

genuine Panasonic AC adaptor

(VW-AD21E/EB-K; optional).

11 HDMI mini connector [HDMI]

(l36)

12 USB terminal [ ]

13 AV multi connector (l36)

≥

Use the AV multi cable (only the supplied cable).

14 Card slot (l19)

15 Access lamp [ACCESS] (l19)

16 Lens cover

≥The lens cover opens in motion

picture recording mode or still picture

recording mode. (l21)

17 Multi manual ring

18 Camera function button

[CAMERA FUNCTION]

19 Remote control sensor

20 Built-in flash

21 Lens (LEICA DICOMAR)

22 AF assist lamp

23 Recording lamp

[HDC-SD700]/[HDC-TM700]

1089

23456

1415

HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 7 ページ２０１０年２月１２日　金曜日　午後２時９分

VQT2M91 (ENG)

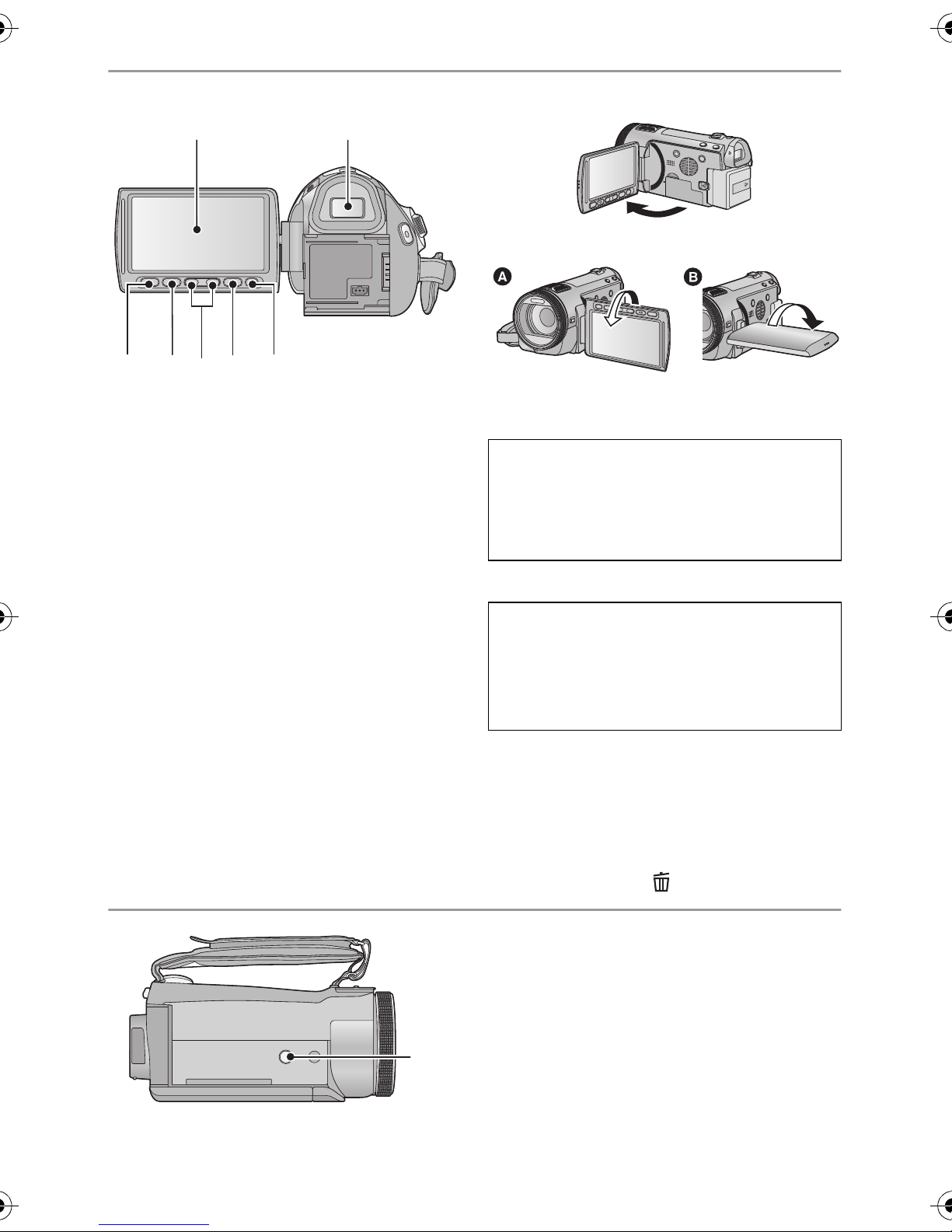

24 LCD monitor (Touch screen) (

22)

≥It can open up to 90o.

≥It can rotate up to 180oAtowards the lens

or 90o B towards the viewfinder.

25 Viewfinder

26 Quick menu button [Q.MENU]

27 Sub recording start/stop button

≥This button functions in the same manner

as the recording start/stop button.

28 Adjust zoom buttons (l31)

29 Menu button [MENU] (l30)

30 Delete button [ ] (l34)

31 Tripod receptacle

24 25

26 28 29 30

Due to limitations in LCD production

technology, there may be some tiny bright

or dark spots on the LCD monitor screen.

However, this is not a malfunction and

does not affect the recorded picture.

Due to limitations in LCD production

technology, there may be some tiny bright

or dark spots on the viewfinder screen.

However, this is not a malfunction and

does not affect the recorded picture.

HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 8 ページ２０１０年２月１２日　金曜日　午後２時９分

(ENG) VQT2M91

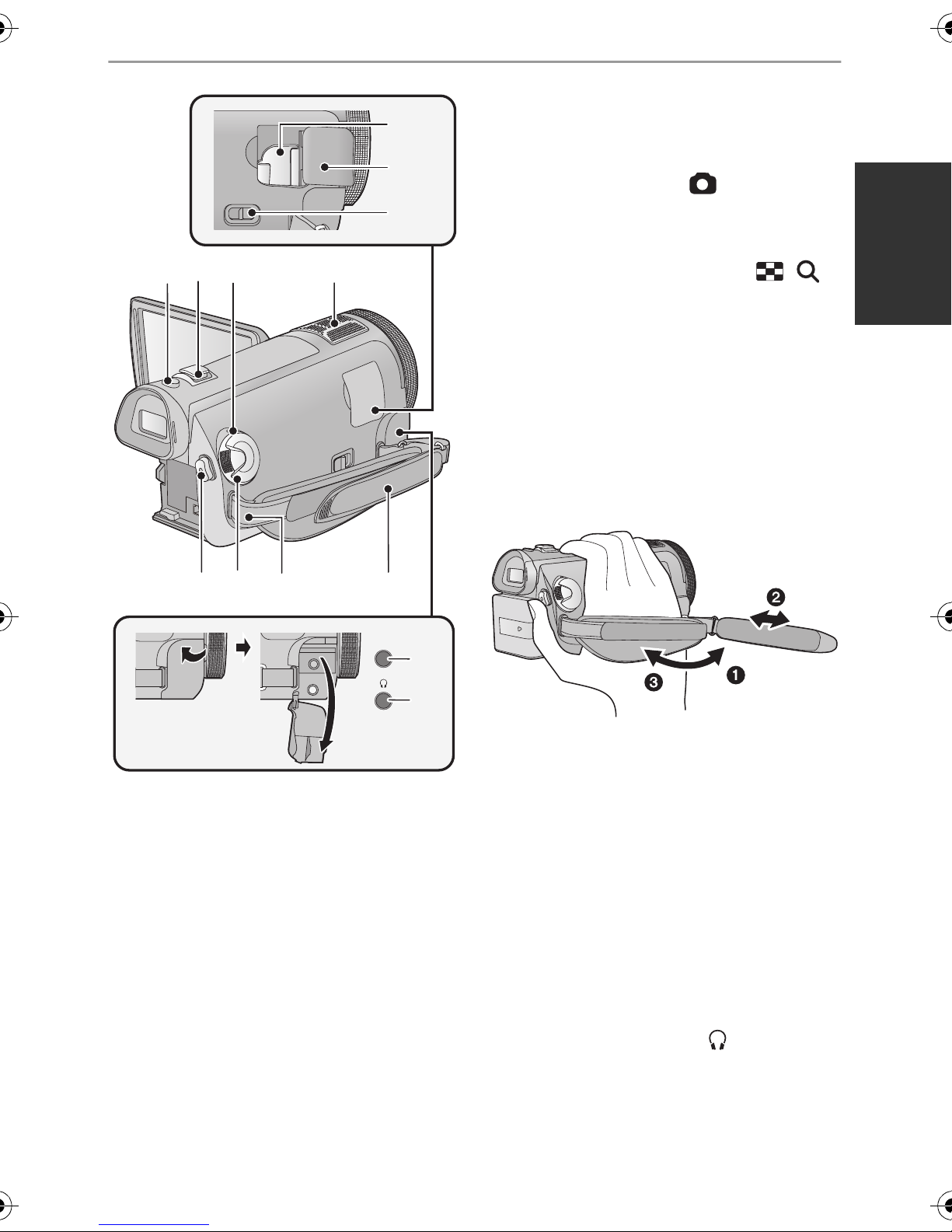

32 Shoe adaptor mounting part

33 Shoe adaptor cover

34 Shoe adaptor release lever

[SHOE ADAPTOR RELEASE]

35 Photoshot button [ ] (l26)

36 Zoom lever [W/T] (In motion picture

recording mode or still picture

recording mode) (l31)

Thumbnail display switch [ / ]/

Volume lever [sVOLr] (In playback

mode)

37 Status indicator (l20)

38 Internal microphones

39 Recording start/stop button (l25)

40 Mode dial (l21)

41 Shoulder strap fixture

42 Grip belt

Adjust the length of the grip belt so that it fits

your hand.

1Flip the belt.

2Adjust the length.

3Replace the belt.

43 Microphone terminal [MIC]

≥A compatible plug-in powered microphone

can be used as an external microphone.

≥Audio will be stereo (2 ch) with the

external microphone input.

≥When the unit is connected with the AC

adaptor, sometimes noise may be heard

depending on the microphone type. In this

case, please switch to the battery for the

power supply and the noise will stop.

44 Headphone terminal [ ]

≥Excessive sound pressure from

earphones and headphones can cause

hearing loss.

MIC

383635

39 40 41 42

HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 9 ページ２０１０年２月１２日　金曜日　午後２時９分

VQT2M91 (ENG)

1 Speaker

2 Power button [ ] (l20)

3 Inlet (cooling fan)

4 Intelligent auto/Manual button

[iA/MANUAL] (l27)

5 Optical image stabilizer button

[ /O.I.S.] (l33)

6 Eyepiece corrector dial

7 1080/50p button [1080/50p]

8 Battery release lever [BATT] (l14)

9 Battery holder (l14)

10 DC input terminal [DC IN] (l17)

≥Always use the supplied AC adaptor or a

genuine Panasonic AC adaptor

(VW-AD21E/EB-K; optional).

11 HDMI mini connector [HDMI]

(l36)

12 USB terminal [ ]

13 AV multi connector (l36)

≥

Use the AV multi cable (only the supplied cable).

14 Card slot (l19)

15 Access lamp [ACCESS] (l19)

16 Lens cover

≥The lens cover opens in motion

picture recording mode or still picture

recording mode. (l21)

17 Accessory shoe

18 Multi manual ring

19 Camera function button

[CAMERA FUNCTION]

20 Remote control sensor

21 Built-in flash

22 Lens (LEICA DICOMAR)

23 AF assist lamp

24 Recording lamp

[HDC-HS700]

1089

23 45 6

1415

HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 10 ページ２０１０年２月１２日　金曜日　午後２時９分

Altri manuali per HDC-SD700

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Videocamera

Panasonic

Panasonic HC-V10K Manuale utente

Panasonic

Panasonic PV-GS2P Manuale utente

Panasonic

Panasonic VARICAM LT Manuale utente

Panasonic

Panasonic HDCSX5P - HD VIDEO CAMERA Manuale utente

Panasonic

Panasonic AK-HC3900 Manuale per l'uso e la cura

Panasonic

Panasonic NV-DS28A Manuale utente

Panasonic

Panasonic AVCCAM AG-AC90A Manuale utente

Panasonic

Panasonic VDR-D150EB Manuale utente

Panasonic

Panasonic NV-GS27GCT Manuale utente

Panasonic

Panasonic AJD200P - DVC PRO Manuale utente

Panasonic

Panasonic AJ-HDX400 Manuale utente

Panasonic

Panasonic HC-WXF990 Specifiche tecniche

Panasonic

Panasonic HC-WXF991 Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic SDR-H100 Manuale utente

Panasonic

Panasonic NV-DS55EG Manuale utente

Panasonic

Panasonic PV-DV950 Manuale utente

Panasonic

Panasonic HC-V270 Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic AG-CX350 Manuale utente

Panasonic

Panasonic AU-EVA1 Manuale utente

Panasonic

Panasonic Palmcorder PV-L561 Manuale utente

Panasonic

Panasonic AJHDC27HP - DVCPRO HD CAMERA Manuale utente

Panasonic

Panasonic NV-RZ10B Manuale utente

Panasonic

Panasonic NV-S600EN Istruzioni operative e di manutenzione

Panasonic

Panasonic TM 300 Manuale utente

Manuali Videocamera popolari di altre marche

Toshiba

Toshiba CAMILEO Z100 Manuale utente

Canon

Canon RC 260 Manuale utente

Sony

Sony Handycam DCR-DVD7E Manuale utente

Brinno

Brinno TimeLapse TLC200 Manuale utente

JVC

JVC GR-SXM68AC Guida rapida

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuale utente

MYDLINK

MYDLINK DCS-6100LH Manuale utente

Sony

Sony video Hi8 Handycam CCD-TR555 Manuale utente

SECURECOM

SECURECOM V-5014B Manuale utente

Sharper Image

Sharper Image U-VIDEO Manuale utente

JVC

JVC AA-V15EG Manuale utente

Canon

Canon LEGRIA HV40 Manuale utente

Sony

Sony Handycam DCR-VX2000 Manuale utente

RCA

RCA CC616 Manuale utente

ATIK Cameras

ATIK Cameras Horizon Manuale utente

Sony

Sony Handycam HDR-CX580V Manuale utente

Sharp

Sharp ViewcamZ VL-Z8H Manuale utente

Philips

Philips M620/21 Manuale utente
