Panasonic NV-GS200EG Manuale utente

ORDERNO.VM0403012C8

Digital VideoCamera/ Recorder

NV-GS200EG / NV-GS200EB/ NV-GS200EGM/ NV-GS200GC

/ NV-GS200GN/ NV-GS200GCT

NV-GS120EG / NV-GS120EB/ NV-GS120EGM/ NV-GS120GC/ NV-

GS120GN/ NV-GS120GCT

VOL.1

A-MECHANISM

Colour

(S)....................SilverType

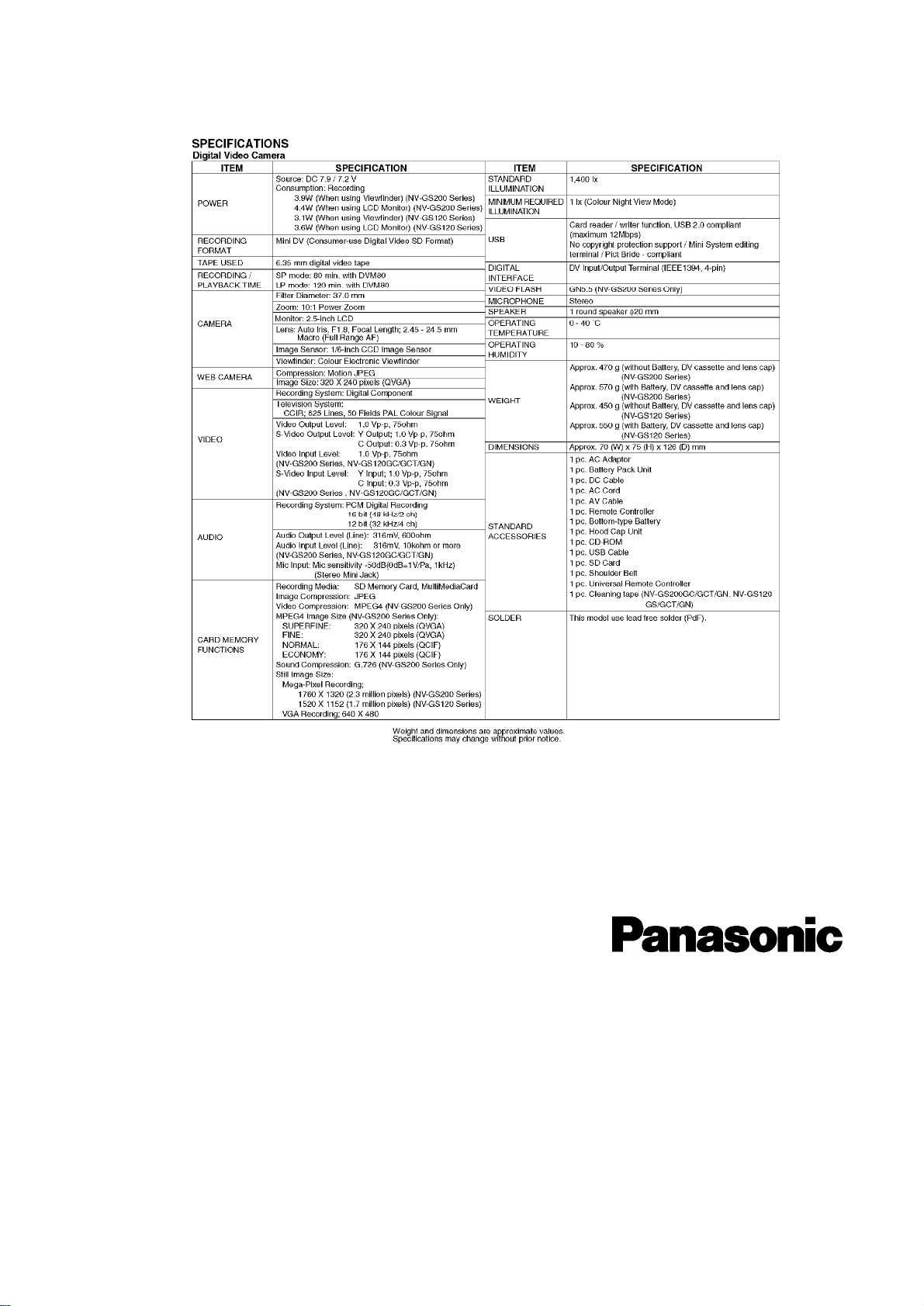

SPECIFICATIONS

1. INTRODUCTION

1.1. INTRODUCTION

Thisservice manual containstechnical information whichwill allowservice personnel's to

understand and service thismodel.Please place ordersusing thepartslistand notthedrawing

reference numbers.

Ifthecircuitischangedor modified, thisinformation will befollowedbysupplementservice

manual tobefiledwithoriginal service manual.

Note1:

These moviecamerauses ACAdaptor VSK0651.

Note2:

1)Thisservice manual does notcontainthefollowing information, because oftheimpossibilityof

sevicing atcomponentlevel.

1. SchematicDiagram, Block Diagramand C.B.A. layoutofMain

C.B.A./ Sub C.B.A.

2. Parts List forindividual parts ofMainC.B.A./ Sub C.B.A.

2)Thefollowing categoryis/arerecyclemodulepart. Please send it/them toCentral Repair

Center.

*MainC.B.A. (VEP03G57B: NV-GS200 SERIES, VEP03G57F:NV-GS120EG/EB/EGM, VEP03G57G:

NV-GS120GC/GN/

GCT)

*Sub C.B.A. (VEP23599B: NV-GS200 SERIES, VEP23602B: NV-GS120 SERIES)

Whenapartreplacementisrequiredfor repairing eachMainC.B.A., replace theassemblyparts.

(MainC.B.A. and Sub C.B.A.)

Thefollowing circuitsarecontainedinMainC.B.A.

1. MainConnection Circuit

2. AVIO Circuit

3. EX InputCircuit

4. LCD Circuit

5. DriveCircuit

6. VideoCircuit

7. PowerCircuit

8. Control Circuit

Thefollowing circuitsarecontainedinSub C.B.A.

1. Sub Connection Circuit

2. Sub PowerCircuit

3. MPEG Circuit

4. LensDriveCircuit

5. CameraCircuit

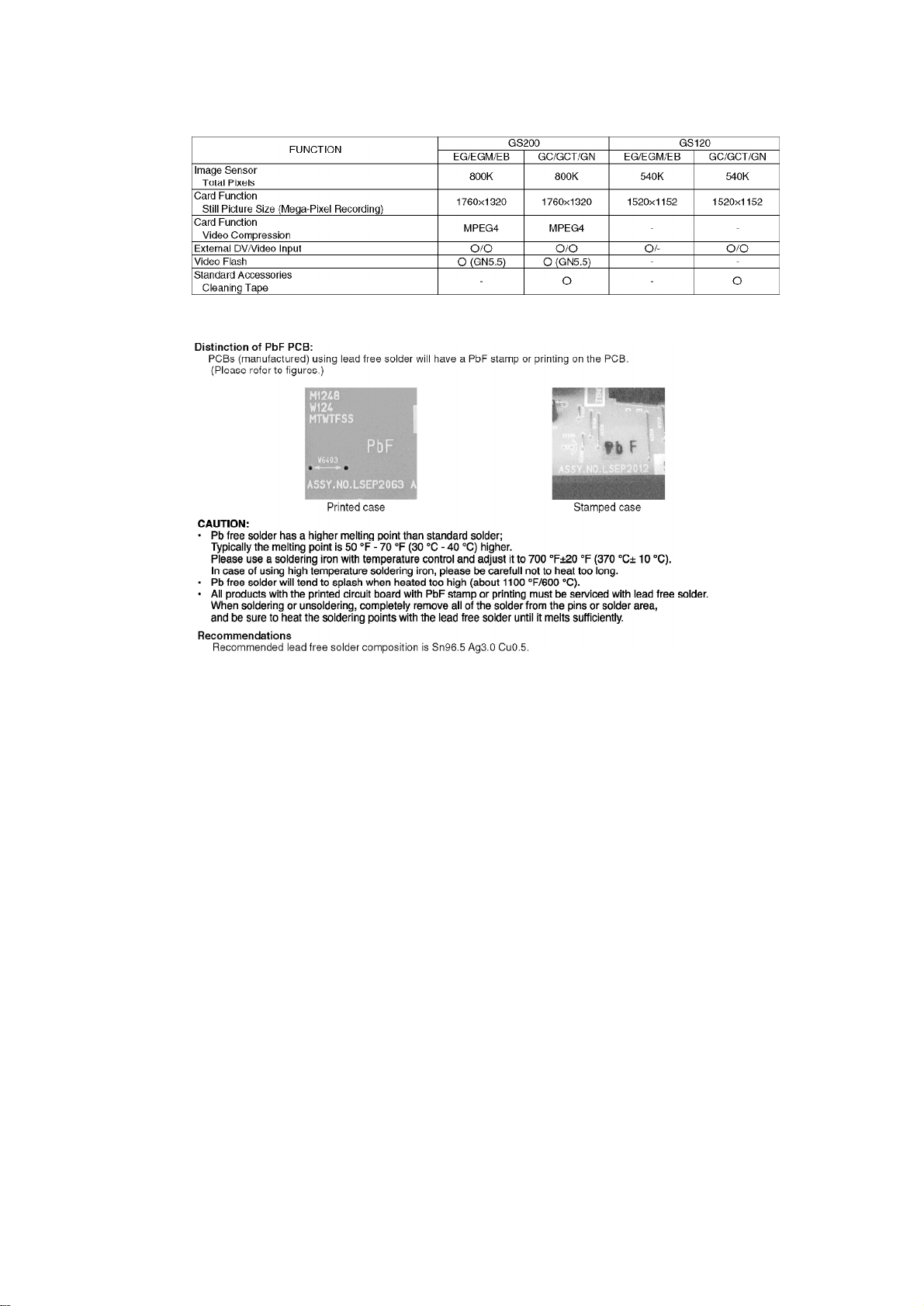

1.2. FEATURECOMPARISONCHART

1.3. ABOUTLEADFREE SOLDER(PbF)

2. CAUTIONFORACCORD (VJA0940 TYPE)

2.1. INFORMATIONFORYOUR SAFETY

IMPORTANT

Your attention isdrawntothefactthatrecording ofpre-recordedtapes or discs or other

publishedor broadcastmaterial may infringecopyrightlaws.

WARNING

To reduce therisk offireorshock hazard, do notexpose this

equipmenttorainormoisture.

CAUTION

To reduce therisk offireorshock hazardand annoying

interference, use therecommendedaccessories only.

FORYOUR SAFETY

DONOTREMOVE THE OUTERCOVER

Topreventelectricshock, do notremove thecover. Nouserserviceablepartsinside. Refer

servicing toqualifiedservice personnel.

2.2. CAUTIONFORACMAINSLEAD

For your safety, please readthefollowing textcarefully.

Thisappliance issuppliedwithamouldedthree-pinmainsplug for your safetyand convenience.

A5-amperefuse isfittedinthisplug.

Shouldthefuse needtobereplacedplease ensurethatthereplacementfuse has arating of5

amperes and itisapprovedbyASTAor BSItoBS1362

Check for theASRAmarkor theBSImarkon thebodyofthefuse.

Iftheplug containsaremovablefuse coveryou mustensurethatitisrefittedwhenthefuse is

replaced.

Ifyou lose thefuse cover, theplug mustnotbeuseduntil areplacementcoverisobtained.

Areplacementfuse covercanbepurchasedfrom your local PanasonicDealer.

Ifthefittedmouldedplug isunsuitablefor thesocketoutletinyour homethenthefuse shouldbe

removedand theplug cutoff and disposedofsafety.

Thereisadangerofsevereelectrical shock ifthecutoff plug isinsertedintoany13-ampere

socket.

Ifanewplug istobefittedplease observe thewiring codeas shownbelow.

Ifinanydoubt, please consultaqualifiedelectrician.

2.2.1. Important

Thewires inthismainsleadarecolouredinaccordance withthefollowing code:

Blue Neutral

Brown Live

Asthecoloursofthewires inthemainsleadofthisappliance may notcorrespond withthe

colouredmarkingsidentifying theterminalsinyour plug, proceedas follows:

ThewirewhichiscolouredBLUE mustbeconnectedtotheterminal intheplug whichismarked

withtheletterNor colouredBLACK.

ThewirewhichiscolouredBROWNmustbeconnectedtotheterminal intheplug whichis

markedwiththeletterLor colouredRED.

Underno circumstances shouldeitherofthese wires beconnectedtotheearthterminal ofthe

three pinplug, markedwiththeletterE or theEarthSymbol.

2.2.2. Beforeuse

remove theConnector Coveras follows.

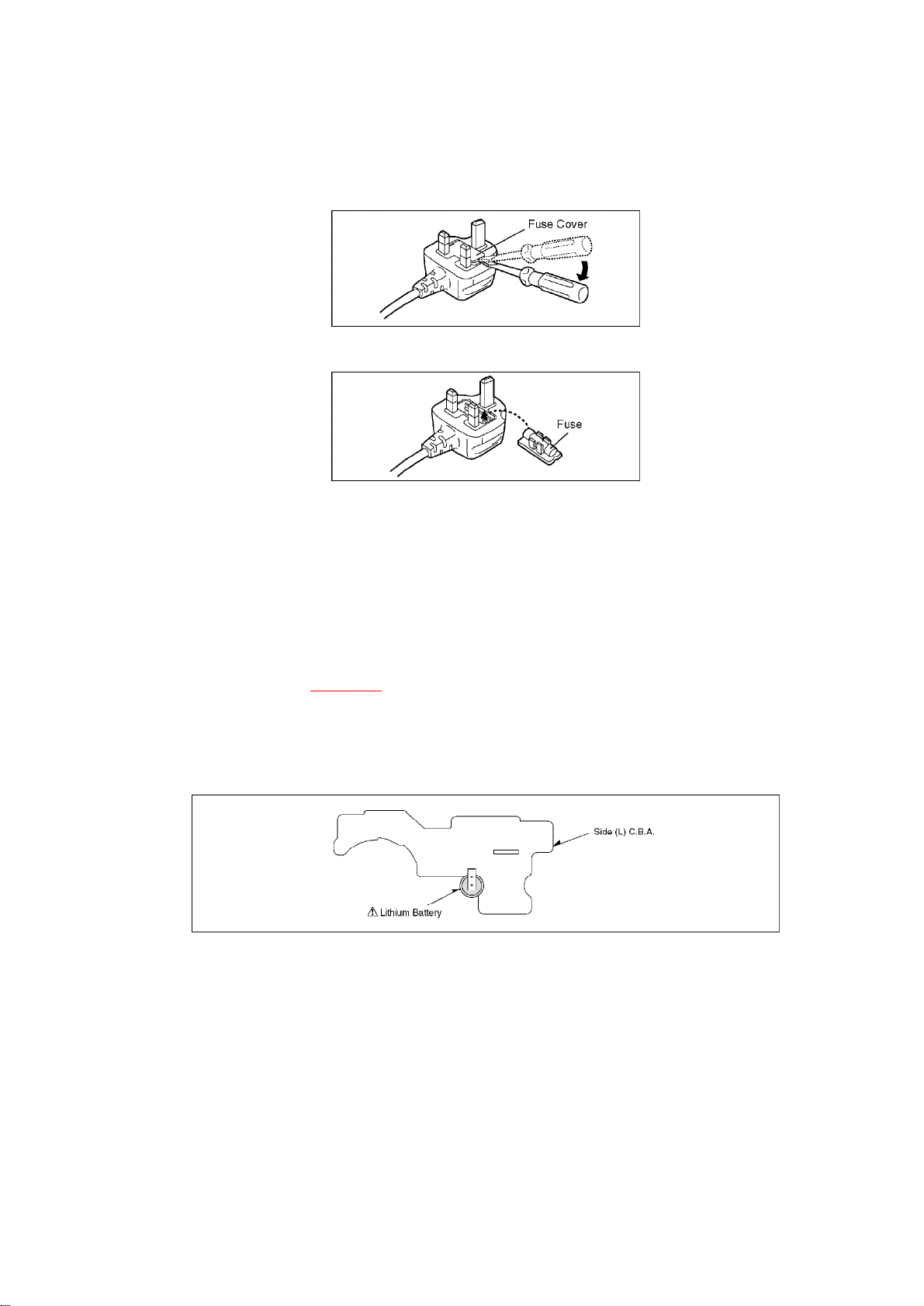

2.2.3. Howtoreplace theFuse

1. RemovetheFuse Coverwithascrewdriver.

2. Replace thefuse and attachtheFuse cover.

3. HOWTO REPLACE THE LITHIUMBATTERY

(PROCEDURE)

1. RemovetheSideCase (L)C.B.A.. (RefertoDisassembly

Procedures.)

2. UnsoldertheLithiumBattery“ML-621S/F9D”and thenreplace the

new one. (See Fig. B1.)

3. Dangerofexplosion ifbatteryisincorrectlyreplaced. Replace only

withthesameorequivalenttype.

Fig. B1

Note:

Thelithium batteryisacritical component. (TypeNo.:ML-621S/F9DManufacturedbyPanasonic.)

Itmustneverbesubjectedtoexcessive heator discharge.

Itmustthereforeonlybefittedinequipmentdesignedspecificallyfor itsuse.

Replacementbatteries mustbeofthesametypeand manufacture.

They mustbefittedinthesamemannerand location as theoriginal battery, withthecorrect

polaritycontactsobserved.

Donotattempttore-chargetheoldbatteryor re-use itfor anyotherpurpose.

Itshouldbedisposedofinwasteproductsdestinedfor burial ratherthanincineration.

4. ADJUSTMENTPROCEDURES

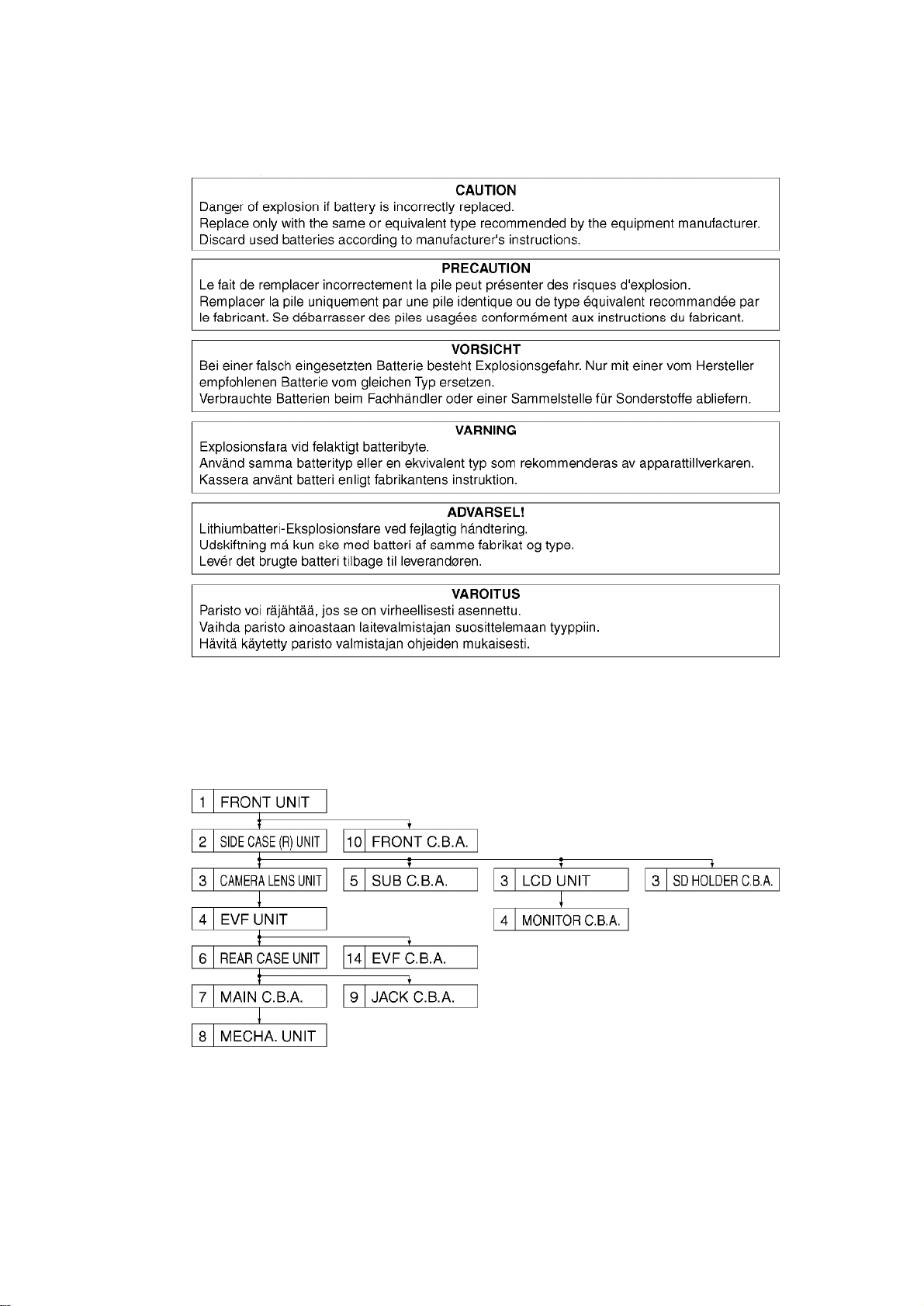

4.1. DISASSEMBLEFLOWCHART

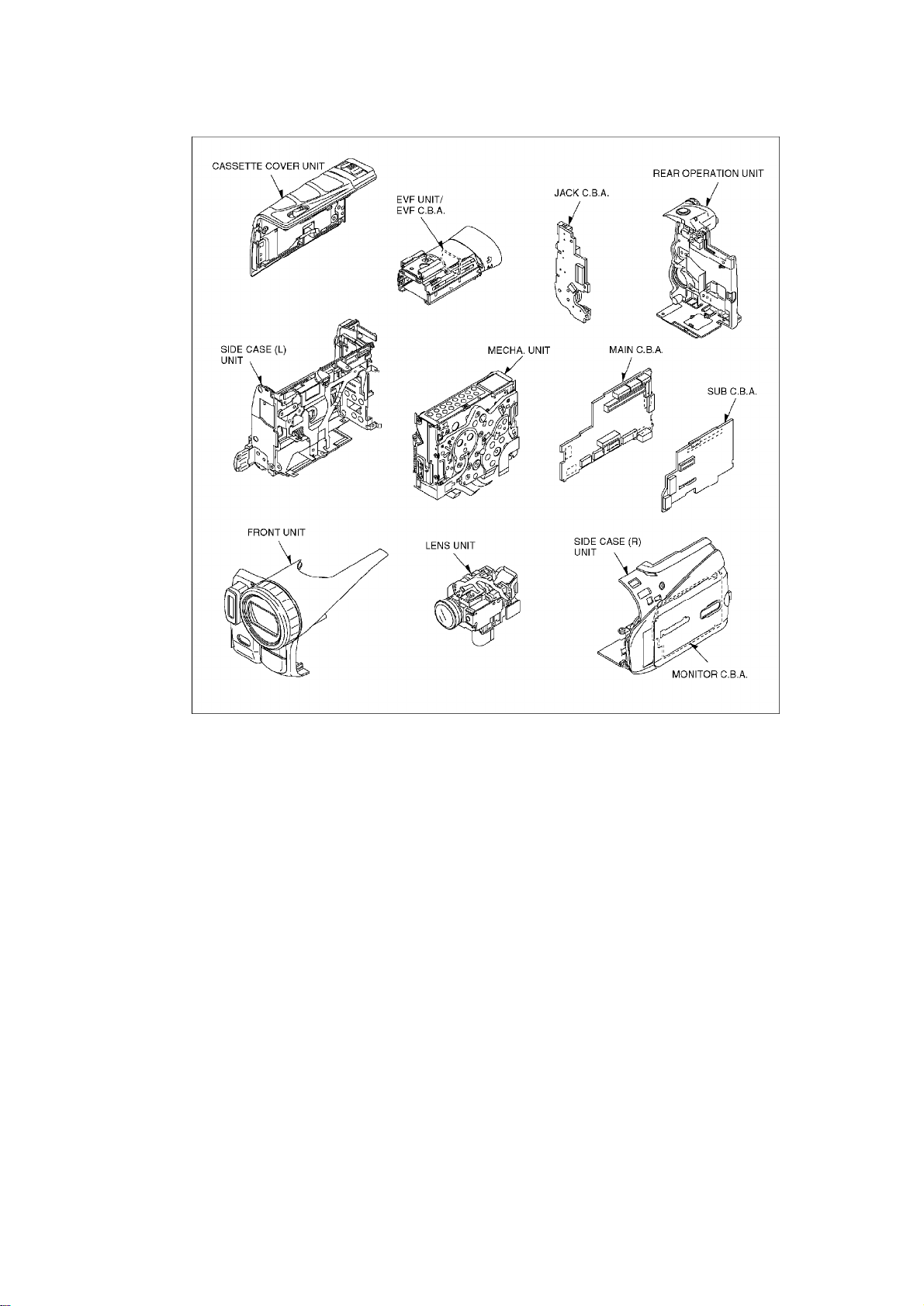

Thisflowchartindicates thedisassemblystepsthecabinetparts, C.B.A. and Mecha. Unitinorder

toaccess tobeserviced. Whenreinstalling, perform thestepsinthereverse order.

Fig. F1

4.2. DISASSEMBLYPROCEDURES

Flow-Chartfor DisassemblyProcedure

No. Item / Part Fig. Removal

(Screw,Connector,Flex. &

Other)

1 FrontUnit Fig.

D2 2-Screws(A), 1-Screw(B)

Remove GripBeltPiece.

Fig.

D3 1-Screw(C), 1-Screw(D), 1-

Screw(E)

Fig.

D4 1-Connector FP4801

FrontUnit

2 SideCase

(R) Unit Fig.

D5 1-Screw(F), 2-Screws(G)

Fig.

D6 1-Screw(H)

3-ConnectorsFP601,

FP3401, FP6503

SideCase (R) Unit

3Camera

LensUnit Fig.

D7 1-Screw(I)

2-Connectors

FP701,PS201

CameraLensUnit

4 EVFUnit Fig.

D8 1-Screw(J)

Fig.

D9 1-Screw(K)

2-ConnectorsFP603,FP3402

EVFUnit

5 Sub C.B.A. Fig.

D10 2-Connectors

FP4002,PS3001

Sub C.B.A.

6RearCase

Unit Fig.

D11 1-Screw(L), 1-Screw(M), 1-

Screw(N)

2-ConnectorsFP1001,FP6502

RearCase Unit

7Main

C.B.A. Fig.

D12 8-Connectors

FP2201,FP2202,FP2203,FP2204,

FP5001,

FP6501,FP6504,FP6505

1-Screw(O)

Remove <b>

MainC.B.A.

8Mecha.

Unit Fig.

D13 3-Screws(P)

Mecha. Unit

9Jack

C.B.A. Fig.

D14 2-Screws(Q), 1-Screw(R)

Jack C.B.A.

No. Item / Part Fig. Removal

(Screw,Connector,Flex. &

Other)

10 Front

C.B.A. Fig.

D15 <GS200>

2-Screws(S), 1-Screw(T), 1-

Screw(U)

2-ConnectorsFP7001,FP7002

FrontC.B.A./FlashSWC.B.A.

<GS120>

3-Screws(S)

FrontC.B.A.

11 LCD Unit Fig.

D16 1-Screw(V)

Fig.

D17 3-Screws(W)

RearCover

Fig.

D18 2-Screws(X)

LCD Unit

12 Monitor

C.B.A. Fig.

D19 2-Screws(Y)

6-Tabs

1-Connector FP904

LCD Case (Upper)

Fig.

D20 1-Connector FP901

Monitor C.B.A.

13 SDHolder

C.B.A. Fig.

D21 1-Screw(Z), 1-Screw(a)

1-Connector FP6601

4-Tabs

SDHolderUnit

*Paying attention toSD

opening SWinthecase of,

assembling the

SDholderunitisinstalled, in

thecondition whereopened

theSDdoor.

Fig.

D22 1-Screw(b)

SDDoor Unit

Fig.

D23 SDSlideLink/SDHolder

Fig.

D24 SDSupportPlateUnit/SD

Door Spring/SDSlideCover

Fig.

D25 SDHolderC.B.A.
