Panasonic NV-VS50EG Manuale utente

ORDERNO. VMD0102003C8

S-VHS-CMovie

NV-VS50EG / NV-VS50EGM/ NV-VS50EN/ NV-VS50A/ NV-

VS70EN/ NV-VS70A

CZ-MECHANISM

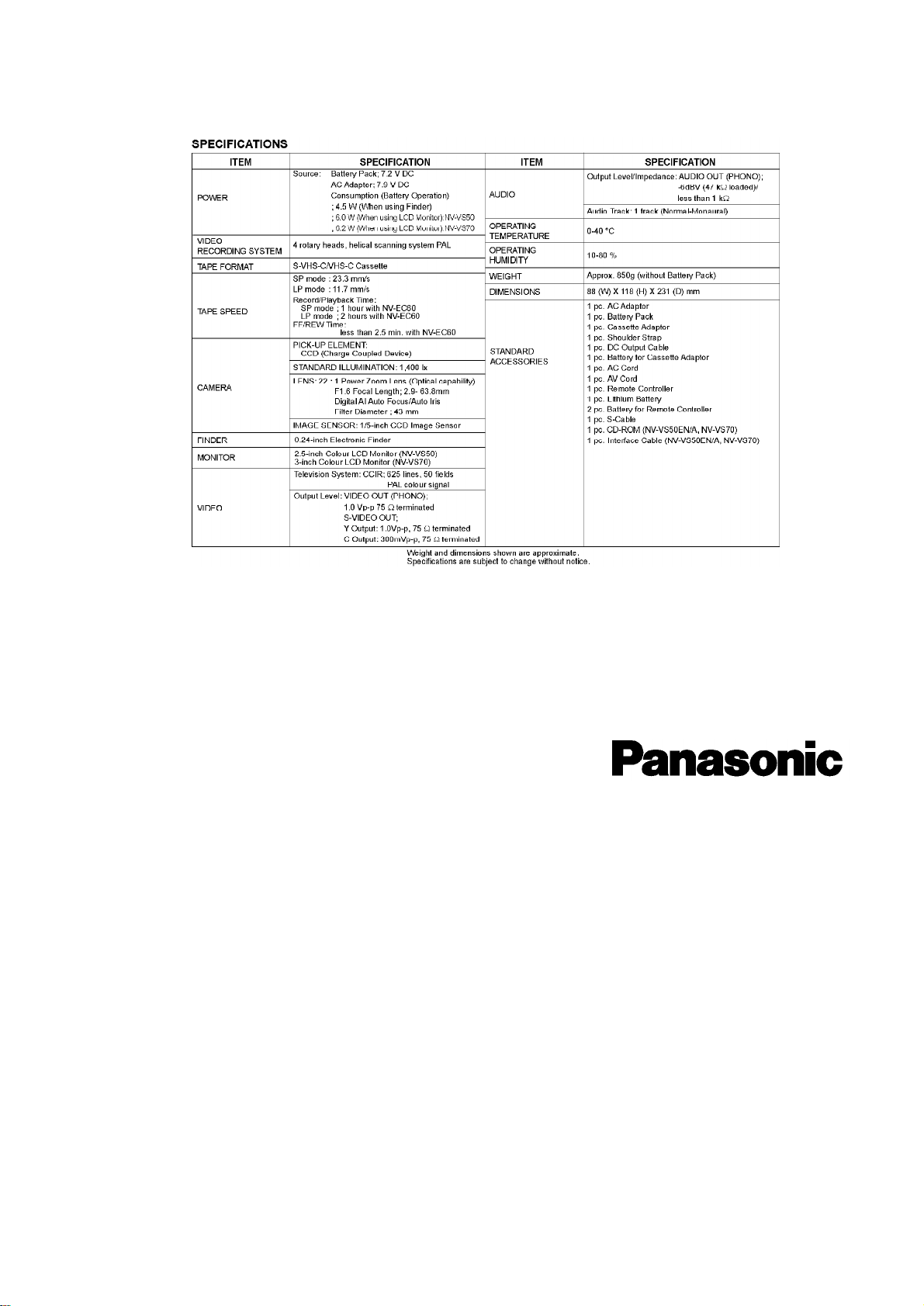

SPECIFICATIONS

1. INTRODUCTION

1.1. INTRODUCTION1

Thisservice manual containstechnical information whichwill beallowedservice personnel’sto

understand and service thismodel.

Please use partnumberon thepartslisttomake orderfor sparepartand do notuse reference

numberon thedrawing.

Ifthecircuitischangedor modified, thisinformation will befollowedbysupplementservice

manual.

Note1:

Theservice manual for Mechanism-Chassisisseparatedas anotherone.

Please refertothefollowing manual for detail ofadjustmentprocedurefor Mechanism-Chassis.

Ordernumberfor service manual ofMechanism-Chassis:VMD9912044C8

Note2:

Theservice manual for ACadaptor isseparatedas anotherone. Please refertothefollowing

manual.

Ordernumberfor ACAdaptor ----VSK0564 :VMD9907028C3(VS70)

1.2. INTRODUCTION2

Note1:

Differences arementionedas followsfor VS50 series.

Description EG EGM

Packing case VPG0H69 VPG0H70

Operating manual VQT9091 VQT9092

1.3. FEATURECOMPARISONCHART

VS50 VS70

EG EN A EN A

CCD CCD ImageSensor 1/5" 1/5" 1/5" 1/5" 1/5"

CCD Capacity(Pixels) 450k 450k 450k 450k 450k

LCD

MONITOR Colour LCD Monitor 2.5" 2.5" 2.5" 3" 3"

LCD Capacity(Pixels) 112,320 112,320 112,320 112,320 112,320

B/W-EVF B/WEVFLCD Monitor 0.24" 0.24" 0.24" 0.24" 0.24"

EVFLCD Capacity(Pixels) 76,800 76,800 76,800 76,800 76,800

SPEED Recording/Playback mode SP SP/LP SP/LP SP/LP SP/LP

LENS Optical Zoom Ratio x22 x22 x22 x22 x22

ShortestImageDistance

(From 1stLens) 1.8m 1.8m 1.8m 1.8m 1.8m

DIG.ZOOM Digital Zoom (x45/x100/x550) O/O/O O/O/O O/O/O O/O/O O/O/O

Voice zoom O O O O O

DSC DSCOUT O O O O O

D.EFECT TBC (TimeBase Corrector) O O O O O

Playback Digital Efect O O O O O

S-VHS S-VHS-ET O O O O O

ACCESSORY

Remotecontroller O O O O O

AV cord O O O O O

S cord O O O O O

2. SERVICE CAUTION

2.1. EEPROMDATAFORSPAREPARTSOFTHEMAINC.B.A.

WhentheMainC.B.A. isreplaced, thefixedand averagedatamustbere-installedtoEEPROMby

Tatsujinkitaccording tothesuffixfor Moviecamera.

Then, confirm and/or adjusttheVTRand Cameraadjustmentonebyone.

2.2. SERVICEEXTENSIONCABLES.

Thismodel isrequiredthefollowing extension cables for all connections.

Asaconvenientway, please preparetheRearcase U(K4ZZ15000013)as extratorepaireasily. /

(K4ZZ15000013 canbepurchasedthrough service route.)

Ref. PartsNo. Pin Partname Connection Q’ty

Remarks

(a) VFK1582A2120 21 FlatCable FP701-LensUnit 1

(b) VFK1582D1225 12 FlatCable PP301-LensUnit 1

(d) VFK1582A1325 13 FlatCable FP6002-CAM. OP. 1

(e) VFK1582A1625 16 FlatCable FP6004-S/S ZOOMVTROP. 1

(f) VFK1582A0920 9 FlatCable FP4001-A/CHead 1

(g) VFK1582A1025 10 FlatCable FP1001-EVF 1

(h) VFK1582A1925 19 FlatCable FP2001-Capstan 1

(i) VFK1582A2125 21 FlatCable FP6001-Mecha. FPC. 1

(j) VFK1582A1620 16 FlatCable FP4002-Front 1

NOTE:

New Parts numbersconsist 4blocks. And theyhas meaning as

follows.

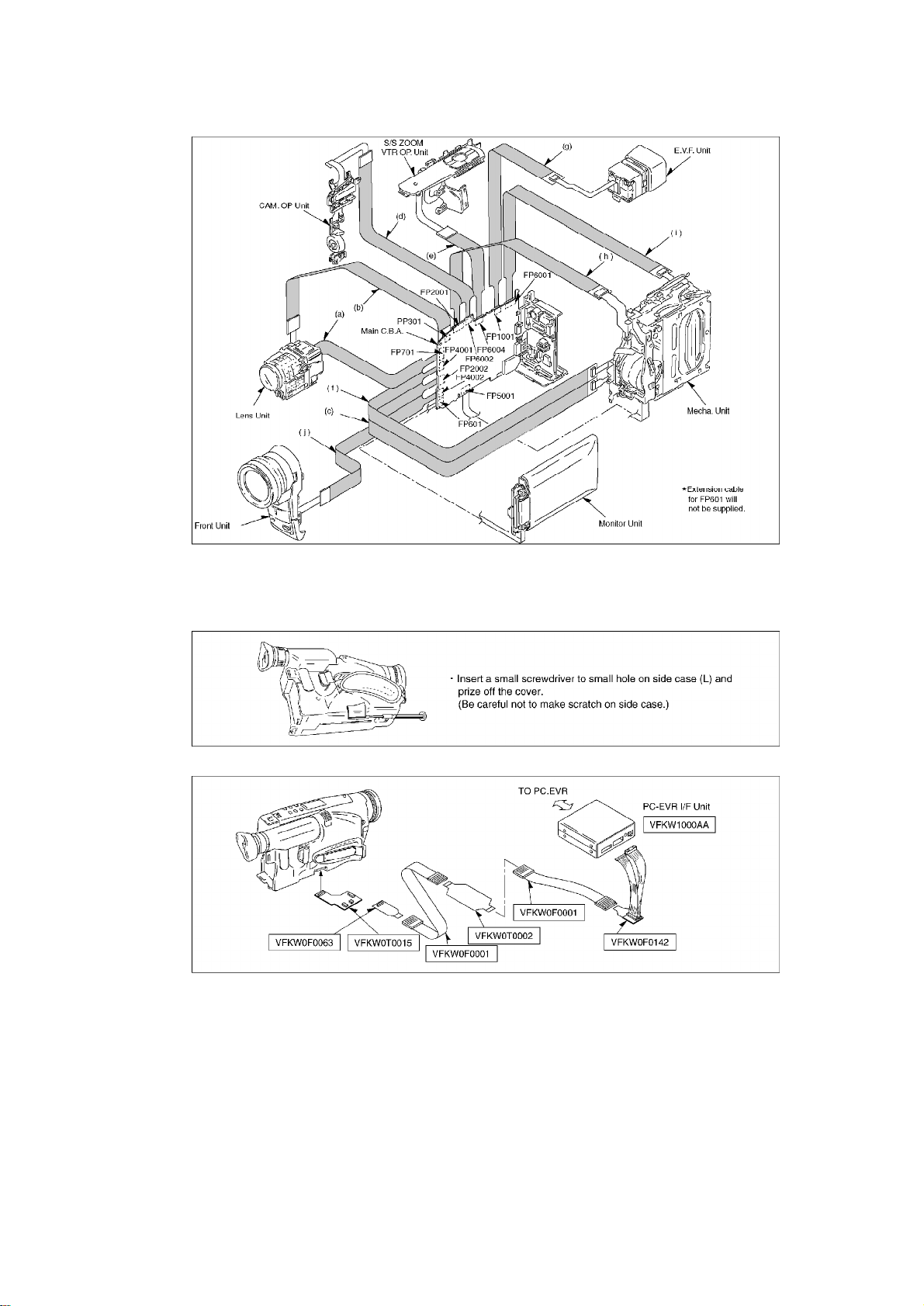

Howtouse extension cables.

2.3. SET-UPFORADJUSTMENTOFTATSUJIN.

For adjustmentof“TATSUJIN“, please openthesmall coverwhichislocatedatbottm ofside

case(L)using small screwdriveras follows.

And thenconnecttheJIGboard and TATSUJINcableas follows.

2.4. CAUTIONFORACCORD (VJA0940 TYPE)

2.4.1. INFORMATIONFORYOUR SAFETY

IMPORTANT

Your attention isdrawntothefactthatrecording ofpre-recordedtapes or discs or other

publishedor broadcastmaterial may infringecopyrightlaws.

WARNING

To reduce therisk offireorshock hazard, do notexpose this

equipmenttorainormoisture.

CAUTION

To reduce therisk offireorshock hazardand annoying

interference, use therecommendedaccessories only.

FORYOUR SAFETY

DONOTREMOVE THE OUTERCOVER

Topreventelectricshock, do notremove thecover. Nouserserviceablepartsinside. Refer

servicing toqualifiedservice personnel.

2.4.2. CAUTIONFORAC MAINS LEAD

For your safety, please readthefollowing textcarefully.

Thisappliance issuppliedwithamouldedthree-pinmainsplug for your safetyand convenience.

A5-amperefuse isfittedinthisplug.

Shouldthefuse needtobereplacedplease ensurethatthereplacementfuse has arating of5

amperes and itisapprovedbyASTAor BSItoBS1362

Check for theASRAmarkor theBSImarkon thebodyofthefuse.

Iftheplug containsaremovablefuse coveryou mustensurethatitisrefittedwhenthefuse is

replaced.

Ifyou lose thefuse cover, theplug mustnotbeuseduntil areplacementcoverisobtained.

Areplacementfuse covercanbepurchasedfrom your local PanasonicDealer.

Ifthefittedmouldedplug isunsuitablefor thesocketoutletinyour homethenthefuse shouldbe

removedand theplug cutoff and disposedofsafety.

Thereisadangerofsevereelectrical shock ifthecutoff plug isinsertedintoany13-ampere

socket.

Ifanewplug istobefittedplease observe thewiring codeas shownbelow.

Ifinanydoubt, please consultaqualifiedelectrician.

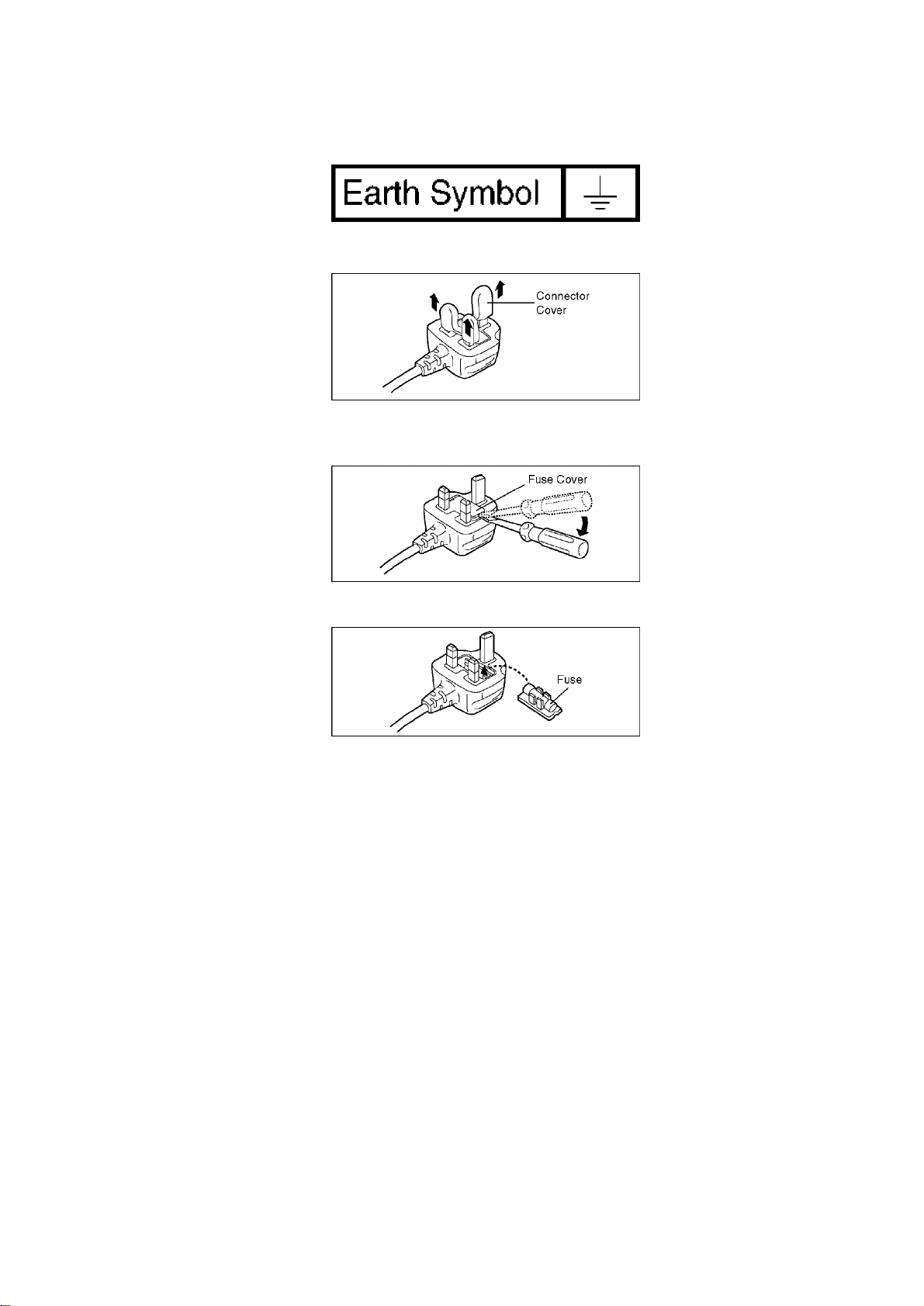

2.4.2.1. Important

Thewires inthismainsleadarecolouredinaccordance withthefollowing code:

Blue Neutral

Brown Live

Asthecoloursofthewires inthemainsleadofthisappliance may notcorrespond withthe

colouredmarkingsidentifying theterminalsinyour plug, proceedas follows:

ThewirewhichiscolouredBLUE mustbeconnectedtotheterminal intheplug whichismarked

withtheletterNor colouredBLACK.

ThewirewhichiscolouredBROWNmustbeconnectedtotheterminal intheplug whichis

markedwiththeletterLor colouredRED.

Underno circumstances shouldeitherofthese wires beconnectedtotheearthterminal ofthe

three pinplug, markedwiththeletterE or theEarthSymbol.

2.4.2.2. Beforeuse

remove theConnector Coveras follows.

2.4.2.3. Howtoreplace theFuse

1. RemovetheFuse Coverwithascrewdriver.

2. Replace thefuse and attachtheFuse cover.

3. SERVICE INFORMATION

3.1. SERVICEINFORMATIONDISPLAY(GENERALDESCRIPTION)

-ThisMovieCamerahas SERVICEINFORMATIONDISPLAYfunction

whichenables quick trouble-shooting.

-TheService Information Displayisavailablewiththefollowing

prcedures.

-TheService Information isdisplayedon theEVFand LCD monitor.

(Thereare4kindsofSERVICEMODES as follow.)

IntheOSDLineOutputMode, theservice Information canbe

displayedevenon TV.

MODE NAME FUNCTION Howtouse.

OSDLineOutputMode Checking theEVF

information on theTV

monitor

Pushthefollowing keys simultaneously

sec. FOCUS/SET STOP

(SIDE CASE(R)) (TOP

PANEL)

(

CASE

TOP)

SERVICE MODE 1 Remaining BatteryA/Dvalue.

/ SafetyDevice / Capstan/

Cylinderinjuctions.

Pushthefollowing keys simultaneously

sec. COLOR STOP

(SIDE CASE(R)) (TOP

PANEL)

(

CASE

TOP)

SERVICE MODE 2 Remaining VoltageA/Dvalue.

/ Mechanism position /

Serial key code

Afterchosing SERVICE MODE 1, push[

DATE

key.

SERVICE MODE 3 ERRORCODE Display Afterchosing SERVICE MODE 2, push[

DATE

key.

SERVICE MODE 4 PGSHIFTERADJUSTMENT Afterchosing SERVICE MODE 3, push[

DATE

key.

NOTE1:

Thecontentofall service modes (service Mode1to4)arethesameas previousmodels.

Please refertothefollowing Technical Information.

Ordernumberfor Technical Information :VMD9512M138

NOTE2:

Whenanundesirablecondition occurs, thepowerwill beturnedoff exceptzoom &focusmotor

lock condition. (Since thismodel, “ERRORCODE”isnotautomaticallydisplayedon theEVFand

LCD monitor, eventheCAMERALEDisnotflashed.)

Byturning on Service Mode3, itispossibletocheck whatkind ofundesiralecondition has

occurred, evenaftertheERRORCODE has disappeared. Because ofTheERRORCODE is

memorizedtoEEPROM-IC.

3.2. SERVICEMODE3(ERRORCODEDISPLAY)

-ERRORCODEappearson counterdisplayposition as follows. (See

Fig.1 ). Fig.1

3.3. INSERTING THEBUTTON-TYPE BATTERY

Note:

Thelithiumbatteryisacritical component(TypeNo.:CR2025

ManufacturedbyPanasonic.)

Itmust neverbesubjectedtoexcessiveheat ordischarge.

Itmust thereforeonlybefittedinequipmentdesignedspecifically

forits use.

Replacementbatteries must beofthesametypeand manufacture.

Theymust befittedinthesamemannerand location as theoriginal

battery, withthecorrect polaritycontacts observed.

Donotattempttore-chargetheoldbatteryorre-use itforanyother

purpose.

Itshouldbedisposedofinwaste products destinedforburial rather

thanincineration.

4. ADJUSTMENTPROCEDURES

4.1. DISASSEMBLYPROCEDURES

Flow-Chartfor DisassemblyProcedure

No. Item/Part Fig. Removal (Screw)

1SideCase

(L)Unit Fig.1 4-Screws(F)

Fig.2 1-Screw(A)

1-Screw(B)

1-Screw(C)

3-Screws(D)

1-Screw(E)

Fig.3 Locking Tab(a)

SlightlyopentheSideCase

(L)Unit.

DisconnectFP6004.

2Front

Case Unit Fig.4 4-Locking Tabs(b)

DisconnectFP4002.
