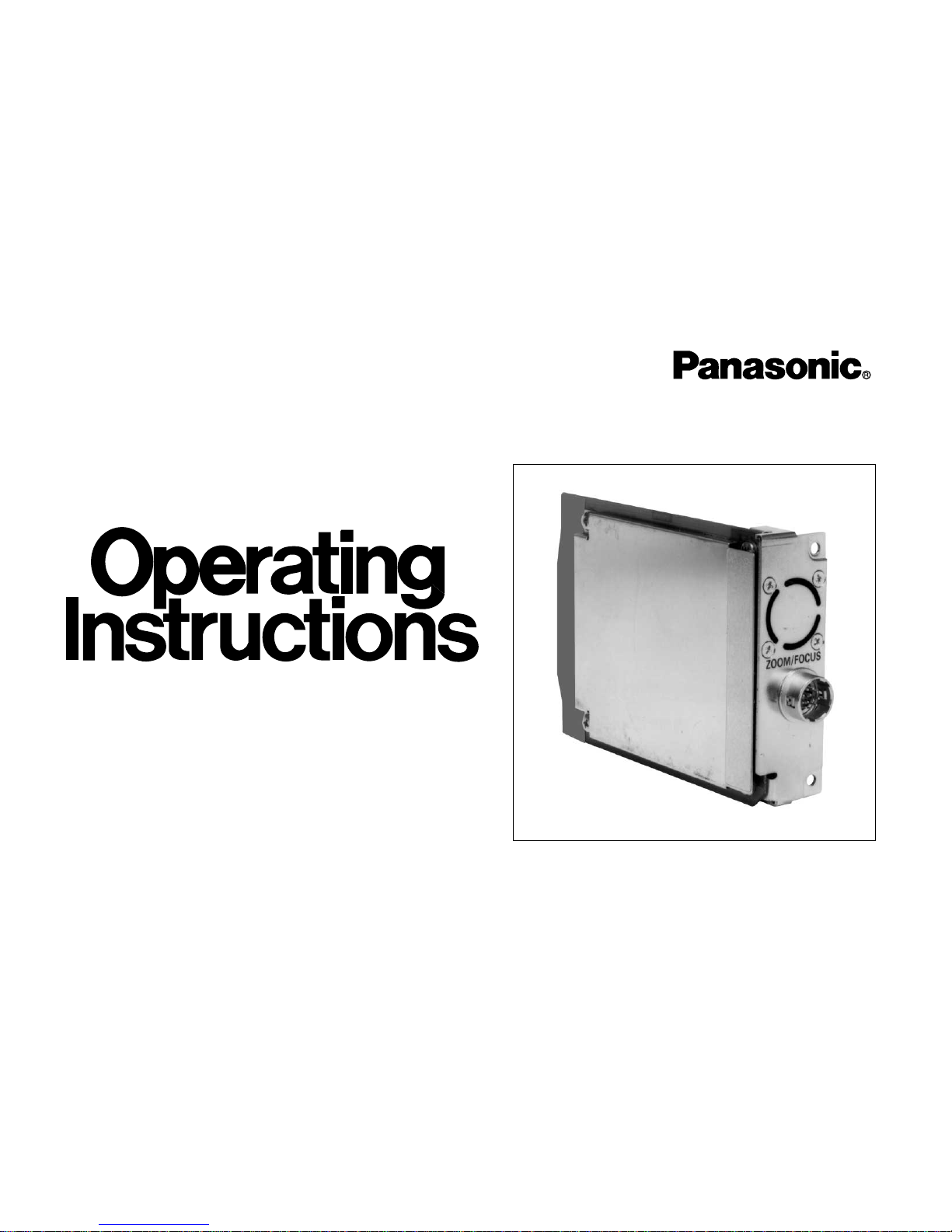

Panasonic AW-PB303 Manuale utente

Model No. AW-PB303

Before attempting to connect or operate this product,

please read these instructions completely

and save this manual for future use.

High-sensitivity Card

-2-

NOTE: This equipment has been tested and found to com-

ply with the limits for a Class A digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to pro-

vide reasonable protection against harmful interference

when the equipment is operated in a commercial environ-

ment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful

interference in which case the user will be required to cor-

rect the interference at his own expense.

This Class A digital apparatus complies with Canadian

ICES-003.

Cet appareil numérique de la classe A est conforme à la

norme NMB-003 du Canada.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead sym-

bol, within an equilateral triangle, is

intended to alert the user to the pres-

ence of uninsulated "dangerous voltage"

within the product's enclosure that may

be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilat-

eral triangle is intended to alert the user

to the presence of important operating

and maintenance (servicing) instructions

in the literature accompanying the appli-

ance.

The information marking of this product may be found on the

bottom of the unit.

The serial number of this product may be found on the bot-

tom of the unit.

You should note the serial number of this unit in the space

provided and retain this book as a permanent record of your

purchase to aid identification in the event of theft.

Model No.

Serial No.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER SER-

VICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PER-

SONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

SA 1965

SA 1966

For U.S.A

For CANADA

-3-

CONTENTS

WARNING/CAUTION FOR SAFETY ........................................................................................................................................ 4

PREFACE ................................................................................................................................................................................ 5

PRECAUTIONS ....................................................................................................................................................................... 5

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ................................................................................................. 6

MOUNTING ............................................................................................................................................................................ 7

CONNECTION ........................................................................................................................................................................ 9

OPERATING PROCEDURES .................................................................................................................................................. 11

MENU ITEM SETTING ............................................................................................................................................................ 12

APPEARANCE ........................................................................................................................................................................ 16

SPECIFICATIONS ................................................................................................................................................................... 17

STANDARD ACCESSORIES ................................................................................................................................................... 17

-4-

WARNING/CAUTION FOR SAFETY

WARNING

• Refer all servicing to qualified personnel

To reduce the risk of electric shock, don't remove

cover or back, unless you are a qualified personnel.

Refer all mountings, connections, servicing to quali-

fied service personnel.

• No water or moisture inside

Do not let water or moisture into the product, or

expose it to moisture, to prevent a fire and electric

shock.

• If you see smoke or smell an odor from the product,

if water or other foreign matter gets inside, if it is

damaged by dropping, or if you find anything

wrong with it, immediately stop using it.

• Do not disassemble or modify the product to

prevent a fire and electric shock.

CAUTION

• Do not drop the product, do not expose it to strong

shock, or do not step on it, to prevent a fire and

injuries.

• Do not install the product at a place full of moisture

and dust, which may cause a fire and electric

shock.

• Do not cover the port or otherwise block ventilation

during operation. Internal heat buildup can cause a

fire.

-5-

Camera sensitivity can be increased by up to 100 times

by inserting the high-sensitivity card AW-PB303 into a

convertible camera, AW-E300, for example, because its

CCD storage (slow shutter) raises camera sensitivity.

The card also permits zoom and focus control from a

remote control box, WV-CB550, for example.

PREFACE

PRECAUTIONS

• Power Off Before Connecting or Disconnecting

Cables

Before plugging or unplugging the cables, be sure

to switch power off.

• Handle Carefully.

Do not drop the product, or subject it to strong

shock or vibration. This is important to prevent trou-

ble.

• Avoid Humidity and Dust.

Avoid using the product at a humid, dusty place

because much humidity and dust will cause dam-

age to the parts inside.

• Operating Temperature Range

Avoid using the product at a cold place below

–10°C or at a hot place above +45°C because

extremely low or high temperature will adversely

affect the parts inside.

• Cooling fan

There is a cooling fan in the card. It is an expend-

able part, and should be replaced with a new one

about every 50,000 hours. (Whenever fan replace-

ment is necessary, be sure to ask the store where

you purchased the card to do it for you.)

ZOOM/FOCUS connector

This is a standard lens input terminal with a zoom/focus

remote function.

If you are using a Panasonic pan/tilt head (AW-PH300),

connect the remote cable to the LENS I/F connector on

the pan/tilt head, not to the ZOOM/FOCUS connector.

Cooling fan (internal) ventilating port

ZOOM/FOCUS

•Do not cover the port or otherwise block

ventilation during operation.

Internal heat buildup can cause a fire.

•The fan has a service life of about 50,000 hours.

(at a room temperature of 25°C) Replace the fan

that has come to the end of its service life.

(If the fan is used at a room temperature of 35°C,

replace it about 30% sooner.)

Whenever fan replacement is necessary, be sure to

ask the store where you purchased the set.

-6-

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

-7-

MOUNTING

• Be sure to ask your store, where you purchased

the product, for mounting.

• Disconnect the camera power connector before

mounting.

• Before handling the card, touch a metal part of

the camera to discharge the static from the

human body.

An anti-static wrist strap is recommended for

added safety.

If you touch the card while you are still charged

with static, it may cause trouble.

• Keep the metal parts of the card free of contact

with other metal parts.

(1) Switch the camera off, and disconnect the power

connector and other cables from the camera.

(2) Loosen the four screws on the rear of the camera

and remove the rear panel.

(3) Loosen the two screws for the option card slot and

remove the cover.

(4) Insert the High-sensitivity card along the guide rail

at the bottom of the camera and the tab above.

Insert it securely all the way.

(5) Tighten the two card setscrews securely.

If you have lost the screws, use the screws (6 mm

long) supplied as accessories.

(6) Fasten the rear panel with the four screws.

If you have lost the screws, use the screws (8 mm

long) supplied as accessories.

(7) Plug the cables back as necessary, connect the

power connector, then switch power on.

CAUTION

-8-

Option card slot cover

Rear panel

High-sensitivity card

Card setscrews (6 mm)

Rear panel

setscrews (8 mm)

Panasonic

-9-

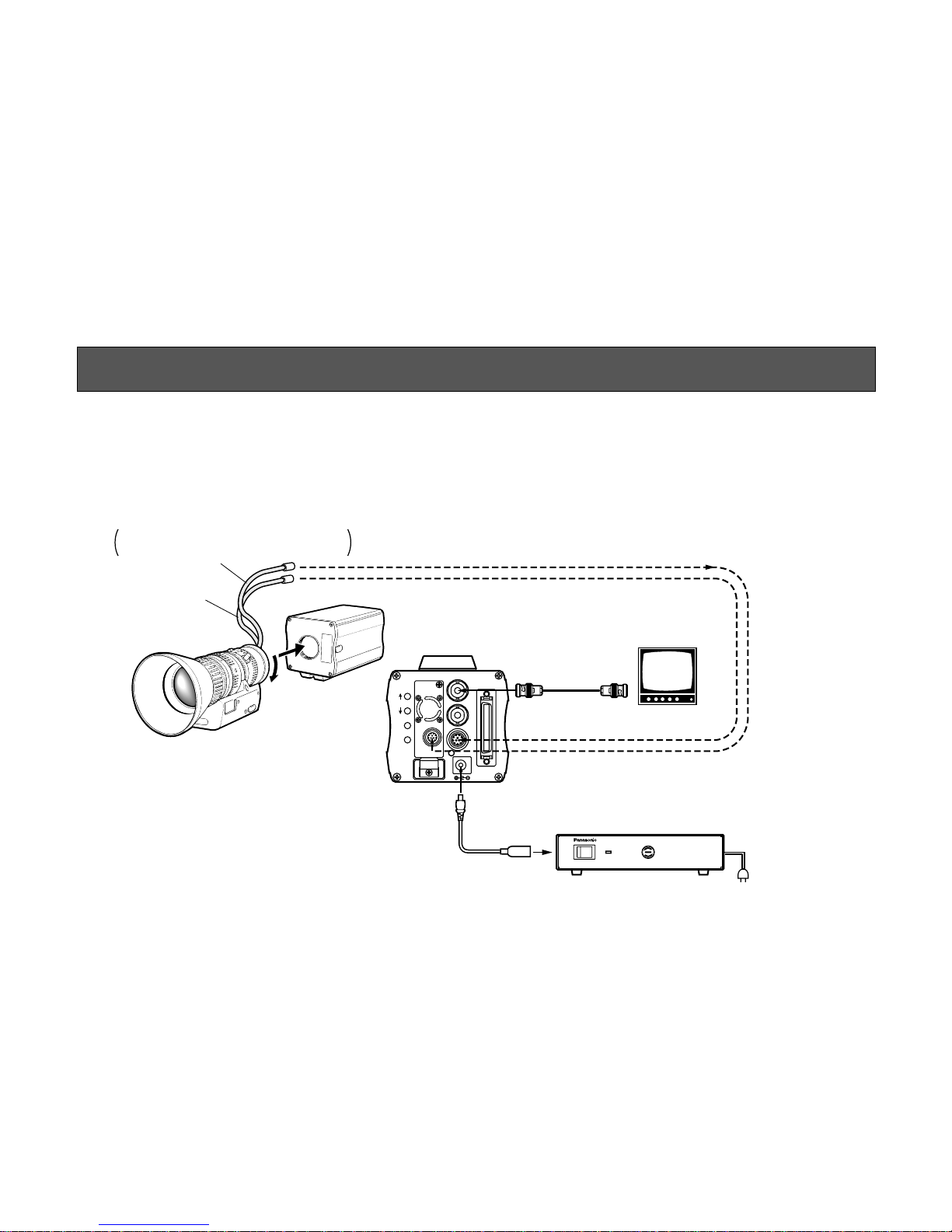

CONNECTION

• Before cable connection, switch power off.

• Use the AC adaptor AW-PS505 for power supply.

• For details on connecting individual devices, refer to the respective operating instructions.

–

ITEM/AWC

YES/ABC

NO/BAR

OPTION CARD VIDEO OUT

I/F REMOTE

G/L IN

IRIS

DC12V IN

ZOOM/FOCUS

POWER

OFF

POWER

O I

FUSE(POWER)

125V 3.15A

FUSE

AC Adaptor

AW-

PS505

AC Adaptor AW-PS505

DC Power Cable

AW-CA4T1

Zoom Lens Camera

Coaxial cable

To IRIS connector

To ZOOM/FOCUS connector

Video monitor/

VTR etc.

Camera Cable

Remote Cable (for ZOOM/FOCUS control)

When using a pan/tilt head, connect the

remote cable to the pan/tilt head. To ZOOM/FOCUS connector on the card AW-PB303 or

to LENS I/F connector on pan/tilt head

120V AC

60Hz

-10-

• In case of using a remote control box WV-CB550

• Connect the remote control box to the camera with three coaxial cables (video signal, G/L signal, control signal) (5C-2V

or equivalent, 300 m in maximum extension length).

POWER

OFF

POWER

O I

FUSE(POWER)

125V 3.15A

FUSE

AC Adaptor

AW-

PS505

DC Power Cable

AW-CA4T1

AC Adaptor AW-PS505

VIDEO IN signal

G/L OUT signal

AW-CA50T BNC

G/L IN signal

DC12V

Signal generator

Video OUT signal

Vector scope

Waveform monitor

Color monitor

120V AC

60Hz

DC12V IN

G/L

VIDEO

OUT

CONTROL

IN/OUT

VIDEO

G/L

OUT

CAMERA MONITOR

–

ITEM/AWC

YES/ABC

NO/BAR

OPTION CARD VIDEO OUT

I/F REMOTE

G/L IN

IRIS

DC12V IN

ZOOM/FOCUS

Remote Control Box

WV-CB550
